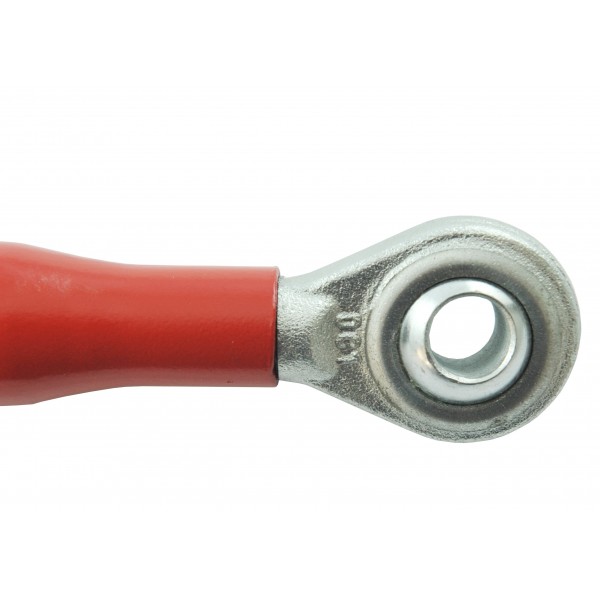

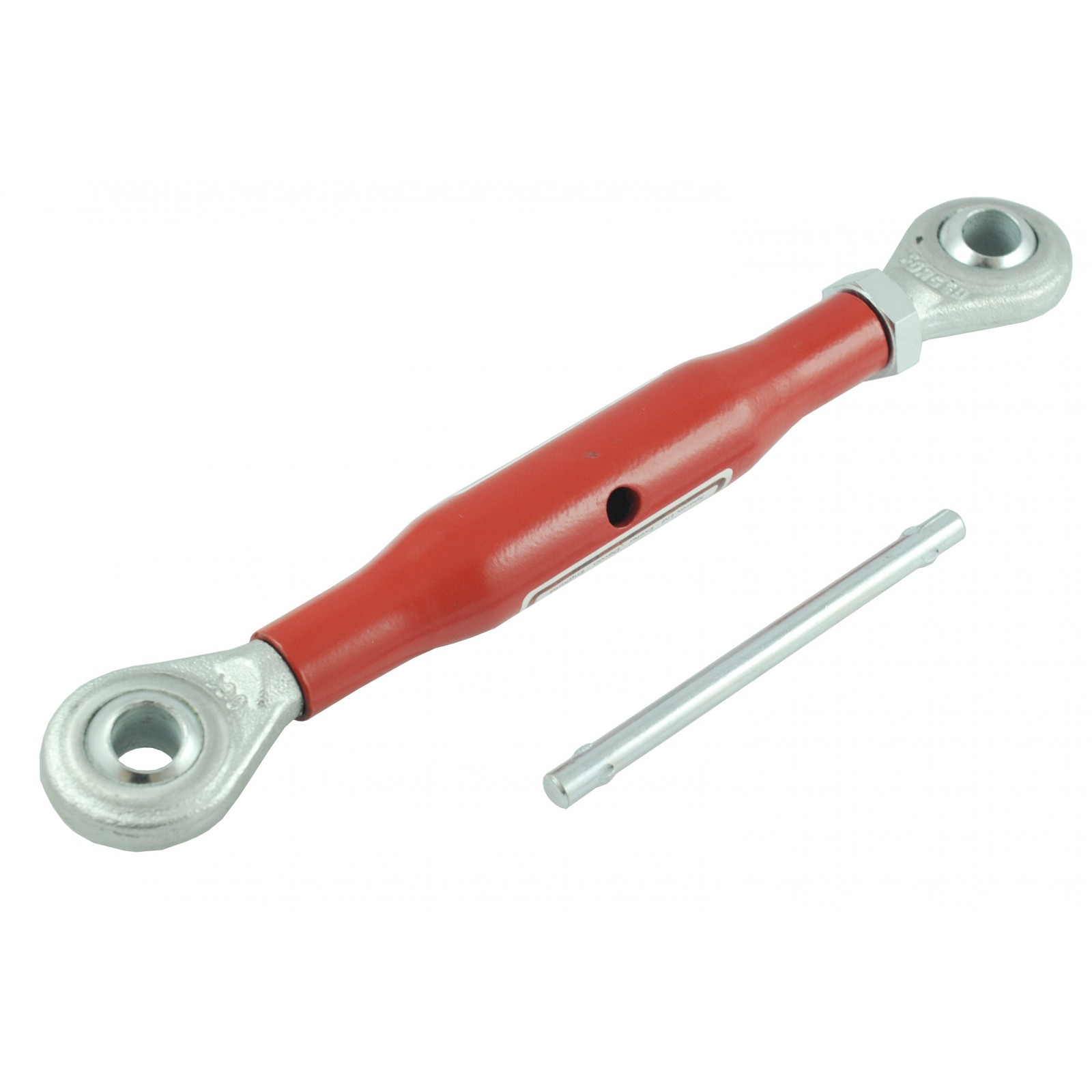

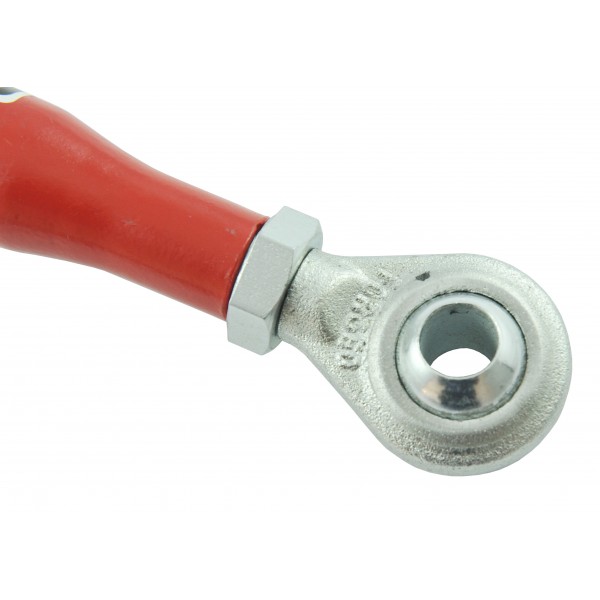

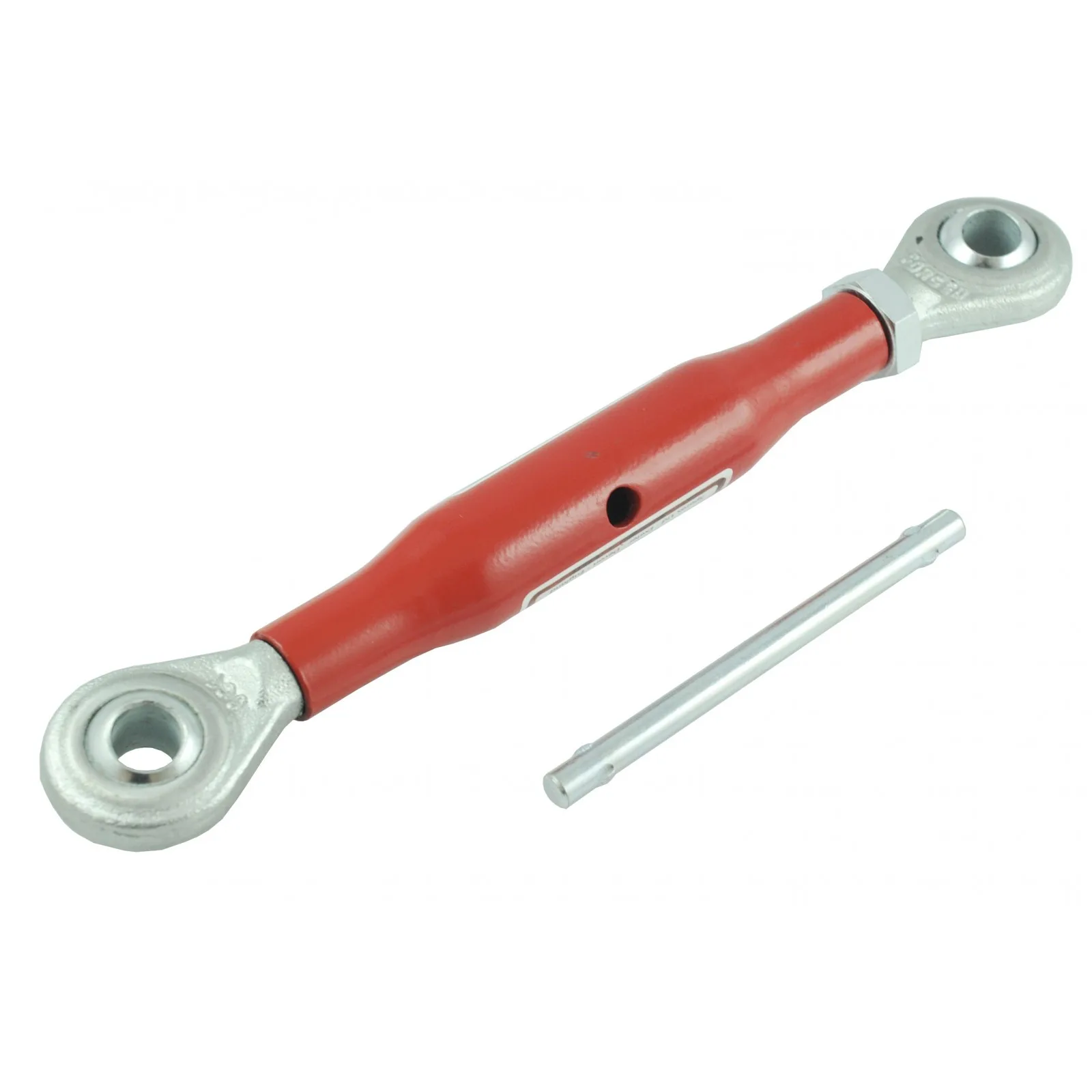

Turnbuckle 7 1/2" Cat 0/0, 280 mm ball/ball

A turnbuckle , also known as a turnbuckle or screw bolt , is a special type of screw used in a variety of applications, including construction and mechanics. A turnbuckle is characterized by its thread, which is usually straight, and its ends can have various shapes, including round heads or star-shaped heads. Compared to standard screws, a turnbuckle can have more specific shapes and sizes, adapted to specific applications. Usually made of steel, stainless steel, or other corrosion and abrasion resistant materials, depending on the application and the conditions in which it will be used. Used to connect or fasten various components, including in building structures, machines, vehicles, as well as in regulating systems, such as in drive systems or hydraulic devices.

Turnbuckle 7 1/2" Cat 0/0, 280 mm ball/ball.

Dimensions:

• Total length: 330 mm.
• Maximum length from/to center of holes: 393 mm.
• Length from/to centre of holes: 280 mm (with screws tightened to maximum).
• Pin hole diameter: 16.30 mm.
• Screw diameter: 34 mm.
• Length given in inches (7 1/2 inches) is for the screw measured without the ends and screws. (center piece of the screw).
• Screw thread 3/4" (inch).
• Pin sleeve width: 25 mm.
• Ball diameter: 45 mm.
• For tractors up to 30HP.
• Screwdriver key included: 140 x 9.40 mm.
• Three-point linkage cat. 0/0.
• Index: p.4418

Warehouse: (M01:F85:S03)

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
