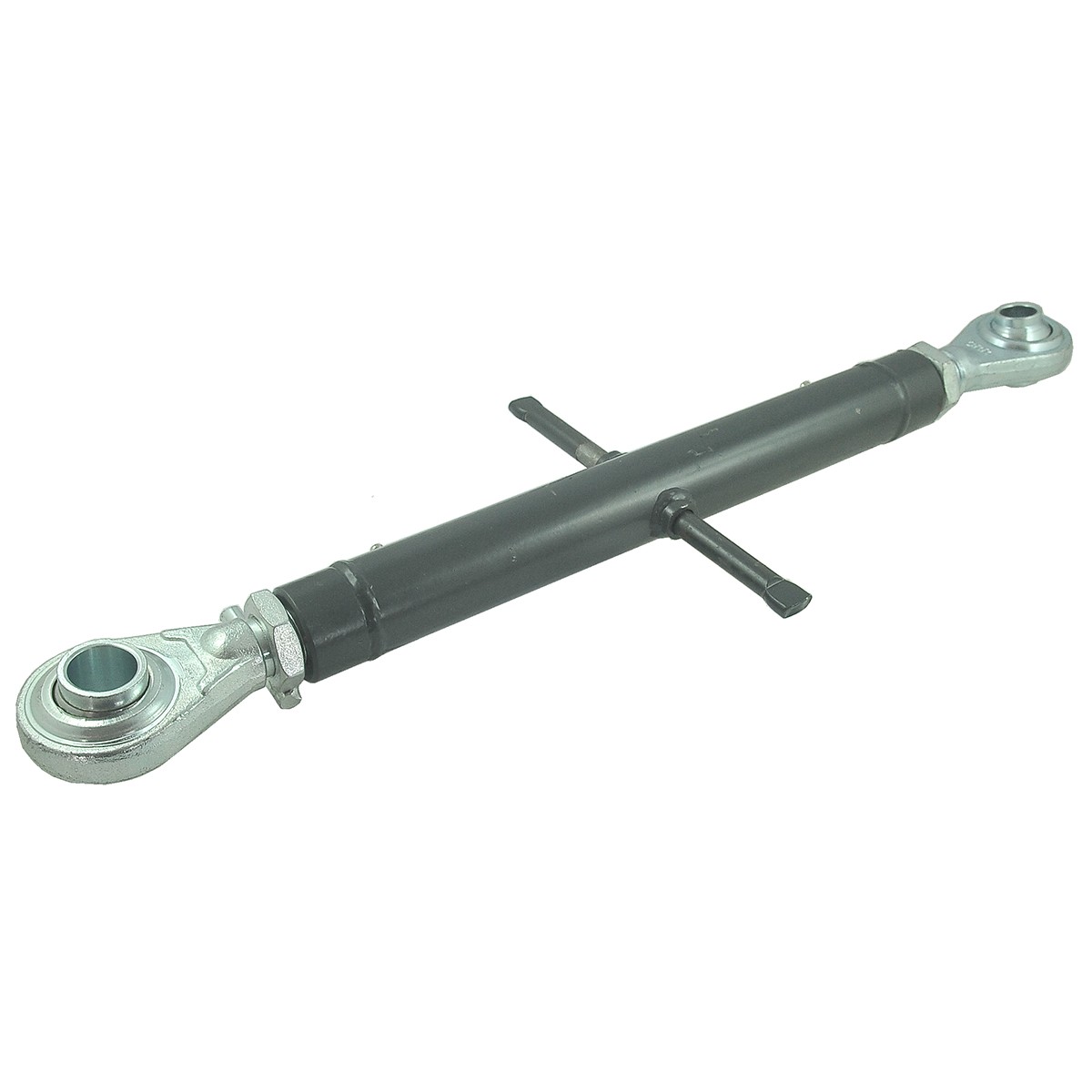

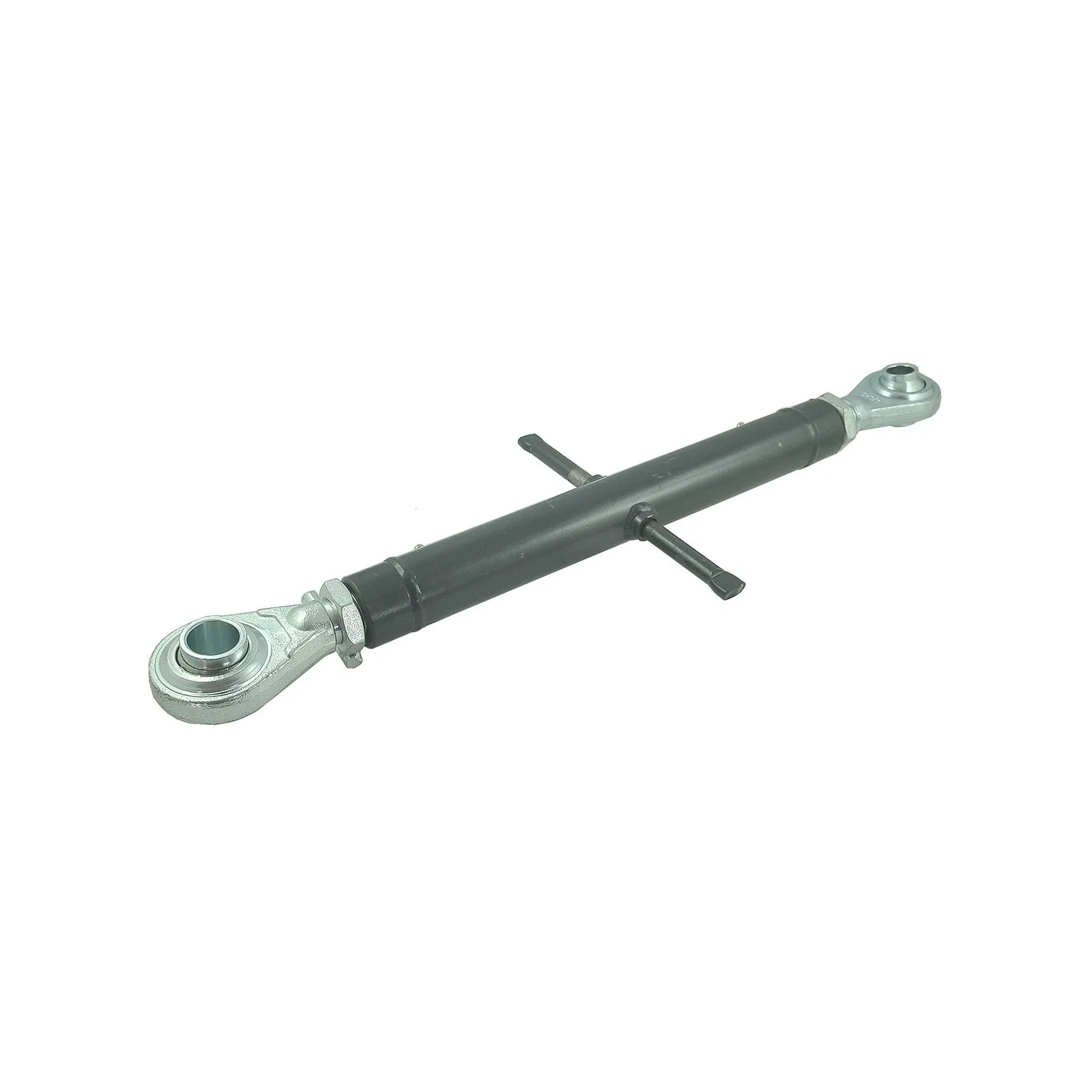

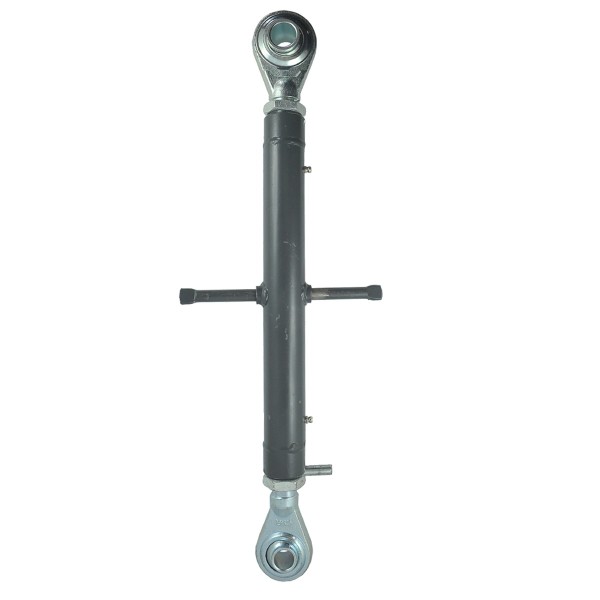

Turnbuckle / KATI / Cat II / 520-680 mm / 14" / Kubota M5040 / M6040 / M7040 / M8540 / 6-02-101-20

Turnbuckle Cat 1 and Cat 2 with a total length of 580 mm (minimum total length measured with fully tightened screws) and a pin hole diameter of 19 mm (TUZ KATI), 26 mm (TUZ Cat II) for Kubota tractors of the following series: Kubota M5040, Kubota M6040, Kubota M7040, Kubota M8540 and others..

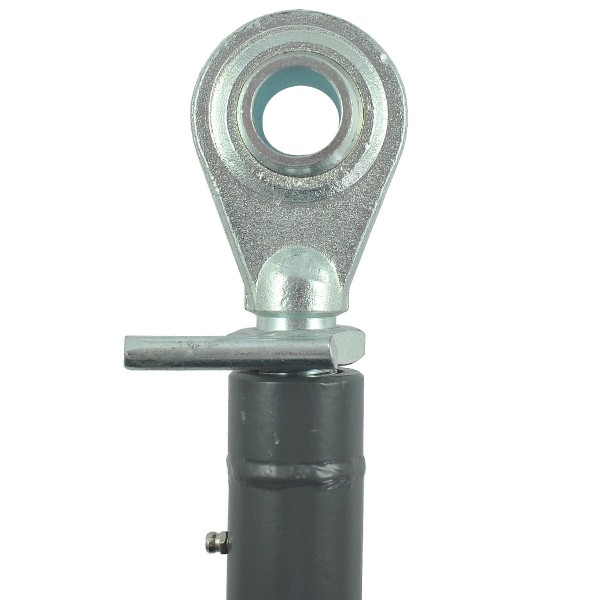

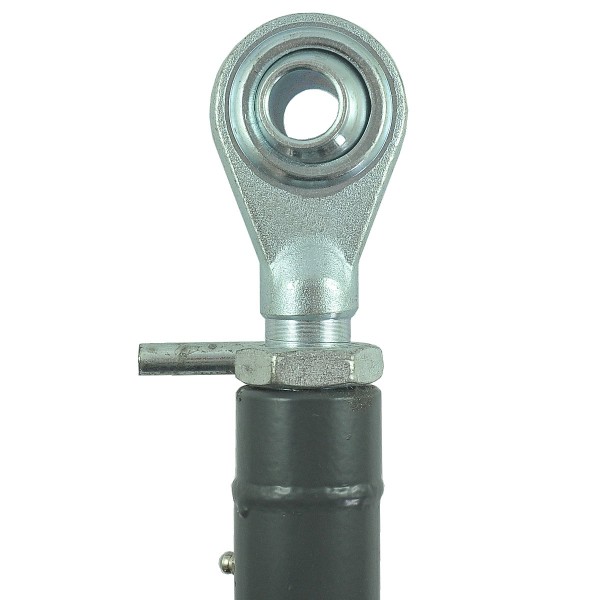

The three-point linkage turnbuckle used in agriculture is a tractor element, specifically an element of the rear three-point linkage ( %C5% 82ad+zawieszenia+TUZ">Three-point rear linkage ) and is used to connect the tractor to a machine or agricultural implement. The pipe tensioning screw, also known as a connector, is made of three elements, i.e. a body and two screws, the threads of which are directed opposite to each other. The turnbuckle and are terminated with spherical swinging holes, sleeves for locking pins .

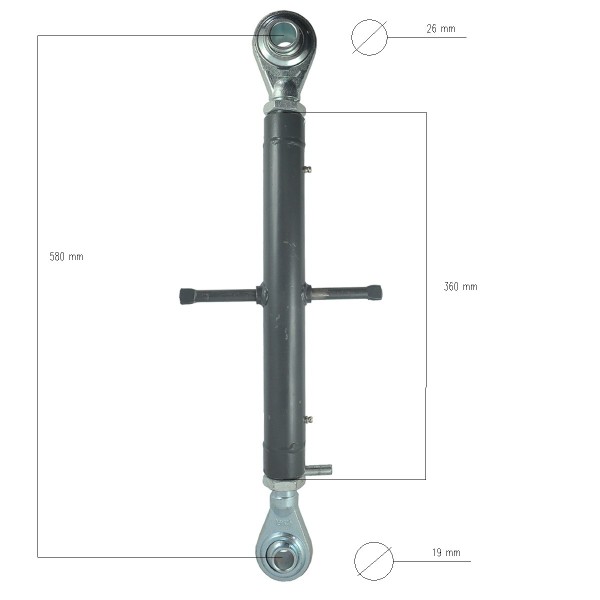

Dimensions :

• length: 360 mm (14 inch body),
• total length: 580 mm (minimum total length measured with fully tightened screws),
• working length: minimum 520 mm, maximum 680 mm,
• thread: M24 x 3,
• diameter of pin holes: 19 mm (TUZ KATI), 26 mm (TUZ Cat II),
• pin mounting width: 40 (TUZ KATI), 44 mm (TUZ Cat II),
• head diameter: 57 mm (TUZ KATI), 67 mm (TUZ Cat II),
• original part numbers: 3C001-91700,
• part numbers: 6-02-101-20.

Tractor models :

Kubota :

• Kubota M5040,
• Kubota M6040,
• Kubota M7040,
• Kubota M8540.

The agricultural turnbuckle is made of a stainless metal alloy resistant to high stress forces and is resistant to harmful weather conditions. The oppositely directed threads of the turnbuckle cause that by turning the body (middle element), depending on the direction of rotation, the screw tightens or acts as an expansion.

Warehouse:
K13/48

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
