Turnbuckle / Cat II / M27 / 520-760 mm / Ursus C-360

1020151000
$34.56
Tax included PL 23%

28,1 netto

  • Dostępność (9 Quantity): stock

Do you have any questions?

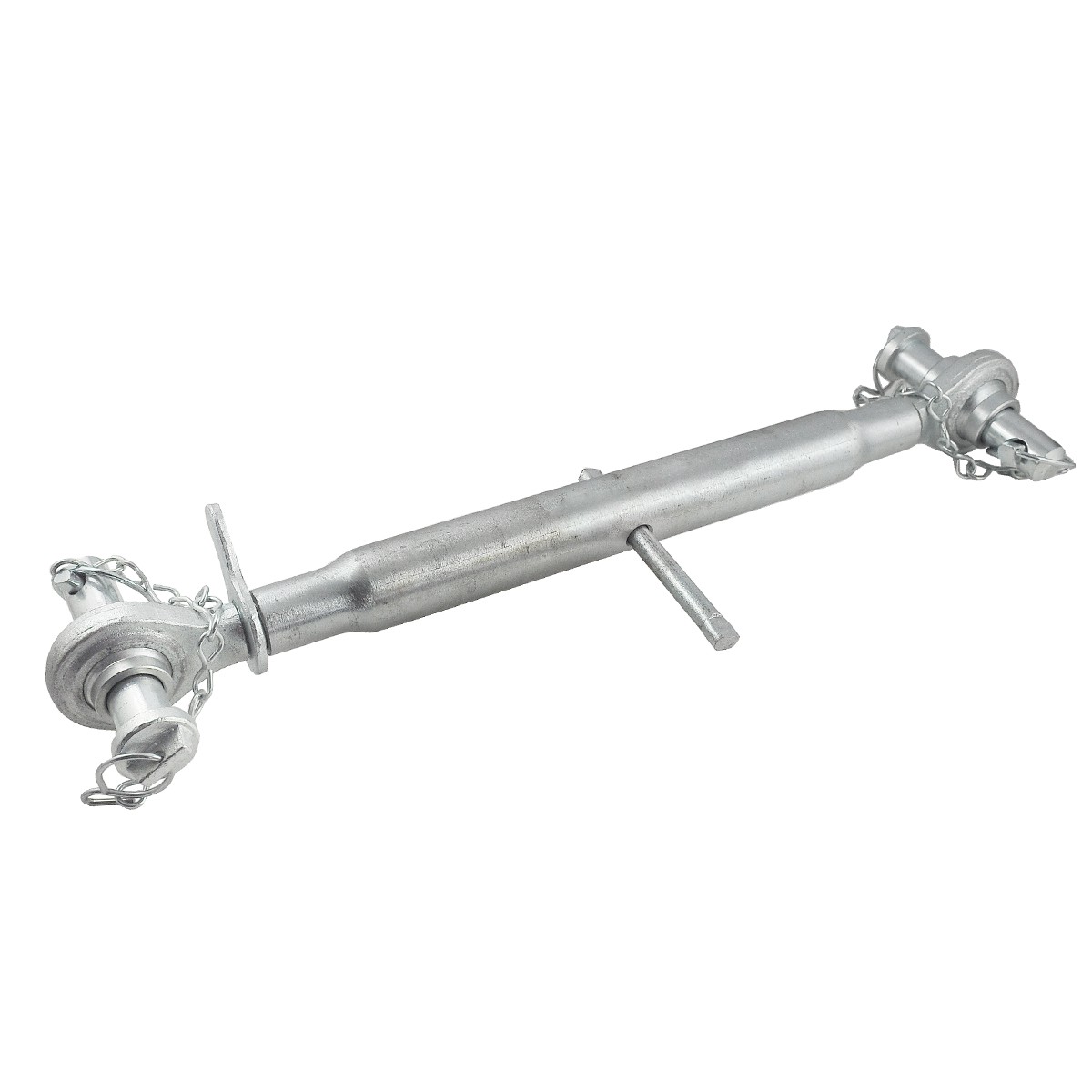

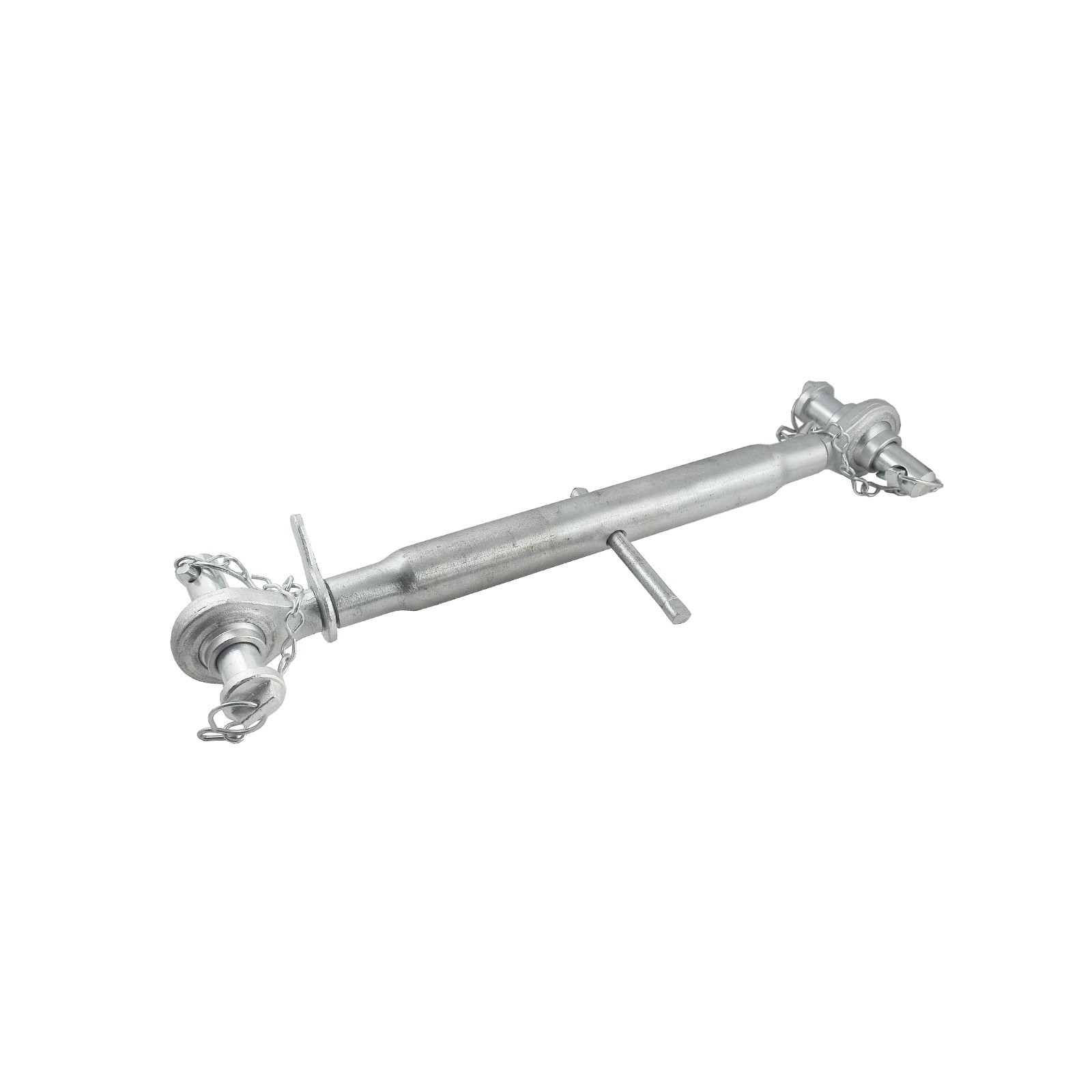

Turnbuckle / Cat II / M27 / 520-760 mm / Ursus C-360

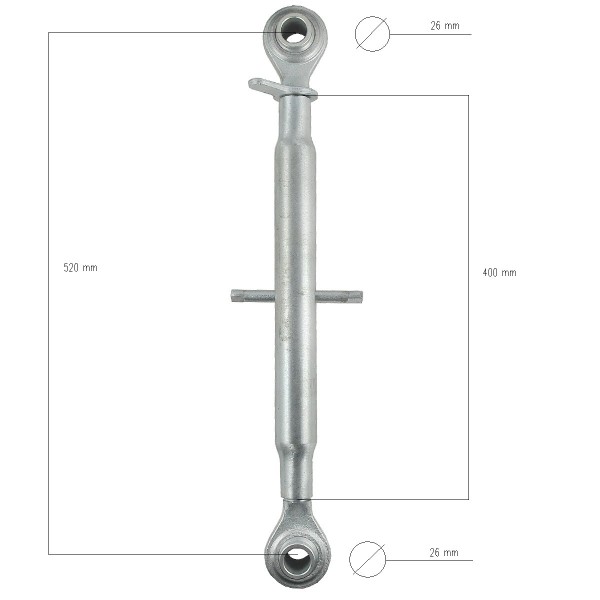

Turnbuckle Cat 2 with a total length of 580 mm (minimum total length measured with fully tightened screws) and a pin hole diameter of 26 mm (TUZ Cat II) for Ursus tractors of the Ursus C-360 series and others.

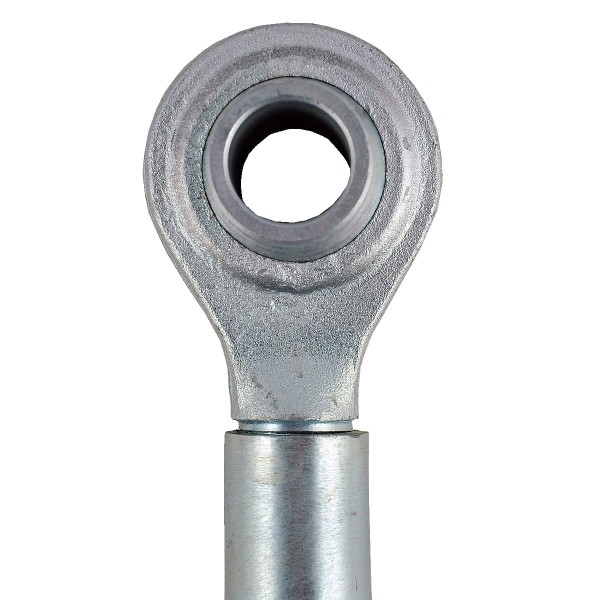

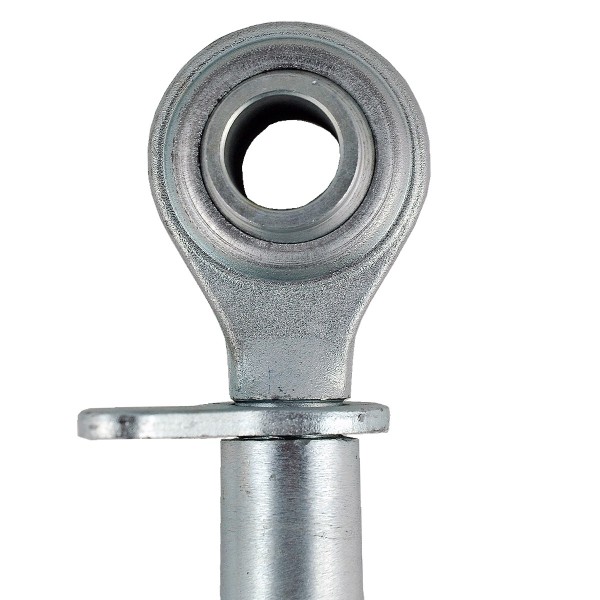

The TUZ turnbuckle used in agriculture is a tractor element, and more precisely an element of the rear hydraulic lift TUZ ( TUZ - three-point rear suspension system ) and is used to connect the tractor to a machine or agricultural equipment. The pipe tensioning screw, also called a connector, is made of three elements, i.e. a body and two screws, the threads of which are directed opposite to each other. Turnbuckle and ended with spherical swinging holes, sleeves for locking pins .

Dimensions :

  • length: 400 mm (body),
  • total length: 580 mm (minimum total length measured with fully tightened screws),
  • working length: minimum 520 mm, maximum 760 mm,
  • thread: M27 x 3,
  • diameter of pin holes: 26 mm (Cat II),
  • width of the sleeve for mounting pins: 50 mm (Cat II),
  • head diameter: 65 mm,
  • steel hardness: 52 - 58 HRC,
  • steel resistance: 490-630 (N/mm²),
  • pins in a set with a screw (2 pcs. 00178),
  • part numbers: 1020151000.

Tractor models :

Ursus :

  • Ursus C-360.

The agricultural turnbuckle is made of a stainless metal alloy resistant to high stress forces and is resistant to harmful weather conditions. The oppositely directed threads of the turnbuckle cause that by turning the body (middle element), depending on the direction of rotation, the screw tightens or acts as an expansion.

Warehouse:
 K13/37

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specification

Magazyn: K13/37
Condition
New
Production
Substitute
Parts
3-point linkage
Tractor models
Ursus C-360
NEXT DOOR
3 point
KAT I
Overall length (mm)
580
working length (mm)
520-760
Head diameter (mm)
65
Diameter of pin hole(s) (pins/pins / mm)
26
Hammer/knife/pin mounting width (a) (mm)
50
Thread
M27 x 3
Part number
1020151000
Minimum working length (mm)
520
Maximum working length (mm)
760
Body length (mm)
400
Twardość stali (HRC)
52 - 58 HRC
Odporność stali (N/mm²)
490-630 (N/mm²)
