Product description

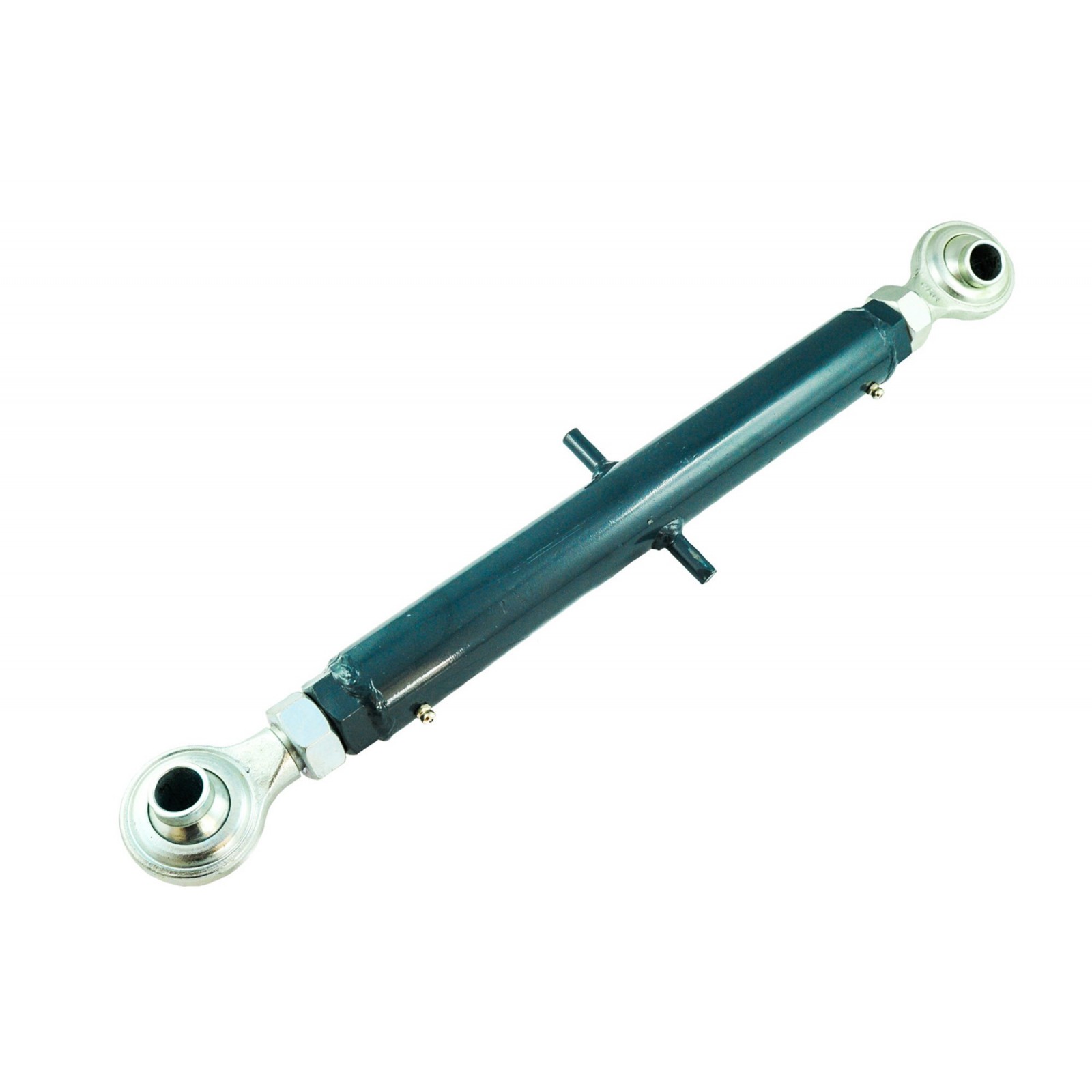

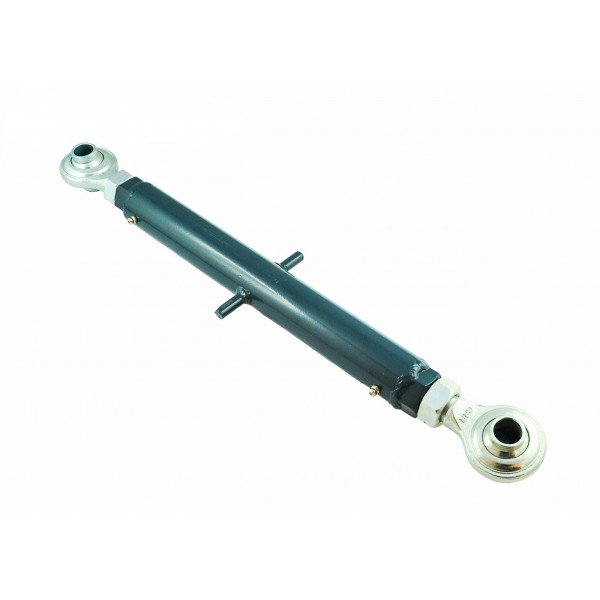

The 540 mm long, 14" thick turnbuckle is a solid and durable element used mainly in category 1 three-point linkage systems. Thanks to its precise workmanship and high-quality materials, it ensures stability and safety when working with various agricultural machines. It is a key component used in tractors and other agricultural equipment to adjust and secure components, which increases their functionality and efficiency.
Middle arm, high quality turnbuckle for Kubota, Yanmar, Iseki, Hinomoto and other tractors.
Dimensions:
- Total length: 540 mm.
- Length from/to centre of holes: 470 mm (with screws tightened to maximum).
- Pin hole diameter: 19.30 mm.
- Screw diameter: 42 mm.
- The length given in inches (14 inches) refers to the screw measured without the ends and screws. (gray middle part of the screw).
- Two calamites.
Magazine: M01:K66
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specifications
Podobne produkty
Reviews of Turnbuckle..
This product has no reviews yet.
We collect reviews from verified Customers after the purchase of the product.
Questions & Answers
Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?
User
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.
How to properly select and sharpen mower blades for a Japanese tractor?
User
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.
How to identify the correct V-belt size and how to care for it?
User
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
