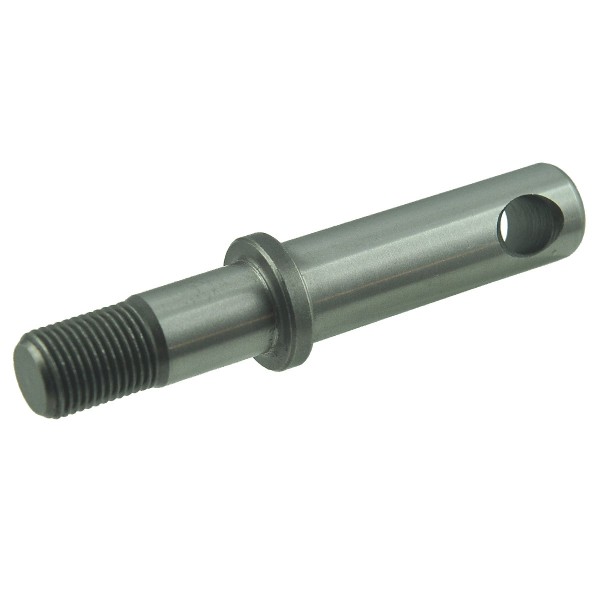

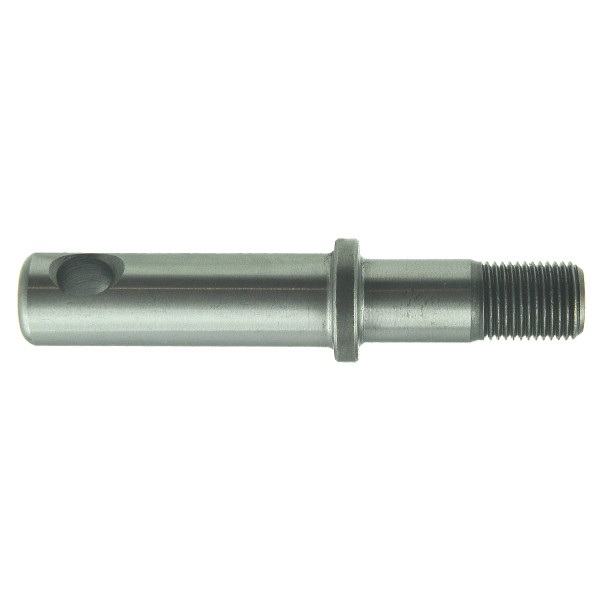

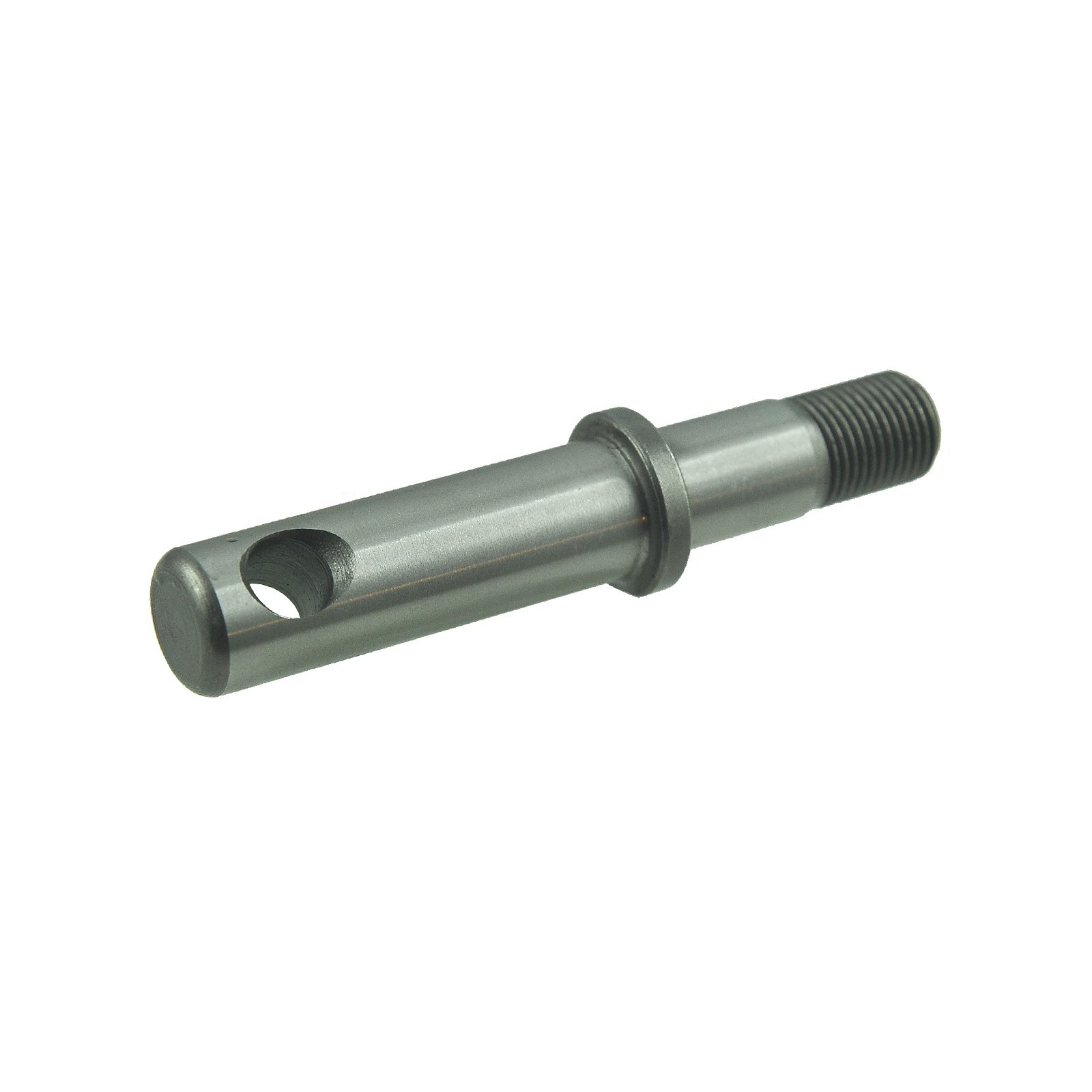

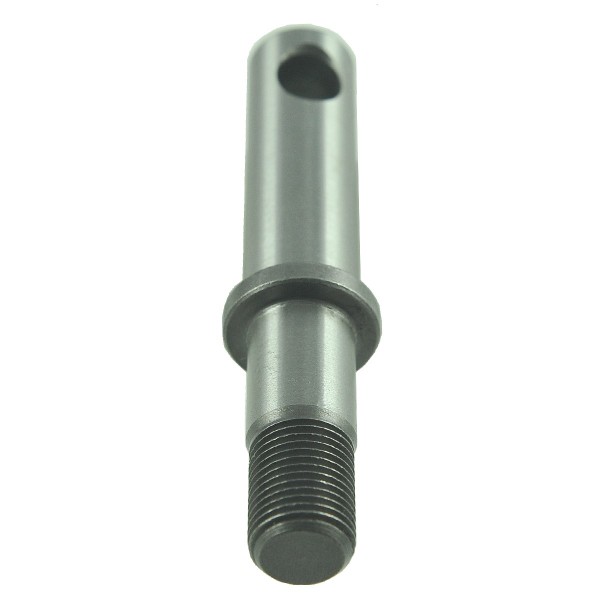

Three-point linkage pin CAT I / M16 / 19 x 112 mm / Kubota L1802/L2201/L2600/L2808/L3008/L3408 / 30442-37690
M16 pin of the upper arms of the 3-point linkage (locking pin 5-15-220-01, 34150-37640, S.23 , arm 5-02-113-05 , TC222-34610 (L2802/L3408), 5-02-113-10 (L2600), 5-02-113-07 , 38180-37610 (L1802/L2201, arm hanger 5-07-108-06 ) with a total length of 110 mm and a diameter of 19 mm for Kubota tractors of the Kubota L1802, Kubota L2201, Kubota L2600, Kubota L2800 series. Kubota L2808, Kubota L3008, Kubota L3301, Kubota L3400, Kubota L3408, Kubota L3608, Kubota L3901 , Kubota L4508, Kubota L4600 and others.
A pin is one of the most common ways to connect (not rigidly) elements, accessories or a set of parts. A pin connection is most often a cylinder made of a hard material resistant to damage and temperature, which, depending on the application, can be loosely or tightly fitted with a second element closing the connection, e.g. a shackle, a screw with a "U" type handle or a mounting plate and most often closed with a pin placed in the pin hole or a locking nut. We distinguish several types of pins, here are the most common: headless, nose with a cylindrical head or with a threaded pin.
Dimensions :
- total length: 112 mm,
- working length: 45 mm,
- diameter: 19 mm,
- mounting width: 24 mm,
- thread: M16 x 1.5,
- original part numbers: -,
- reference numbers: 5-25-102-21 , TC432-37690,
- part numbers: 30442-37690.
Tractor models :
Kubota :
- Kubota L1802,
- Kubota L2201,
- Kubota L2600,
- Kubota L2800,
- Kubota L2808,
- Kubota L3008,
- Kubota L3301,
- Kubota L3400,
- Kubota L3408,
- Kubota L3608,
- Kubota L3901,
- Kubota L4508,
- Kubota L4600.
Warehouse :
M01:A16:S04
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specification
Magazyn: M01:A16:S04
State
New
Production
Substitute
Parts
3-point linkage
Tractor models
- Kubota L2201
- Kubota L2600
- Kubota L2800
Kubota L1802
Kubota L2808
Kubota L3008
Kubota L3301
Kubota L3400
Kubota L3408
Kubota L3608
Kubota L3901
Kubota L4508
Kubota L4600
Diameter (mm)
19
Overall length (mm)
110
working length (mm)
45
Hole diameter (mm)
24
Thread
M16x1,5
Comparison numbers
TC432-37690
Original Part Number (OEM)
30442-37690
Part number
5-25-102-21
Category
1
