Available
Others in the offer of this manufacturer >
State
New
Production
Substitute
Parts
3-point linkage
Tractor models
- Kubota L2201
Kubota L1802
Number of teeth (pcs/T-teeth)
31T
Inner Diameter (mm)
37.75 / 40 (31T)
Overall length (mm)
275
Go to full specification >
wishlist

3-point linkage arm Cat I / R / 31T / 275 mm / Kubota L1802/L2201 / 38180-37610 / 5-02-113-07

5-02-113-07
zł165.00
Tax included PL 23%

134,15 netto

  • Dostępność (1 Quantity): stock
wishlist

Do you have any questions?

3-point linkage arm Cat I / R / 31T / 275 mm / Kubota L1802/L2201 / 38180-37610 / 5-02-113-07

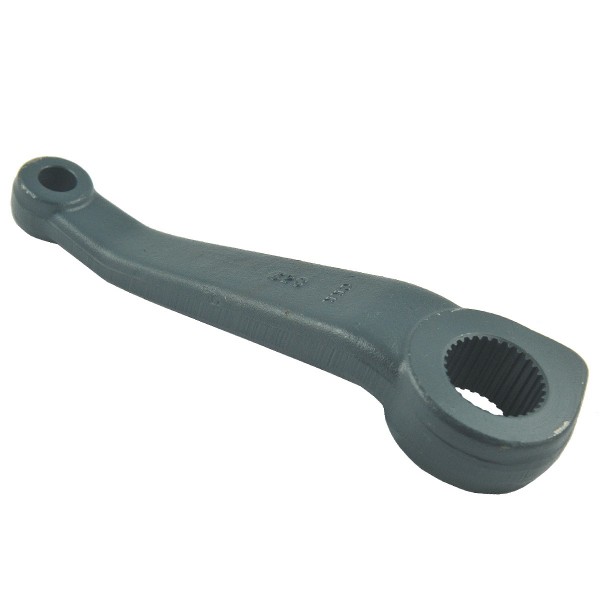

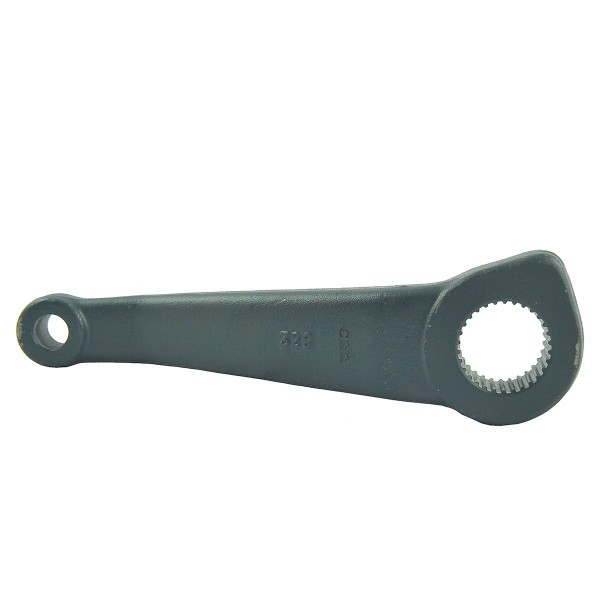

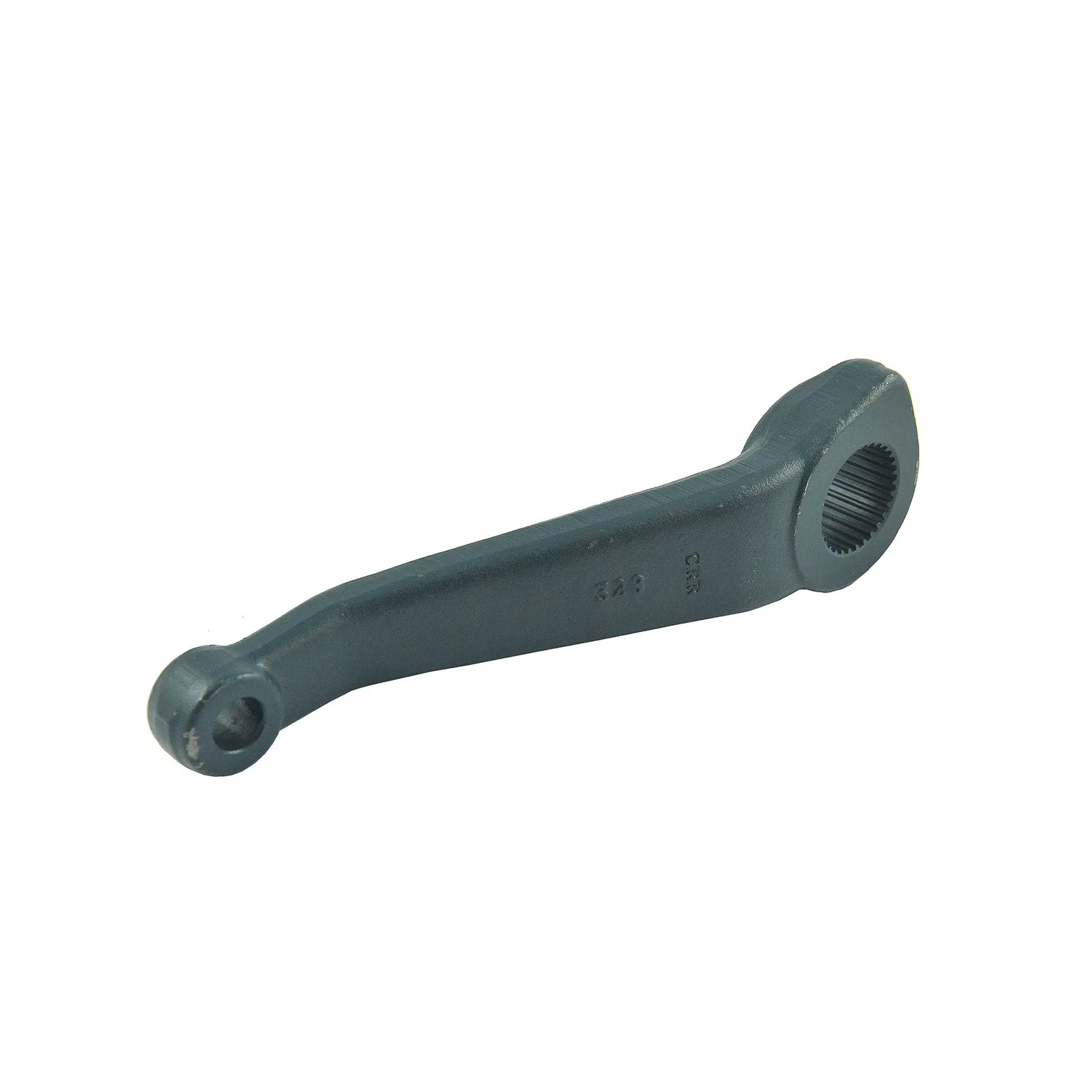

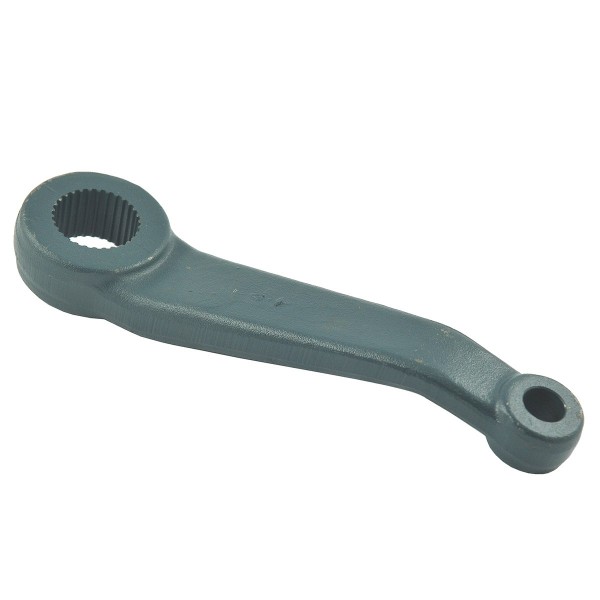

31T lifting arm, right upper arm of the three-point rear linkage suspension system (pin 5-25-102-21 , arm on the left side 5-02-113-06 , shaft 5-18-112-09 , 38180-3743-0), with a total length of 275 mm, for Kubota tractors of the Kubota L1802, Kubota L2201 series and others.

The 275 mm long TUZ lift arm of the category I is a solid component used in the lifting systems of Kubota tractors, such as the L1802 and L2201 models. Made of durable materials, it ensures durability and resistance to intensive use. Its precise workmanship guarantees trouble-free cooperation with other TUZ parts, which makes it an essential element for the proper functioning of the lifting mechanism in agricultural machines.

Dimensions :

  • total length: 275 mm,
  • pin hole diameter: 17 mm,
  • inside diameter (31T): 40 mm (measured between cutter teeth), 37.75 mm (measured between cutter teeth),
  • number of teeth: 31T,
  • original part numbers: 38180-37610,
  • part numbers: 5-02-113-07.

Tractor models :

Kubota :

  • Kubota L1802,
  • Kubota L2201.

Right side arm (R) when viewed from the front of the tractor

Warehouse :
M01:F75/F85

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specification

Magazyn: M01:F75/F85
State
New
Production
Substitute
Parts
3-point linkage
Tractor models
- Kubota L2201
Kubota L1802
Number of teeth (pcs/T-teeth)
31T
Inner Diameter (mm)
37.75 / 40 (31T)
Overall length (mm)
275
Pin hole diameter (pins/mm)
17
Original Part Number (OEM)
38180-37610
Part number
5-02-113-07
Category
1
