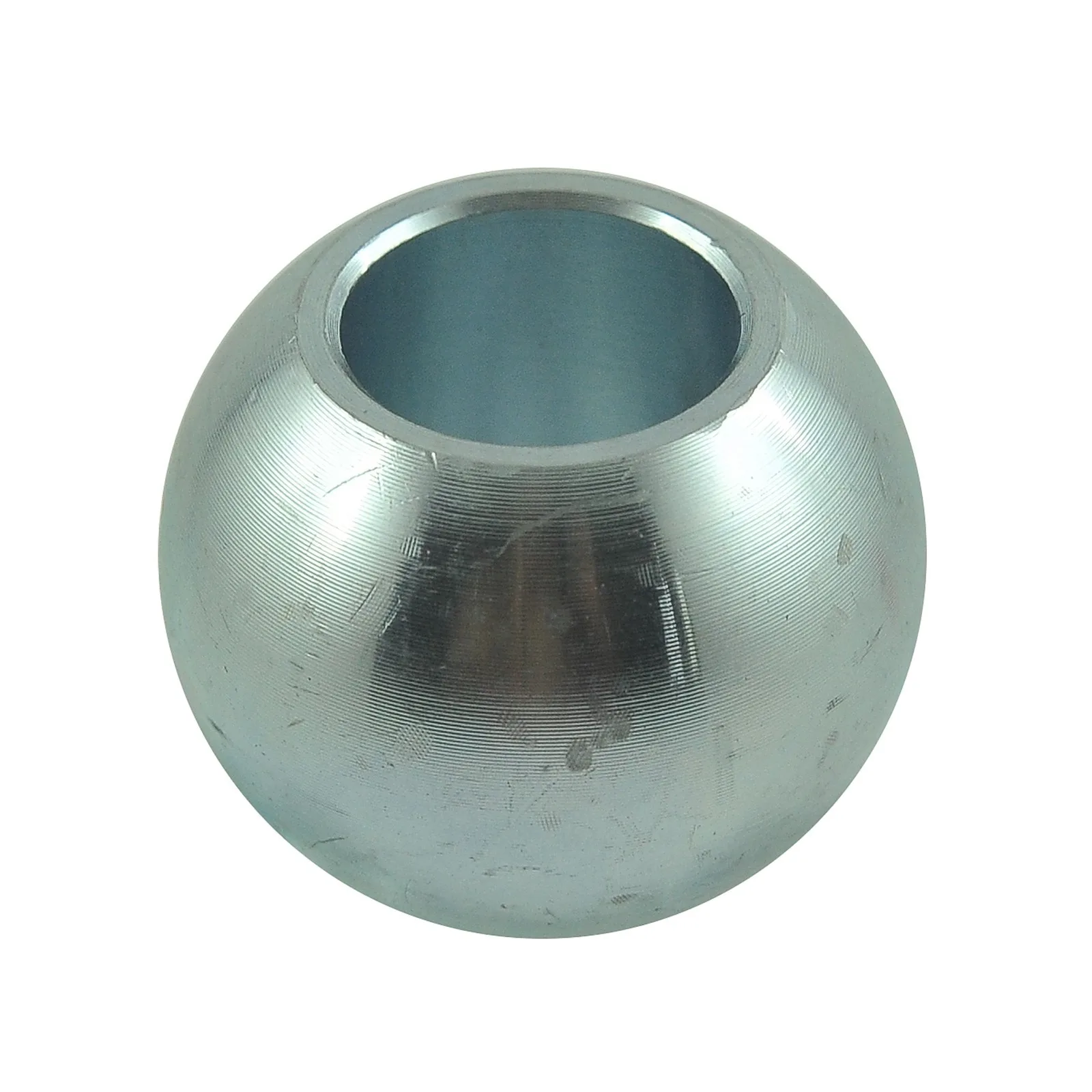

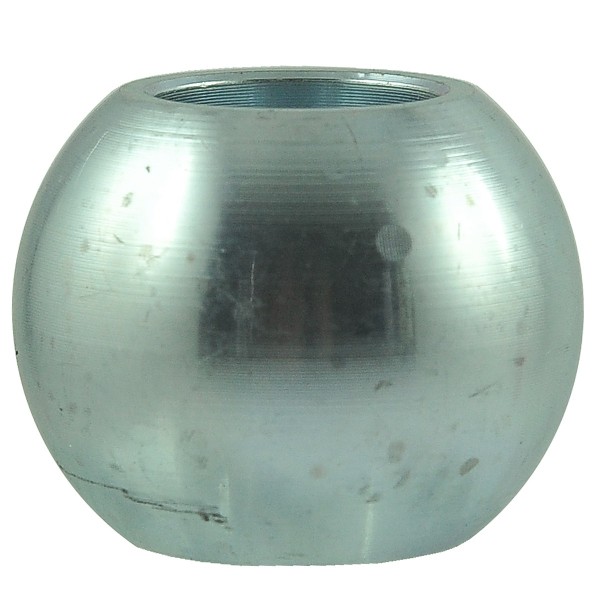

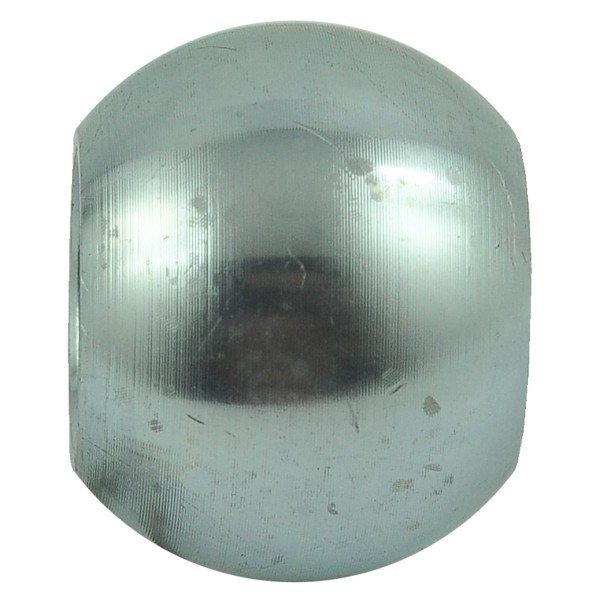

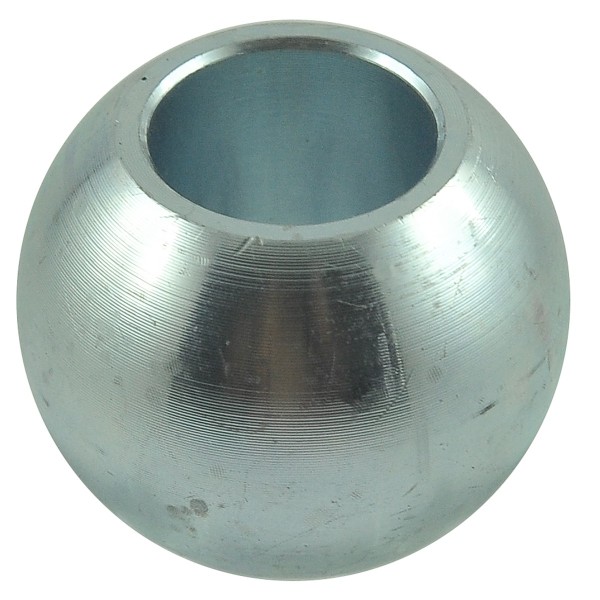

Ball for linkage links / 22 x 45 x 35 mm / Cat I / S.1366

The ball of the lower arms of the three-point linkage has an outer diameter of 45 mm , an inner diameter of 22 mm and a height of 35 mm .

The ball for the links is an element that is used in both the front and rear three-point suspension system of the three-point linkage for the hooks of the lower beams and the upper links of the so-called turnbuckle. The swing end of the turnbuckle is the end of the turnbuckle of the three-point linkage used in agriculture as the upper connector of the tractor and agricultural machine or three-point linkage equipment. The turnbuckle is an element also called a connector and is made of three elements, i.e. a body and two screws with ball ends , the threads of which are directed opposite to each other.

Dimensions :

• outer diameter: 45 mm,
• inner diameter: 22 mm,
• height: 35 mm,
• weight: 0.200 g,
• part numbers: S.1366.

The ball end , swinging with a sleeve for the hitch pin, is available in various sizes from 19 to even 50 mm. The upper link of the three-point linkage may have a hook-shaped ending, in which the swinging ball is locked with a special latching lock.

Magazine : M01:B16

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
