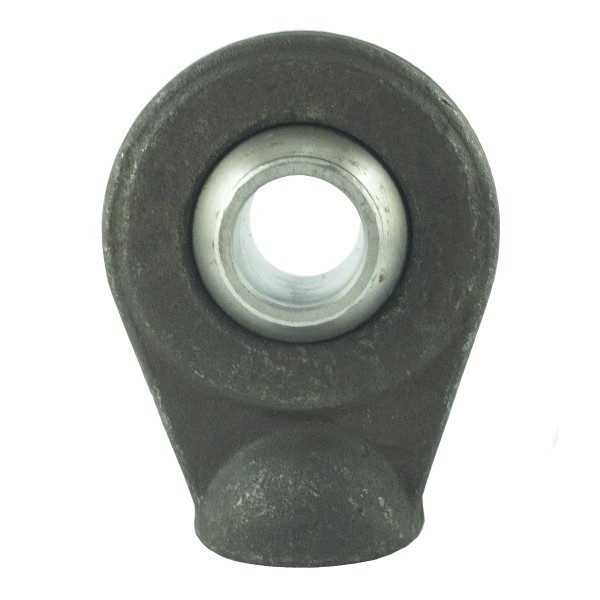

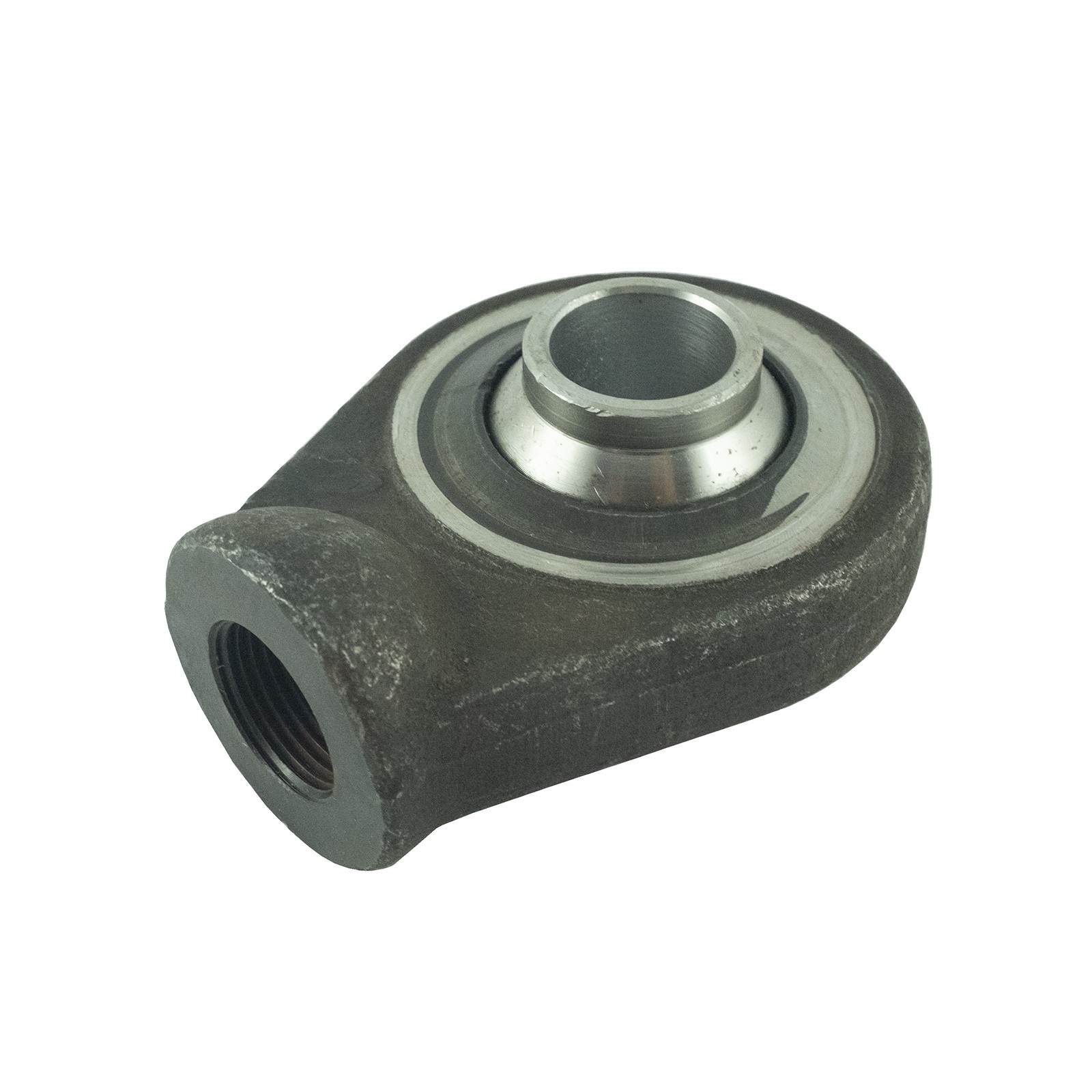

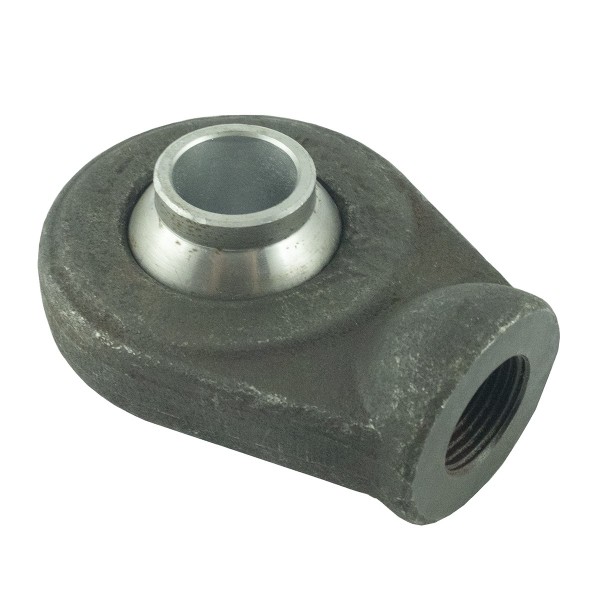

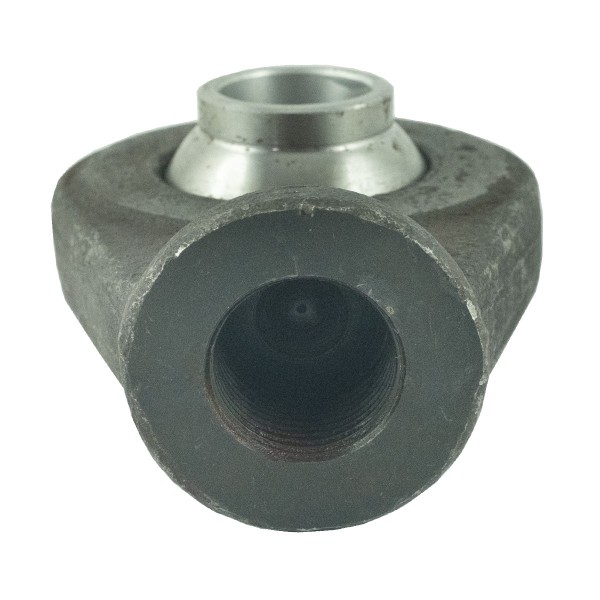

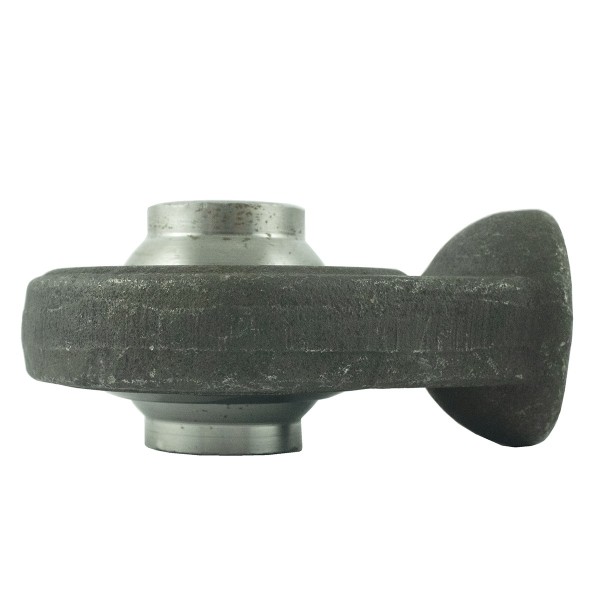

Ball end turnbuckle Cat II with thread M27 x 2 / 25.40 x 51 mm

Product code: 4F/KK/21-00-8
Brand
Country of production
View other model
1 person purchased this product
zł62.00
Includes VAT 23%

Lowest price from 30 days: zł62.00

Product description

What is a three-point linkage turnbuckle ball end?

The swing end of the turnbuckle is the end of the turnbuckle of the three-point linkage used in agriculture as the upper link of the tractor and agricultural machine or three-point linkage equipment. The turnbuckle is an element also called a connector and is made of three elements, i.e. a body and two screws with ball ends , the threads of which are directed opposite to each other. The ball end , swinging with a sleeve for the coupling pin are available in various sizes from 19 to even 50 mm.

Dimensions :

  • pin hole diameter: 25.40 mm,
  • pin mounting width: 51 mm,
  • total length: 110 mm,
  • working length: 70 mm,
  • head diameter: 85 mm,
  • base diameter: 50 mm,
  • thread: M27 x 2.

Swing end of the upper link , connector, turnbuckle for welding, The ball end of the three-point linkage has an internal thread for attaching and welding a threaded pin.

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specifications

Condition
New

Reviews of Ball end..

Traktor.com.pl S.C. Wojciech i Miłosz Początek Reviews with ekomi-pl.com

This product has no reviews yet.

We collect reviews from verified Customers after the purchase of the product.

Write your review

Review form will be here

Questions & Answers

Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?

User
Ekspert Traktor.com.pl – Doradca techniczny • 17.02.2026
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.

How to properly select and sharpen mower blades for a Japanese tractor?

User
Ekspert Traktor.com.pl – Doradca techniczny • 17.02.2026
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.

How to identify the correct V-belt size and how to care for it?

User
Ekspert Traktor.com.pl – Doradca techniczny • 17.02.2026
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
