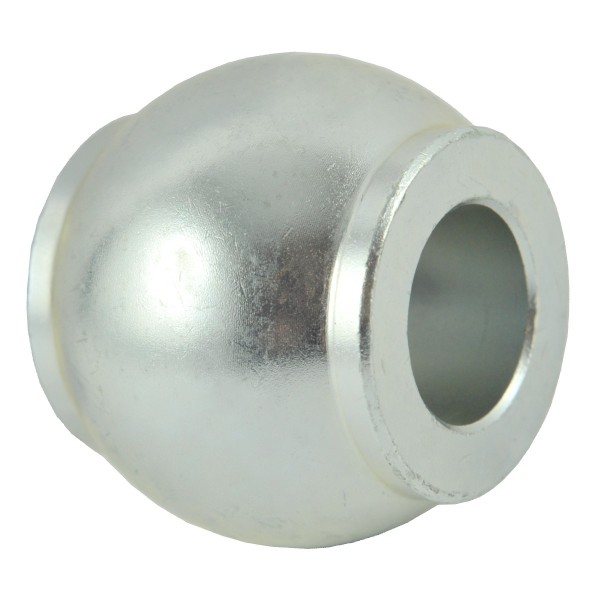

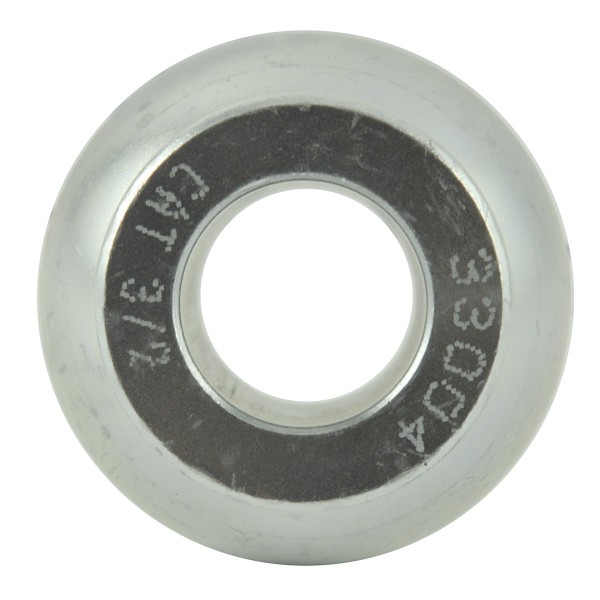

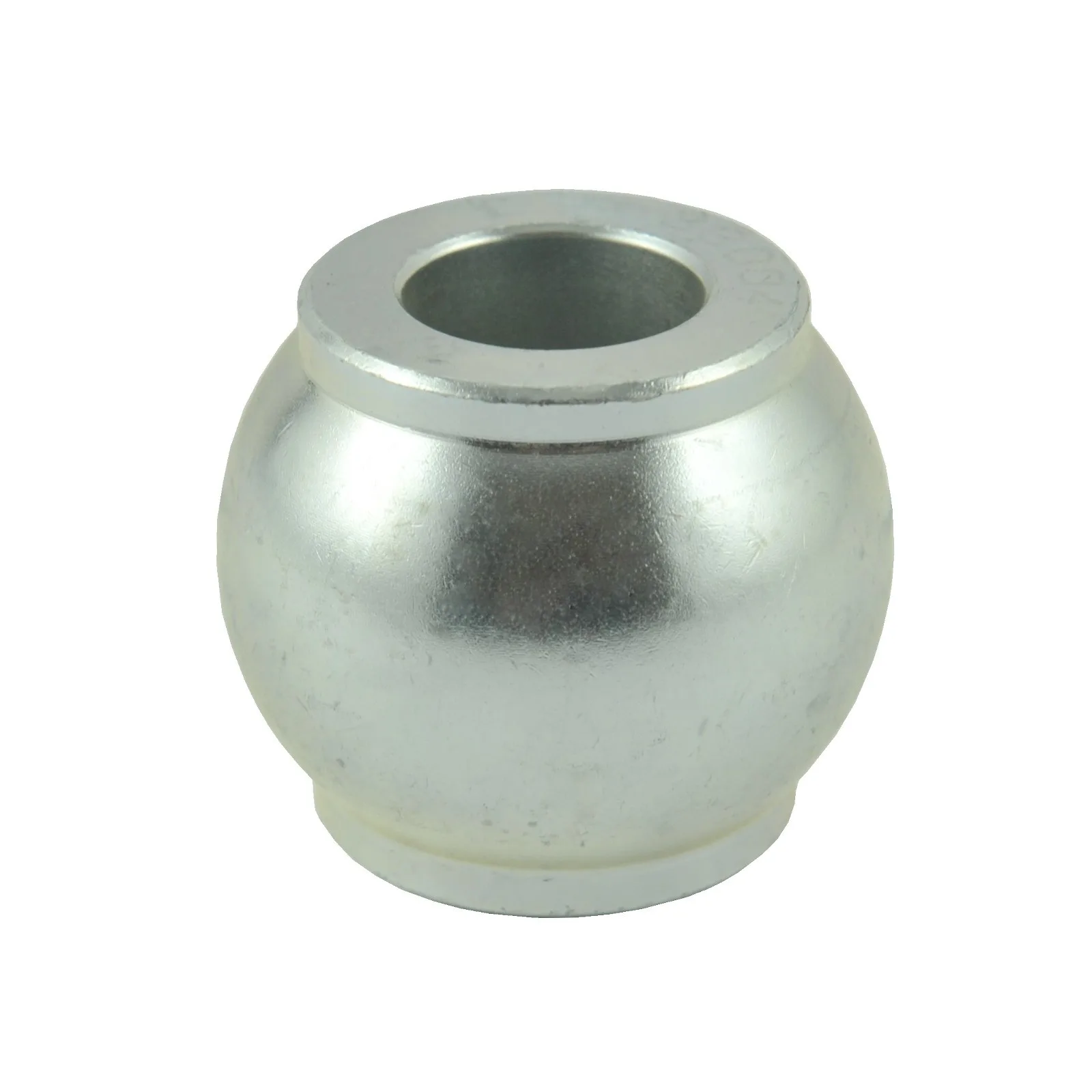

Ball for linkage links Cat II/Cat III / 60 x 51 x 25.40 mm / 33004

Lower link ball with an outer diameter of 60 mm , an inner diameter of 25.40 mm and a width of 51 mm .

A ball for links is an element that is used in both the front and rear three-point suspension system of the three-point linkage for the hooks of the lower beams and the upper links of the so-called turnbuckle. The swing end of the turnbuckle is the end of the turnbuckle of the three-point linkage used in agriculture as the upper connector of the tractor and agricultural machine or three-point linkage equipment. The turnbuckle is an element otherwise called a connector and is made of three elements, i.e. a body and two screws with ball ends , the threads of which are directed opposite to each other. The ball end , swinging with a sleeve for the coupling pin are available in various sizes from 19 to even 50 mm. The upper connector of the three-point linkage may have an end in the form of a hook, in which the swing ball is locked with a special latching lock.

Dimensions :

• diameter: 60 mm,
• width: 51 mm,
• inner diameter: 25.40 mm,
• weight: 0.650 g,

Magazine : M01:A06:S04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
