Product description

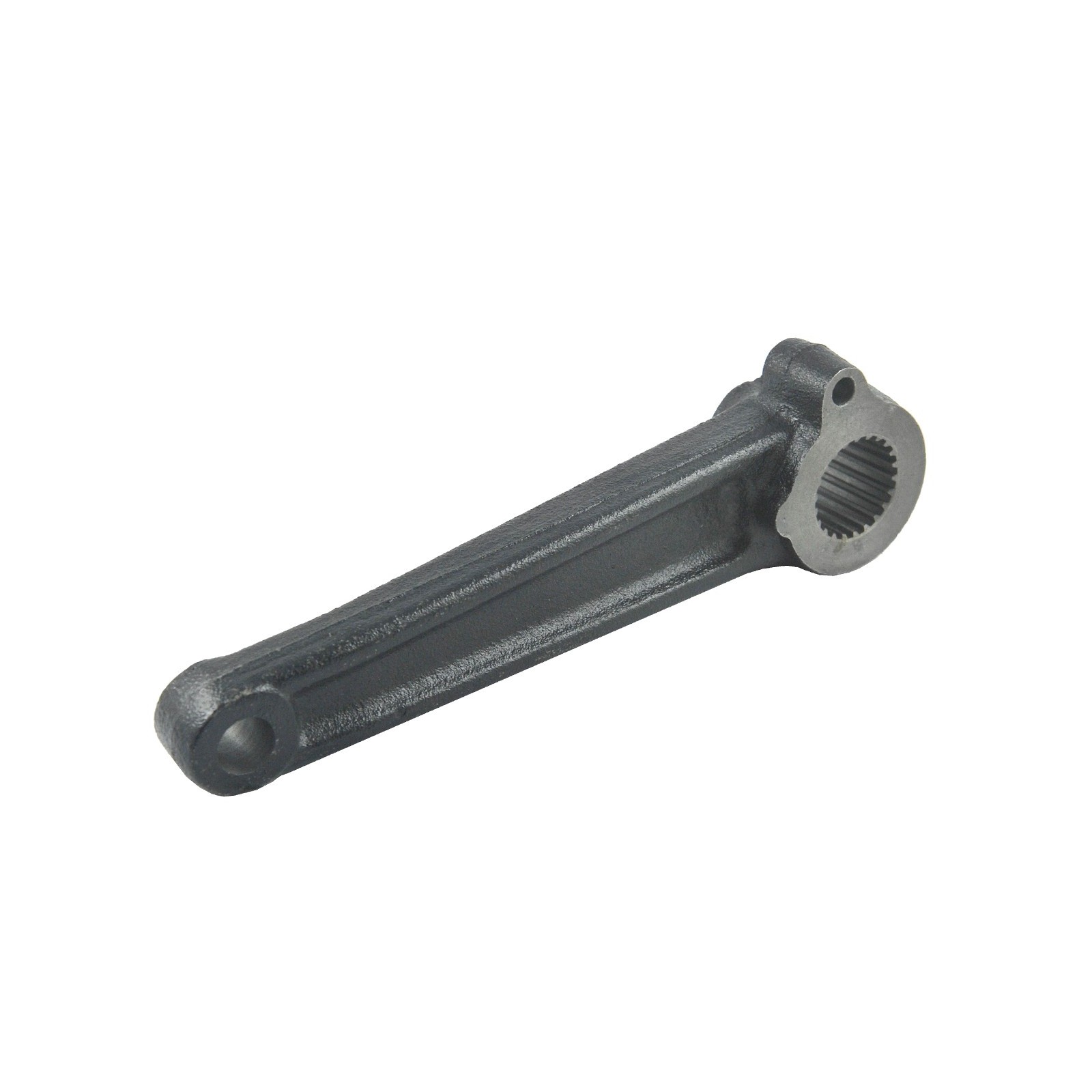

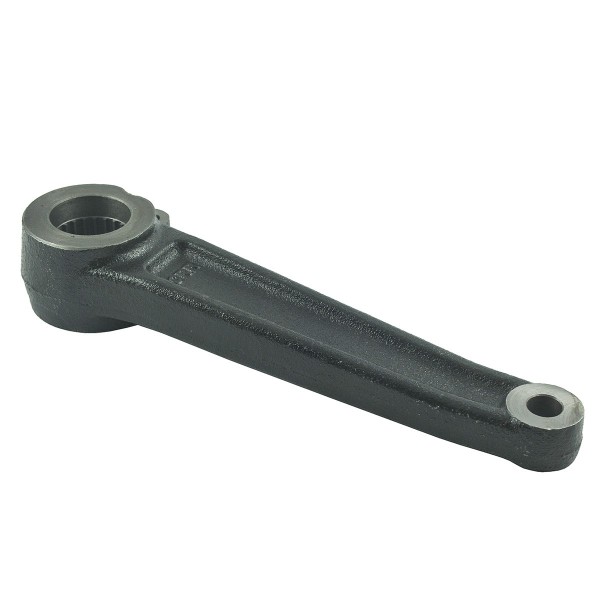

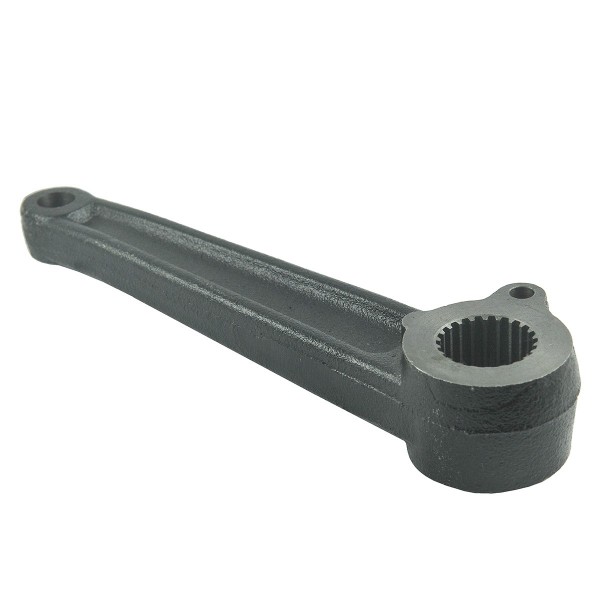

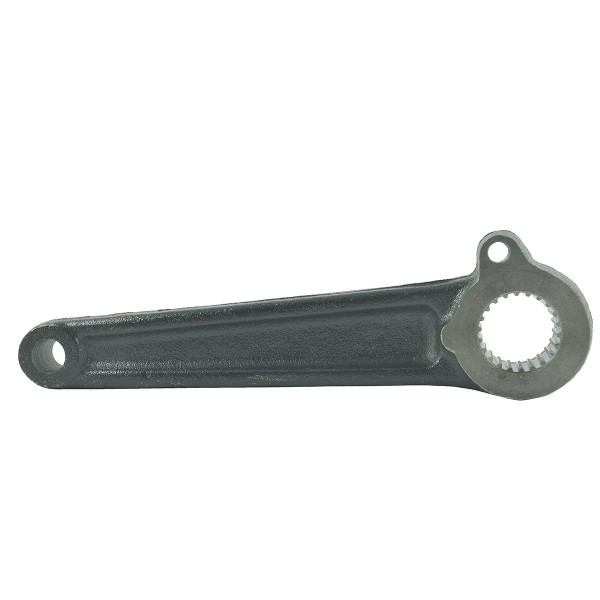

22T lifting arm, upper arm of the three-point rear linkage suspension system (pin 5-25-102-22 , 194130-44480, hydraulic shaft 5-18-112-27 , 198283-44210) with a total length of 305 mm , for Yanmar tractors of the Yanmar EF352T series and others.
The 305 mm long TUZ lift arm , made of solid materials, ensures durability and reliability in operation. Designed for Yanmar tractors, model EF352T , offers excellent fit to the lift system. The product is characterized by high load resistance, which makes it ideal for intensive field work. The arm provides reliable and stable mounting of agricultural machinery. The part may also be compatible with other tractor models equipped with Cat I lift systems.
Dimensions :
- total length: 305 mm,
- pin hole diameter: 18 mm,
- inside diameter (22T): 40 mm (measured between cutter teeth), 36.50 mm (measured between cutter teeth),
- number of teeth: 22T,
- original part numbers: 198283-44420,
- part numbers: 5-02-113-23.
Tractor models :
Yanmar :
- Yanmar EF352T.
Universal arm for right and left side.
Warehouse:
M01:F84
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specifications
Podobne produkty
Reviews of 3-point..
This product has no reviews yet.
We collect reviews from verified Customers after the purchase of the product.
Questions & Answers
Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?
User
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.
How to properly select and sharpen mower blades for a Japanese tractor?
User
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.
How to identify the correct V-belt size and how to care for it?
User
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
