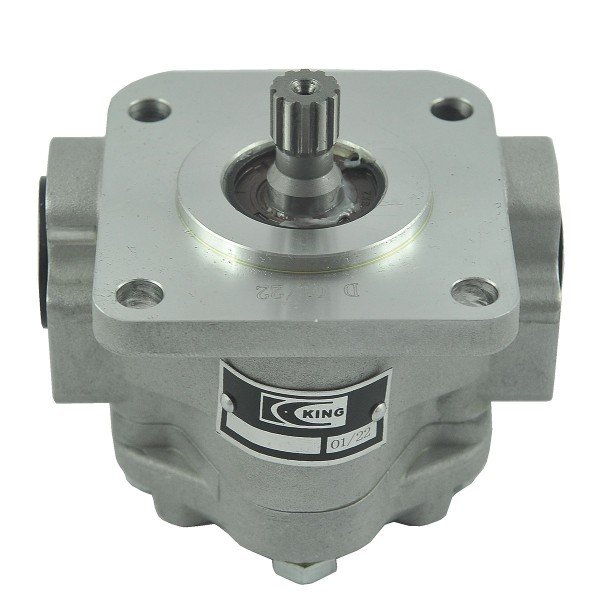

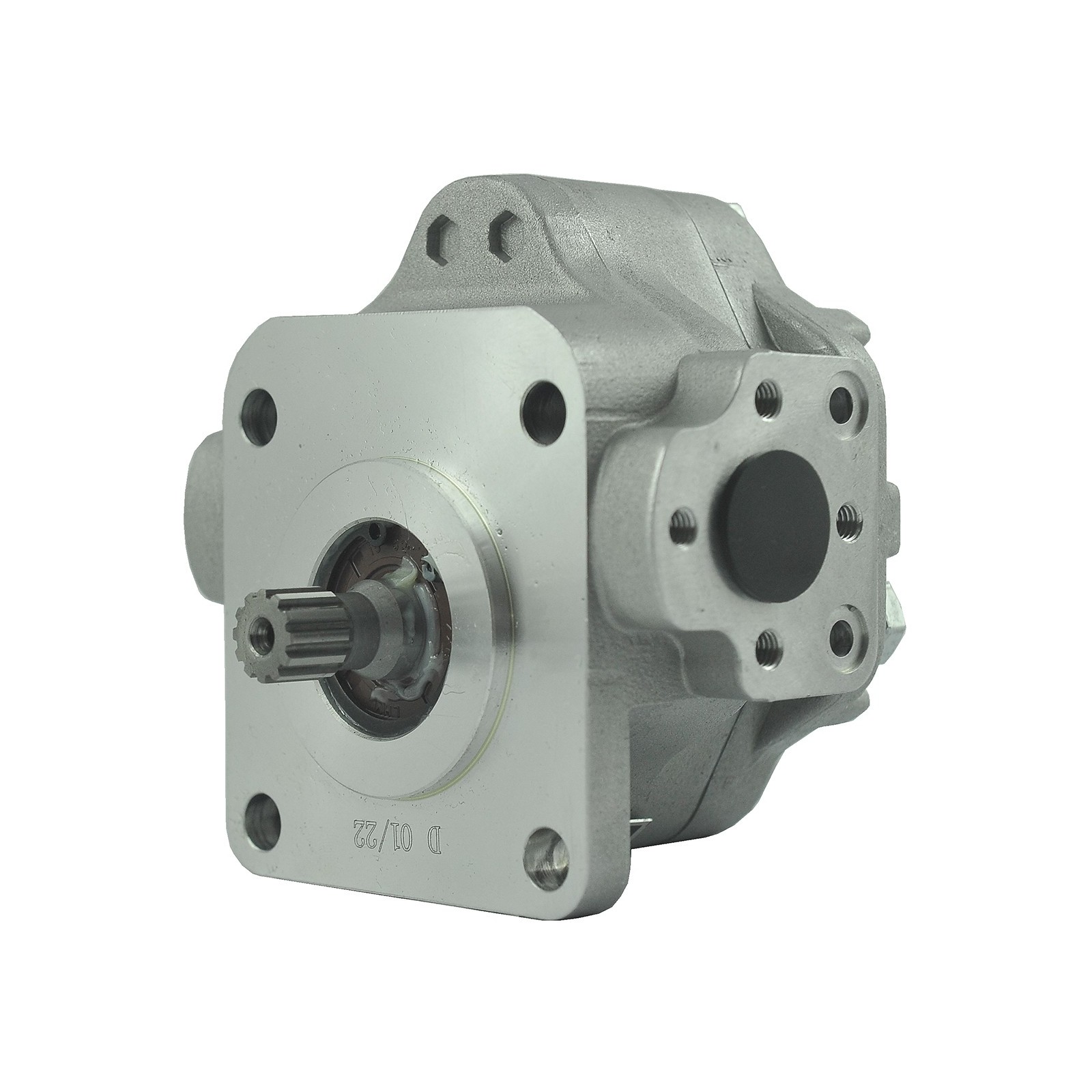

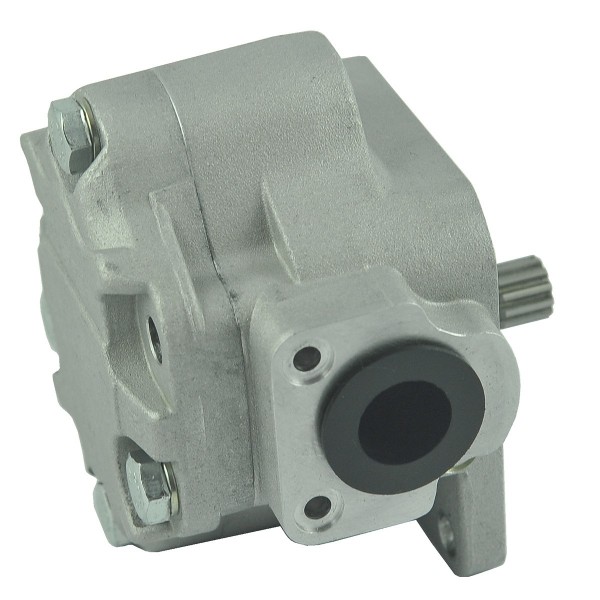

Hydraulic pump / 12T / Yanmar EF352T / EF393T / 198172-41110 / 6-15-105-07

6-15-105-07
zł1,115.00
Tax included PL 23%

906,5 netto

  • Dostępność (14 Quantity): stock

Do you have any questions?

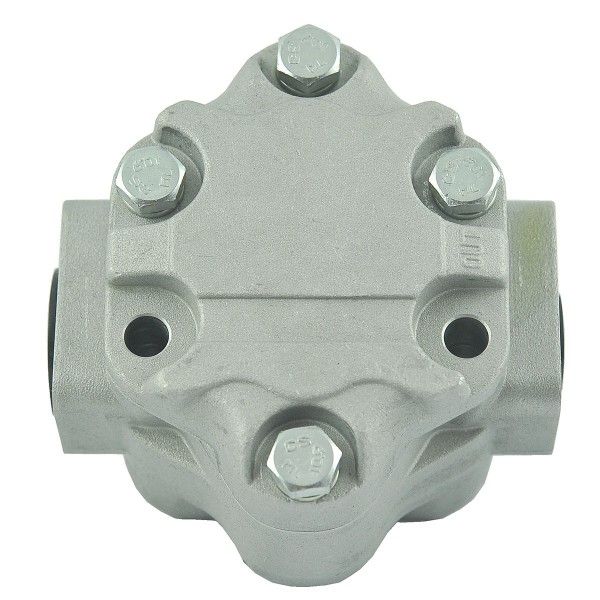

Hydraulic pump / 12T / Yanmar EF352T / EF393T / 198172-41110 / 6-15-105-07

Hydraulic pump measuring 80 x 100 x 100 mm for Yanmar tractors of the Yanmar EF352T series and others. A hydraulic gear pump is responsible for the operation of the rear linkage and additional hydraulically operated implements. In modern tractors, the hydraulic pump is responsible for power steering. Using a hydraulic pump , we can control additional functions of agricultural trailers, flail mowers, tillers, or TUR front loaders. The hydraulic pump operates using the tractor's hydraulic system and is powered by the tractor's drive system (e.g., crankshaft). Hydraulic oil pumped to the pump is directed to the high-pressure control valve, where excess flow returns to the gearbox and then to the main control valve. Some hydraulic pumps may have additional sections that supply the steering system with increased pressure oil.

Technical data :

  • dimensions: 80 x 100 x 100 mm,
  • diameter of mounting screw holes: 9 mm,
  • mounting screw hole spacing: 63 mm (measured from each other), 90 mm (measured diagonally),
  • diameter of hydraulic holes: M20 / 16 mm,
  • spacing of mounting screw holes: outlet (OUT) 35 mm (diagonally), 25 mm (measured from each other),
  • shaft diameter: 11.20 mm (measured between the cutter teeth), 13.50 mm (measured together with the cutter),
  • cutter working length: 10 mm,
  • number of teeth: 12T,

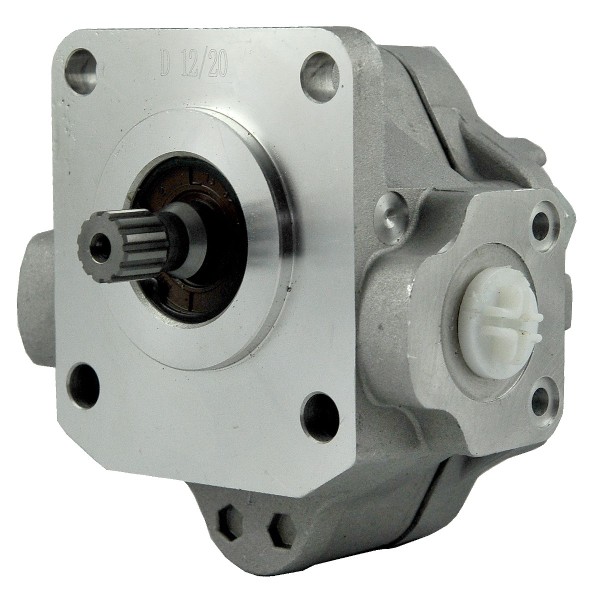

  • Comparison numbers: %C5% 9Bci-do-yanmar/30461-hydraulic-pump-yanmar-ef352t-12t-198172-41110-6-15-105-12.html">6-15-105-12,
  • original part numbers: 198172-41110,
  • part numbers: 6-15-105-07.

Tractor models :

  • Yanmar EF352T,
  • Yanmar EF393T.

The first signs of hydraulic pump failure include the lift lowering too quickly or problems with trailer control. The most common cause is a control valve or pump seal failure, and in both cases, the pumps can be successfully rebuilt.

Magazine: K18:E13

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specification

Magazyn: K18:E22
Condition
New
Production
Substitute
Parts
Hydraulic system
Tractor models
Yanmar EF352T
Yanmar EF393T
Number of teeth (pcs/T-teeth)
12
Length (mm)
80
Height (mm)
100
Hole diameter (mm)
16
Width (mm)
100
Cutter(s) length (mm)
10
Mounting bolt(s) hole diameter (mm)
9
Shaft diameter (mm)

Bolt hole spacing (mm)
63
90
Thread
M20
Original Part Number (OEM)
198172-41110
Part number
6-15-105-07
Spacing of mounting holes for hydraulic outlets (mm)
25
35
