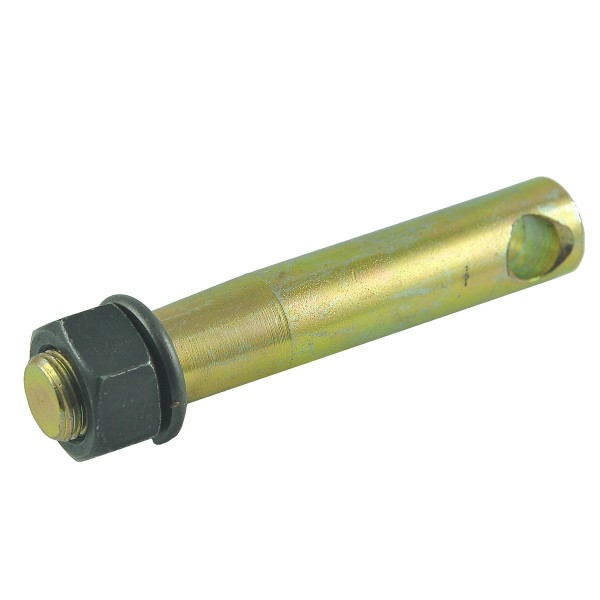

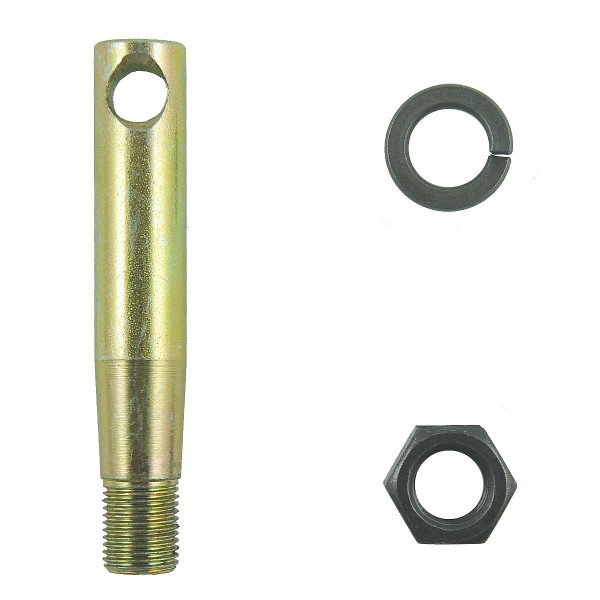

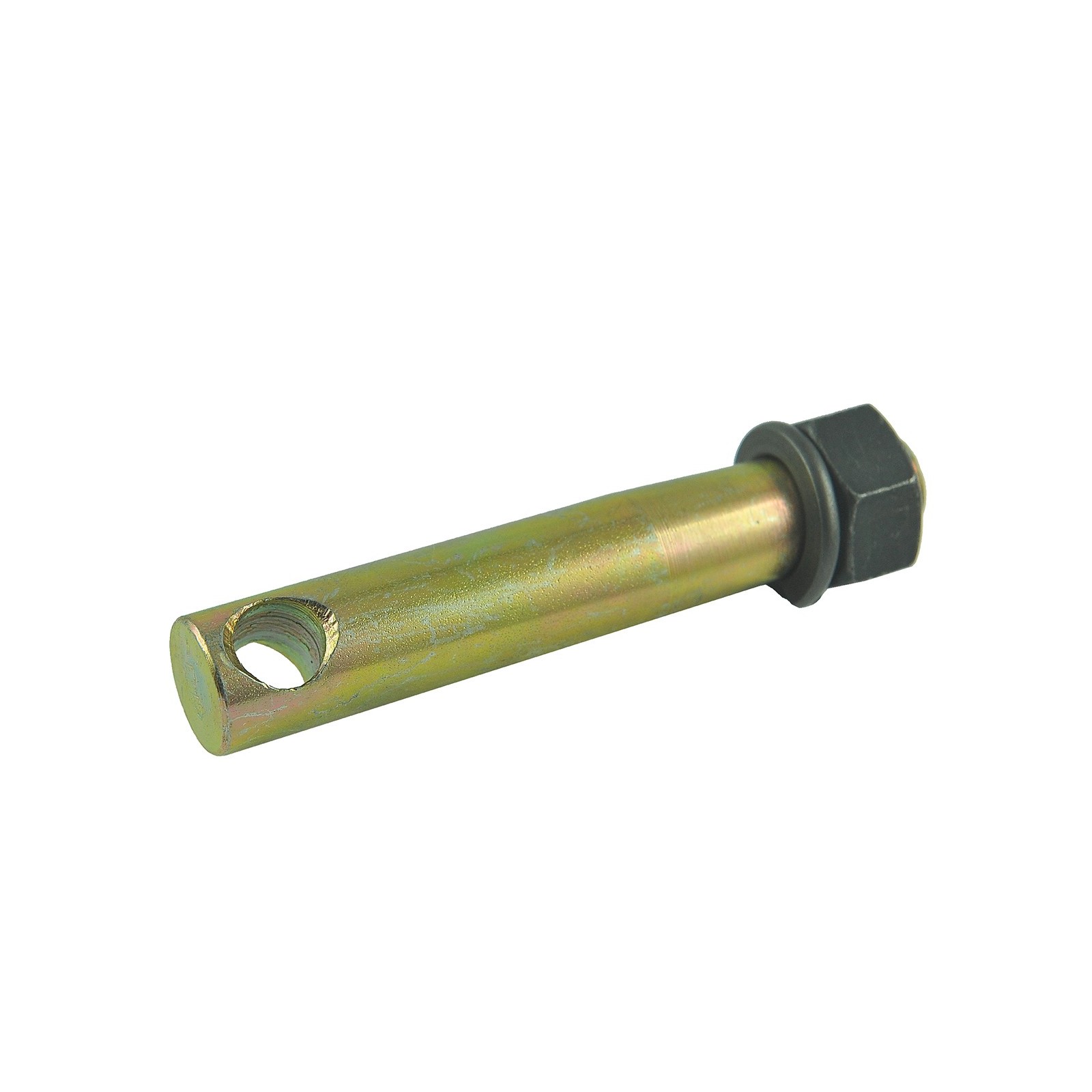

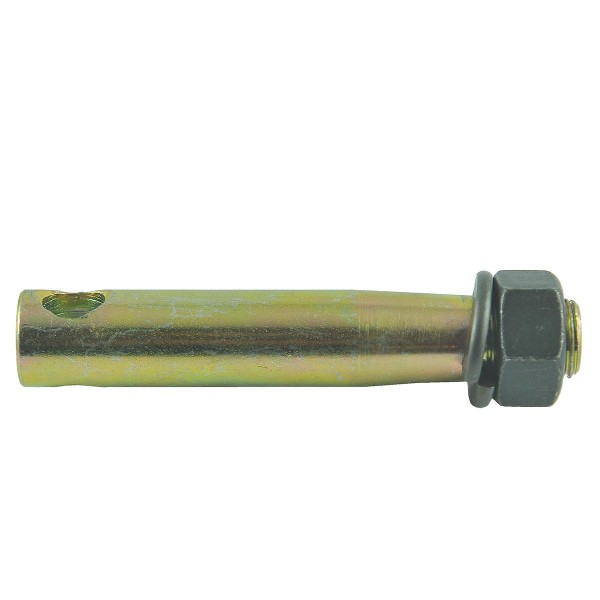

Linkage pin / 19 x 108 mm / M19 / Yanmar EF352T / Cub Cadet SC2400/SC2450 / 194130-44480 / 5-25-102-22

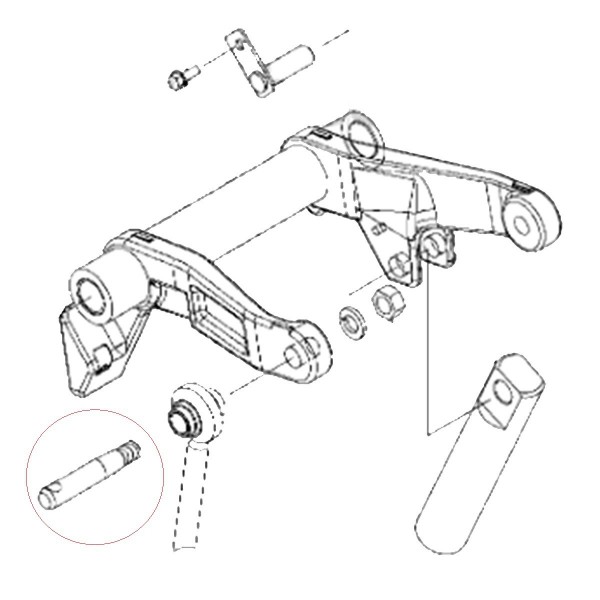

Pin with M16 thread for TUZ lift "hanger" with nut (26736-160002). Pin with a total length of 108 mm , working length of 75 mm and a diameter of 19 mm for Yanmar tractors Yanmar EF352T series, Cub Cadet Cub Cadet SC2400 series, Cub Cadet SC2450 and others.

A pin is one of the most common ways to connect (not rigidly) elements, accessories or a set of parts. A pin connection is most often a cylinder made of a hard material resistant to damage and temperature, which, depending on the application, can be loosely or tightly fitted with a second element closing the connection, e.g. a shackle, a screw with a "U" type handle or a mounting plate and most often closed with a pin placed in the pin hole or a locking nut. We distinguish several types of pins, here are the most common:

• without a head,
• nasal,
• with cylindrical head,
• with threaded pin,
• with lock
• and others.

Dimensions :

• total length: 108 mm,
• working length: 75 mm,
• diameter: 19 mm,
• hole diameter: 12 mm,
• thread: M16,
• original part numbers: 194130-44480,
• part numbers: 5-25-102-22.

Tractor models :

Yanmar :

• Yanmar EF352T.

Cub Cade t:

• Cub Cadet SC2400,
• Cub Cadet SC2450.

Warehouse :
M01:A12:S04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
