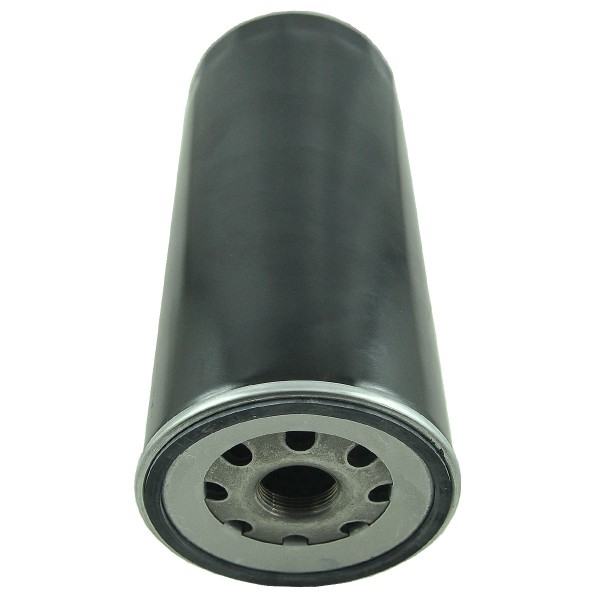

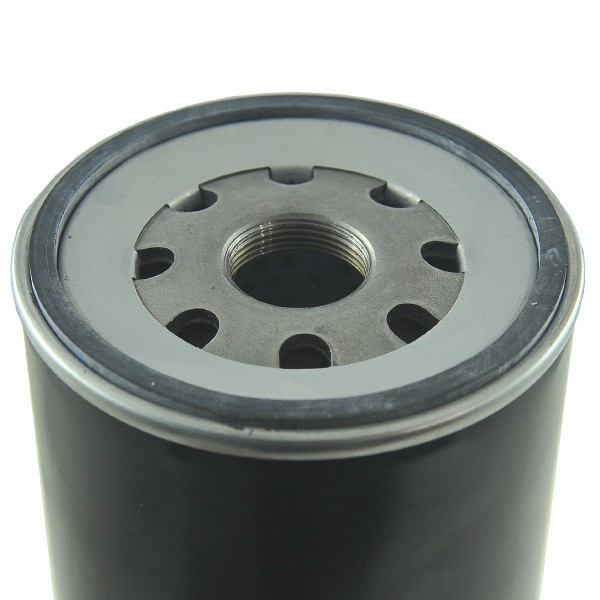

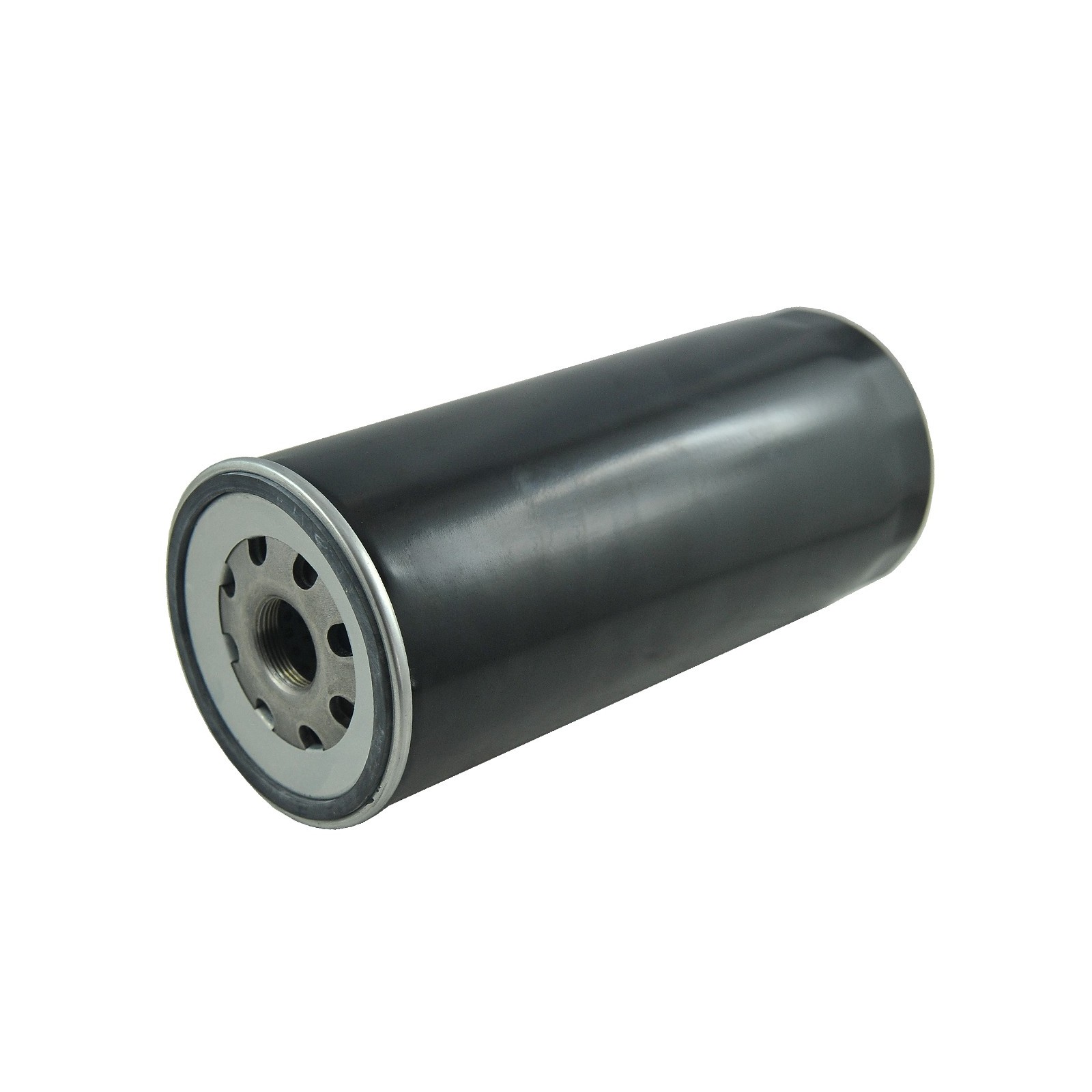

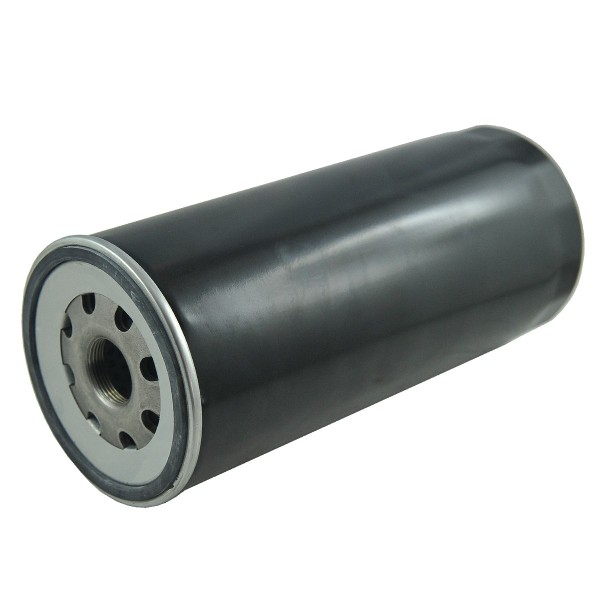

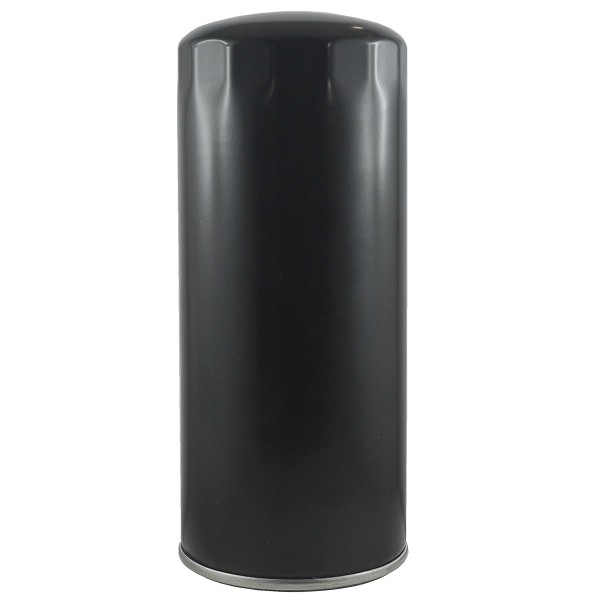

Hydraulic oil filter / 1"1/8-16UNF / 111 x 261 mm / SH 62250

Hydraulic oil filter with a height of 261 mm for tractors and other machines .

The main task of the hydraulic filter is to clean the hydraulic oil, stop all impurities that enter the hydraulic system , or are created during the use of the tractor, e.g. solid particles (minerals), which are created during the operation of the machine. The hydraulic filter is replaced every time we change the hydraulic oil or when the vehicle is used frequently, in the case of mini tractors, this is approximately every 100 operating hours in the case of used tractors. The principles of replacing the hydraulic filter in new tractors are described in detail in the machine's operating instructions and usually this is after the first 50 operating hours (at least 3 cycles). The hydraulic filter is most often a metal filter with a thread and a seal , which is mounted near the tractor's box exactly in the flow path of the hydraulic system oil, most often from the bottom of the box or under the floor of our tractor. Regular replacement of the hydraulic filter is a guarantee of trouble-free operation of the machine and the certainty that there are no foreign bodies in the hydraulic system that can damage our tractor or negatively affect the operation of the machine by reducing its operating parameters.

Dimensions:

• height: 261 mm
• outer diameter: 108 mm,
• base diameter: 111 mm,
• seal diameter: inner 92 mm, outer 103 mm,
• original part numbers: 6761258356,
• reference numbers: SPH 9361,
• part numbers: SH 62250.

Regular replacement of the hydraulic filter is a guarantee of trouble-free operation of the machine and the certainty that there are no foreign bodies in the hydraulic system that can damage our tractor or negatively affect the operation of the machine by reducing its operating parameters.

Warehouse :
K18:A34:S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years
