Available
Others in the offer of this manufacturer >
Condition
New
Production
Substitute
Engine model
- Iseki E3AG1
Tractor models
- Hinomoto N209
- Iseki TA207
Iseki TA215
Iseki TA250
Iseki TK25
Shibaura P19F
Shibaura P155F
Yanmar 3T75U
Yanmar RS27
Height (mm)
141
Diameter (mm)
91
Base diameter (mm)
93
Go to full specification >
wishlist

Hydraulic oil filter 1"1/8-16UNF / 91 x 141 mm / Iseki TA/TK / Shibaura P

02106HS
zł69.99
Tax included PL 23%

56,9 netto

  • Dostępność (4 Quantity): stock
wishlist

Do you have any questions?

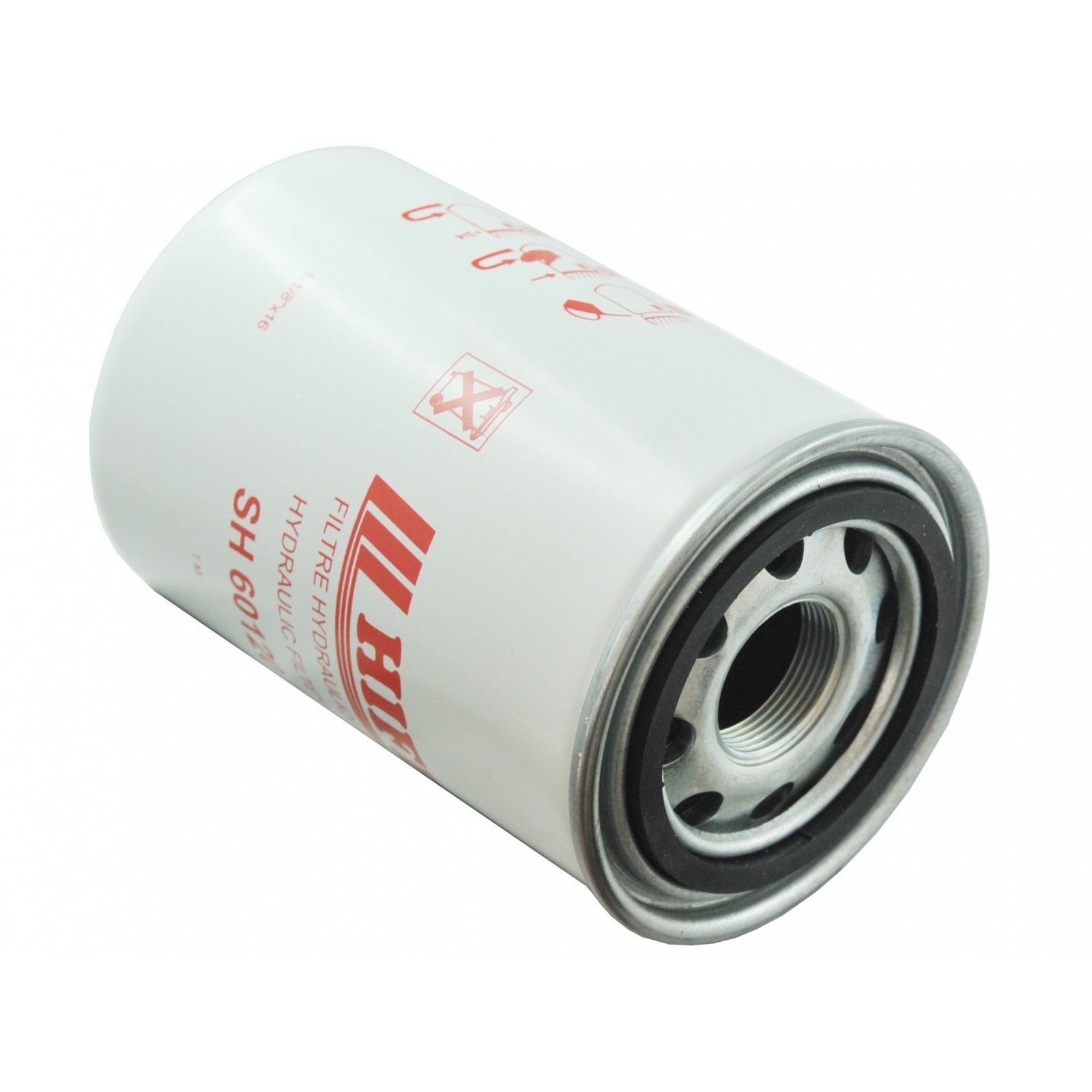

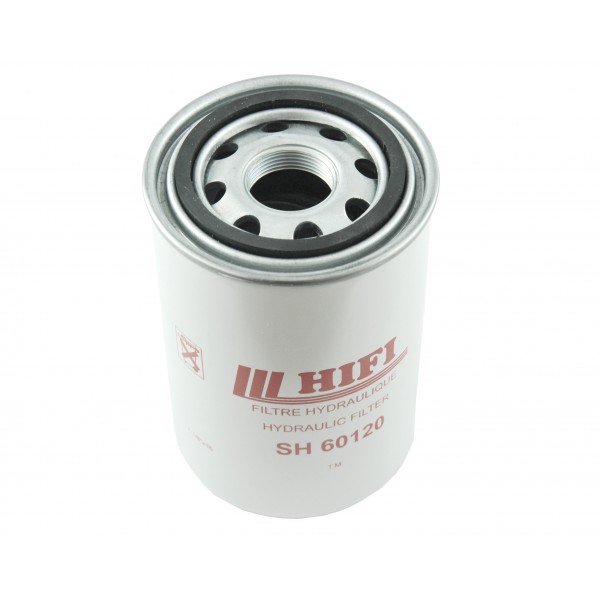

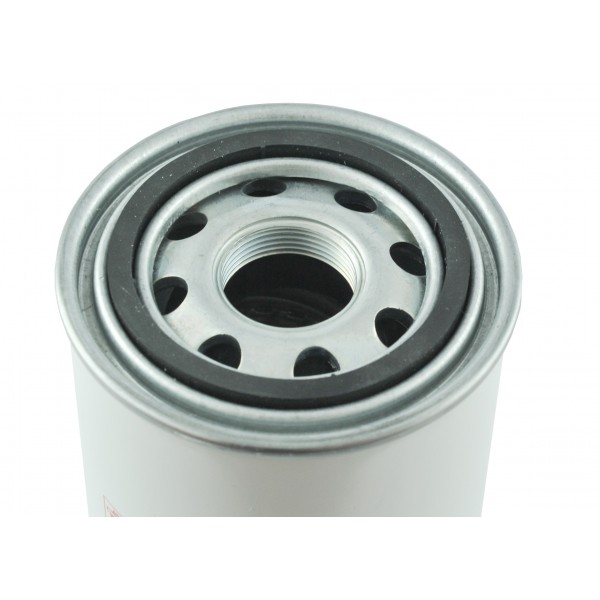

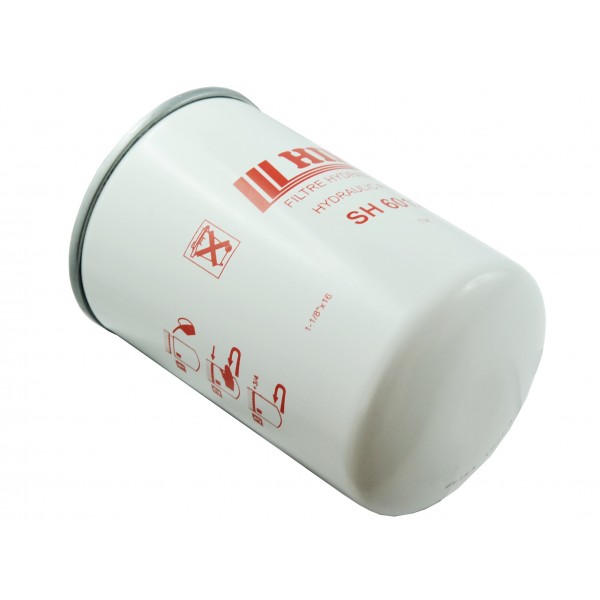

Hydraulic oil filter 1"1/8-16UNF / 91 x 141 mm / Iseki TA/TK / Shibaura P

Hydraulic filter with dimensions 141x91 mm with 1"1/816UNF thread for Japanese mini tractors and Iseki tractors of the TA series, TA, Shibaura P series, Yanmar RS series and others.

The main purpose of the hydraulic filter is to clean the hydraulic oil, stopping all impurities that enter the hydraulic system or are created during the use of the tractor, e.g. solid (mineral) particles that are formed during the operation of the machine. We replace the hydraulic filter every time we change the hydraulic oil or when the vehicle is frequently used, in the case of mini tractors, approximately every 100 operating hours in the case of used tractors. The rules for replacing the hydraulic filter in new tractors are described in detail in the machine's operating manual and usually after the first 50 operating hours (at least 3 cycles). The hydraulic filter is most often a metal filter with a thread and a gasket , which is mounted near the tractor's box, exactly within the hydraulic system oil flow, most often from the bottom of the box or under the floor of our tractor. Regular replacement of the hydraulic filter is a guarantee of failure-free operation of the machine and the certainty that in there are no foreign bodies in the hydraulic system that could damage our tractor or negatively affect the operation of the machine, reducing its operating parameters.

Dimensions :

  • Height: 141 mm.
  • Diameter: 91 mm.
  • Base diameter: 93 mm.
  • Seal diameter: external: 72 mm, internal: 62 mm.
  • Thread: 1"1/8-16UNF, 26.90 mm.
  • Weight: 0.632 kg.
  • Comparison numbers: SH60120, SH 601020 .

Tractor models:

Yanmar:

  • Yanmar RS27.

Iseki :

  • Iseki TA207,
  • Iseki TA215,
  • Iseki TA250,
  • Iseki TK25.

Shibaura:

  • Shibaura P19F,
  • Shibaura P155F.

Hinomoto :

  • Hinomoto N209.

Engine models :

Iseki :

  • Iseki E3AG1,

Warehouse :
M01: F53

Specification

Magazyn: K18:A39:S05
Condition
New
Production
Substitute
Engine model
- Iseki E3AG1
Tractor models
- Hinomoto N209
- Iseki TA207
Iseki TA215
Iseki TA250
Iseki TK25
Shibaura P19F
Shibaura P155F
Yanmar 3T75U
Yanmar RS27
Height (mm)
141
Diameter (mm)
91
Base diameter (mm)
93
Weight (kg)
0.632
Thread
1"1/8-16UNF
Comparison numbers
SH60120
Filter type
Hydraulic oil filter
Inner seal diameter (mm)
62
Outer seal diameter (mm)
72
