Fuel filter 90 x 50 mm Kubota L02, GL, Yanmar F, FX, AF, Shibaura, Iseki TU, TA, SIAL, GEAS, TU, TK

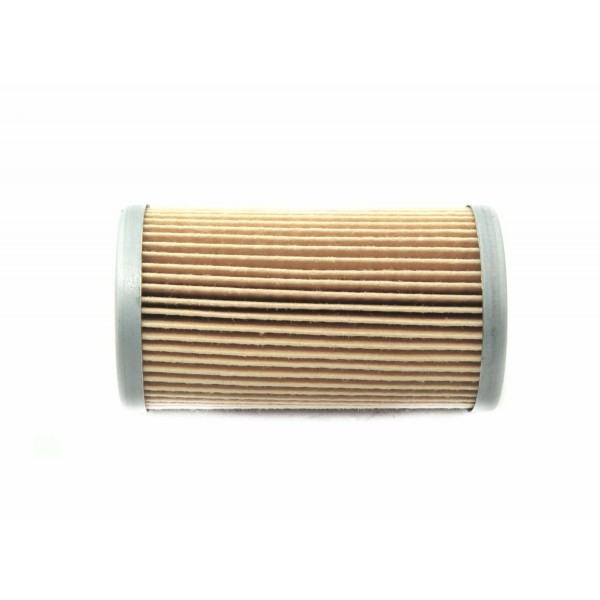

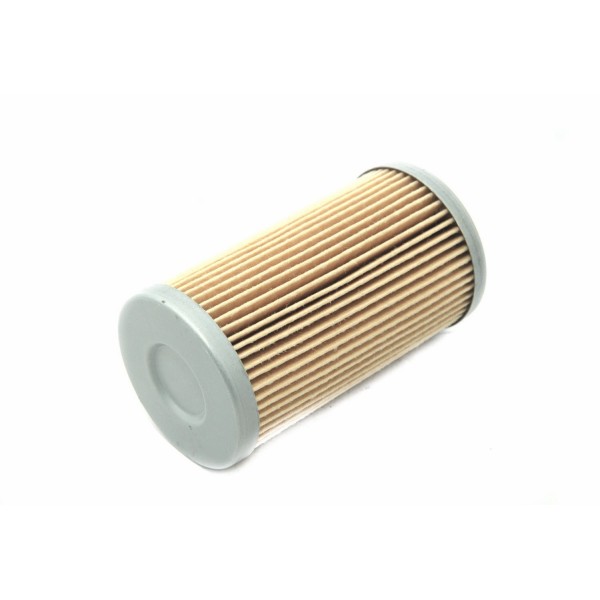

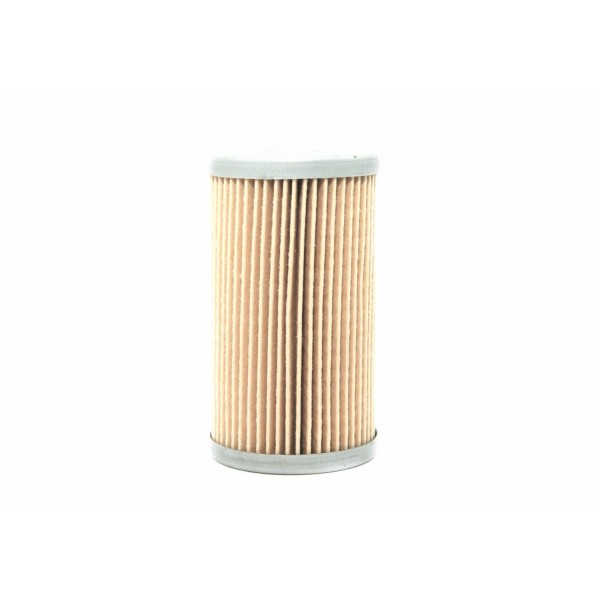

Paper fuel filter measuring 90 x 50 mm for mini tractors and Japanese tractors Kubota GL , Geas , Kubota L02 series, Yanmar F, FX and AF series, Shibaura , Iseki TU, TA, SIAL, GEAS, TU and TK and others. Filter without seal (o-ring) in the middle of the hole.

The fuel filter is one of the most important elements of the fuel system, which directly affects the correct operation of the tractor. The main task of the filter is to clean the fuel from mechanical impurities and micro organic impurities. Fuel filters are divided into two main groups due to their application, and so for an engine with petrol fuel we will use a different type of filter than for an engine powered by diesel fuel. Regardless of the type of fuel, the filtering material is various types of paper based on polyester or cellulose fibers with the addition of synthetic fibers.

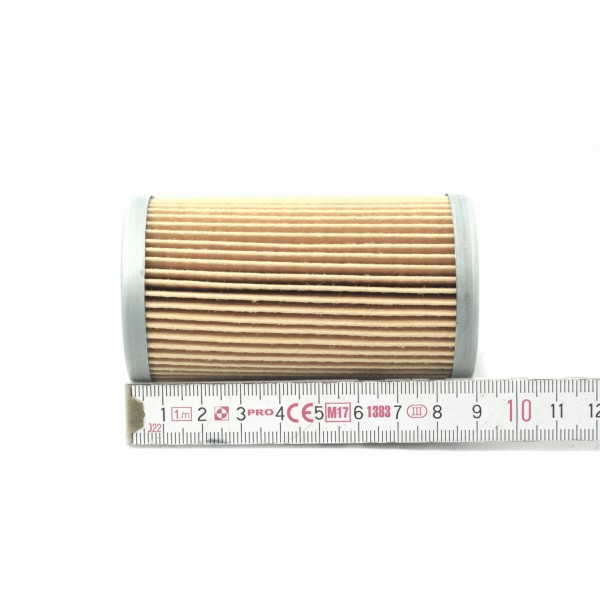

Dimensions :

• Height: 90 mm,
• Diameter: 50 mm,
• Hole diameter: 20 mm,

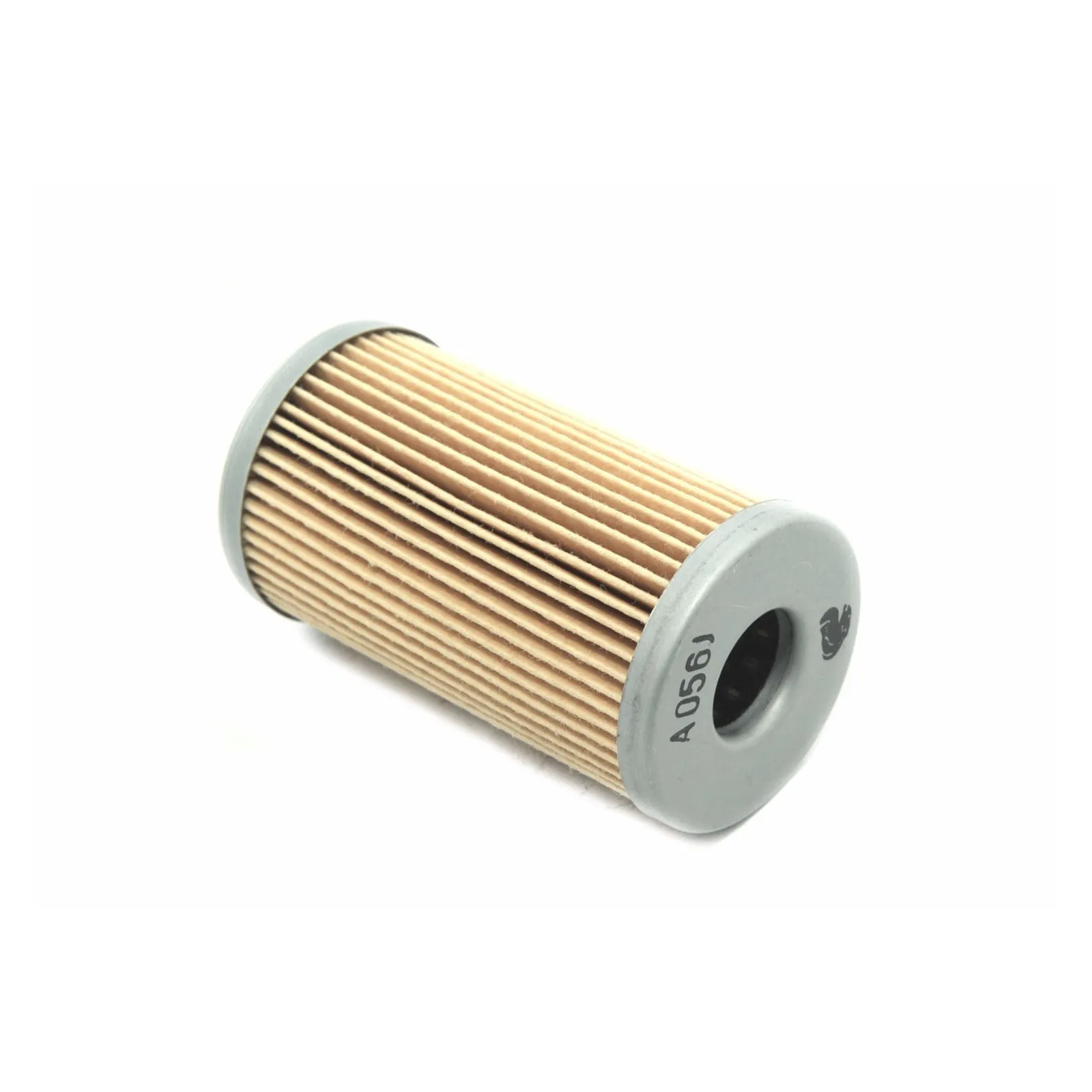

• Reference numbers: 33507, SN20046, A056J.

Tractor models :

Kubota :

• Kubota GL19,
• Kubota GL21,
• Kubota GL23,
• Kubota GL25,
• Kubota GL337,
• Kubota L1802DT.

Iseki :

• Iseki Geas 253,
• Iseki Geas 233,
• Iseki Geas 27,
• Iseki Geas 25,
• Iseki TU270,
• Iseki Sial 223,
• Iseki TA267,
• Iseki TA267F,
• Iseki TA207,
• Iseki TA255,
• Iseki TA270,
• Iseki TA215,
• Iseki TK21,
• Iseki TK25.

Shibaura :

• Shibaura SD2043,
• Shibaura SD2203,
• Shibaura P17F.

Yanmar :

• Yanmar F18D,
• Yanmar AF22,
• Yanmar AF26,
• Yanmar AF24,
• Yanmar FX24D,
• Yanmar AF30,

Engine models :

Iseki :

• Iseki E3AG1.

Kubota :

• Kubota D1463.

A dirty fuel filter restricts the free flow of fuel to the engine and may cause problems when starting the engine or may cause the engine to run erratically. Sometimes a clogged fuel filter causes a loss of nominal engine power or results in higher fuel consumption.
