Hydraulic distributor cable with joystick 950 mm - 4FARMER

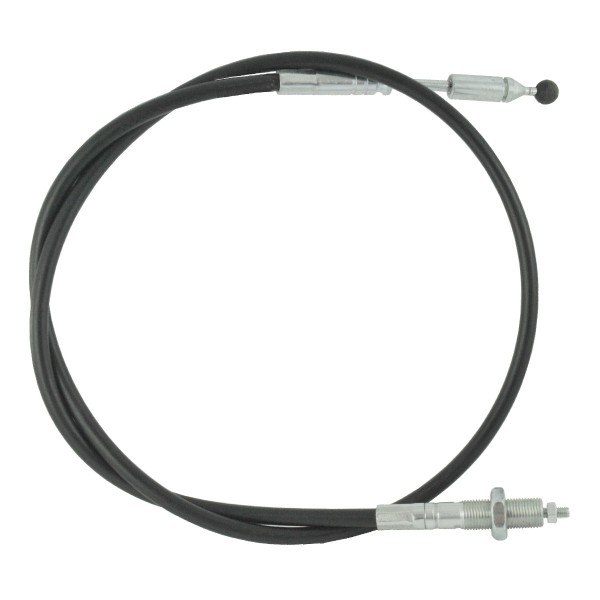

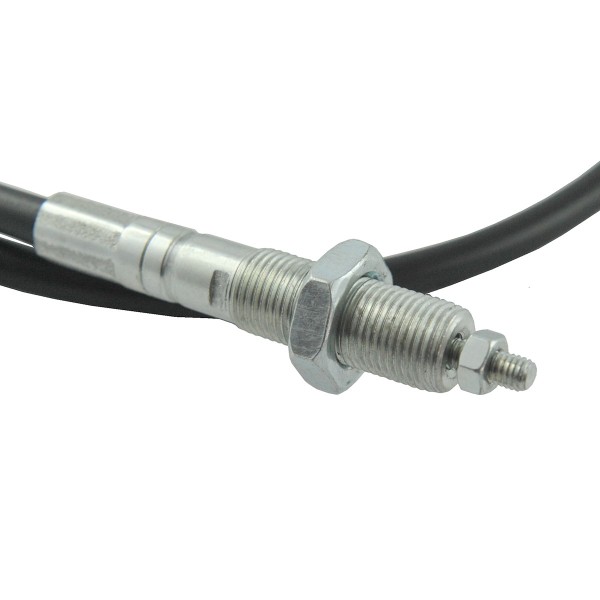

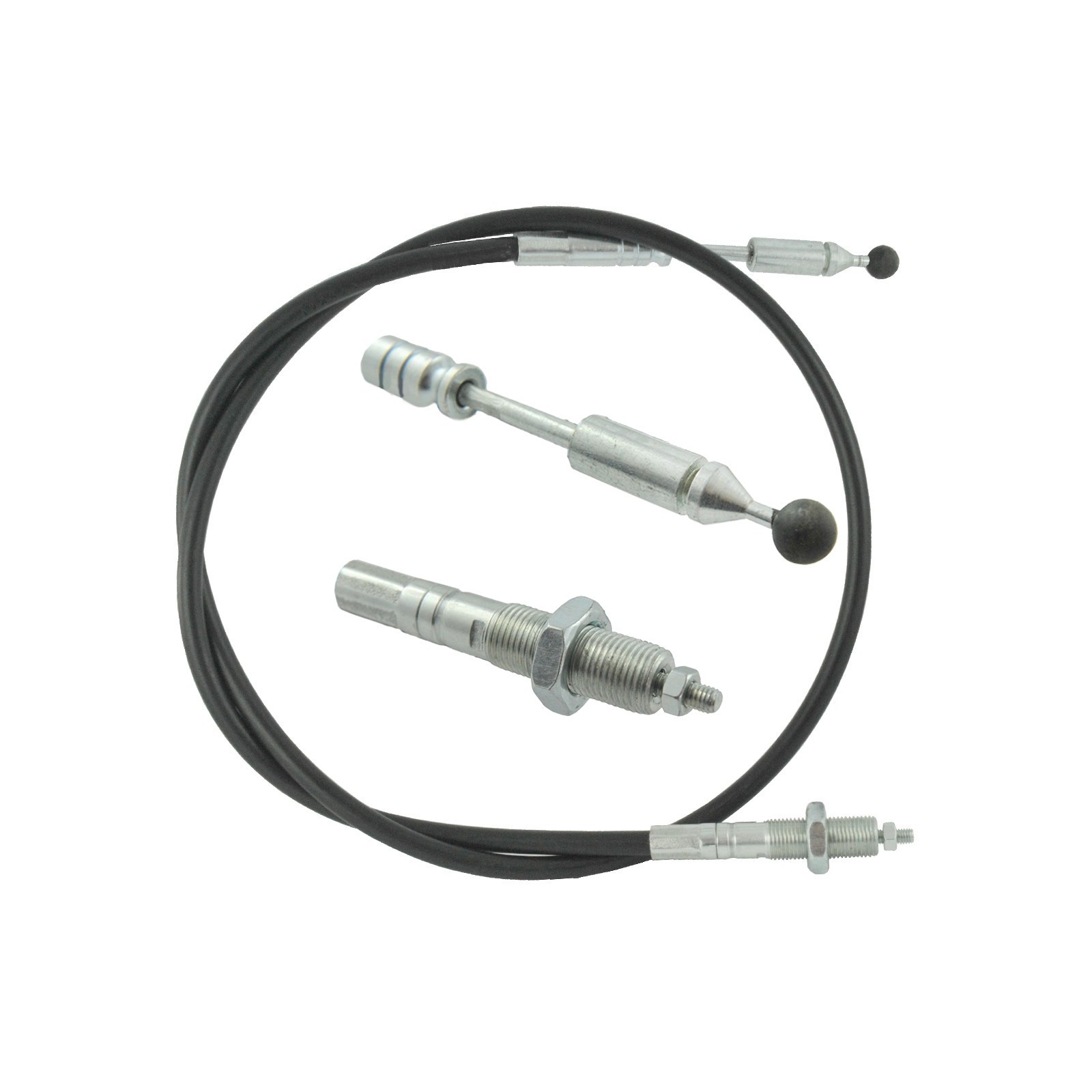

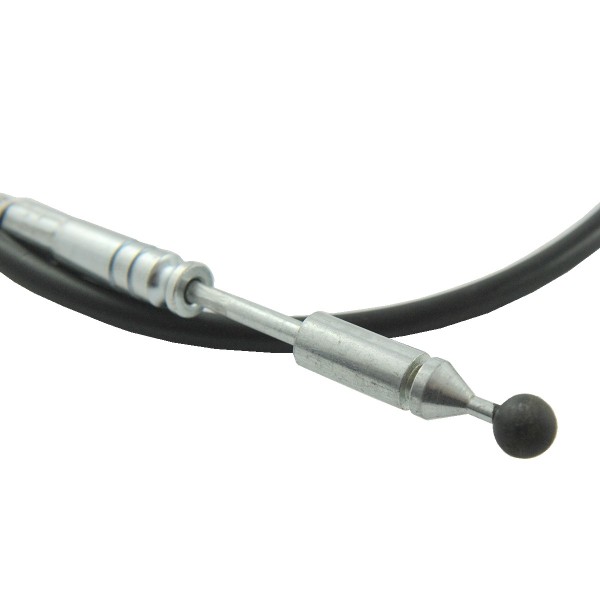

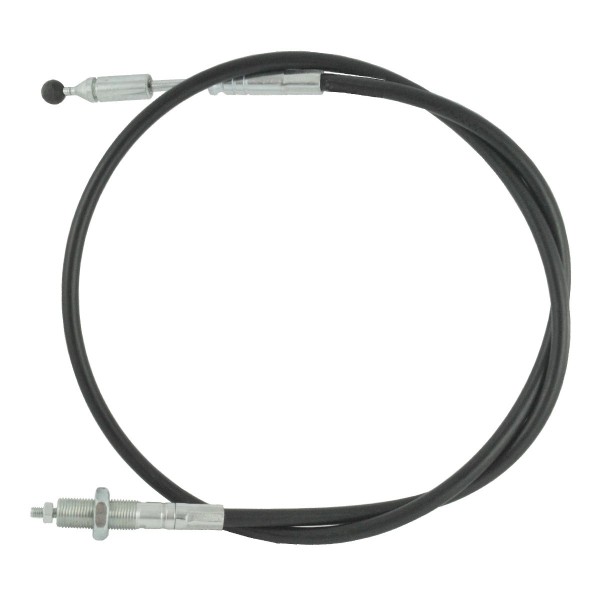

Control cable with a total length of 950 mm with a rivet with M16 x 1.5 thread and a ball end with a ball of 14 mm diameter for a hydraulic distributor with a joystick .

The distributor control cable is a steel cable in armor thanks to which we can control the flow of fluid in hydraulic lines. The cable is connected to the control joystick on one side, and directly to the hydraulic distributor on the other. The basic element of the tractor's hydraulic system are hydraulic lines . The most common lines are rubber, metal or other plastic lines resistant to corrosion and chemical properties of hydraulic fluids. Hydraulic lines differ in braiding, length and diameter and differ in length, diameter and working pressure to which they have been adapted. We distinguish several basic types of hydraulic hoses, including high and low pressure, fireproof and adapted to work at high temperatures.

Dimensions :

• total length: 950 mm,
• length of the armour with rivets: 840 mm,
• armor diameter: 9.50 mm,
• ball diameter: 14 mm,
• thread: M16 x 1.5 / M6 x 1.00,
• thread length: 40 mm.

Before selecting the appropriate hydraulic hose, you should pay attention to the pressure, conditions and fluids your hydraulic lines will operate under and ensure the proper quality of the crimping.

Warehouse :
M01:E43

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years
