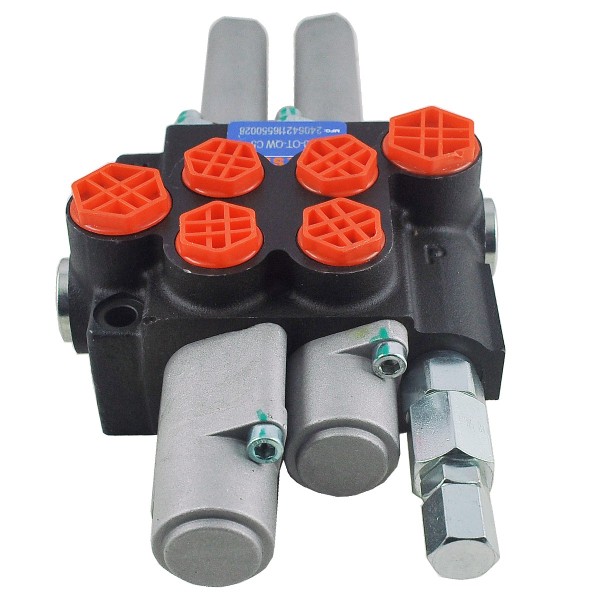

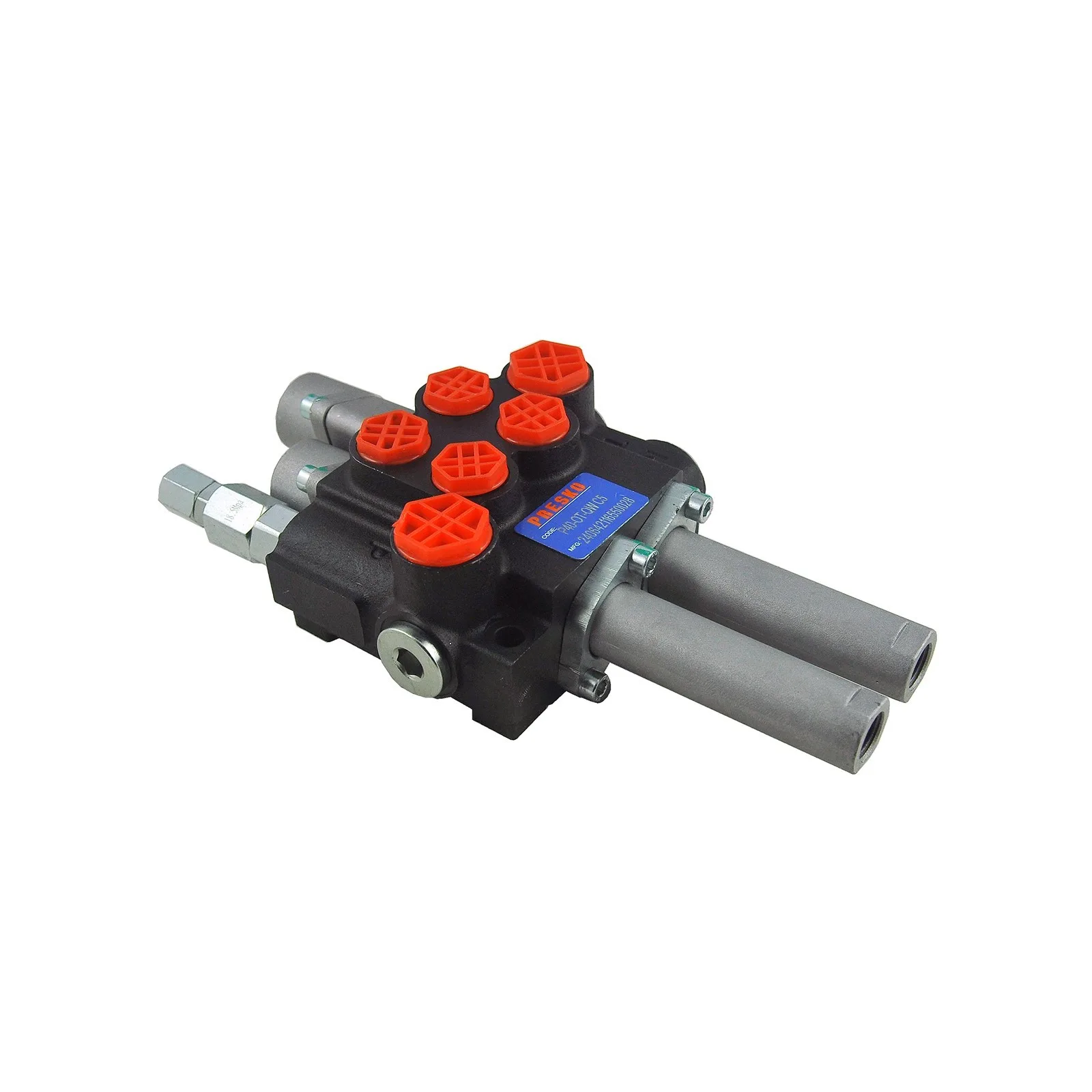

2-section hydraulic distributor (1-normal, 2-floating) for lines with one floating section. Thanks to this solution, the operator can easily adapt the device to his needs and increase its functionality. Additionally, the solid construction and high quality of materials used to produce the hydraulic distributor ensure long-lasting and reliable operation even in difficult conditions. Used in the agricultural industry, among others, in agricultural machines, tractors, cyclops, sprayers, HDS, loaders, excavators, sweepers, axles, construction machines, industrial machines and others.
Data and dimensions:
- number of sections: 1 - regular manual, 2 - floating,
- maximum pressure: 250 bar,
- maximum flow: 40 l/min,
- threads: 1/2" BSP (5 pcs), 3/8" BSP (4 pcs),
- length: 230 mm,
- width: 150 mm,
- part numbers: P40-2-OT-QW-C5.
It is worth investing in a hydraulic distributor with a floating position to ensure comfort and safety when working with hydraulic devices. Thanks to this, you will be able to perform your tasks effectively and enjoy the stability and precision of the device.
K18:M04

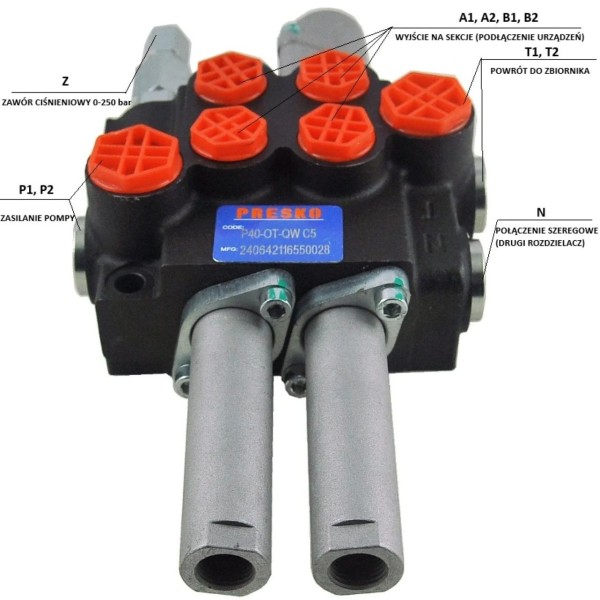

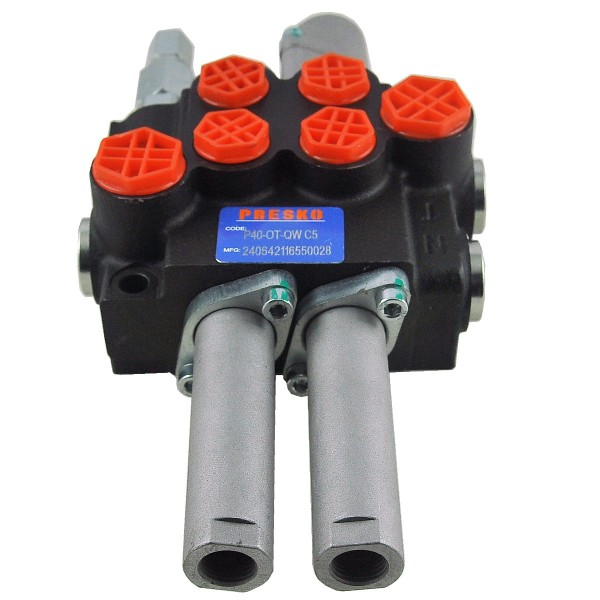

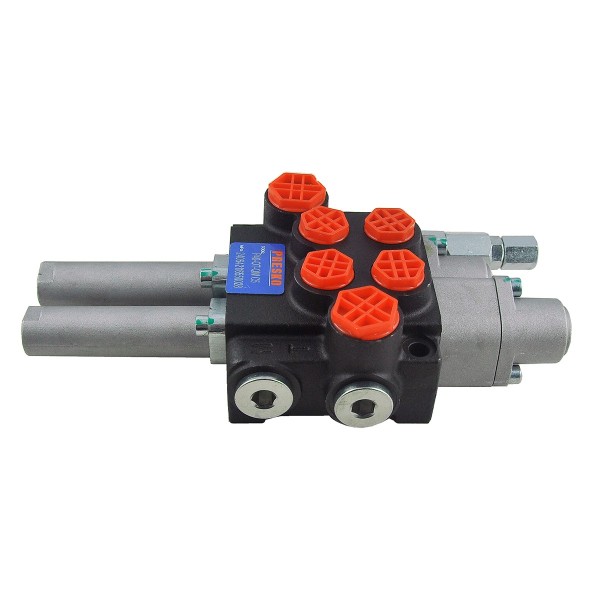

Connection:
Pump supply (P1, P2): BSP 1/2" internal thread
Return to the tank (T1, T2): BSP 1/2" internal thread
Output into sections (A1, A2, B1, B2): BSP 3/8" internal thread
Series connection (N): BSP 1/2" internal thread
Safety valve (Z)
Detailed description of the section (P40-2-OT-QW-C5):
Four-position lever (1 - 0 - 2 - 3) with a latch holding the levers in the floating position:
Position 0, neutral (lever set vertically), actuator piston is stationary - oil goes to the overflow.
Working position 1 (lever in diagonal forward position) the actuator piston extends.
Working position 2 (lever in diagonal position backwards), the actuator piston retracts.
Floating position 3 with latch (lever set to the maximum forward position), the actuator piston works freely, extends and retracts freely under the influence of the forces.
Three-position slider (1 - 0 - 2)
spring returns to the vertical by itself
Neutral position 0 (joystick set vertically - the cable is slack), the actuator piston rod is standing - the oil goes to the overflow.
Working position 1 (joystick set in an oblique forward position), the actuator piston rod extends.
Working position 2 (joystick set at an angle to the rear), the actuator piston rod retracts.
The well-thought-out design allows for quick and intuitive installation. And if it is necessary to connect a distributor in series with another distributor, just use a pressure sleeve.
