Available
Others in the offer of this manufacturer >
Condition
New
Production
Substitute
Parts
Links
Diameter (mm)
14
Overall length (mm)
500
Thread(s) length (mm)
40
Armor length (mm)
380
Go to full specification >
wishlist

Hydraulic distributor cable with joystick 500 mm - 4FARMER

JOY_500
zł60.00
Tax included PL 23%

48,78 netto

  • Dostępność (14 Quantity): stock
wishlist

Do you have any questions?

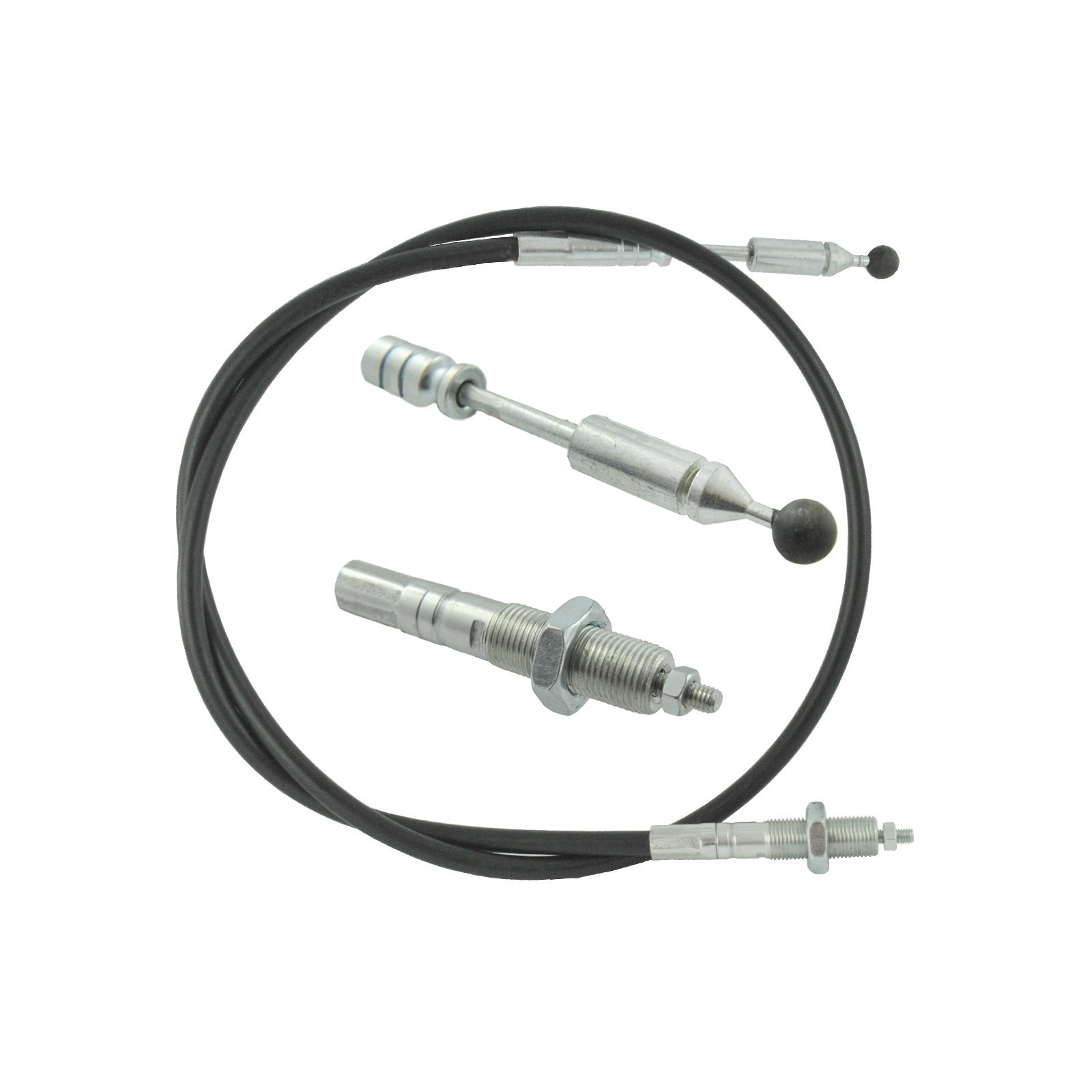

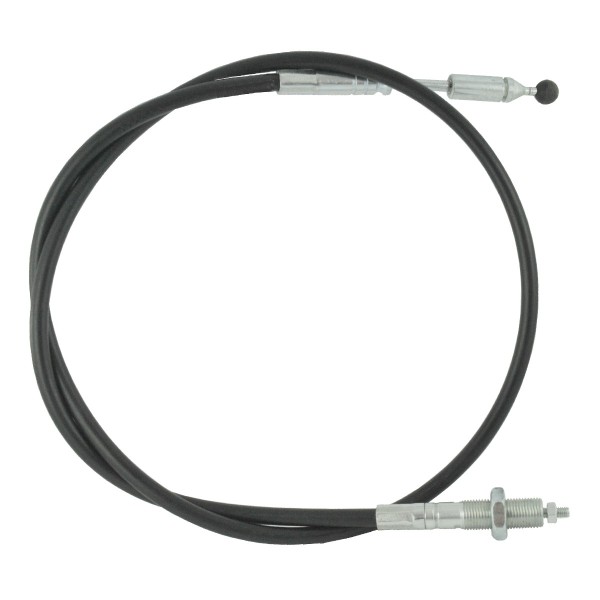

Hydraulic distributor cable with joystick 500 mm - 4FARMER

Control cable with a total length of 500 mm with a rivet with M16 x 1.5 thread and a ball end with a ball of 14 mm diameter for a hydraulic distributor with a joystick .

The distributor control cable is a steel cable in armor thanks to which we can control the flow of fluid in hydraulic lines. The cable is connected to the control joystick on one side, and directly to the hydraulic distributor on the other. The basic element of the tractor's hydraulic system are hydraulic lines . The most common lines are rubber, metal or other plastic lines resistant to corrosion and chemical properties of hydraulic fluids. Hydraulic lines differ in braiding, length and diameter and differ in length, diameter and working pressure to which they have been adapted. We distinguish several basic types of hydraulic hoses, including high and low pressure, fireproof and adapted to work at high temperatures.

Dimensions :

  • total length: 500 mm,
  • length of the armour with rivets: 380 mm,
  • armor diameter: 9.50 mm,

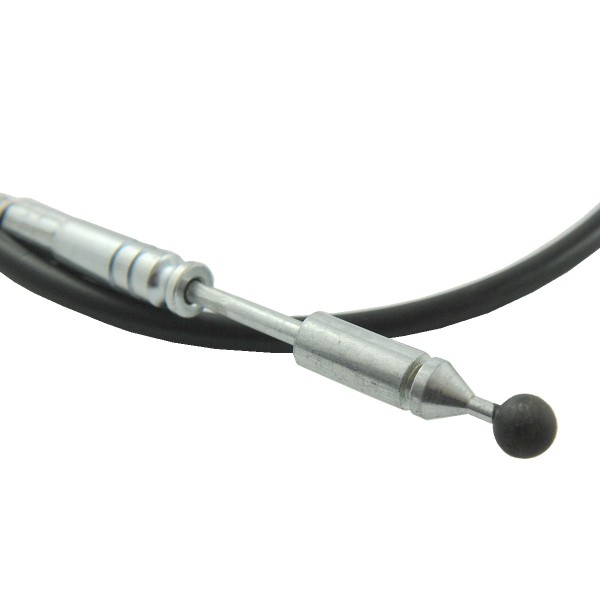

  • ball diameter: 14 mm,

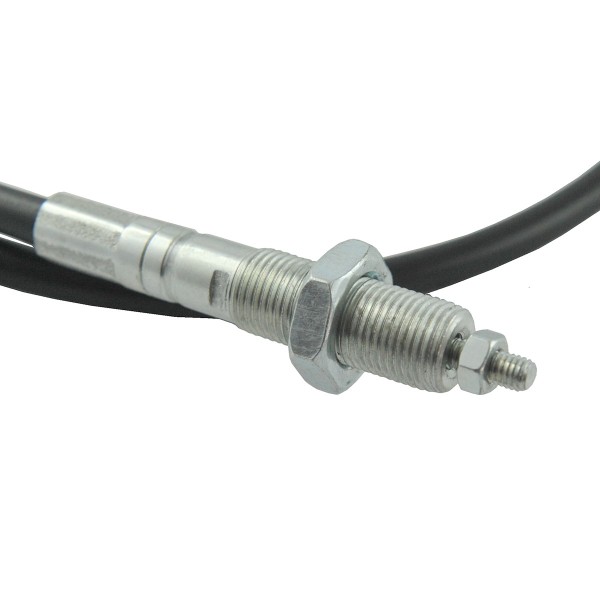

  • thread: M16 x 1.5 / M6 x 1.00,
  • thread length: 40 mm,

Before selecting the appropriate hydraulic hose, you should pay attention to the pressure, conditions and fluids your hydraulic lines will operate under and ensure the proper quality of the crimping.

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years

Specification

Condition
New
Production
Substitute
Parts
Links
Diameter (mm)
14
Overall length (mm)
500
Thread(s) length (mm)
40
Armor length (mm)
380
Armor diameter (mm)
9.50
Type of rope
Hydraulic distributor cable
Thread 1
M6 x 1.00
Thread 2
M16x1.50

4FARMER

4FARMER

The 4FARMER brand has an offer that is becoming more and more popular. It was created as a result of market observation and the increasing demand for goods and machines used in agricultural and fruit production. Its offer includes high-class agricultural machines and gardening equipment used not only for care, but also for cleaning work on the farm and garden. The products are designed to perform their functions as best as possible, making everyday work easier for customers.

The 4FARMER brand was established in 2010 and is currently one of the most dynamically developing brands on the agricultural machinery market. The products have gained the trust of many customers in Poland and abroad. 4FARMER products are widely used in many areas of agriculture, both on small farms and large production plants.

Wide offer of 4FARMER:

The 4FARMER brand has a wide range of agricultural machines: snow plows , diggers for root crops , tractor excavators , cable layers, sprayers , earth drills , rollers , graders , chippers , transport boxes , trailers , sweepers , as well as a wide range of lawn mowers , mowers. flail tillers , tillers and cultivators . The offer will also include a functional, compact model of the 4FARMER F24D 24KM 4x4 tractor .

The most important advantages of the 4FARMER brand?

  • Wide offer - Regardless of whether you are a farmer, gardener or orchardist, you will certainly find something for yourself among the 4FARMER offer.
  • Simple operation - 4FARMER equipment has been designed to be easy to use and does not cause difficulties even for novice users.
  • Professional support and access to spare parts.

4FARMER is a brand that meets the needs of customers by providing reliable and effective agricultural and gardening equipment.
