Product description
Excavator for LW 4FARMER tractor
The LW 4FARMER excavator is a series of mini excavators for tractors and mini tractors attached to the tractor's three-point linkage . The universal single-bucket excavator for a tractor is used for all types of earthworks such as digging, meliorating fields or cleaning ditches, but can also perform a reloading function or serve as a crane. The LW 4Farmer excavator is designed for small earthworks in households, farms and is designed for tractors with power from 15 to 180 HP (+/- 5 HP) with a digging depth of 1650 to 3655 mm . The LW 4FARMER excavator is available in several sizes, which allows it to be successfully used in municipal services and construction. Available sizes:
- mounted tractor excavator LW-7 4FARMER / minimum power 30 HP / digging depth 2400 mm / weight 560 kg.
4FAMER LW tractor excavator

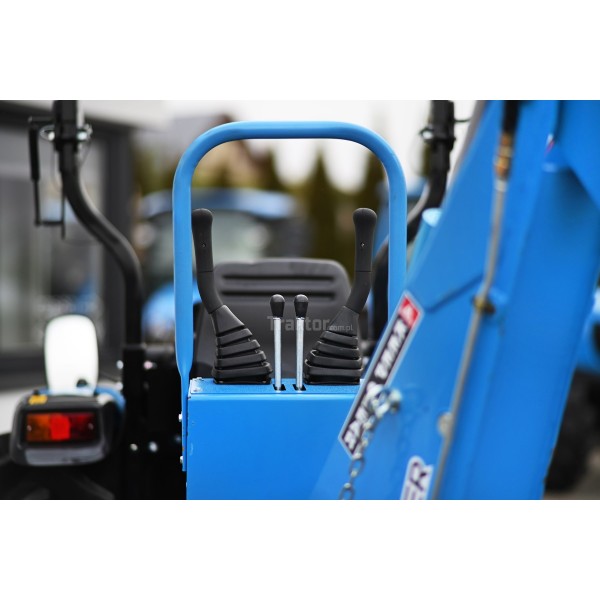

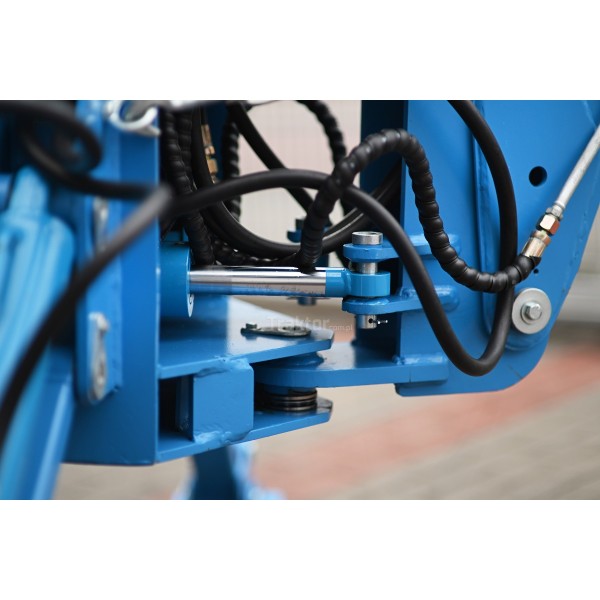

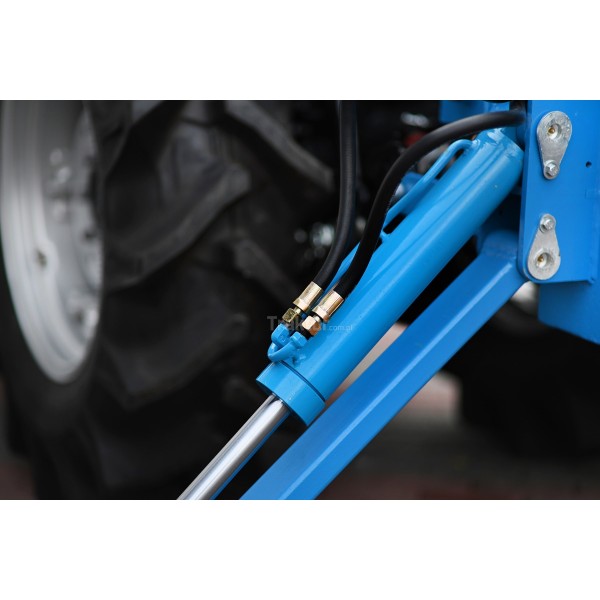

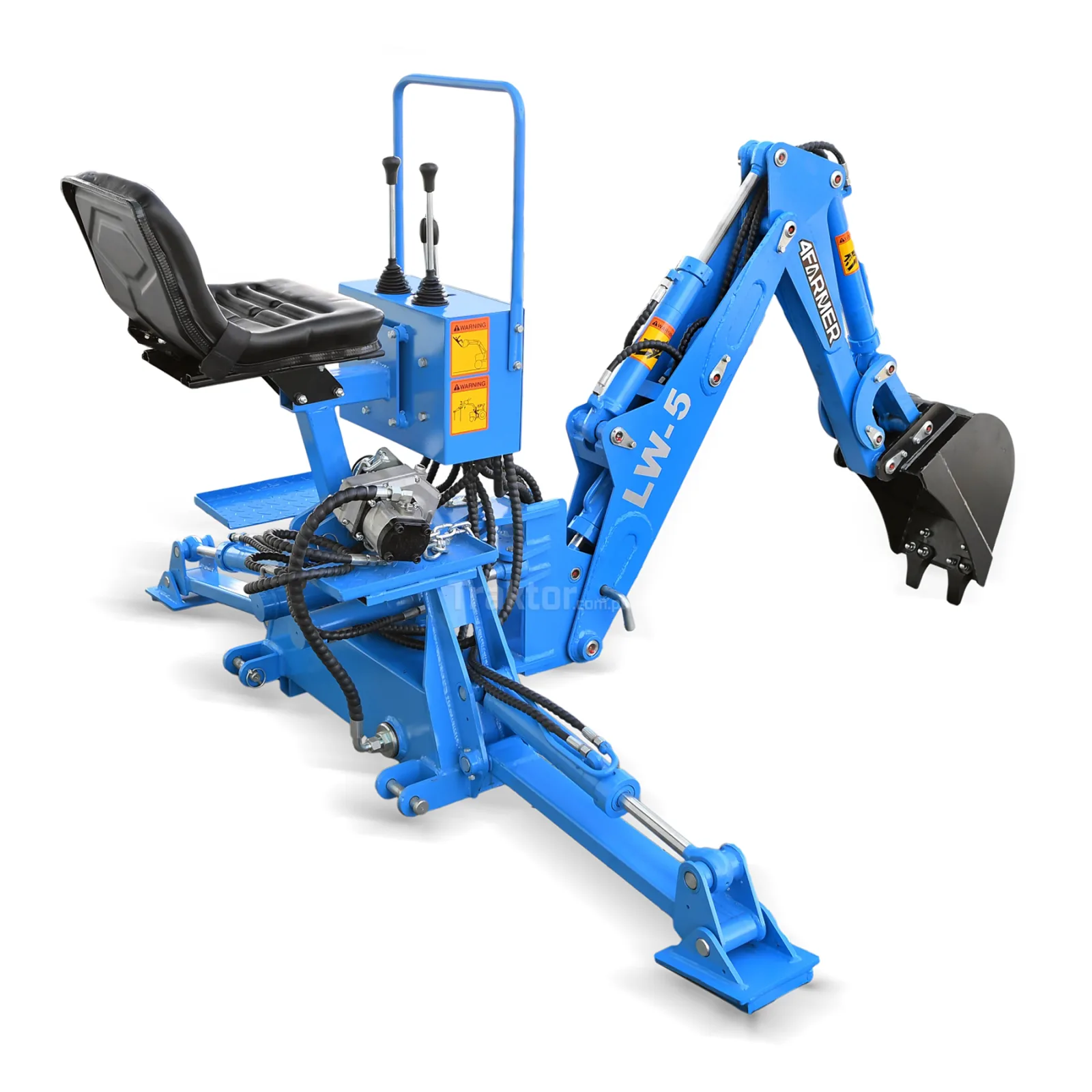

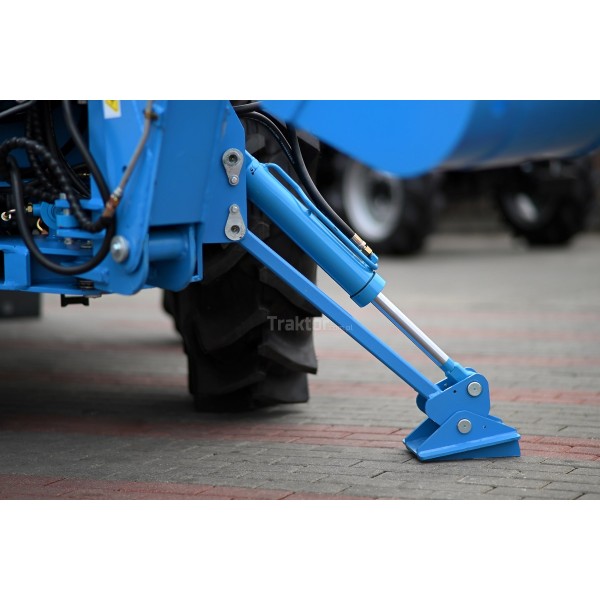

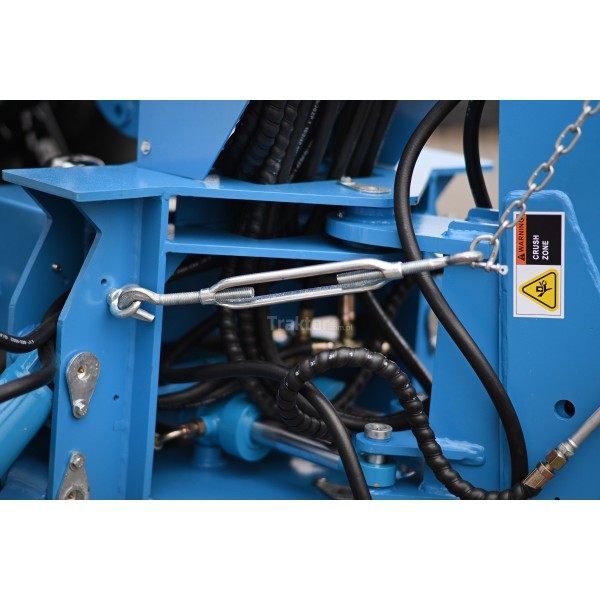

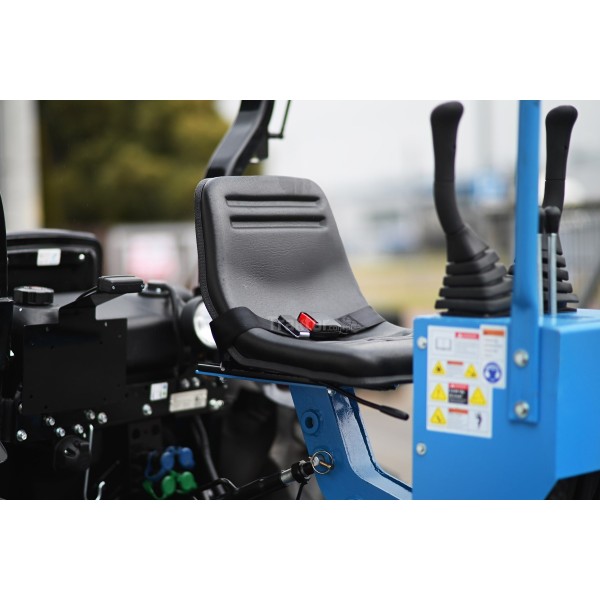

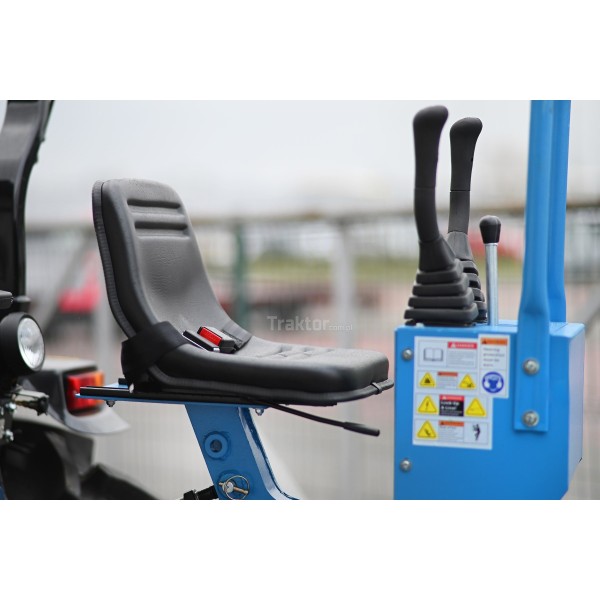

The tractor excavator consists of its own hydraulic pump, frame, lifting arm, hydraulic cylinders, stabilizing legs and bucket and a control cockpit with an operator's seat. The excavator's hydraulic system is powered by its own hydraulic pump connected to the tractor 's PTO shaft and has its own oil tank , thanks to which the excavator has an independent oil system , which means that the tractor's hydraulic oil does not mix with the excavator's hydraulic oil.

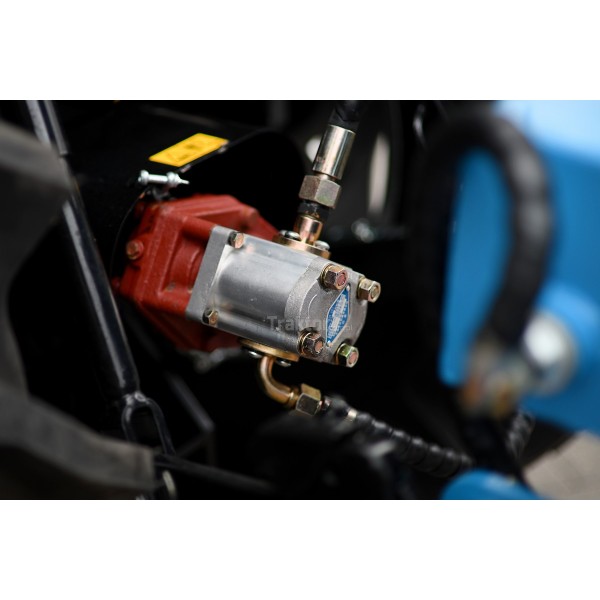

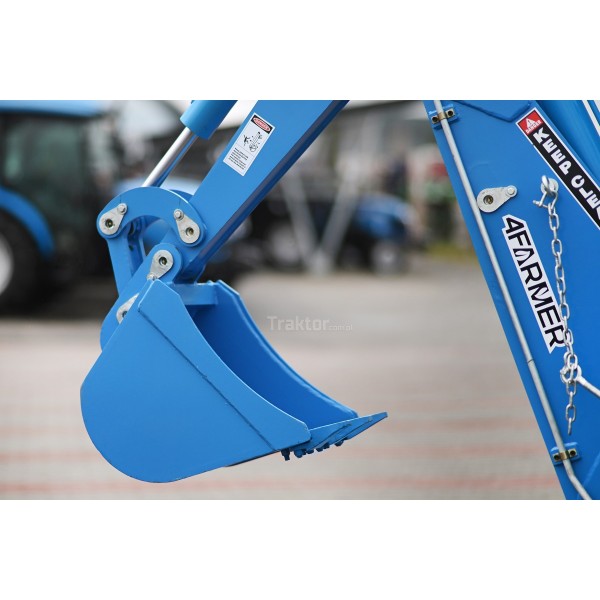

The LW6 excavator is an excavator suspended by means of pins to the tractor with a three-point linkage Cat I. The excavator has its own hydraulic pump mounted on the tractor's power take-off shaft with the designation CBN-F320 . The dedicated bucket width for the LW6 4FARMER model is 350 mm with a capacity of 0.03 m3.
Technical data :
- model: LW-6 4FARMER ,
- weight: 550 kg,
- maximum cutting depth: 2000 mm,
- maximum digging height: 2970 mm,
- maximum digging radius: 2700 mm,
- maximum discharge height: 1860 mm,
- Stabilizer spacing: 2200 mm,
- clearance: 450 mm,
- bucket rotation angle: 160°
- bucket capacity: 0.03 m3,
- bucket width: 350 mm, 14 inches,
- transport width: 1700 mm,
- Hydraulic pump: CBN-F320 .
When choosing an excavator, you should pay attention to the excavator's digging properties and the weight, size and wheelbase of the pulling axle. For the LW 4FARMER excavator, we can use buckets of different sizes and types interchangeably. The excavator does not require a hydraulic connection to the tractor's hydraulic system.

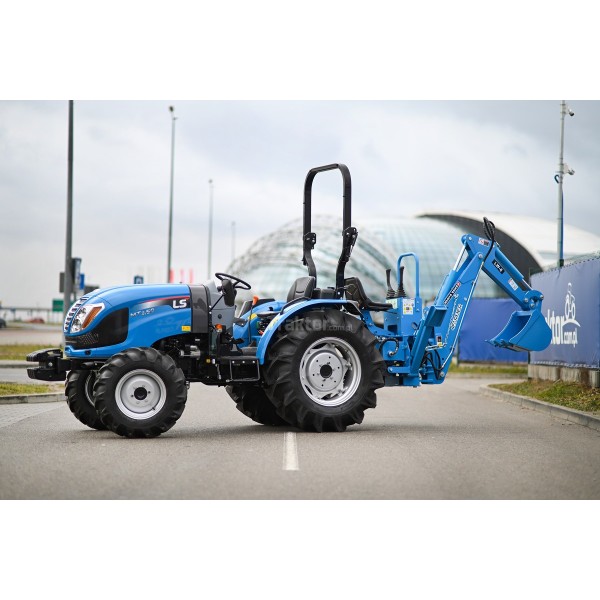

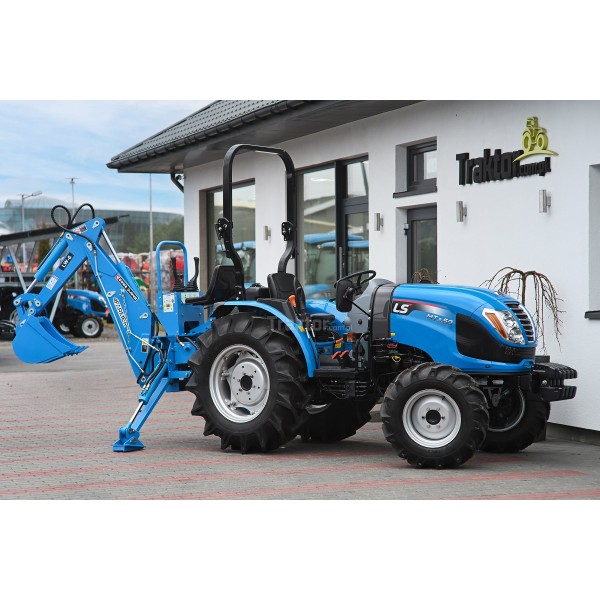

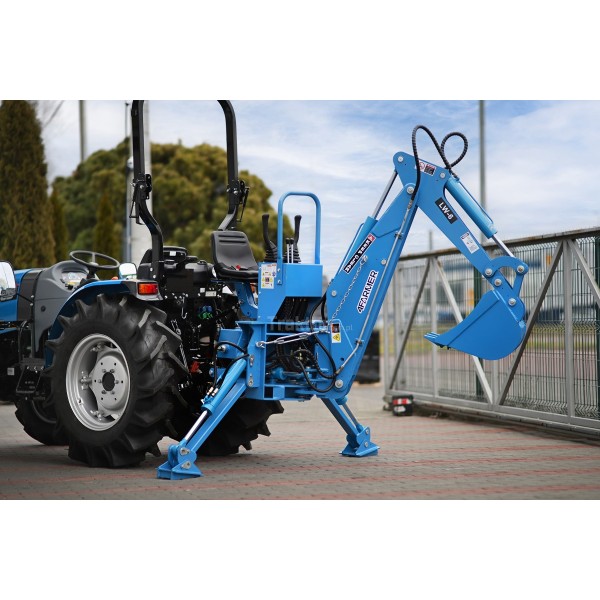

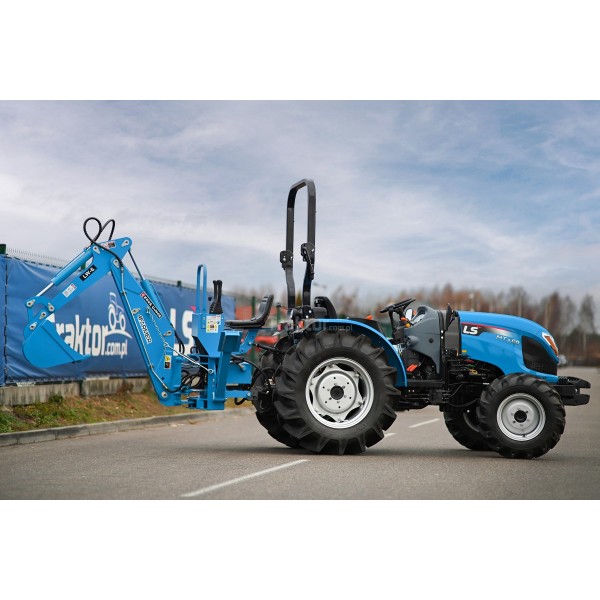

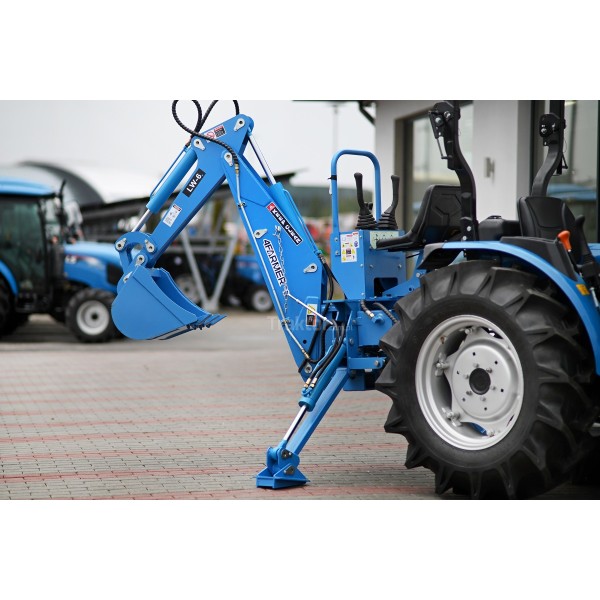

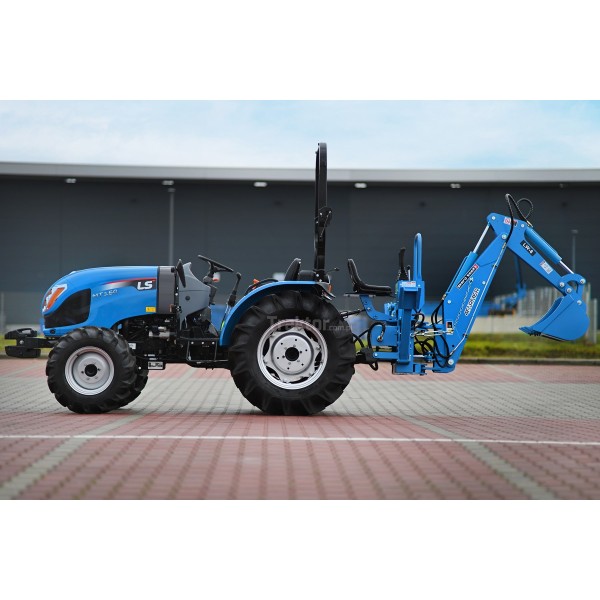

*Illustrative photos show a set with the LS Tractor MT3.60 tractor, the offer applies only to the excavator.
