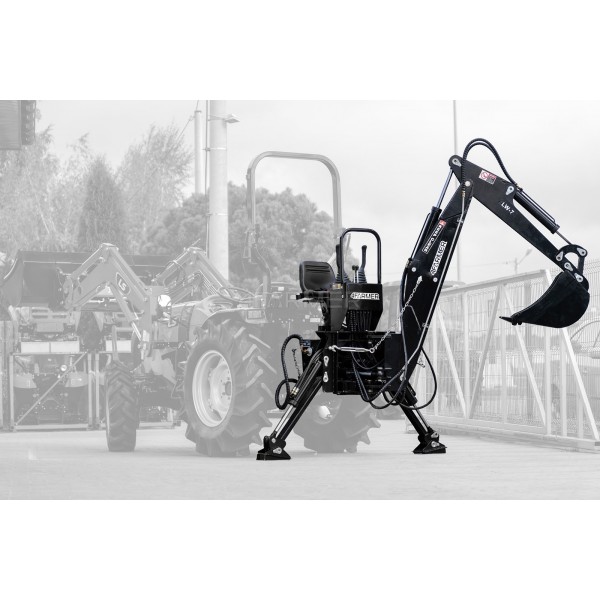

Excavator for the LW-7 4FARMER tractor

The LW 4FARMER excavator is a series of mini excavators for tractors and mini tractors attached to the tractor's three-point linkage. The universal single-bucket excavator for a tractor is used for all types of earthworks such as digging, meliorating fields or cleaning ditches, but can also perform a reloading function or serve as a crane. The LW 4Farmer excavator is designed for small earthworks in households, farms and is designed for tractors with power from 15 to 180 HP (+/- 5 HP) with a digging depth of 1650 to 3655 mm. The LW 4FARMER excavator is available in several sizes, which allows it to be successfully used in municipal services and construction. Available sizes:

• LW-5 4FARMER mounted tractor excavator / minimum power 15 HP / digging depth 1650 mm / weight 360 kg,
• LW-6 4FARMER mounted tractor excavator / minimum power 20 HP / digging depth 2000 mm / weight 550 kg,
• LW-7 4FARMER mounted tractor excavator / minimum power 30 HP / digging depth 2400 mm / weight 560 kg,
• LW-8 4FARMER mounted tractor excavator / minimum power 50 HP / digging depth 2800 mm / weight 630 kg.

4FAMER LW tractor excavator

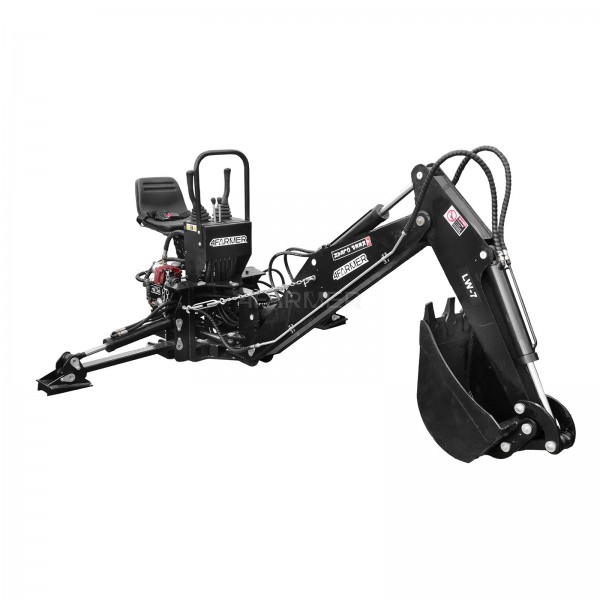

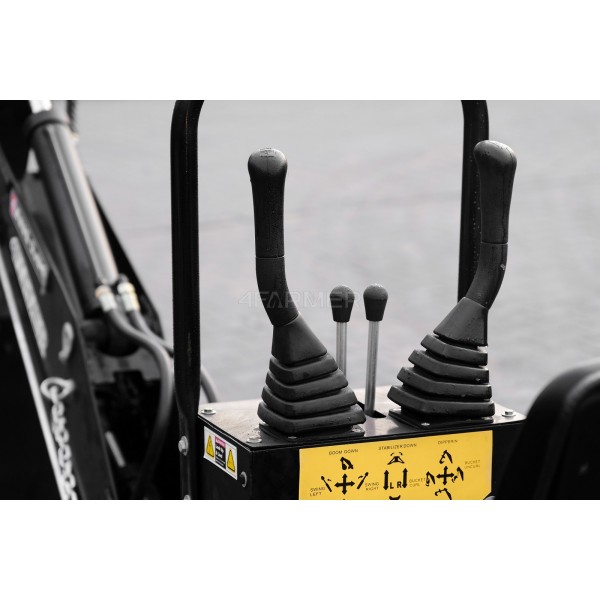

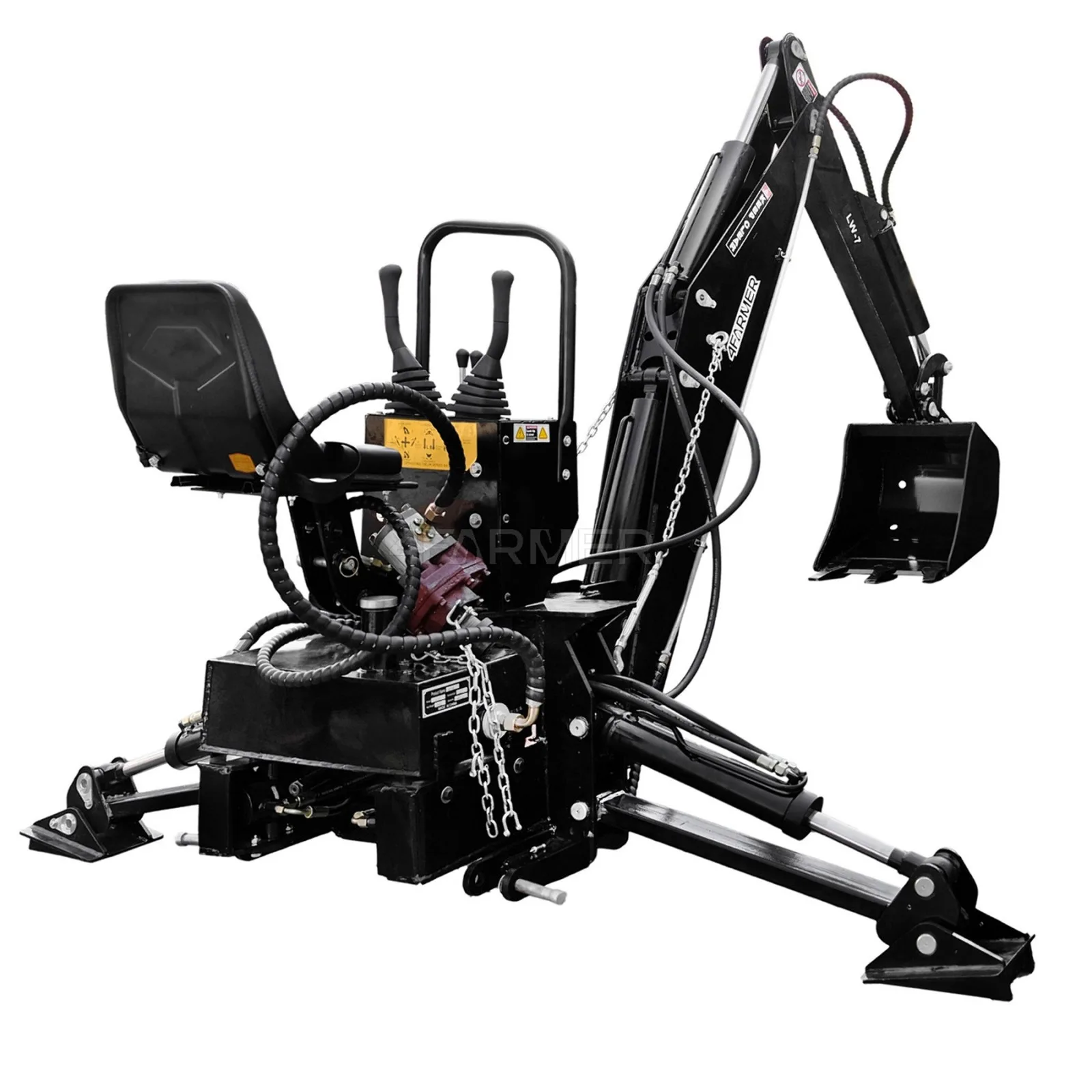

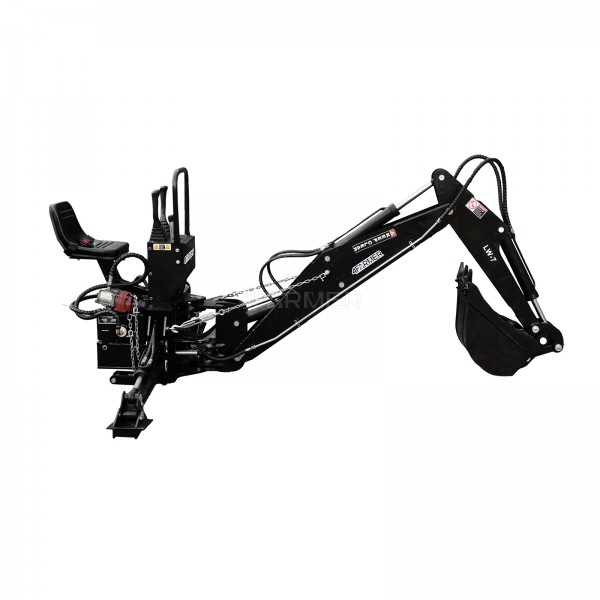

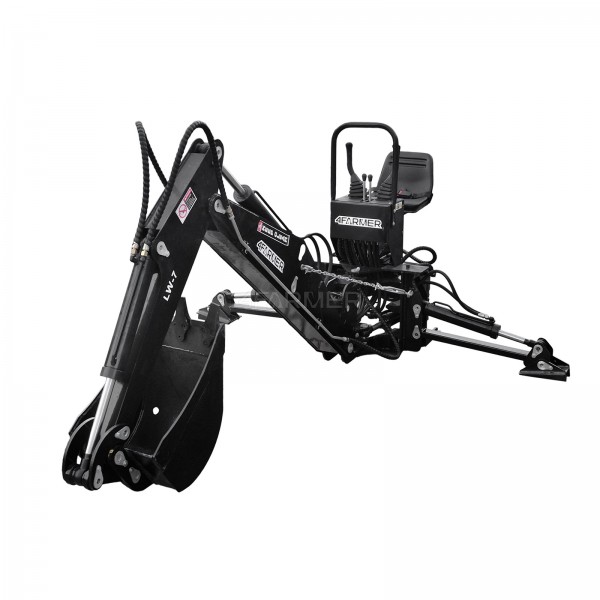

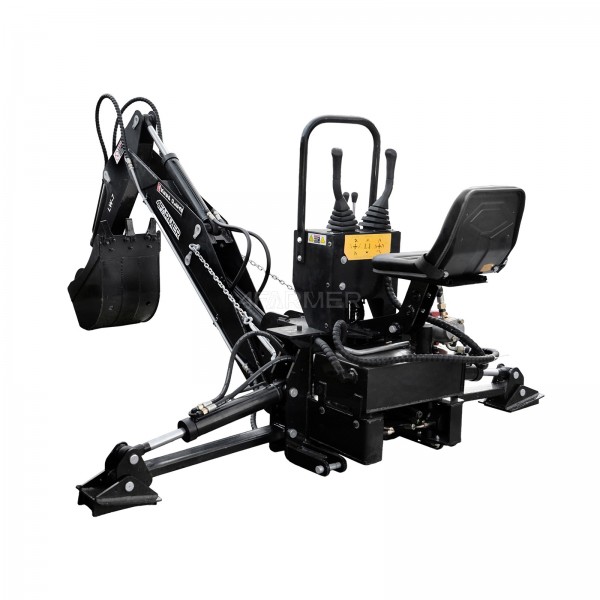

The tractor excavator consists of its own hydraulic pump, frame, lifting arm, hydraulic cylinders, stabilizing legs and bucket, and a control cockpit with an operator's seat. The excavator's hydraulic system is powered by its own hydraulic pump connected to the tractor's PTO shaft and has its own oil tank , thanks to which the excavator has an independent oil system , which means that the tractor's hydraulic oil does not mix with the excavator's hydraulic oil.

The excavator is designed to work with a tractor, the most important features and dimensions of the LW-5 4FARMER excavator

The LW7 excavator is an excavator suspended using pins for a tractor with a three-point hitch system ( TUZ ) of the first category ( Cat I ). The excavator has its own hydraulic pump mounted on the tractor's PTO shaft, marked CBN-F320 . The dedicated bucket width for the LW7 4FARMER model is 400 mm with a capacity of 0.05 m3.

Technical data :

• model: LW-7 4FARMER ,
• weight: 560 kg,
• maximum picking depth: 2400 mm,
• maximum digging height: 3210 mm,
• maximum digging radius: 3140 mm,
• maximum discharge height: 2050 mm,
• stabilizer spacing: 2200 mm,
• ground clearance: 450 mm,
• bucket rotation angle: 160 °,

• bucket capacity: 0.05 m3,
• bucket width: 400 mm, 16 inches,
• transport width: 1700 mm,
• hydraulic pump: CBN-F320 .

When choosing an excavator, pay attention to the digging properties of the excavator and the weight, size and towing wheelbase. We can use interchangeable buckets of different sizes and types for the LW 4FARMER excavator. The excavator does not require a hydraulic connection to the tractor's hydraulic system.

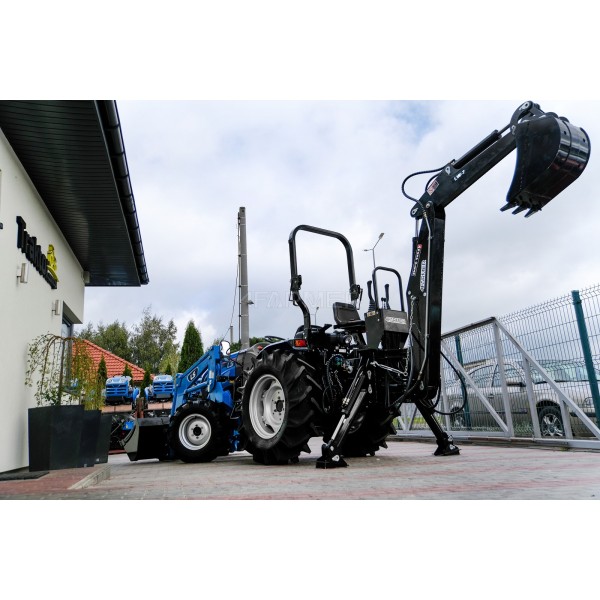

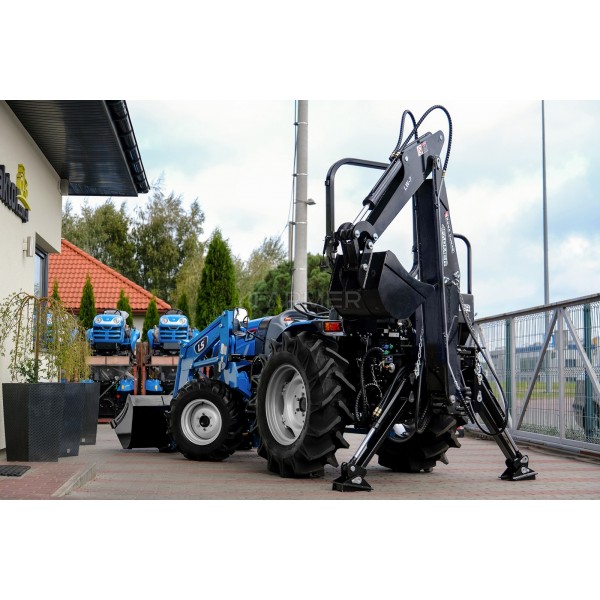

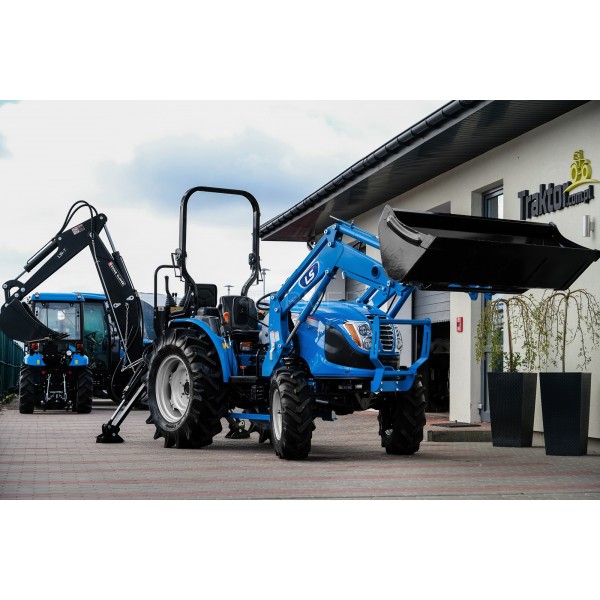

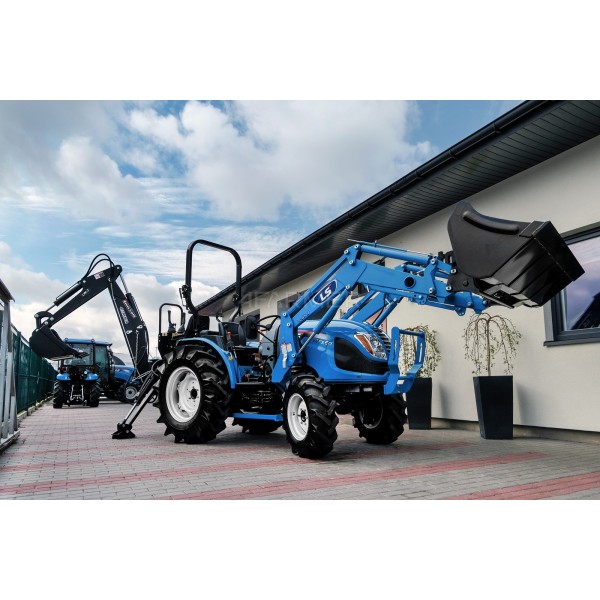

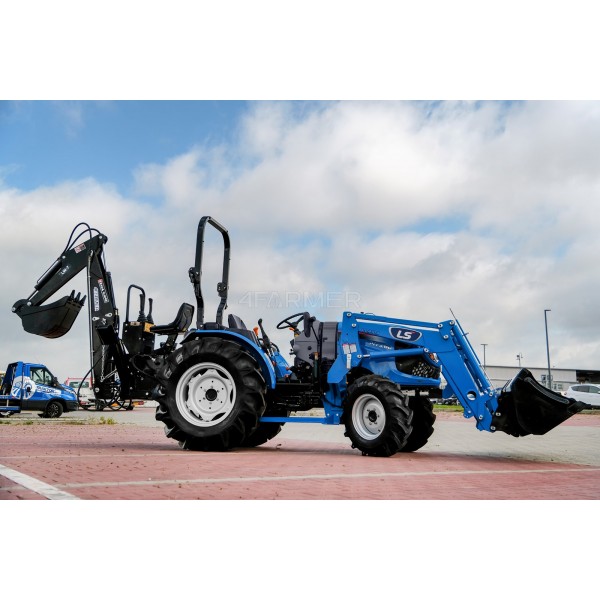

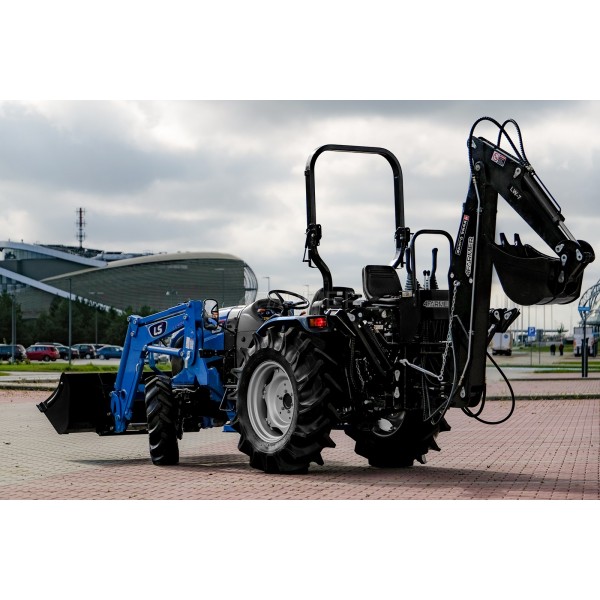

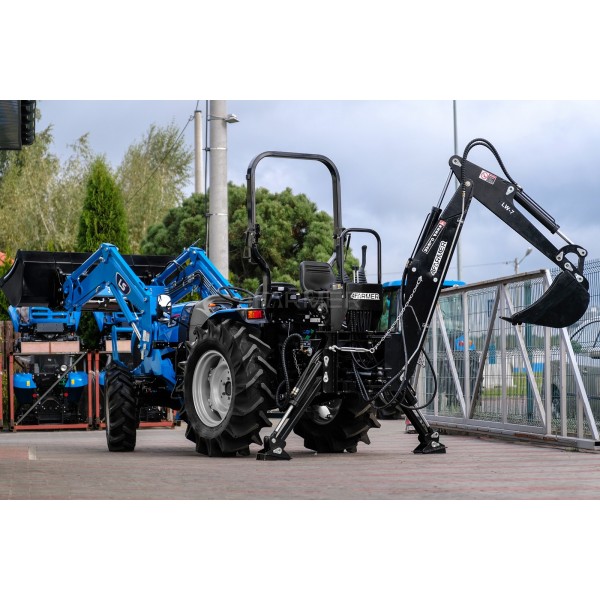

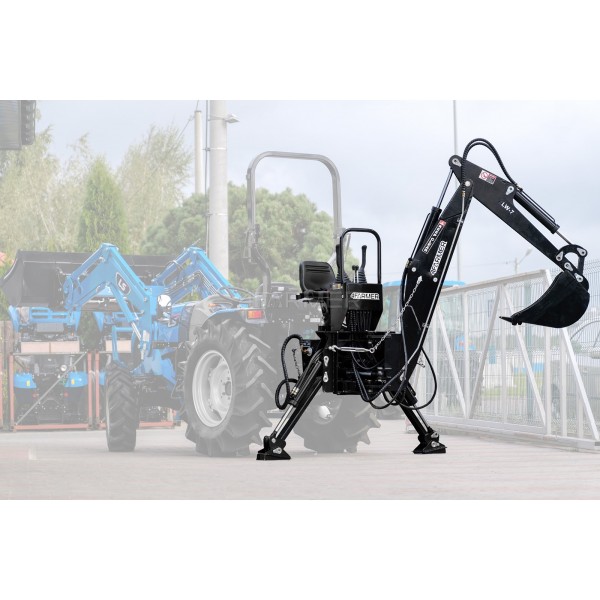

*Pictures for illustration purposes only apply to the LW-6 model.
