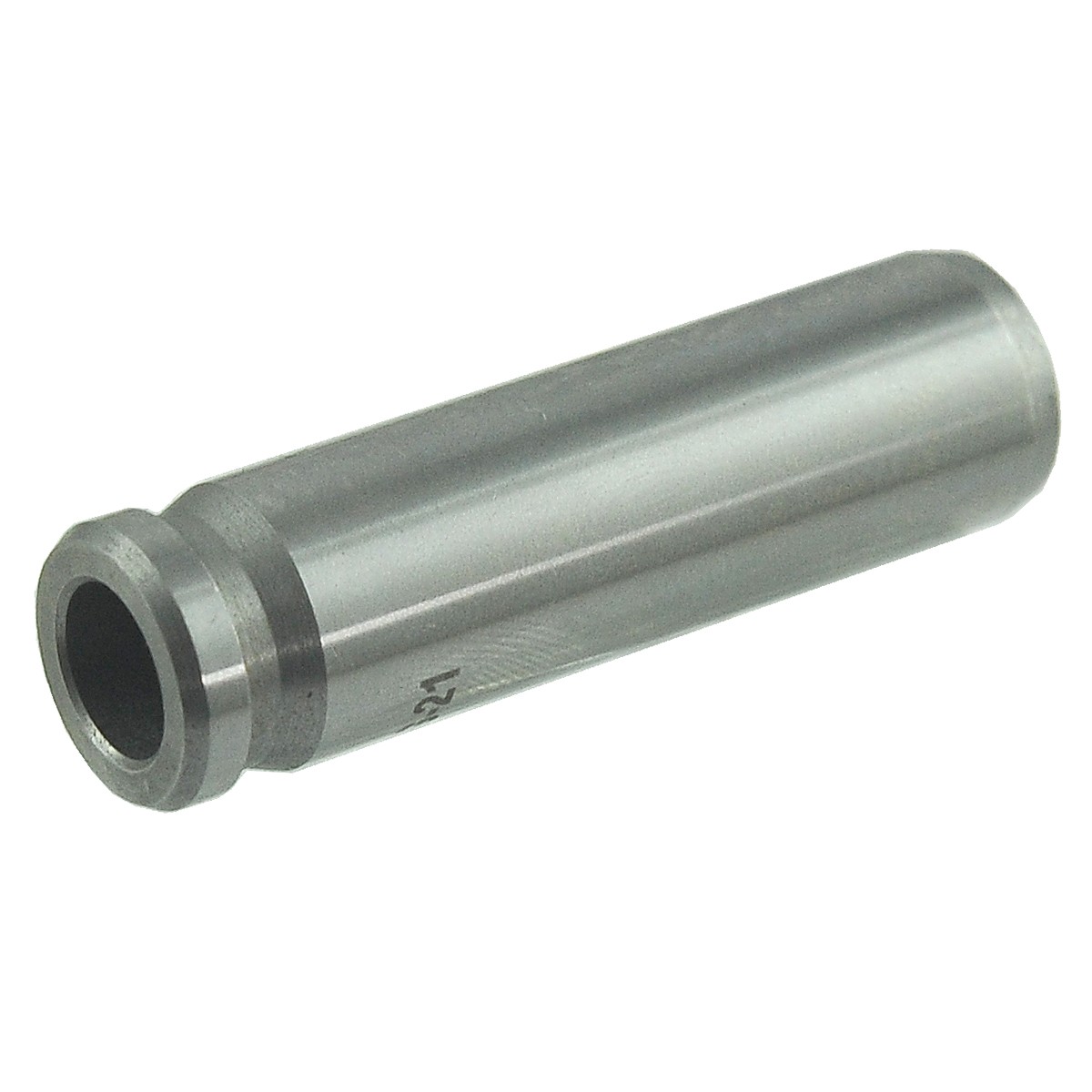

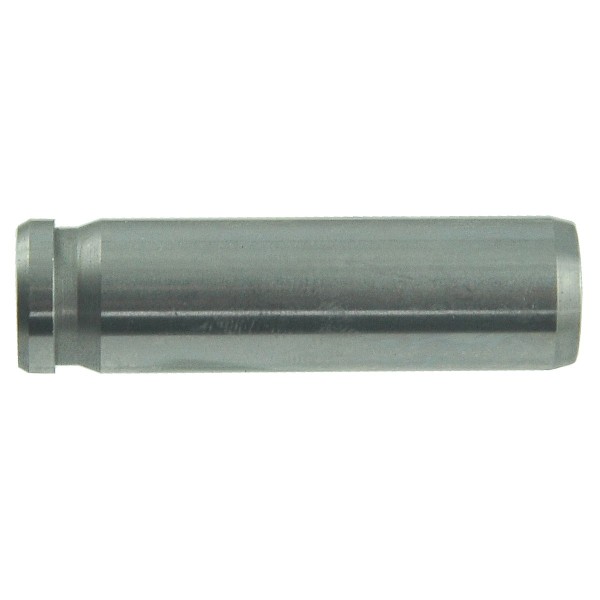

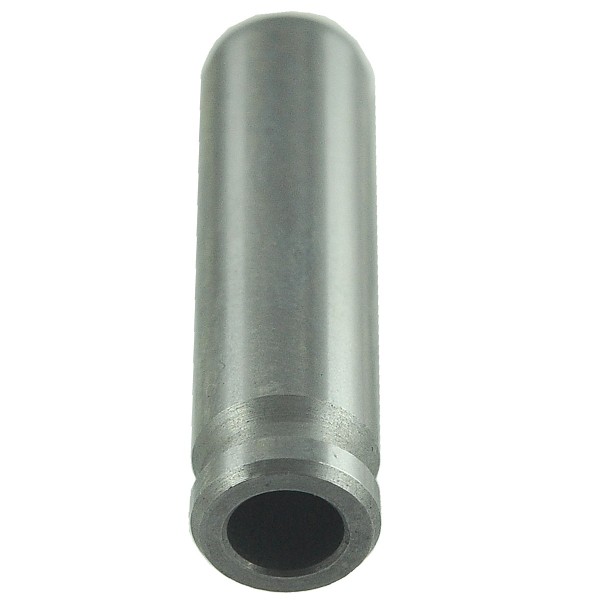

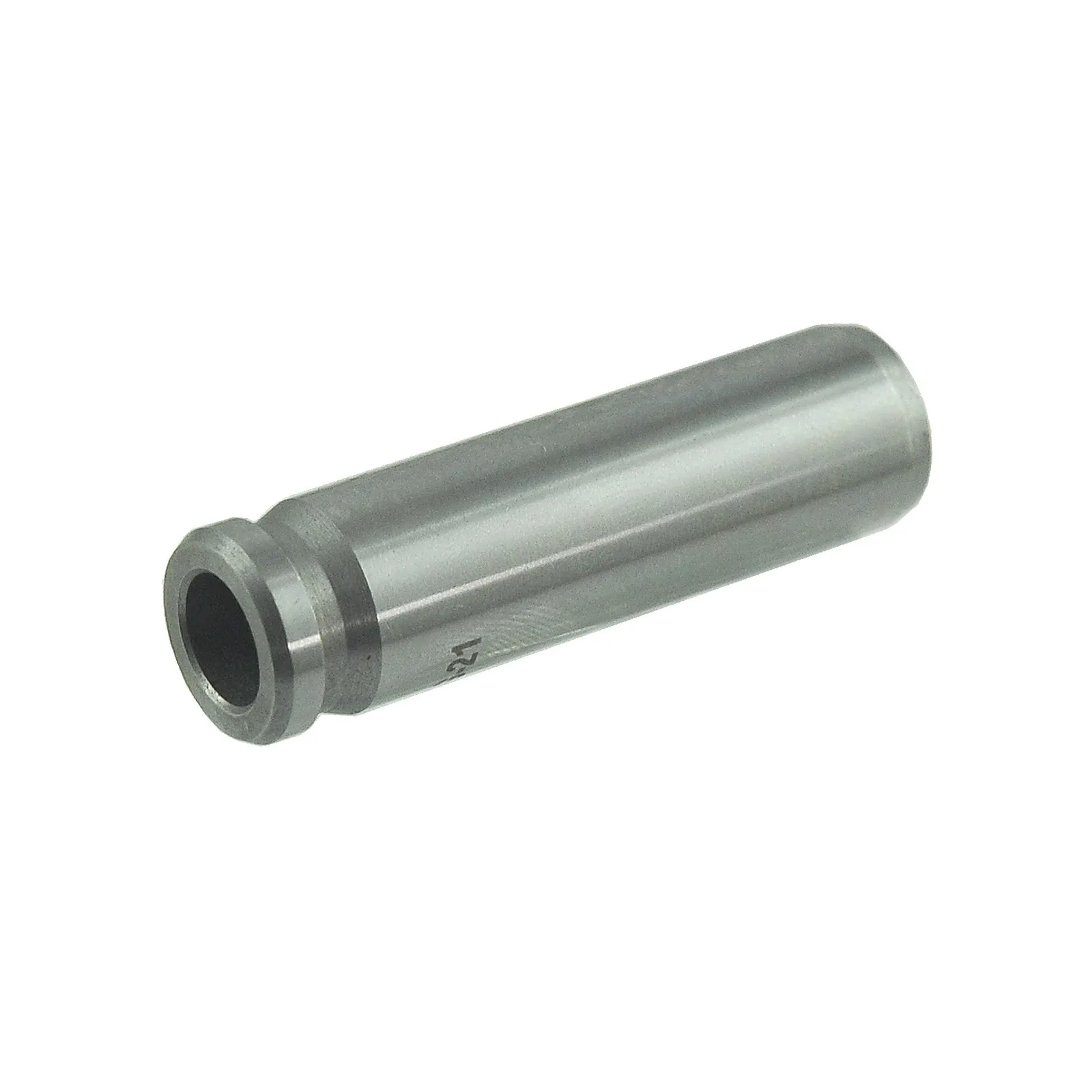

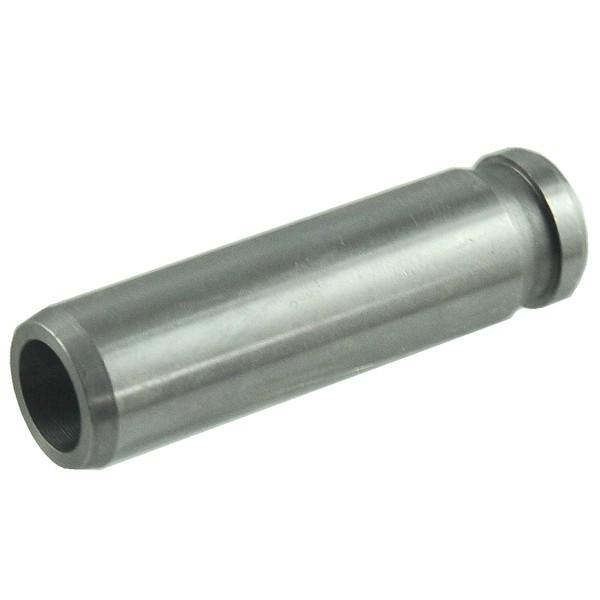

Valve guide / EX / 8 x 13 x 47 mm / Kubota D1403 / D1503 / D1703 / D1803 / V2203 / S2800 / Kubota L3408 / 6-15-106-08

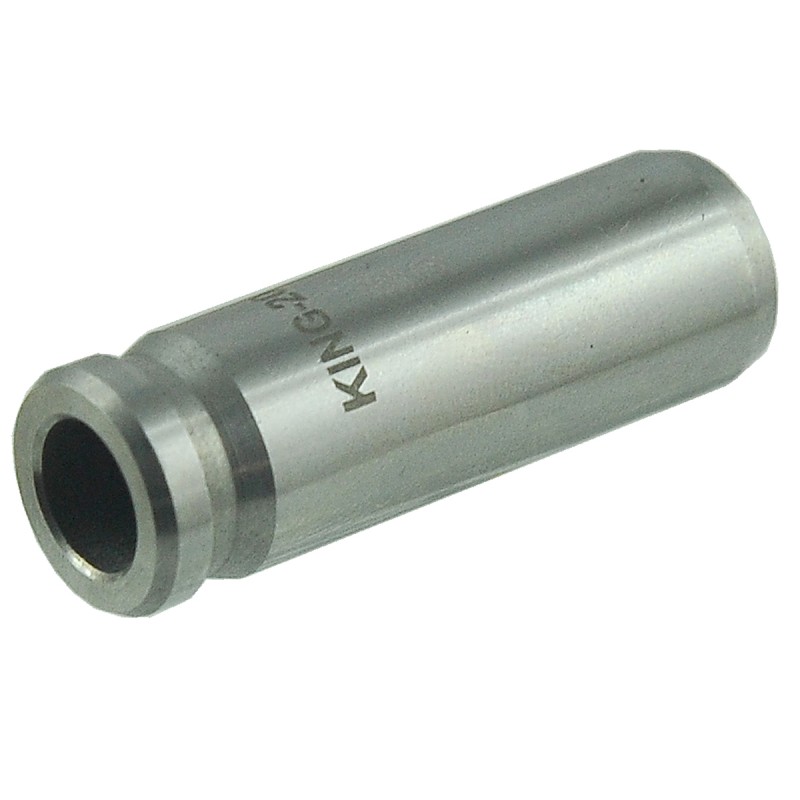

EX intake valve guide (valves 6-24-101-02 , (IN) 1G852-13110, (EX) 1G852-13120, IN guide 6-15-106-07 ) with a total length of 47 mm , inner diameter of 8 mm , outer diameter of 13 mm for Kubota tractors of the Kubota L175, Kubota L2050, Kubota L3300, Kubota L3408 , Kubota M4800, Kubota M4900 series, Kubota M5040, Kubota M5400 with engines Kubota D1403, Kubota D1503, Kubota D1703, Kubota D1803, Kubota V2203, Kubota S2800 and others.

The valve guide is an element whose main task is to guide the valve stem and remove some of the heat from the valve head to the cylinder head. The valve guide holds the valve in the correct position during engine operation and provides the appropriate pressure for the correct operation of the valves. The correct position of the valve relative to the valve seat and the greatest possible accuracy of this fit are desirable, but it should also be remembered that too small a clearance can cause the valve to seize.

Dimensions :

• total length: 47 mm,
• inner diameter: 8 mm,
• outer diameter: 13 mm
• original part numbers: 1C010-13560, 1J829-13560, 15601-13560, 17311-13560, 17331-13560,
• comparison numbers: -,
• part numbers: 6-15-106-08.

Engine models :

Kubota :

• Kubota D1403,
• Kubota D1503,
• Kubota D1703,
• Kubota D1803,
• Kubota V2203,
• Kubota S2800.

Tractor models :

Kubota :

• Kubota L175,
• Kubota L2050,
• Kubota L3300,
• Kubota L3408,
• Kubota M4800,
• Kubota M4900,
• Kubota M5040,
• Kubota M5400.

The first signs of valve guide wear are increased fuel or oil consumption, reduced engine power or uneven engine operation. Damaged guides should be replaced with new ones as soon as possible, because damaged guides can damage the valve system.

Warehouse :
K18:F30:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
