Steering rod / 45 x 520 mm / RH / Kubota L2501 / L2800 / L3200 / L3301 / L3400 / L3408 / L3700 / L3800 / L3901

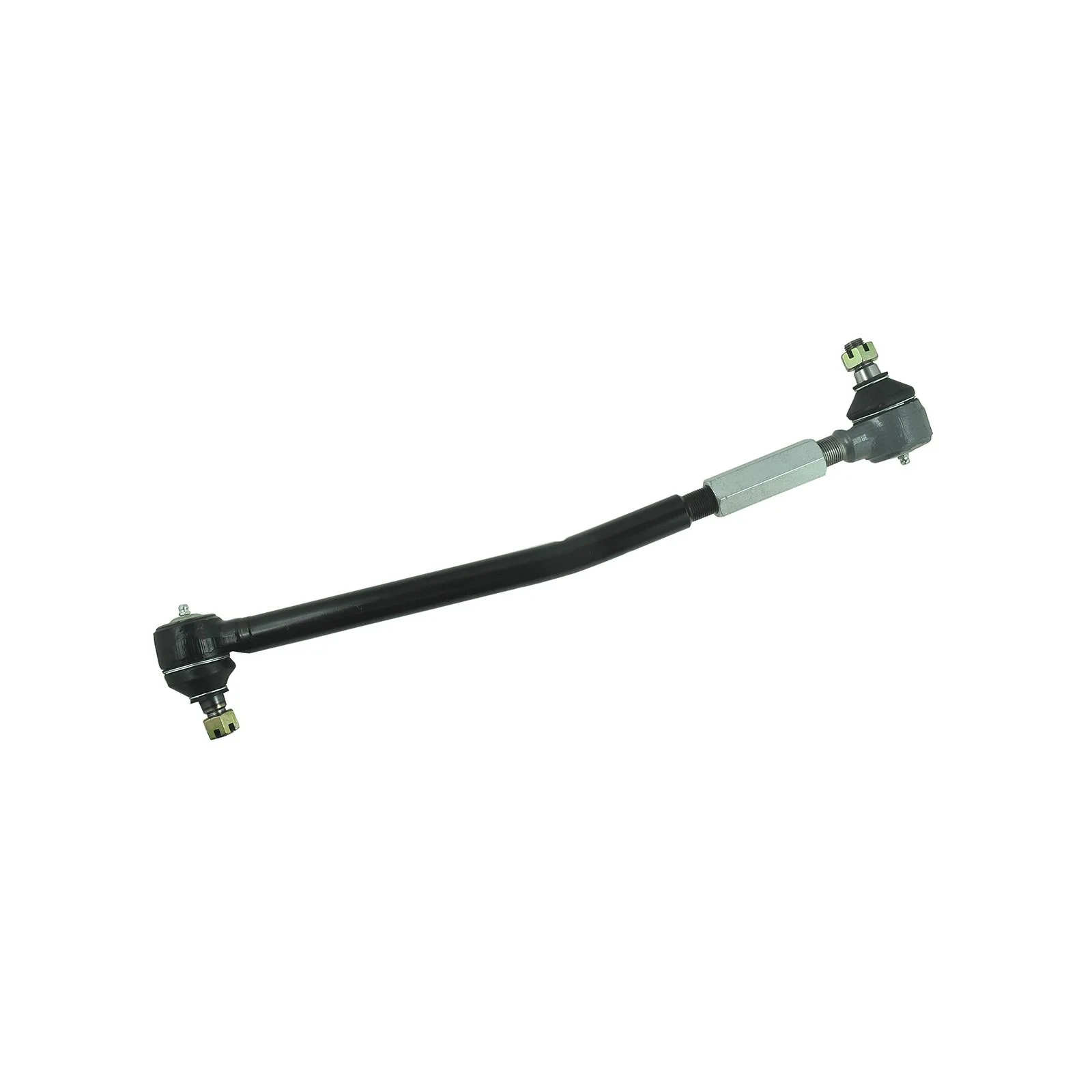

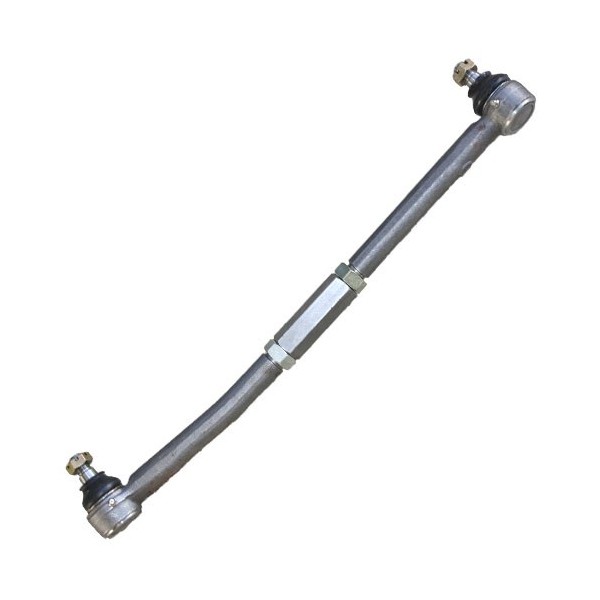

RH steering rod (LH rod 5-23-100-04 ) with a total length of 445 mm and a height of 82 mm for tractors Kubota brand series Kubota L2501, Kubota L2800, Kubota L3200, Kubota L3301, Kubota L3400, Kubota L3408, Kubota L3700, Kubota L3800, Kubota L3901 and others

The tie rod end, or tie rod with its ends, is a steering component that connects the wheels to the steering gear. Proper installation of this component directly affects the wheel angle and, consequently, the vehicle's handling characteristics. The most common visible signs that a tie rod needs to be replaced are play in the steering system or visible abnormal tire wear. Remember that the good condition of the tie rod ends improves driving safety and extends tire life.

(shaft connector %C5% 9Bci-do-kubota/358- %C5% 82 %C4% 85cznik-ko %C5% 84c %C3% B3wki-dr %C4% 85 %C5% BCka-m20-x-15-80-mm-kubota-l3408-32570-44720-5-15-249-06.html">5-15-249-06 , 32570-44720, end 1 of 2 - %C5% BCki-kierownicze-/2706-ko %C5% 84c %C3% B3wka-dr %C4% 85 %C5% BCka-steering-axle-430-mm-right-kubota-l3408-5-23-100-07.html">5-23-100-07 , end 2 of 2 - 5-23-101-14, 32580-44770, complete set for the right side %C5% BCki-steering-axle-/1350-dr %C4% 85 %C5% BCek-steering-axle-570-mm-ko %C5% 84c %C3% B3wka-dr %C4% 85 %C5% BCka-kubota-l3408-5-23-100-04-tc220-13700.html">5-23-100-04 )

Dimensions (set):

• length: 470 mm (measured without rod end heads with screws tightened to the maximum),
• total length: 570 mm (measured with rod heads and screws tightened to the maximum),
• working length: 520 mm (measured from center to center of the cones with the screws tightened to their maximum),
• part numbers: TC220-13740.

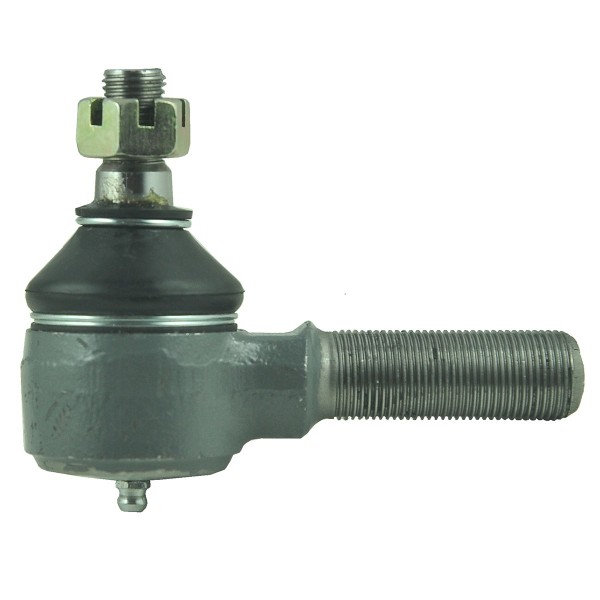

Tip dimensions (5-23-100-07):

• total length: 430 mm,
• head diameter: 50 mm,
• thread length: 20 / 52 mm,

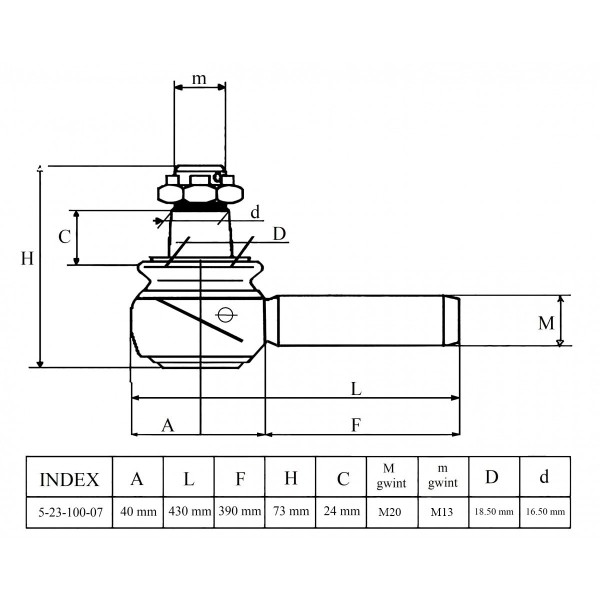

• head height (see drawing): 89 mm,
• cone height: 30 / 50 mm,
• cone diameter (see drawing): 17 / 18 mm,
• thread: M13 x 1.5 / M20 x 1.50,
• part numbers: %C5% BCki-steering-/2706-ko %C5% 84c %C3% B3wka-dr %C4% 85 %C5% BCka-steering-430-mm-right-kubota-l3408-5-23-100-07.html">5-23-100-07 .

Tip dimensions (5-23-101-14, %C5% BCki-kierownicze-/492-ko %C5% 84c %C3% B3wka-dr %C4% 85 %C5% BCka-rh-kubota-l2808-l3408-6-23-133-03.html">6-23-133-03 , 32580-44770):

• total length: 107 mm,
• head diameter: 45 mm,
• thread length: 21 / 50 mm,
• head height (see drawing): 77 mm,
• cone height: 45 / 24 mm,
• cone diameter (see drawing): 18 / 16 mm,
• thread: M13 x 1.50 / M20 x 1.50,
• original part numbers: 32580-44770,
• part numbers: 5-23-101-14.

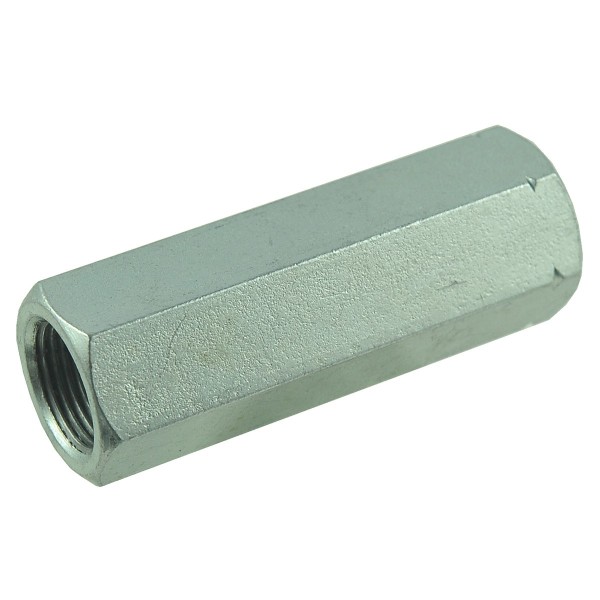

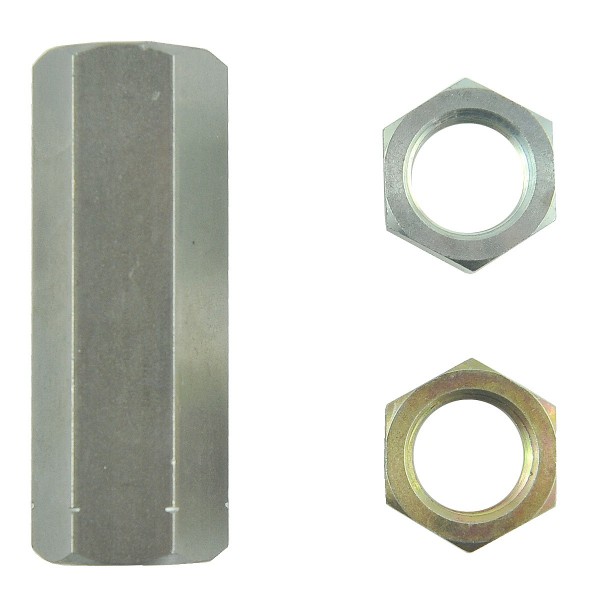

Connector dimensions (5-15-249-06):

• length: 80 mm.
• nut height: 12 mm,
• thread: M19 x 1.50,
• key size: 27.
• original part numbers: 32570-44720,
• comparative numbers: %C5% 9Bci-do-kubota/358- %C5% 82 %C4% 85cznik-ko %C5% 84c %C3% B3wki-dr %C4% 85 %C5% BCka-m20-x-15-80-mm-kubota-l3408l3608l4018-32570-44720-5-15-249-06.html">5-15-249-06 .

Tractor models :

• Kubota L2501,
• Kubota L2800,
• Kubota L3200,
• Kubota L3301,
• Kubota L3400,
• Kubota L3408,
• Kubota L3700,
• Kubota L3800,
• Kubota L3901.

The first signs of steering rack wear include play in the steering wheel, steering wheel vibration, and delayed steering wheel response to slight steering wheel movements. Tie rod end wear or damage is often caused by other malfunctioning components or improper driving and operation of the tractor.

Warehouse : K18 E17

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
