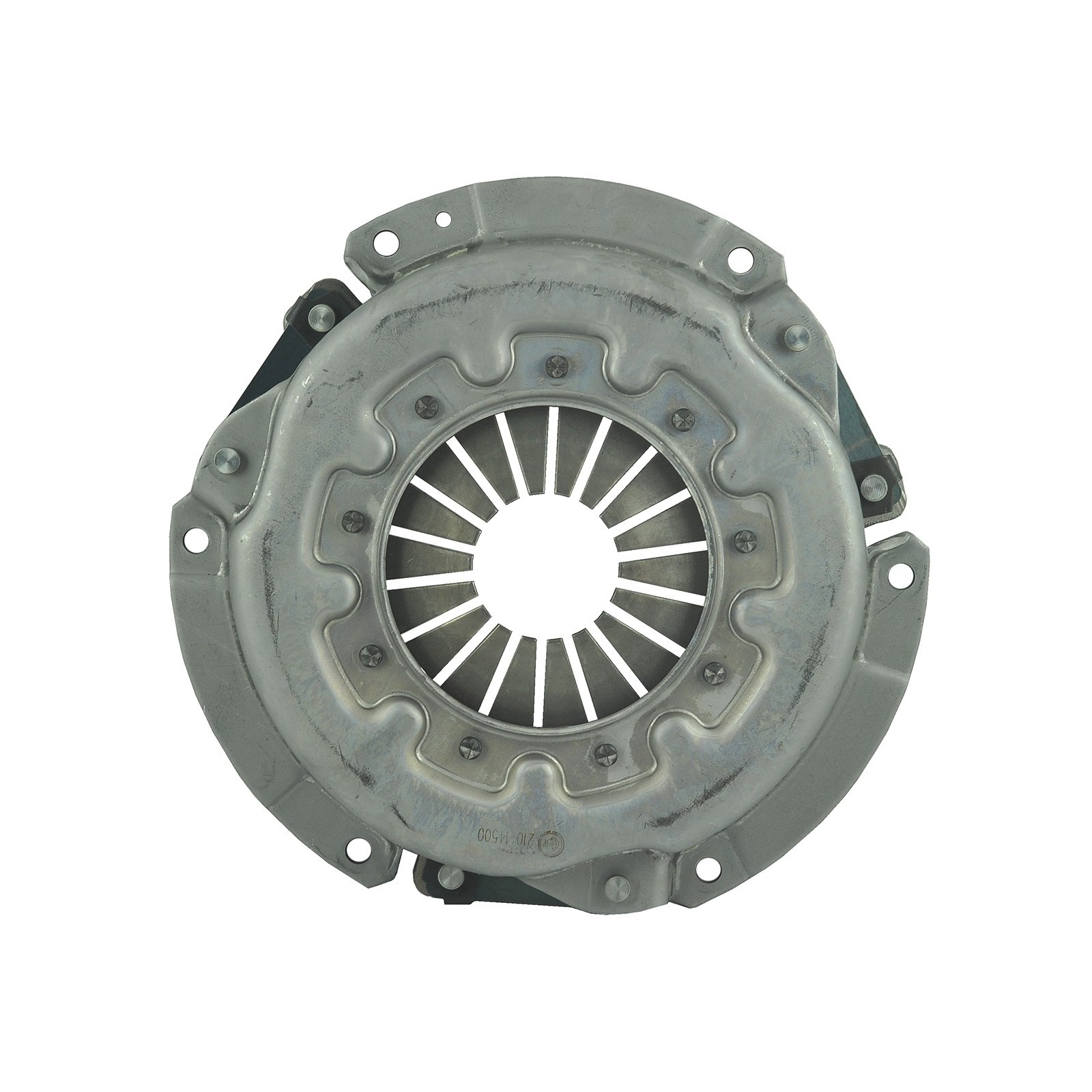

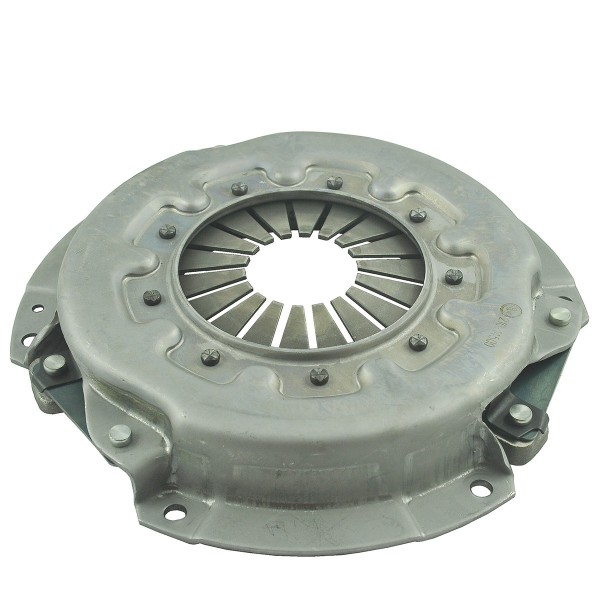

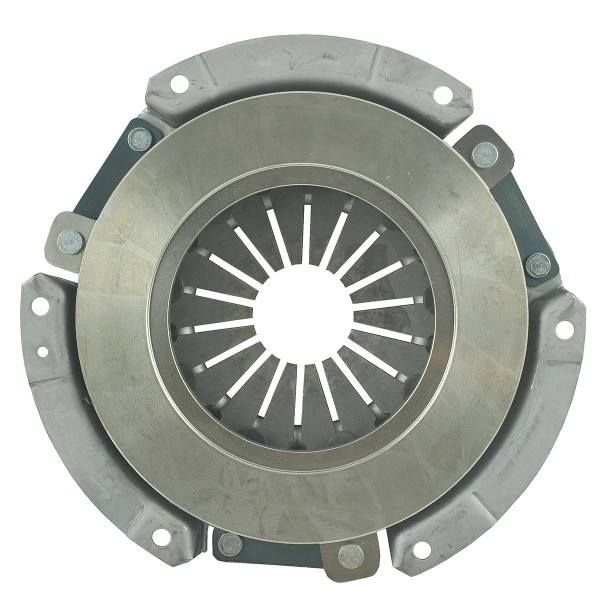

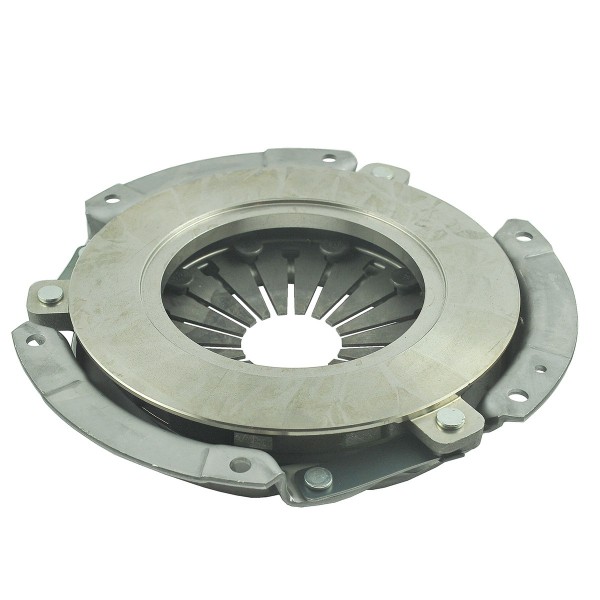

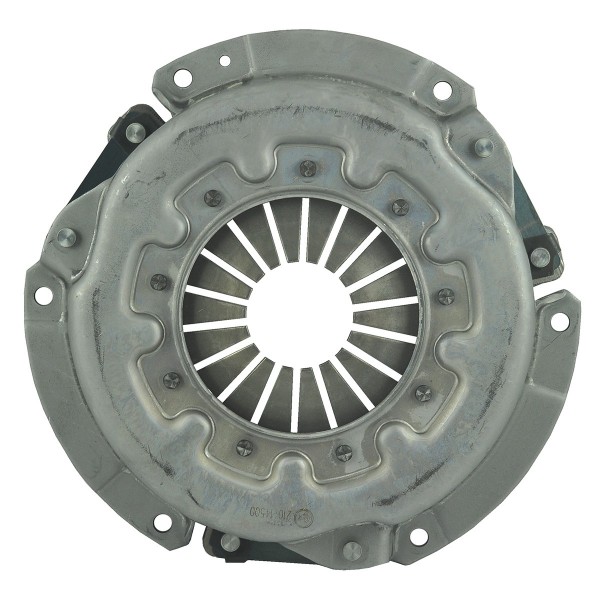

Clutch pressure plate / 8-1/2" / Kubota X, GL, GT, L and others 37300-14500 37300-14502

Product code: 37300-14500
Brand Kubota
View other model
1 person purchased this product
zł1,138.21 netto
zł1,400.00
Includes VAT 23%

Lowest price from 30 days: zł1,400.00

Delivery options

Loading delivery options...

No delivery options available for this product.

Error loading delivery options. Please try again.

*Delivery costs are estimated. You will find the exact delivery costs in the final step of your order.

*Transport Traktor.com.pl costs are calculated based on the postal code.

Available
1 pieces
Delivery See details Leasing & financing for businesses See details

Customers who bought this product also bought

See all

Product description

Clutch pressure plate (clutch disc 37300-14500, 37300-14502) with a pressure disc diameter of 128 / 215 mm for Kubota tractors of the series Kubota GL19, Kubota GL21, Kubota GL23, Kubota GL25, Kubota GL26, Kubota GL27, Kubota GL29, Kubota GL32, Kubota GL33, Kubota GL200, Kubota GL201, Kubota GL220, Kubota GL221, Kubota GL240, Kubota GL241, Kubota GL260, Kubota GL261, Kubota GL268, Kubota GL277, Kubota GL280, Kubota GL281, Kubota GL300, Kubota GL301, Kubota GL320, Kubota GT-3, Kubota GT-5, Kubota GT-8, Kubota GT-19, Kubota GT-21, Kubota GT-23, Kubota L1-18, Kubota L1-20, Kubota L1-22, Kubota L1-24, Kubota L1-26, Kubota L1-185, Kubota L1-195, Kubota L1-205, Kubota L1-215, Kubota L1-225, Kubota L1-235, Kubota L1-245, Kubota L1-255, Kubota L1-265, Kubota L1-275, Kubota L1-285, Kubota L1-295, Kubota L1-305, Kubota L1-315, Kubota L2002, Kubota L3408 and others.

The clutch pressure plate is the component that connects the gearbox to the engine and is therefore responsible for transmitting torque from the engine, through the gearbox, to the tractor's drive system. Simplifying this whole complex process, the clutch pressure plate is responsible for the tractor's movement, starting off, stopping and changing the driving speed ratios. The pressure plate consists of a housing, pressure springs and a disc, and its main task is to exert sufficient friction force on the clutch disc so that these two elements (pressure plate and disc) do not rotate at different speeds.

Dimensions:

  • Total diameter (housing): 270 mm,
  • Inner diameter of the disc:  128 mm,
  • Outer diameter of the disc: 215 mm,
  • Height: 40 mm,
  • Spacing of the mounting bolt holes: 250 mm (measured diagonally), 125 mm (measured between adjacent holes),
  • Original part numbers: 37300-14502, 37300-14500, TC021-14500, 37300-14500, 37300-14502
  • Part numbers: 37300-14500

Engine models:

  • Kubota D, V

Tractor models:

  • Kubota GL19,
  • Kubota GL21,
  • Kubota GL23,
  • Kubota GL25,
  • Kubota GL26,
  • Kubota GL27,
  • Kubota GL29,
  • Kubota GL32,
  • Kubota GL33,
  • Kubota GL200,
  • Kubota GL201,
  • Kubota GL220,
  • Kubota GL221,
  • Kubota GL240,
  • Kubota GL241,
  • Kubota GL260,
  • Kubota GL261,
  • Kubota GL268,
  • Kubota GL277,
  • Kubota GL280,
  • Kubota GL281,
  • Kubota GL300,
  • Kubota GL301,
  • Kubota GL320,
  • Kubota GT-3,
  • Kubota GT-5,
  • Kubota GT-8,
  • Kubota GT-19,
  • Kubota GT-21,
  • Kubota GT-23,
  • Kubota L1-18,
  • Kubota L1-20,
  • Kubota L1-22,
  • Kubota L1-24,
  • Kubota L1-26,
  • Kubota L1-185,
  • Kubota L1-195,
  • Kubota L1-205,
  • Kubota L1-215,
  • Kubota L1-225,
  • Kubota L1-235,
  • Kubota L1-245,
  • Kubota L1-255,
  • Kubota L1-265,
  • Kubota L1-275,
  • Kubota L1-285,
  • Kubota L1-295,
  • Kubota L1-305,
  • Kubota L1-315,
  • Kubota L2002,
  • Kubota L3408.
  • Kubota X20
  • Kubota X24

The first signs of a worn clutch are an unnatural noise when pressing or releasing the clutch pedal, an unpleasant smell or grinding in the gearbox. When replacing the clutch, it is recommended to replace all components (disc, pressure plate, bearing), because they often wear out at the same rate.

Warehouse: K18:N41

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to production differences over the years.

Specifications

Condition
New
Bolt hole spacing (mm)
125, 250
Engine model
Kubota D1703
Height (mm)
40
Bolt hole spacing (mm)
125, 250
Diameter (mm)
270
Parts
Clutch
Tractor models
- Kubota L1501, - Kubota L2002, - Kubota GL25, - Kubota GL200, Kubota JB13, Kubota JB13X, Kubota GT-26, - Kubota GL19, Kubota L3408, Kubota GL21, Kubota GL23, Kubota GL220, Kubota GL221, Kubota GL240, Kubota GL241, Kubota L1-18, Kubota GL26, Kubota GL27, Kubota GL29, Kubota GL32, Kubota L1-195, Kubota L1-215, Kubota L1-225, Kubota L1-20, Kubota L1-185, Kubota L1-205, Kubota L1-235, Kubota L1-245, Kubota L1-265, Kubota L1-275, Kubota L1-285, Kubota L1-295, Kubota GL201, Kubota GL320, Kubota GL33, Kubota GT21, Kubota GL268, Kubota GL277, Kubota GL280, Kubota GL281, Kubota GL300, Kubota GL301, Kubota GT19, Kubota GT23, Kubota L1-22, Kubota L1-24, Kubota L1-26, Kubota L1-305, Kubota L1-255
Pressure plate diameter (mm)
215, 128
Production
Original
Part number
6-26-102-02
Original Part Number (OEM)
37300-14502, 37300-14500, TC021-14500
