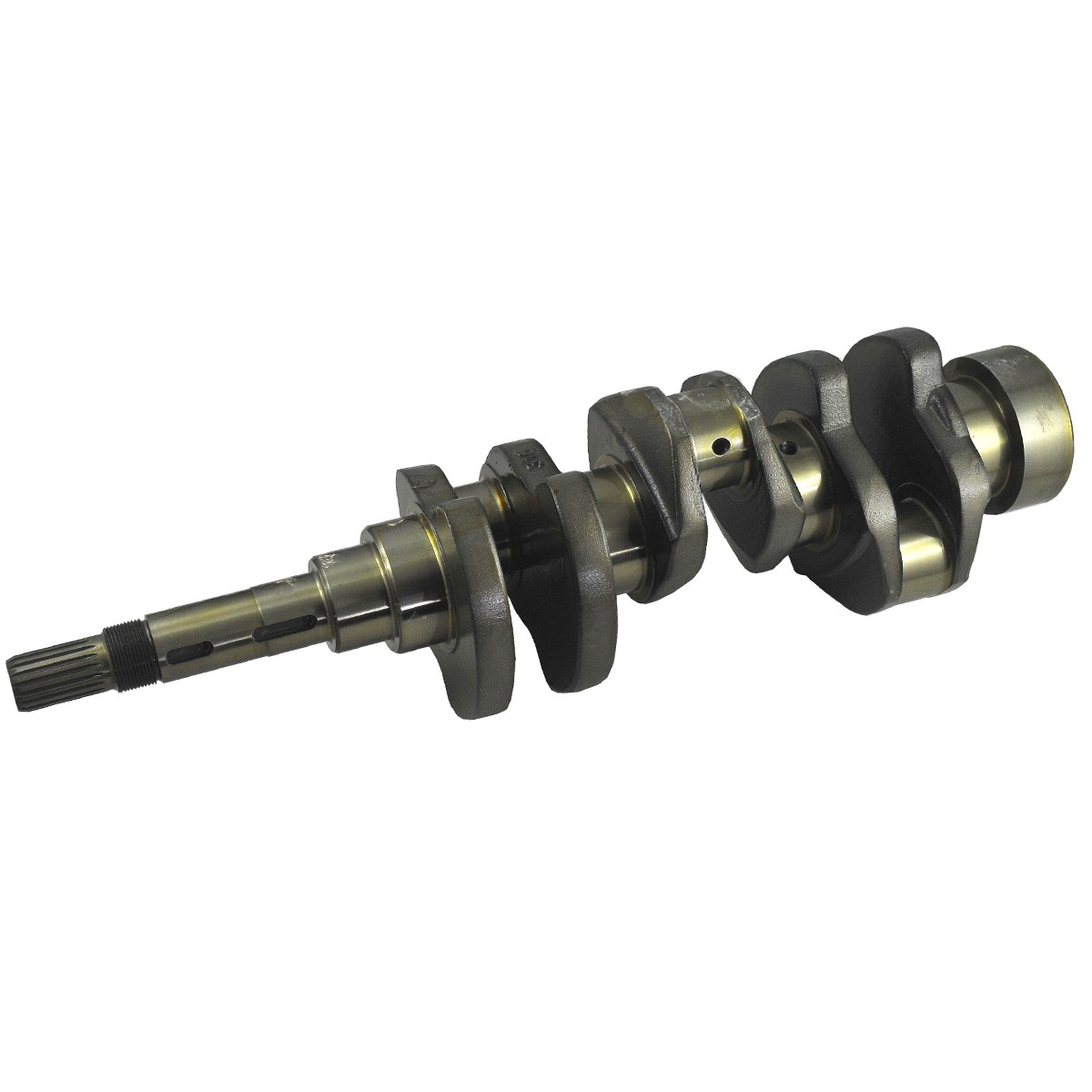

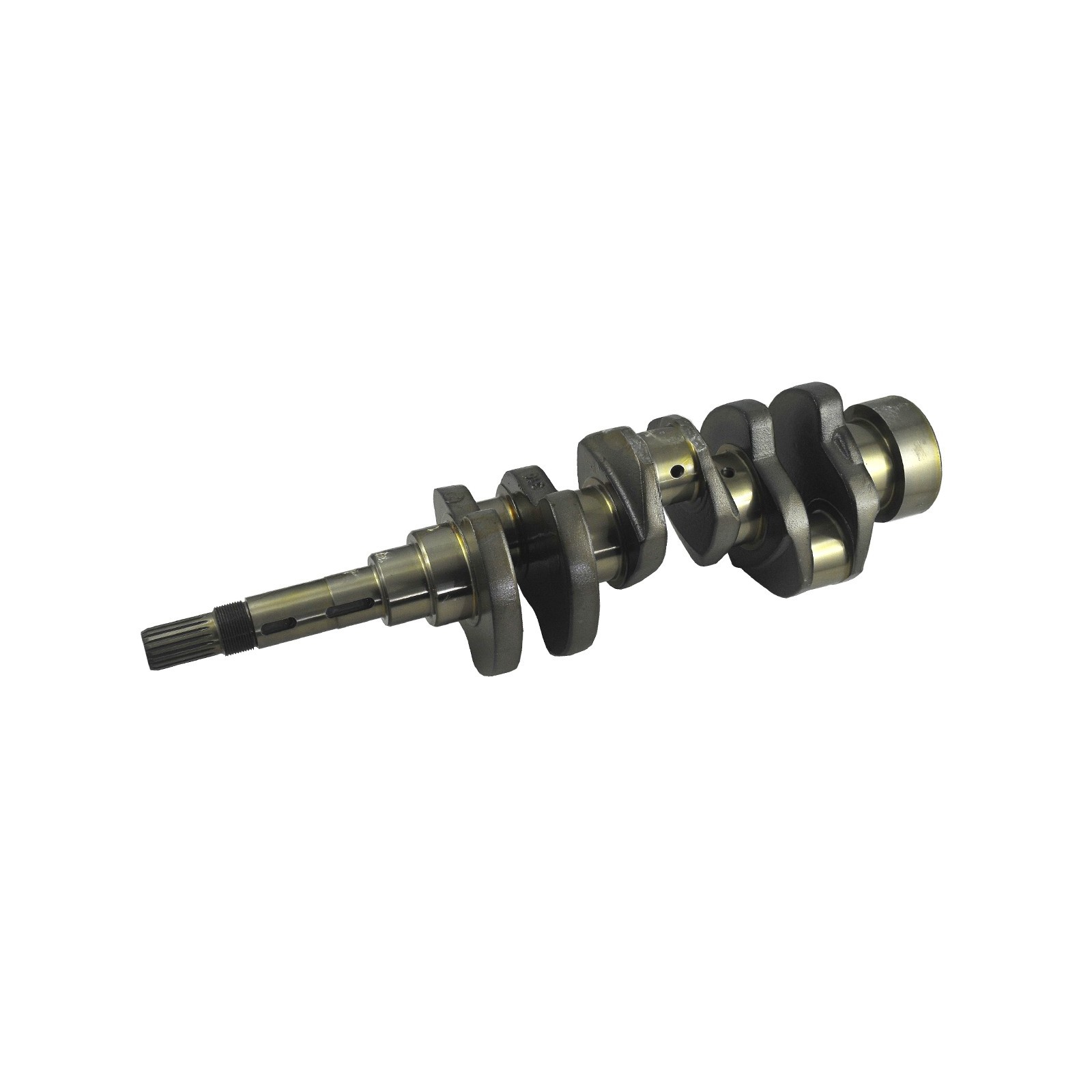

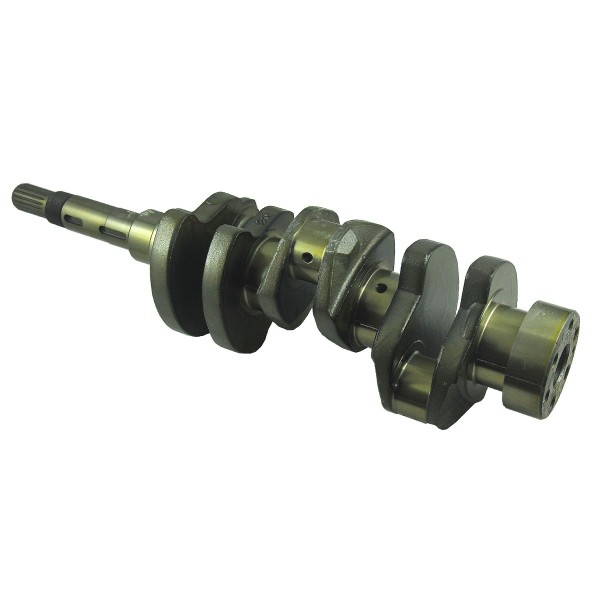

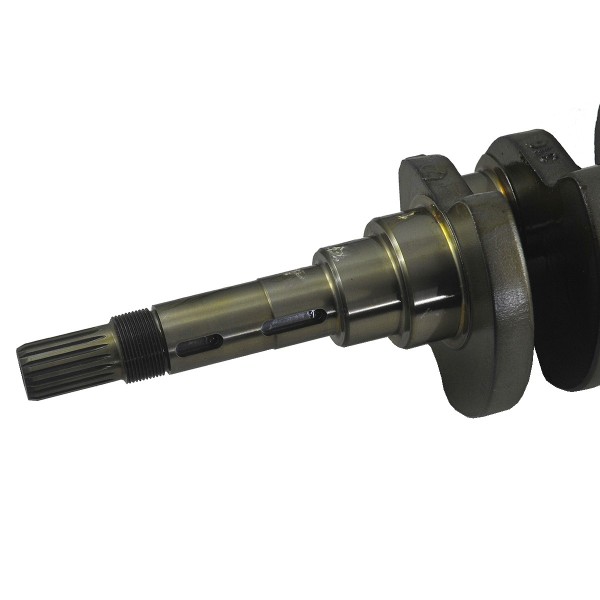

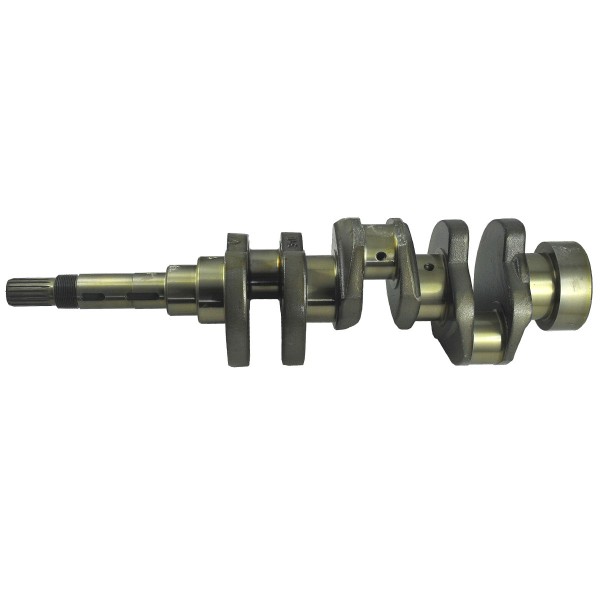

Crankshaft / Kubota D1403 / D1703M / D1803 / Ø 60 mm

Crankshaft with a main journal of 60 mm diameter for Kubota tractors with Kubota D1403, Kubota D1703M, Kubota D1803 engines. The crankshaft is a key element of the internal combustion engine, responsible for converting the reciprocating motion of the pistons into rotary motion that drives the vehicle. In four-stroke engines, the crankshaft is usually hollow, which allows for effective lubrication of the connecting rod bearing and main journals using engine oil, which is pressed under pressure. In two-stroke engines, which are often lubricated with a fuel-oil mixture, the crankshaft has a full design, which allows for the installation of rolling bearings at the main and crank journals. The shafts in two-stroke diesel engines are constructed in a manner similar to the shafts of four-stroke engines, i.e. they are hollow, which promotes their effective lubrication.

Dimensions :

• total length: 500 mm,
• main journal diameter: 60 mm,
• connecting rod journal diameter: 47 mm,
• stroke height: 98 mm,
• number of teeth: 18T,
• original part numbers: 1A033-23020.

Engine models :

Kubota :

• Kubota D1403,
• Kubota D1703M,
• Kubota D1803.

Magazine : L01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
