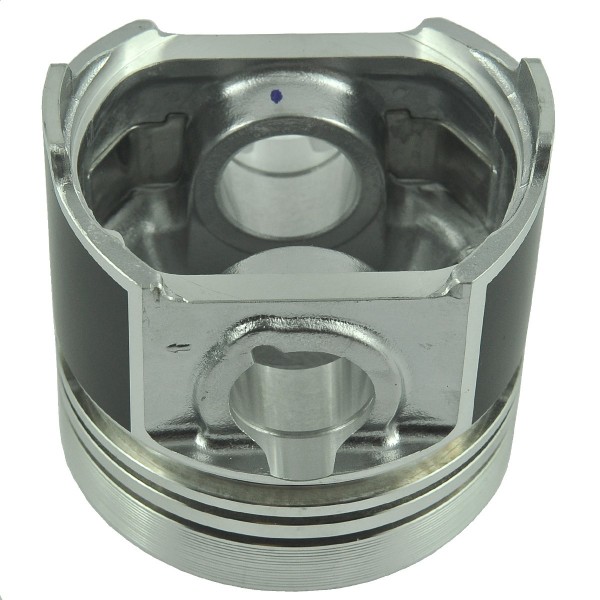

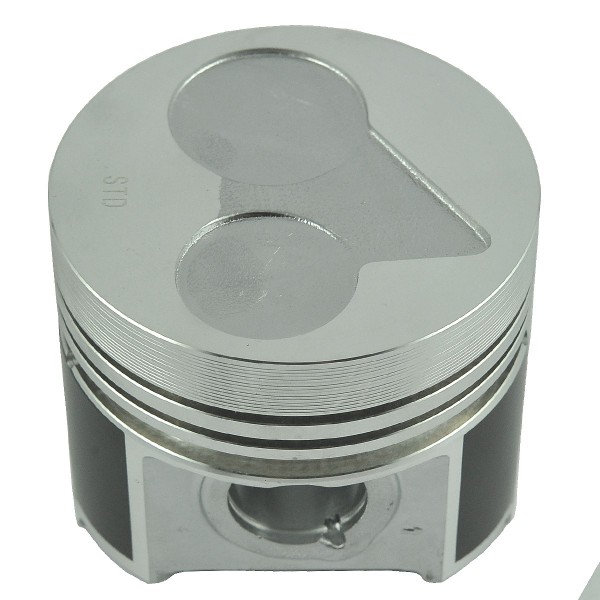

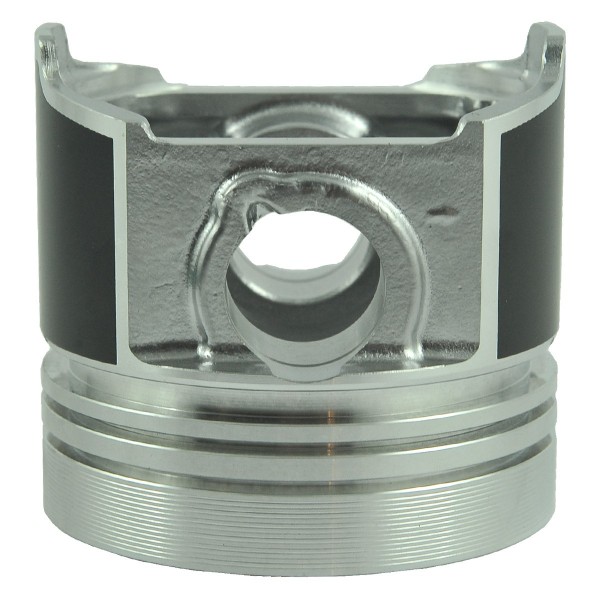

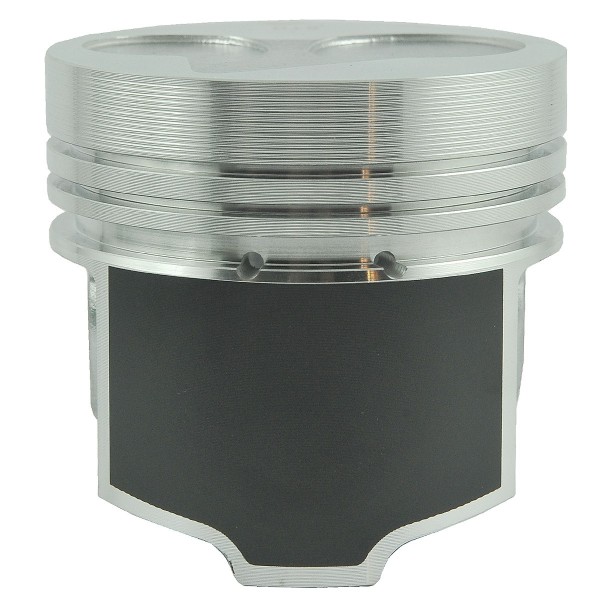

Engine Piston / 87mm / STD / Kubota D1703 / V2203 / V2403 / Kubota L3408
search
2 people are viewing Engine Piston /
  • Engine Piston / 87mm / STD / Kubota D1703 / V2203 / V2403 / Kubota L3408
  • Engine Piston / 87mm / STD / Kubota D1703 / V2203 / V2403 / Kubota L3408
  • Engine Piston / 87mm / STD / Kubota D1703 / V2203 / V2403 / Kubota L3408
  • Engine Piston / 87mm / STD / Kubota D1703 / V2203 / V2403 / Kubota L3408
    +1

Engine Piston / 87mm / STD / Kubota D1703 / V2203 / V2403 / Kubota L3408

Product code: 6-23-100-02
Brand 4FARMER
View other model
zł109.76 netto
zł135.00
Includes VAT 23%

Lowest price from 30 days: zł135.00

Delivery options

Loading delivery options...

No delivery options available for this product.

*Delivery costs are estimated. You will find the exact delivery costs in the final step of your order.

No delivery options available for this product.

Available
61 pieces
Delivery See details Leasing & financing for businesses See details

Product description

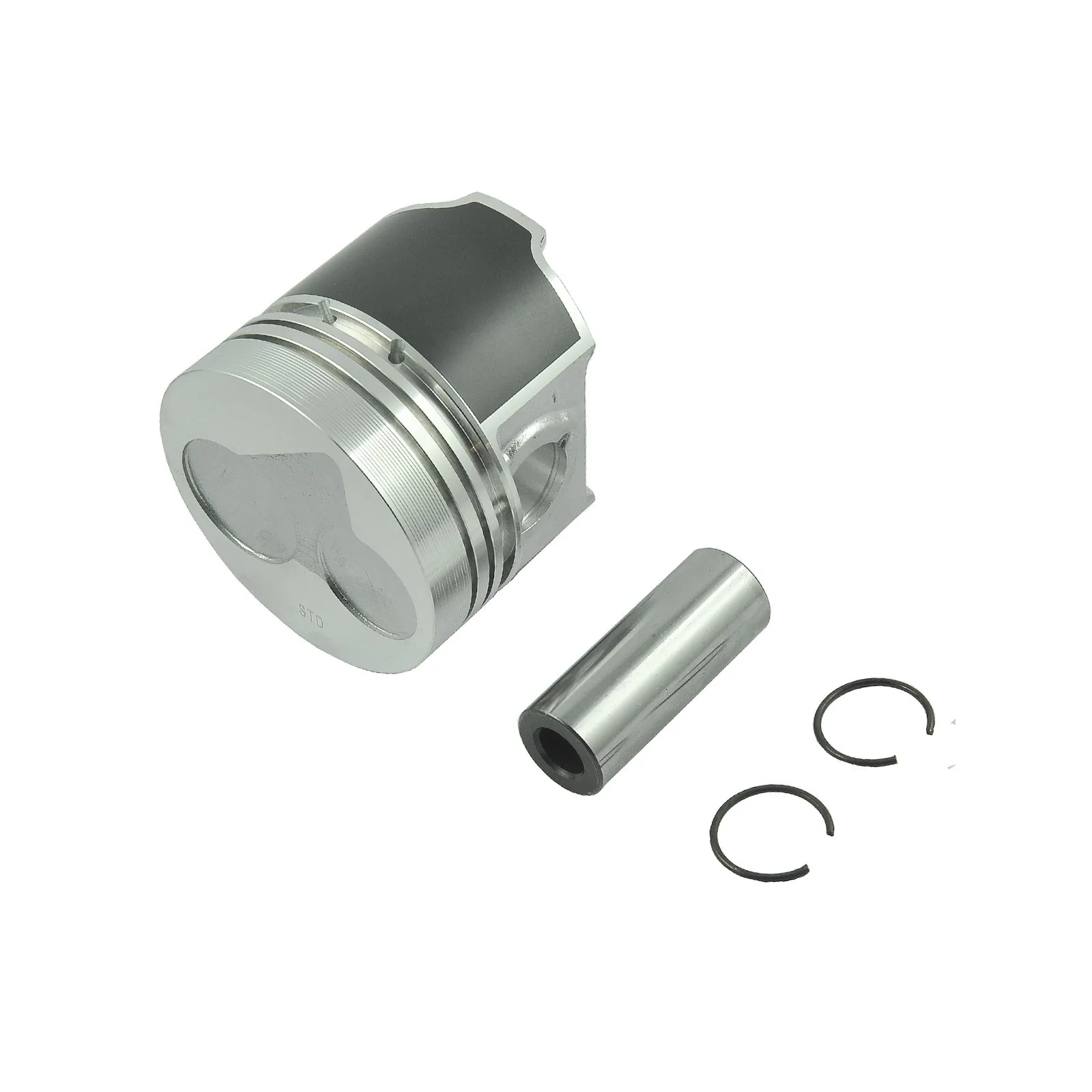

Engine piston (piston pin 6-25-120-01A) with an outer diameter of 87 mm and a total height of 80 mm for Kubota tractors of the Kubota L3408 series with Kubota D1703, Kubota V2203, Kubota V2403 engines and others. An engine piston is a moving component responsible for converting gas and the energy generated during combustion into the crankshaft, and thus, engine power. The piston is connected to the crankshaft by a component called a connecting rod with pin connections. At the top of the piston are annular channels for mounting the piston rings, and inside is a hub for connecting to the connecting rod. At the top is the so-called crown, which can have a different shape depending on the engine type. Due to its harsh operating conditions, engine pistons are most often made of aluminum and silicon alloys.

Dimensions :

  • diameter: 87 mm,
  • height: 66 / 80 mm.
  • pin hole diameter: 24.90 mm,
  • pin diameter: 24.80 mm,
  • pin length: 63.50 mm,
  • distance from end of pin hole to lower edge of piston: 10 mm.
  • Distance from edge of pin hole to top of piston: 31 mm.
  • width of ring grooves from top of piston: 2 / 2 / 5 mm.
  • valve seat depth: 0.80 / 1.30 mm,
  • original part number: 1Α041-21112, 1A091-21113,
  • part number: 6-23-100-02.

Engine model :

  • Kubota D1703,
  • Kubota V2203,
  • Kubota V2403.

Tractor models :

Kubota :

  • Kubota L3408.

Magazine : K18:F32

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specifications

Condition
New
Engine model
Kubota V2403
Height (mm)
80
Width (mm)
5.00
Production
Substitute
Parts
Engine
Tractor models
Kubota L3408
Diameter (mm)
87
Depth (mm)
0,80, 1,30, 0.80, 1.30
Diameter of pin hole(s) (pins/pins / mm)
24.90
Pin length (a) (mm)
63.50
Original Part Number (OEM)
1Α041-21112, 1A091-21113
Part number
6-23-100-02

Reviews of Engine..

TRAKTOR.COM.PL sp. z o.o. Reviews with ekomi-pl.com

This product has no reviews yet.

We collect reviews from verified Customers after the purchase of the product.

Write your review

Review form will be here

Questions & Answers

Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?

User
Traktor.com.pl Expert – Technical Advisor • 17.02.2026
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.

How to properly select and sharpen mower blades for a Japanese tractor?

User
Traktor.com.pl Expert – Technical Advisor • 17.02.2026
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.

How to identify the correct V-belt size and how to care for it?

User
Traktor.com.pl Expert – Technical Advisor • 17.02.2026
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
