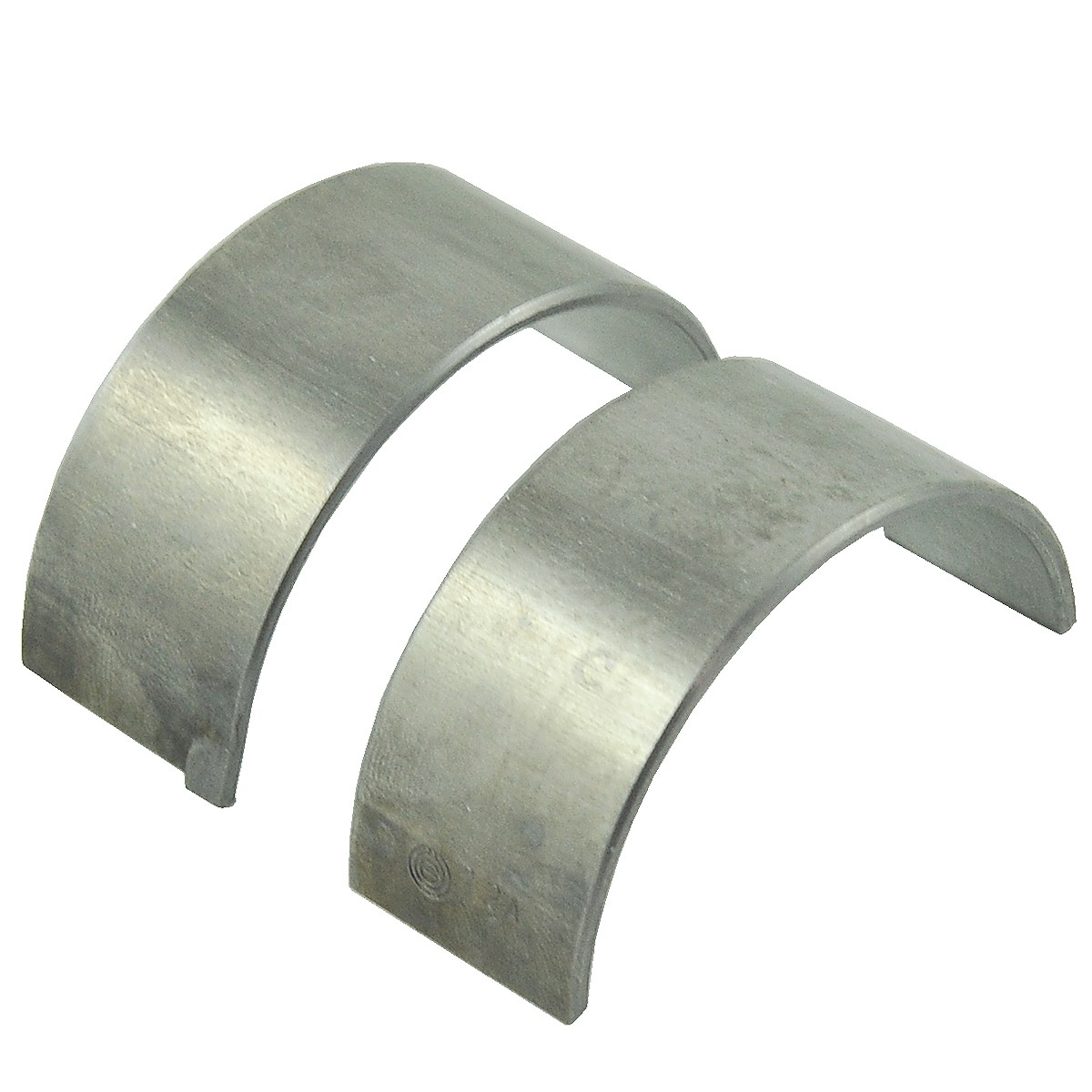

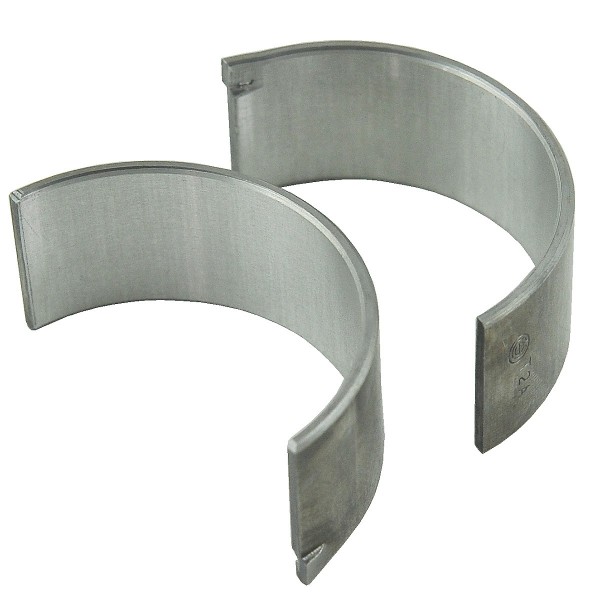

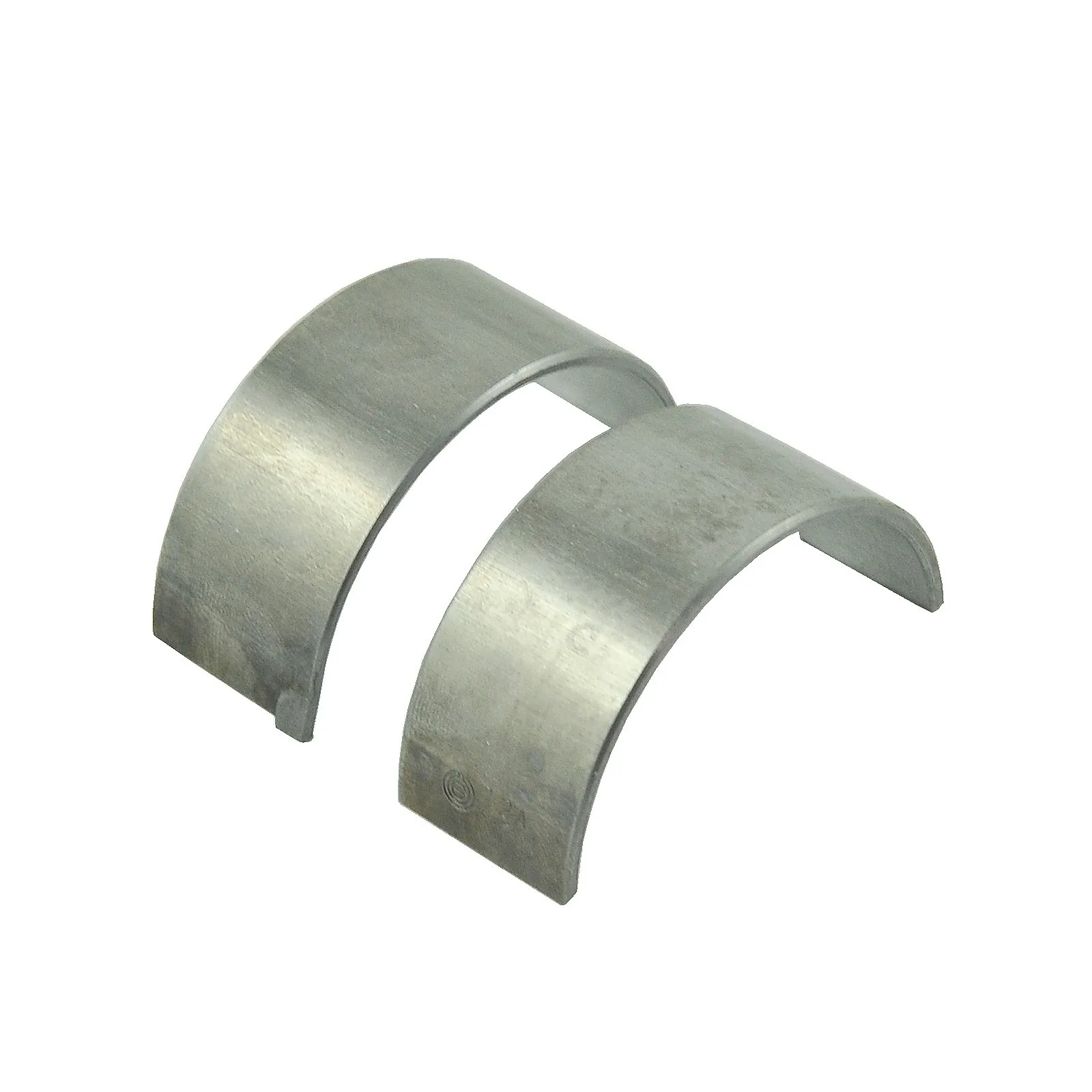

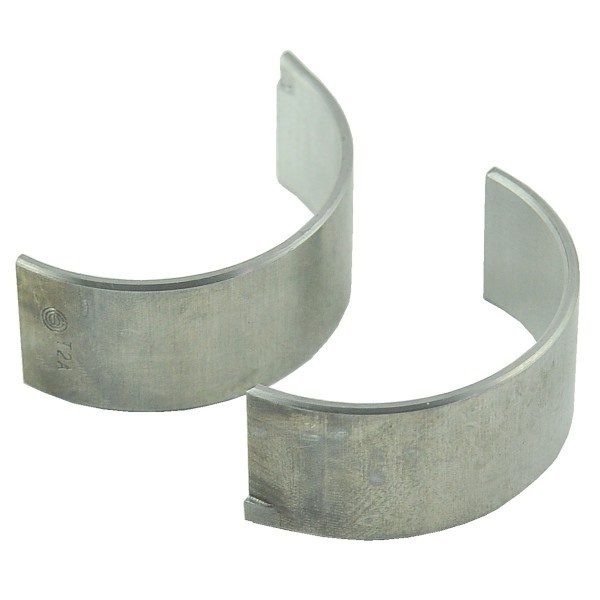

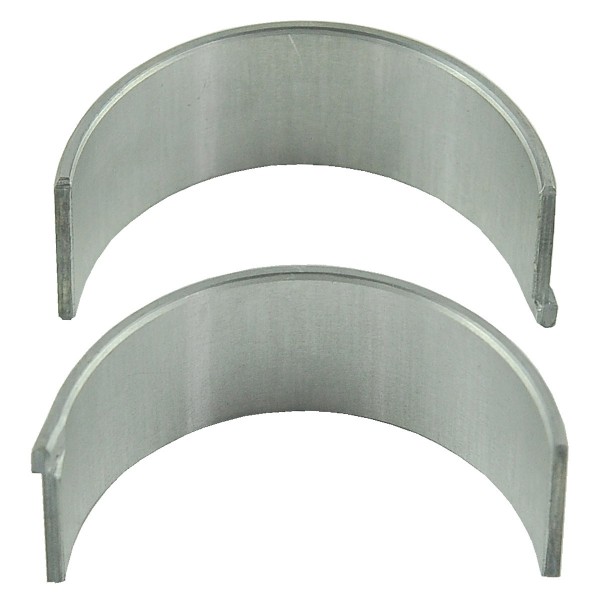

Connecting rod bearings / Kubota D1703 / Kubota L3408 / STD + 0.25

Dimensions :

• width: 21 mm,
• diameter: 49 mm,
• thickness: 1.60 mm,
• original part numbers: 17311-22310,
• part numbers: 6-07-101-20.

Engine models :

• Kubota D1503,
• Kubota D1463,
• Kubota D1703,
• Kubota V2203,
• Kubota V1903.

Tractor models :

Kubota :

• Kubota GL19,
• Kubota GL21,
• Kubota GL23,
• Kubota GL25,
• Kubota GL26,
• Kubota GL27,
• Kubota GL29,
• Kubota GL33,
• Kubota GL200,
• Kubota GL201,
• Kubota GL220,
• Kubota GL221,
• Kubota GL240,
• Kubota GL241,
• Kubota GL268,
• Kubota GL277,
• Kubota GL280,
• Kubota GL281,
• Kubota GL300,
• Kubota GL301,
• Kubota GL320,
• Kubota GL321,
• Kubota GL337,
• Kubota GL338,
• Kubota GT-19,
• Kubota GT-21,
• Kubota GT-23,
• Kubota L1-18,
• Kubota L1-20,
• Kubota L1-22,
• Kubota L1-24,
• Kubota L1-26,
• Kubota L1-28,
• Kubota L1-185,
• Kubota L1-195,
• Kubota L1-205,
• Kubota L1-215,
• Kubota L1-225,
• Kubota L1-235,
• Kubota L1-245,
• Kubota L1-255,
• Kubota L1-265,
• Kubota L1-275,
• Kubota L1-285,
• Kubota L1-295,
• Kubota L1-305,
• Kubota L1-315,
• Kubota L1-325,
• Kubota L2050,
• Kubota L2250,
• Kubota L2500,
• Kubota L2550,
• Kubota L2600,
• Kubota L2850DT,
• Kubota L2900DT,
• Kubota L3130DT,
• Kubota L3300DT,
• Kubota L3430,
• Kubota L3600DT,
• Kubota L4200DT.

The first signs of wear of connecting rod bearings are an unnatural, steady knocking coming from the engine. Worn bearings must be replaced with new ones as soon as possible, replacing the faulty element too late can cause serious damage to the shaft, connecting rod or engine.

Magazine : K18:A13:S03

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
