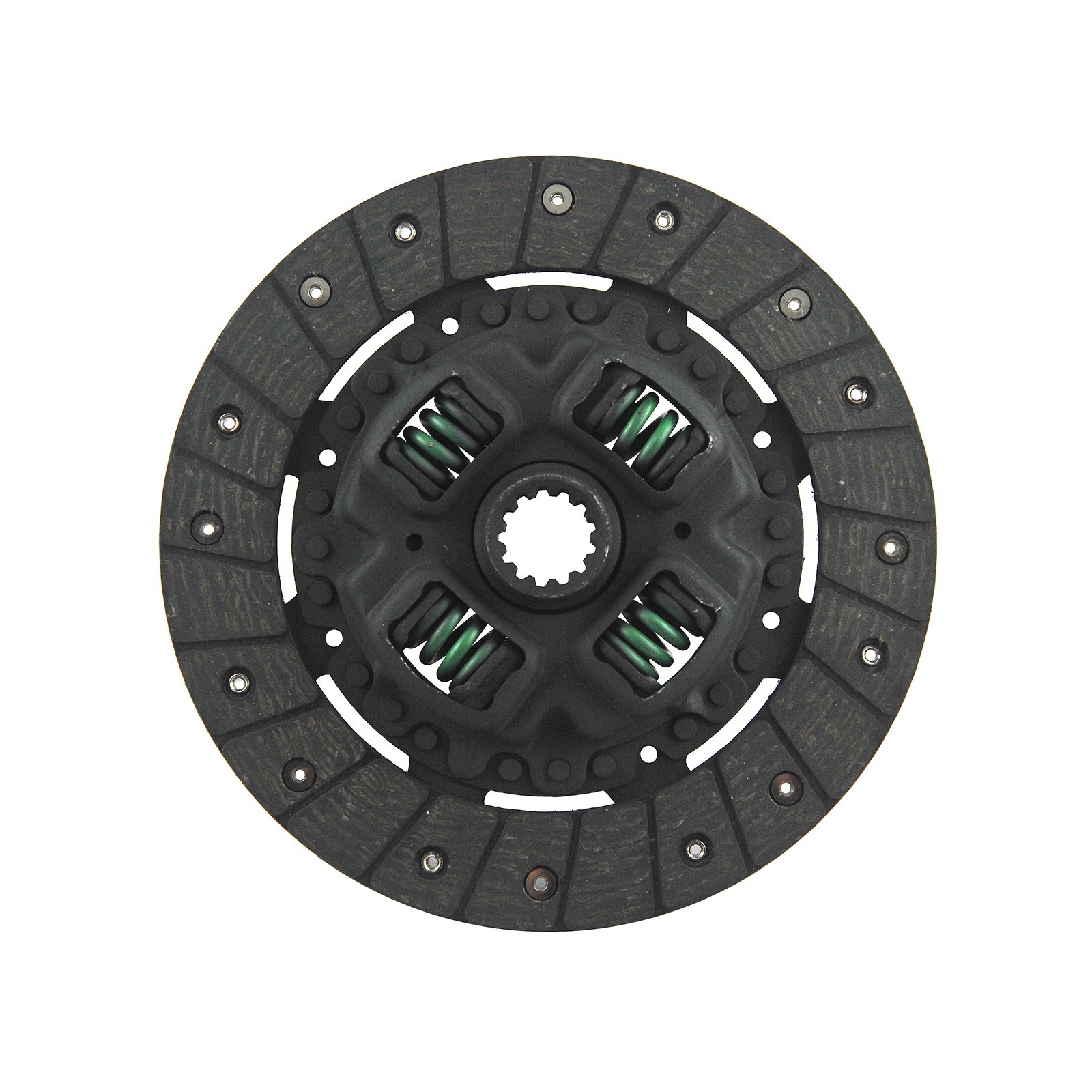

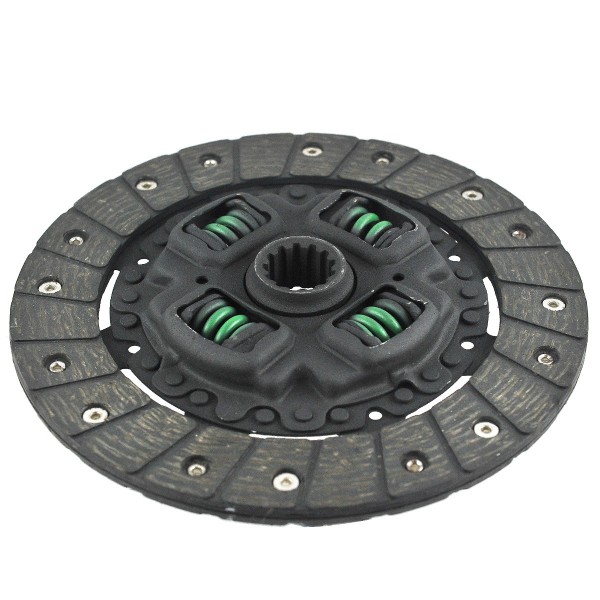

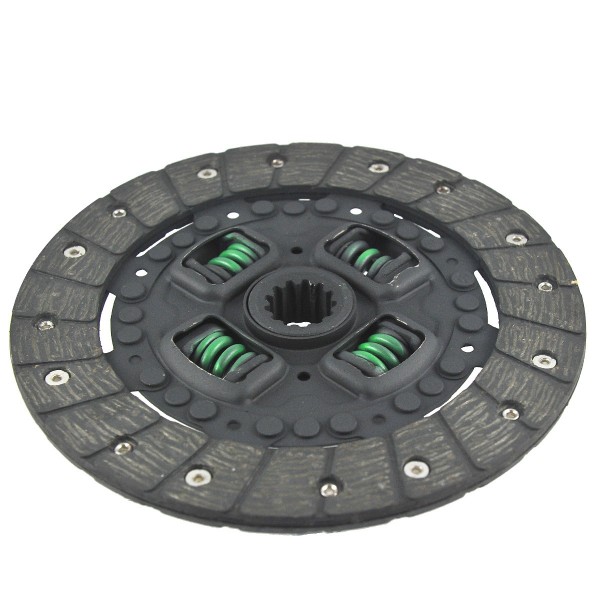

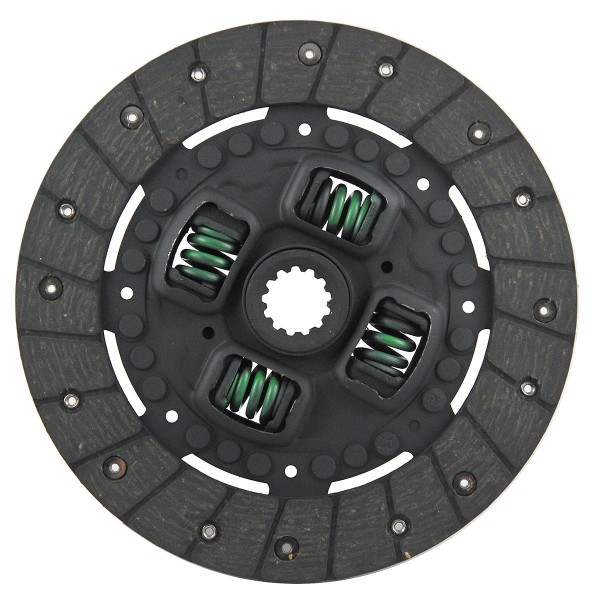

Clutch Disc / 200 mm / 13T / Iseki / Hinomoto / Yanmar / Shibaura / S.71993

Clutch disc (pressure plate %C5% 9Bci-do-iseki/1308-pressure-plate-clutch %C4% 99g %C5% 82a-8-12-iseki-7-26-110-03.html">7-26-110-03 , %C5% 9Bci-do-iseki/30018-pressure-clutch %C4% 99g %C5% 82a-iseki-tu180-tu200-tu320-tu1700-tu1900-tu2100-tu2300-tu2500-tl1900-tl1901-te3210.html">TU180/TU200 , bearing %C5% 9Bci-do-kubota/30490- %C5% 82o %C5% BCysko-trzymaowe-sprz %C4% 99g %C5% 82a-kubota-gl-45-x-7385-x-18-mm-rct45-is-08490-00001.html">08490-00001 , 1445-120-002-00) with a diameter of 200 mm , a hub height of 25 mm , an internal diameter measured between the teeth of 25.20 mm and 21.80 mm measured together spline teeth for Hinomoto tractors of the Hinomoto E16, Hinomoto E18, Hinomoto E202, Hinomoto E204, Hinomoto E222, Hinomoto E224, Hinomoto E1802, Hinomoto E1804, Hinomoto E2002, Hinomoto E2004, Hinomoto E2302, Hinomoto E2304 series of Iseki tractors Iseki 3025 series, Iseki TL1900, Iseki TU180, Iseki TU185, Iseki TU187, Iseki TU197, Iseki TU200, Iseki TU205, Iseki TU215, Iseki TU217, Iseki TU225, Iseki TU227, Iseki TU1700, Iseki TU1900, Iseki TU2100, Iseki TU2300, Iseki TU2500, Iseki TS1610, Iseki TS1700, Iseki TS1910, Iseki TS2200, Iseki TS2202, Iseki TS2205, Iseki TS2210, Iseki TS2220, Iseki TE3210, Yanmar F15, Yanmar F18, Yanmar F20, Yanmar F22, Yanmar F24, Yanmar F26, Yanmar F195, Yanmar F220, Yanmar F235, Yanmar FX15, Yanmar FX18, Yanmar FX20, Yanmar FX22, Yanmar FX24, Yanmar FX26, Yanmar FX195, Yanmar FX215, Yanmar FX235, Yanmar YM1802, Yanmar YM1820, Yanmar YM2002, Yanmar YM2020, Yanmar YM2202, Yanmar YM2220, Yanmar YM2402, Yanmar YM2420, Shibaura P19, Shibaura P21 and others.

The clutch disc is the component responsible for transferring power from the engine (crankshaft) to the gearbox (clutch shaft). The disc consists of a splined hub mounted on the clutch shaft and a disc with springs and appropriately thick friction linings. The disc , pressed by the second clutch element, the pressure plate, uses the friction force (the lack of friction during power transfer) of these two elements to propel the tractor. The springs in the clutch discs are responsible for reducing vibrations generated during high engine speeds.

Dimensions :

• outer diameter: 200 mm (8 inches),
• inner diameter: 25.20 mm (measured between the cutter teeth), 21.80 mm (measured together with the cutter),
• number of teeth 13T,
• hub height: 25 mm,
• thickness: 8 mm,
• original part numbers: 3281105M91, 194535-21400, 2402-3200-00, 142000000000, 1416-120-007-00, 1416-100- 052-00, 1444-130-201-10,

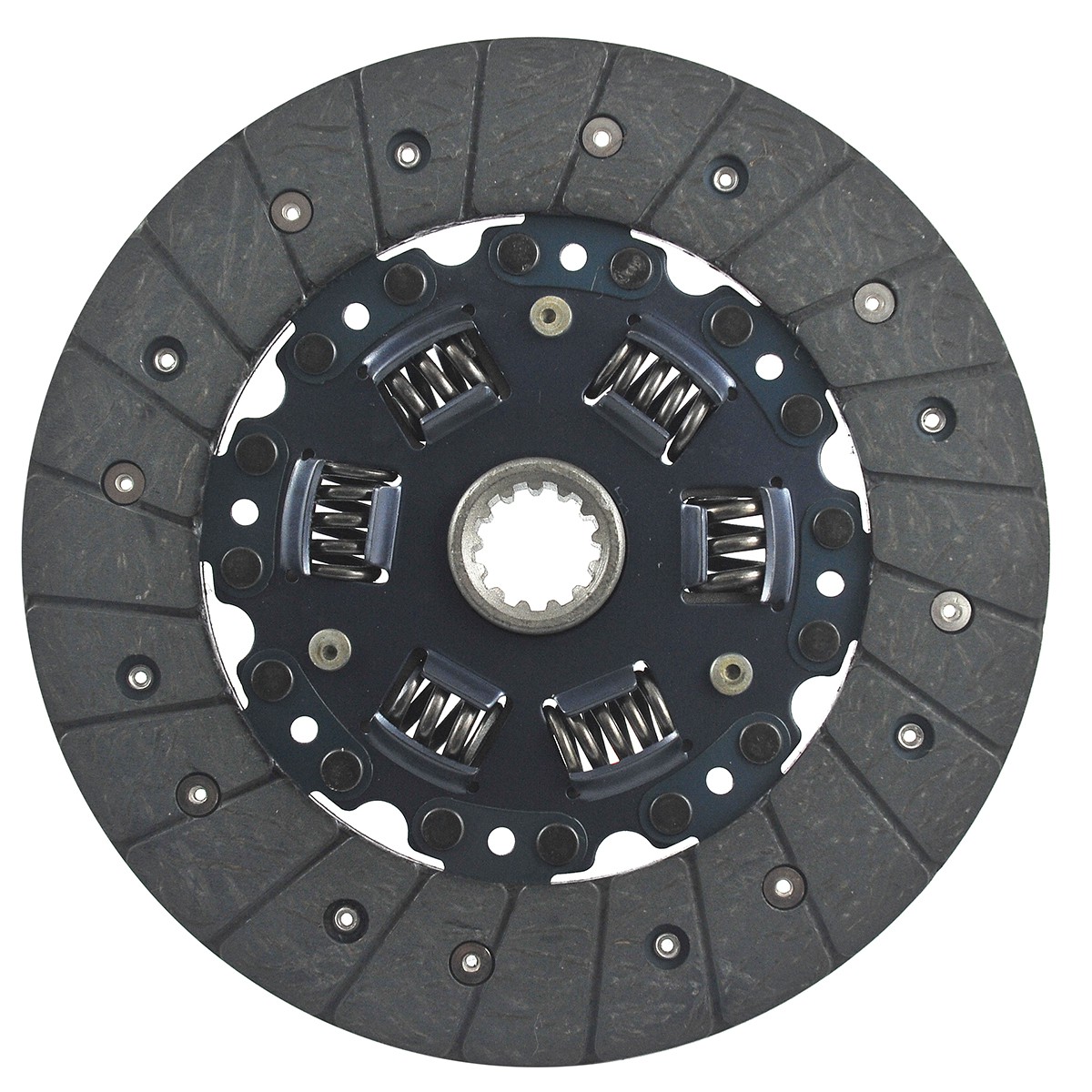

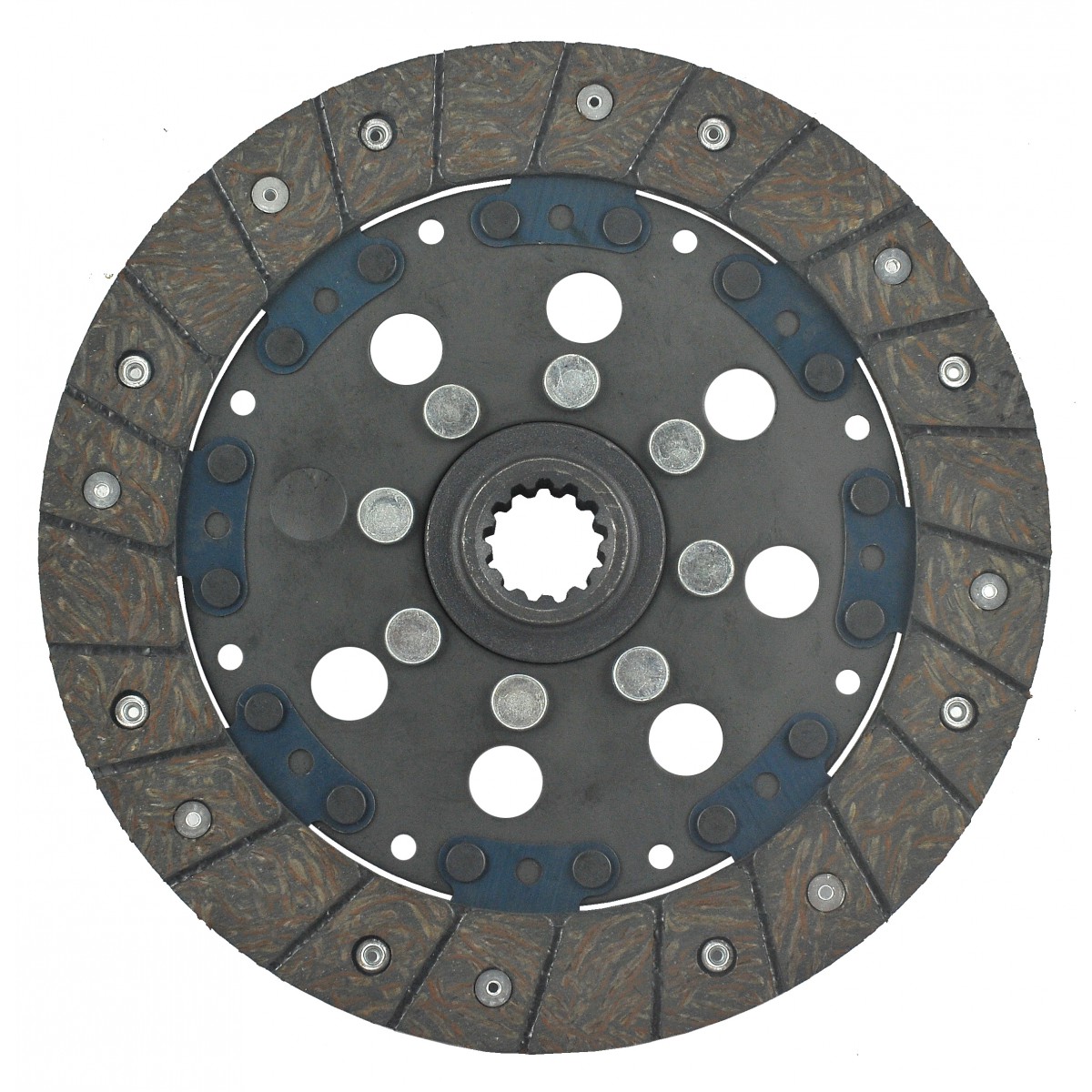

• Comparison numbers: %C5% 9Bci-do-iseki/1309-disc-sprocket %C4% 99g %C5% 82a-8-13t-iseki-8-05-100-02.html">8-05-100-02 , %C5% 9Bci-do-iseki/3240-disc-sprocket %C4% 99g %C5% 82a-200-mm-13t-iseki-tutstlteg-hinomoto-e-yanmar-ffxym-1444-130-201-10-7-05-100-06.html">7-05-100-06 , %C5% 9Bci-do-hinomoto/5446-sprz-disc %C4% 99g %C5% 82a-200-mm-13t-iseki-tutstlteg-hinomoto-e-yanmar-ffxym-1444-130-201-10-7-05-100-06.html">S.20329 ,
• part numbers: S.71993.

Tractor models :

Hinmoto :

• Hinomoto E16,
• Hinomoto E18,
• Hinomoto E202,
• Hinomoto E204,
• Hinomoto E222,
• Hinomoto E224,
• Hinomoto E1802,
• Hinomoto E1804,
• Hinomoto E2002,
• Hinomoto E2004,
• Hinomoto E2302,
• Hinomoto E2304.

Iseki :

• Iseki 3025,
• Iseki TE3210,
• Iseki TL1900,
• Iseki TU180,
• Iseki TU185,
• Iseki TU187,
• Iseki TU197,
• Iseki TU200,
• Iseki TU205,
• Iseki TU215,
• Iseki TU217,
• Iseki TU225,
• Iseki TU227,
• Iseki TU1700,
• Iseki TU1900,
• Iseki TU2100,
• Iseki TU2300,
• Iseki TU2500,
• Iseki TS1610,
• Iseki TS1700,
• Iseki TS1910,
• Iseki TS2200,
• Iseki TS2202,
• Iseki TS2205,
• Iseki TS2210,
• Iseki TS2220.

Yanmar :

• Yanmar F15,
• Yanmar F18,
• Yanmar F20,
• Yanmar F22,
• Yanmar F24,
• Yanmar F26,
• Yanmar F195,
• Yanmar F220,
• Yanmar F235,
• Yanmar FX15,
• Yanmar FX18,
• Yanmar FX20,
• Yanmar FX22,
• Yanmar FX24,
• Yanmar FX26,
• Yanmar FX195,
• Yanmar FX215,
• Yanmar FX235,
• Yanmar YM1802,
• Yanmar YM1820,
• Yanmar YM2002,
• Yanmar YM2020,
• Yanmar YM2202,
• Yanmar YM2220,
• Yanmar YM2402,
• Yanmar YM2420.

Shibaura :

• Shibaura P19,
• Shibaura P21.

The first signs of clutch disc wear (wear) are clutch slippage, which makes it difficult or impossible to move the vehicle. The tractor fails to accelerate when the engine speed increases. The clutch disc can also show signs of wear if it is contaminated with oil. It is recommended to replace the disc along with the clutch pressure plate and release bearing, as all these components have comparable durability and wear at the same rate. Another sign of clutch disc wear is the inability to engage a gear.

Warehouse : K18 A28

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
