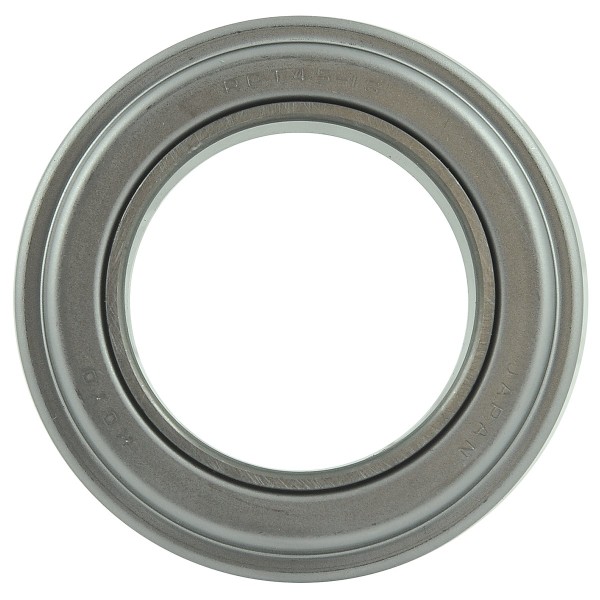

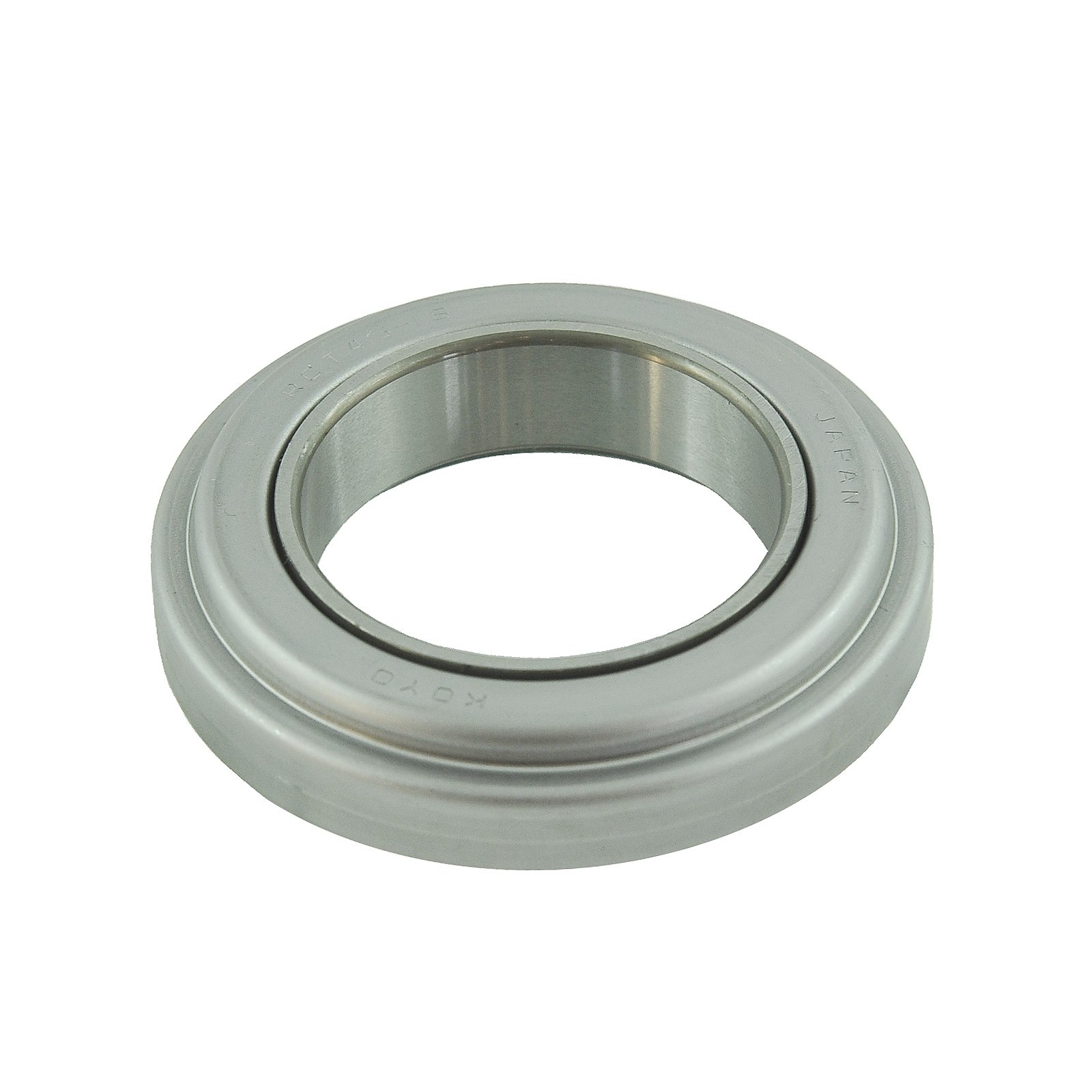

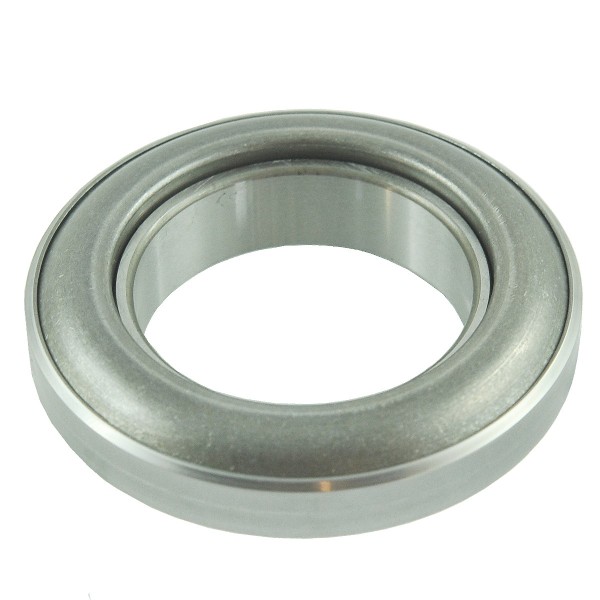

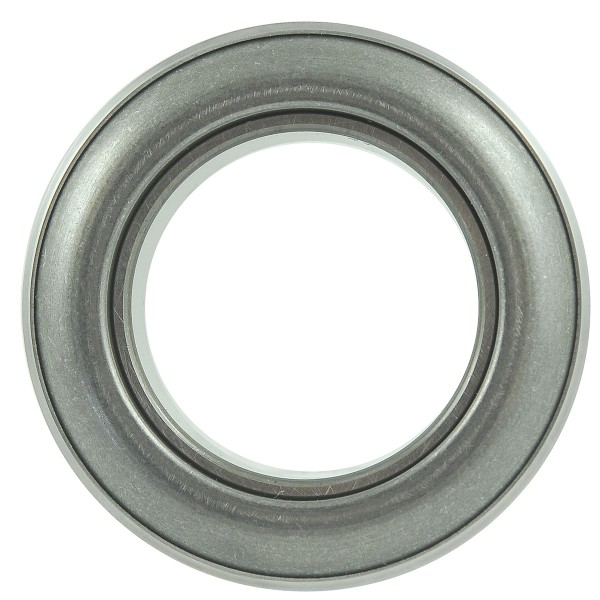

Clutch release bearing / 45 x 74 x 16 mm / Kubota GL320 / L2202 / L2550 / L2650 / L3608 / RCT45-IS / 08490-00001

Clutch release bearing (pressure %C5% 82a-215-x-138-mm-8-1-2-kubota-l2000-gt-gl-saturn.html">6-26-102-01 , disc %C5% 82a-10t-216-mm-8-12-kubota-glgtll-1x-37460-14300-32240-14302-6-05-100-01.html">6-05-100-01 , 37460-14300, 32240-14302) dimensions 45 x 74 x 16 mm for Kubota tractors of the Kubota GL320, Kubota L2202, Kubota series L2550, Kubota L2650, Kubota L3608 and others.

The clutch bearing , also known as a release bearing or thrust bearing , is the only moving component of the clutch system in a tractor engine. It moves along the axis of the drive shaft in a sliding motion. When the clutch pedal is depressed, the release bearing presses against the clutch pressure springs, causing the pressure plate to lift. The pressure plate moves away from the clutch disc's friction surface, allowing us to disengage the drive, transfer power from the engine (crankshaft) to the drive system (gearbox drive shaft), i.e., change gears or stop the tractor.

Dimensions :

• inner diameter: 45 mm,
• outer diameter: 74 mm,
• height: 16 mm,
• outer ring width: 10 mm,
• steel basket,
• no seal,
• comparative numbers: %C5% BCyska-/1447- %C5% 82o %C5% BCyska-resistance-coupling %C4% 99g %C5% 82a-4450-x-7375-x-18-mm-eurotech-tk45-4b.html"> 6-23-114-01 ,
• part numbers: CT45-IS, 08490-00001.

Tractor models :

• Kubota L2202,
• Kubota L2550,
• Kubota L2650,
• Kubota L3608,
• Kubota GL320.

The first signs of bearing wear and the need for replacement include an unusual noise, such as a humming or buzzing sound coming from the clutch area, which usually disappears when the clutch pedal is depressed. In the case of severe damage or wear to the clutch bearing, difficulty engaging gears may occur. It is recommended to replace the bearing whenever one of the clutch pressure plate or disc components is replaced, as replacing each of these components requires splitting the tractor (separating the gearbox from the engine) and is a relatively expensive and time-consuming process.

Magazine: K18:H36:S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
