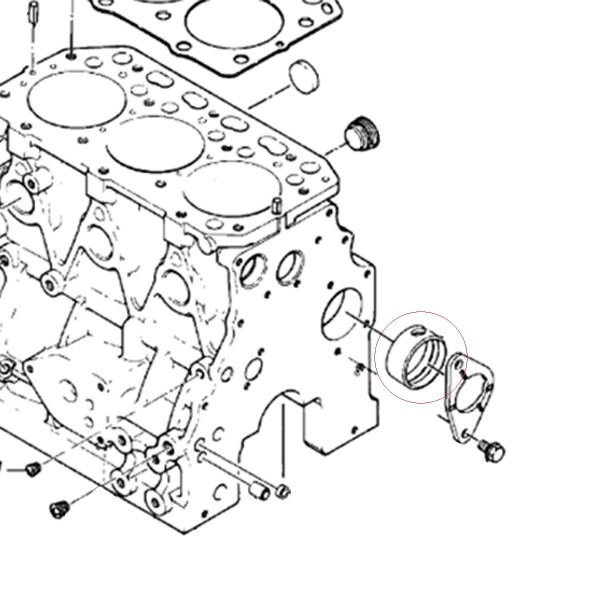

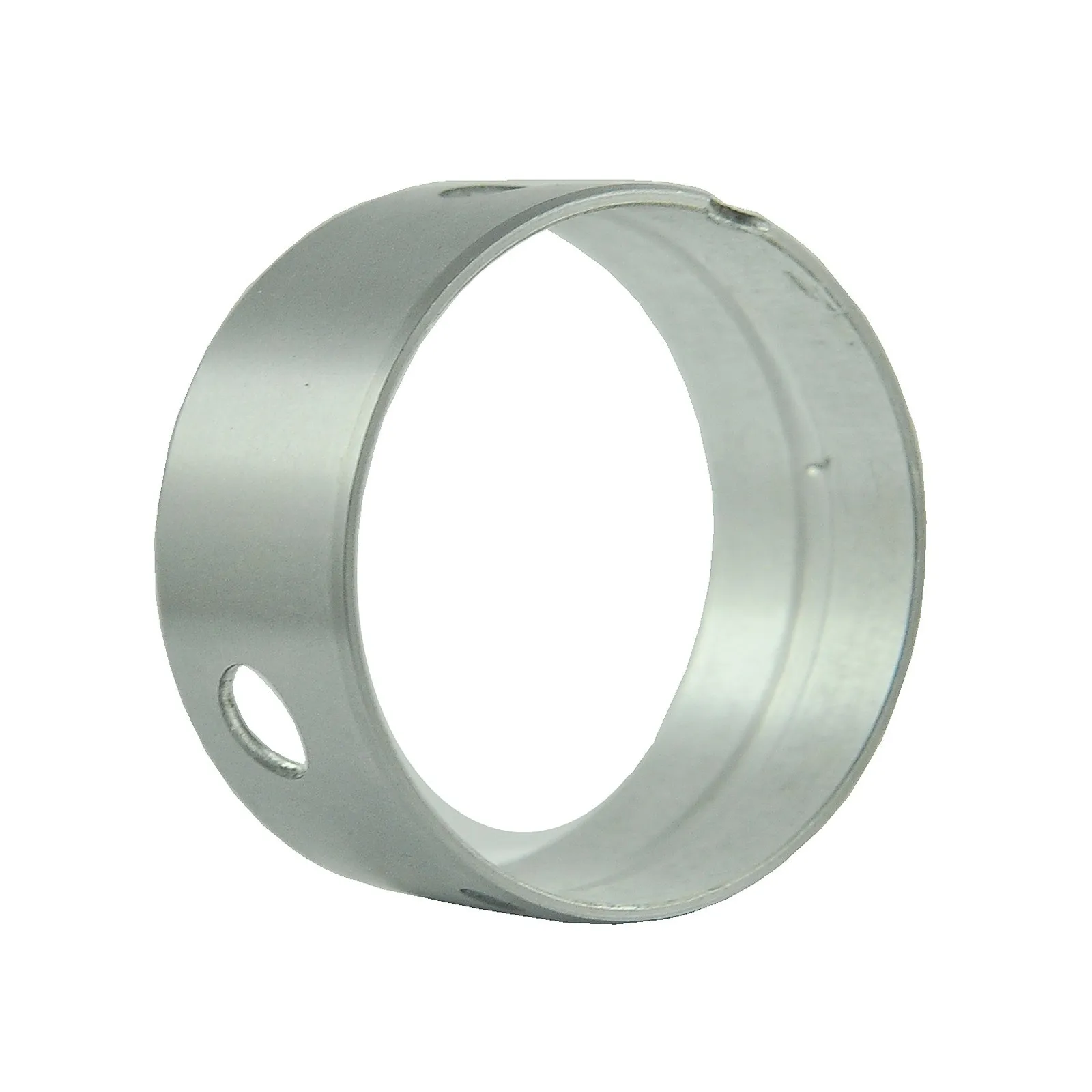

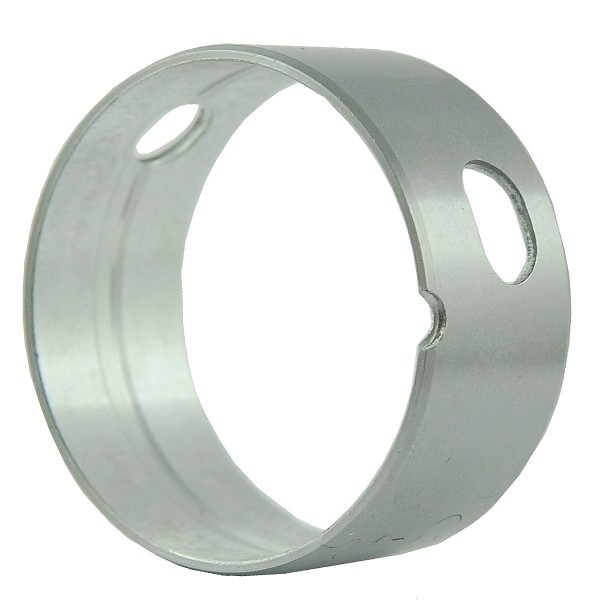

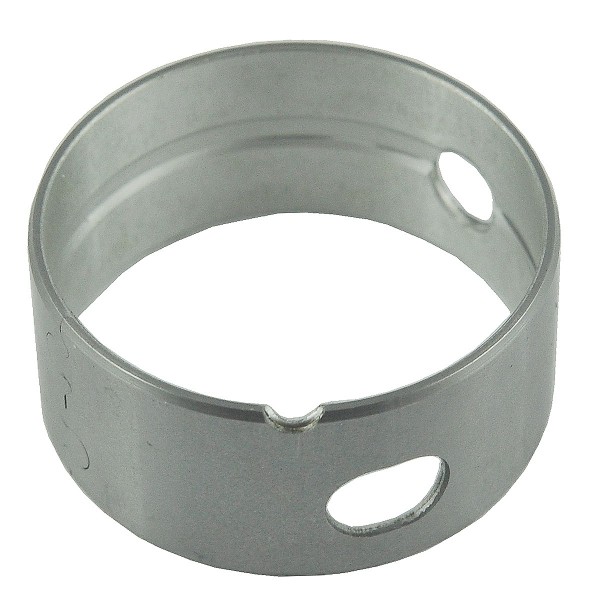

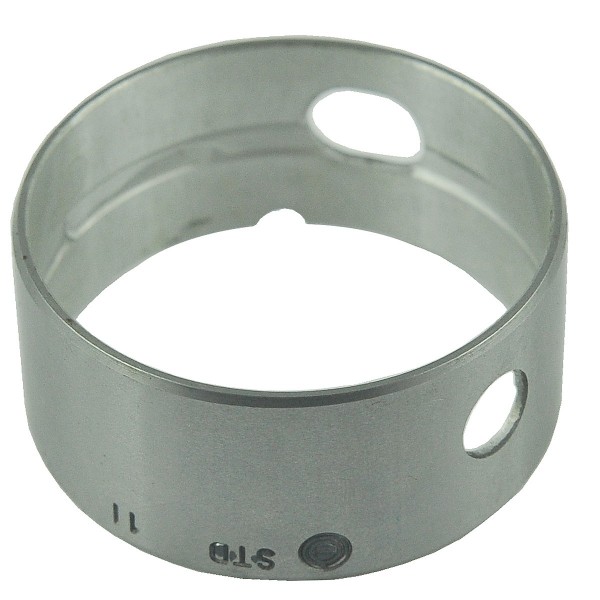

Camshaft bearing (shaft 129129-14580) with an inner diameter of 45 mm , outer diameter of 48 mm and a height of 22 mm for Yanmar tractors of the Yanmar EF352T, Yanmar EF453T series with Yanmar 3TNE78, Yanmar 3TNE84, Yanmar 3TNE88, Yanmar 4TNE84, Yanmar 4TNE88, Yanmar 3TNV82, Yanmar 3TNV84, Yanmar 3TNV88, Yanmar 4TNV86 and other engines .

The connecting rod bearing, a sliding bearing , is an element whose main task is to reduce friction at the point of connection of the camshaft to the engine block. The bearing is two separable, semicircular elements that, when fitted, form a circle (or one-piece sleeves). The bearing (though not all types) also have a small groove or cut through which the lubricant is distributed. The most common reasons for rapid wear of connecting rod bearings are:

• using oil with incorrect viscosity parameters,
• incorrect installation of bearing shells,
• failure to comply with oil change intervals,
• low engine oil level,
• overloading the engine, which has not reached the correct temperature,

Dimensions :

• inner diameter: 45 mm,
• outer diameter: 48 mm,
• height: 22 mm,
• original part numbers: 129795-02410, 129795-02411, 129795-02412,
• part numbers: 6-14-120-01.

Engine models :

• Yanmar 3TNE78,
• Yanmar 3TNE84,
• Yanmar 3TNE88,
• Yanmar 4TNE84,
• Yanmar 4TNE88,
• Yanmar 3TNV82,
• Yanmar 3TNV84,
• Yanmar 3TNV88,
• Yanmar 4TNV86.

Tractor models :

Yanmar :

• Yanmar EF352T,
• Yanmar EF453T.

The first signs of wear of connecting rod bearings are an unnatural, steady knocking coming from the engine. Worn bearings must be replaced with new ones as soon as possible, replacing the faulty element too late can cause serious damage to the shaft, connecting rod or engine.
