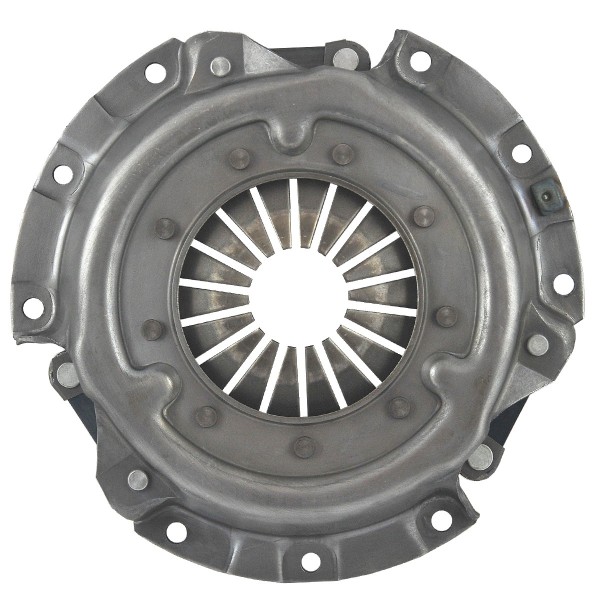

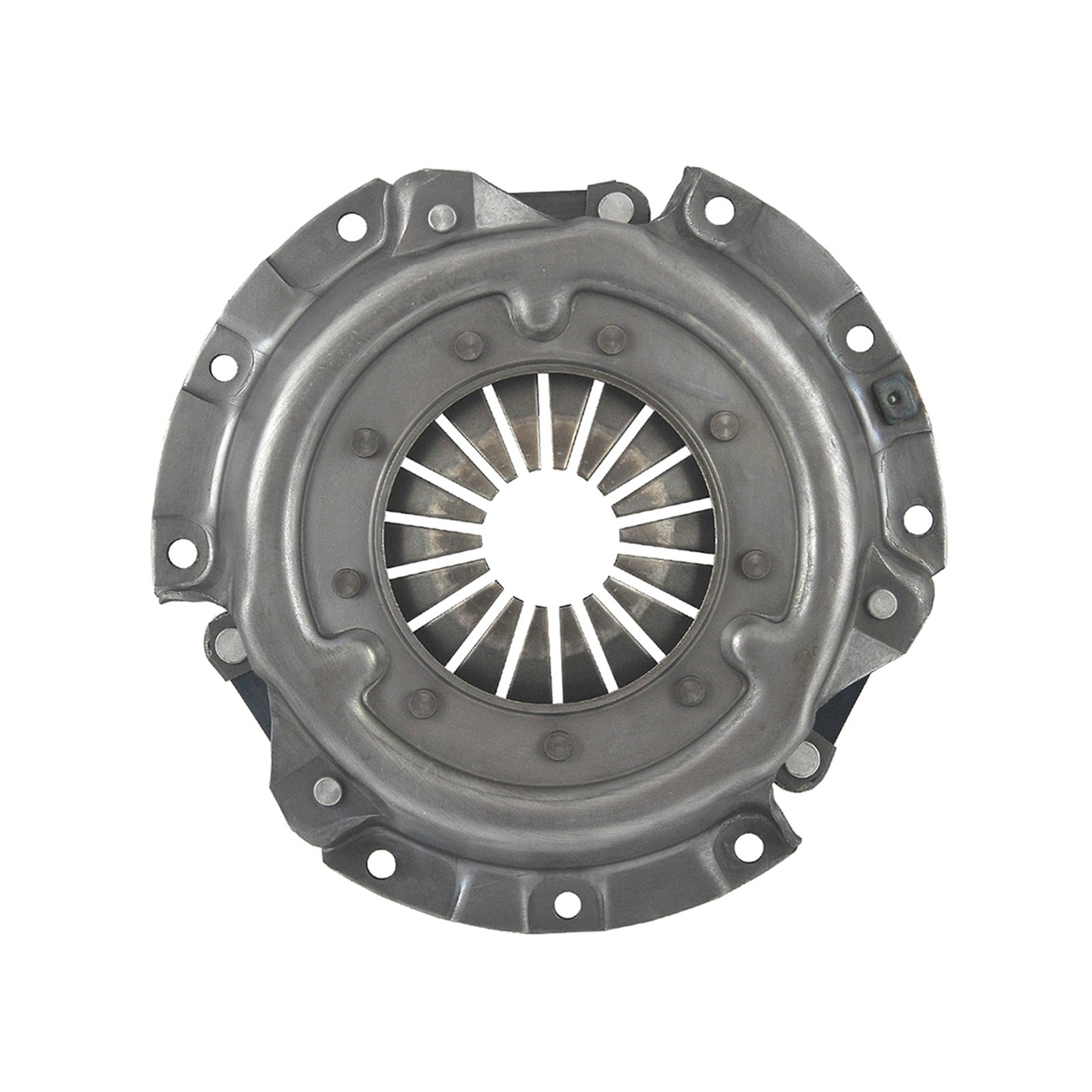

Clutch disc pressure plate (Mitsubishi disc 1025-0811-000, 1982-1120-000) with a pressure plate diameter of 125 / 184 mm for Hinomoto tractors Hinomoto C144, Hinomoto C174, Hinomoto E15, Hinomoto E150 series, Iseki tractors Iseki Sial 5, Iseki Sial 17 series, Iseki TU120, Iseki TU130, Iseki TU140, Iseki TU150, Iseki TU160, Iseki TU170, Iseki TU1400, Iseki TU1500, Iseki TU1600 series, Kubota tractors Kubota A-13, Kubota A-14, Kubota B52, Kubota series B1200, Kubota B1400, Kubota B1402, Kubota B1502, Kubota B1502, Kubota L1500, Kubota XB-1 , Mitsubishi brands Mitsubishi D1300 series, Mitsubishi D1500, Mitsubishi MT1601 and others.
The clutch pressure plate is the component that connects the gearbox to the engine and is therefore responsible for transferring torque from the engine, through the gearbox, to the tractor's drivetrain. To simplify this complex process, the clutch pressure plate is responsible for moving the tractor, starting and stopping, and changing speed ratios. The clutch pressure plate consists of a housing, compression springs, and a clutch disc. Its main function is to exert sufficient frictional force on the clutch disc to prevent the two components (pressure plate and disc) from rotating at different speeds.
Dimensions :

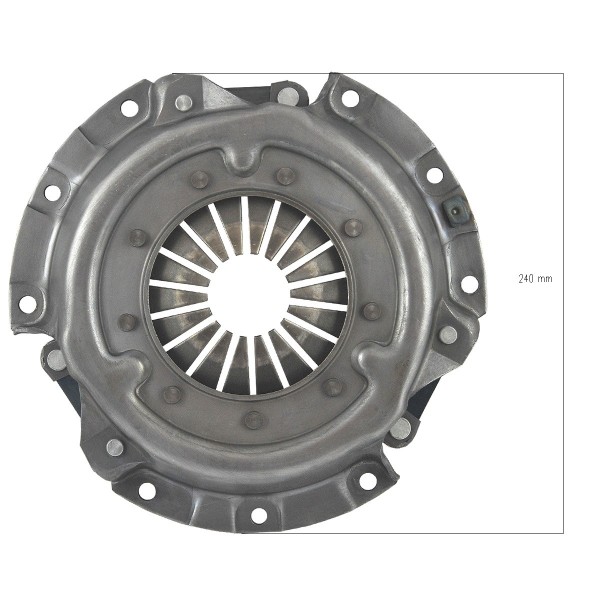

- total diameter (housing): 240 mm,

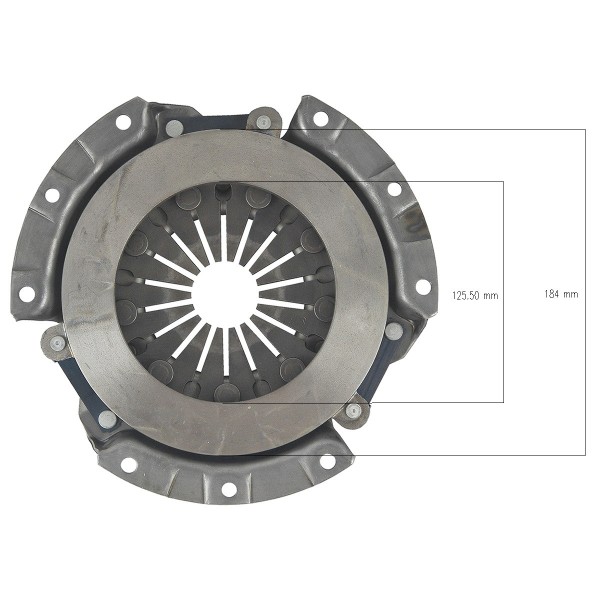

- inner diameter of the pressure plate: 125.50 mm,
- outer diameter of the pressure plate: 184 mm,
- height: 40 mm,

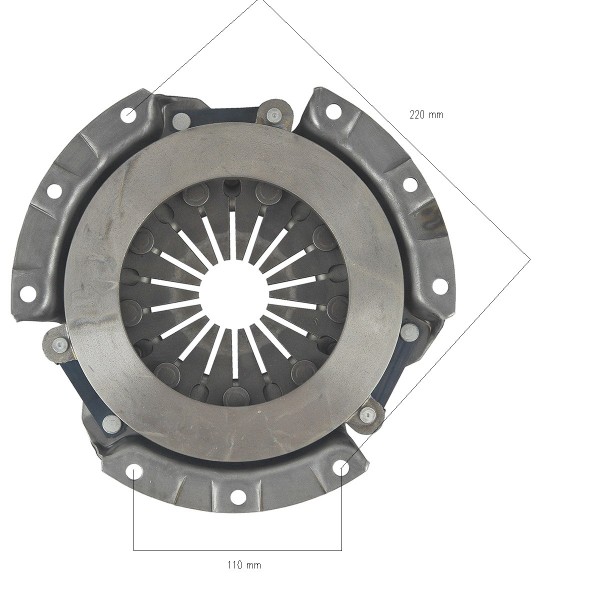

- spacing of mounting screw holes: 110 mm (measured from each other), 220 mm (measured diagonally),
- original part numbers: 67211-13300, 1007-1110-000, 1600-120-230-00, 1491-120-210-00, 1716-120-200-00,
- Comparison numbers: %C5% 82a-240-mm-iseki-tu1400tu1600-33001.html">33001 , %C5% 82a-kubota-l1500-7-7-cali-209-001501.html">6-26-102-03 ,
- part numbers: OKSATC849.
Tractor models :
Hinomoto :
- Hinomoto C144,
- Hinomoto C174,
- Hinomoto E15,
- Hinomoto E150.
Iseki :
- Iseki Sial 5,
- Iseki Sial 17,
- Iseki TU120,
- Iseki TU130,
- Iseki TU140,
- Iseki TU150,
- Iseki TU160,
- Iseki TU170,
- Iseki TU1400,
- Iseki TU1500,
- Iseki TU1600.
Kubota:
- Kubota A-13,
- Kubota A-14,
- Kubota B52,
- Kubota B1200,
- Kubota B1400,
- Kubota B1402,
- Kubota B1502,
- Kubota B1502,
- Kubota L1500,
- Kubota XB-1.
Mitsubishi :
- Mitsubishi D1300,
- Mitsubishi D1500,
- Mitsubishi MT1601.
The first signs of a worn clutch include an unusual noise when pressing or releasing the clutch pedal, an unpleasant odor, or a grinding sound from the gearbox. When replacing a clutch, it's recommended to replace all components (disc, pressure plate, bearing) because these components often wear out at the same time.
Magazine : K18:A28
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
