Available
Others in the offer of this manufacturer >
Condition
New
Production
Substitute
Parts
Cooling system
Engine model
Mitsubishi K3C
Tractor models
- Mitsubishi MT1401
- Mitsubishi MT1601
Mitsubishi D1450
Mitsubishi D1500
Mitsubishi D1550
Thickness (mm)
65
Width (mm)
360
Go to full specification >

Radiator / Mitsubishi D1450 / D1500 / D1550 / MT1401 / MT1601

ARK2372 / D1450/D1550
zł1,699.00
Tax included PL 23%

1381,3 netto

  • Dostępność (10 Quantity): stock

Do you have any questions?

Radiator / Mitsubishi D1450 / D1500 / D1550 / MT1401 / MT1601

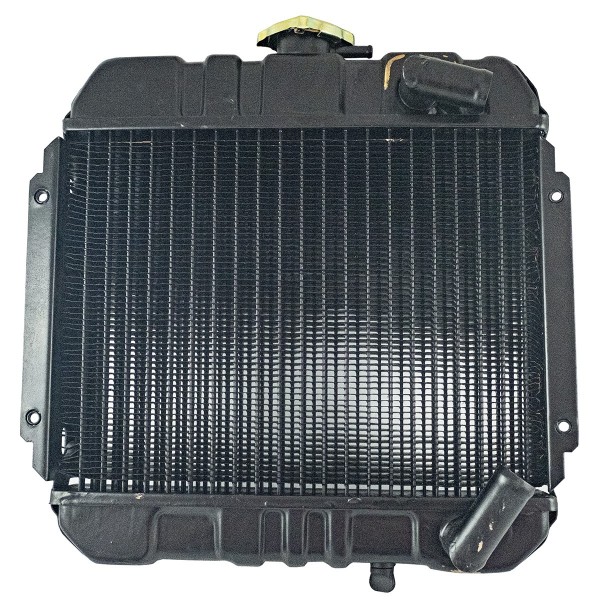

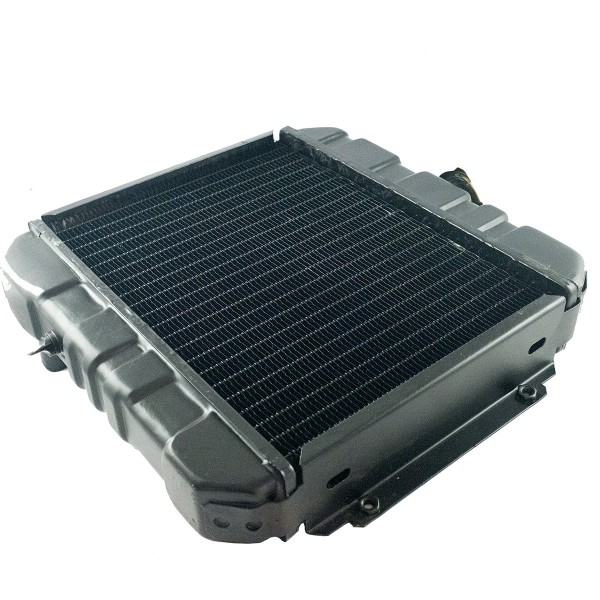

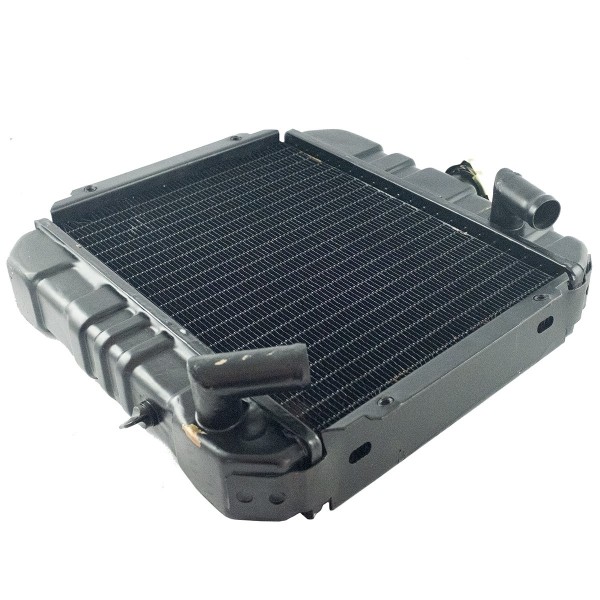

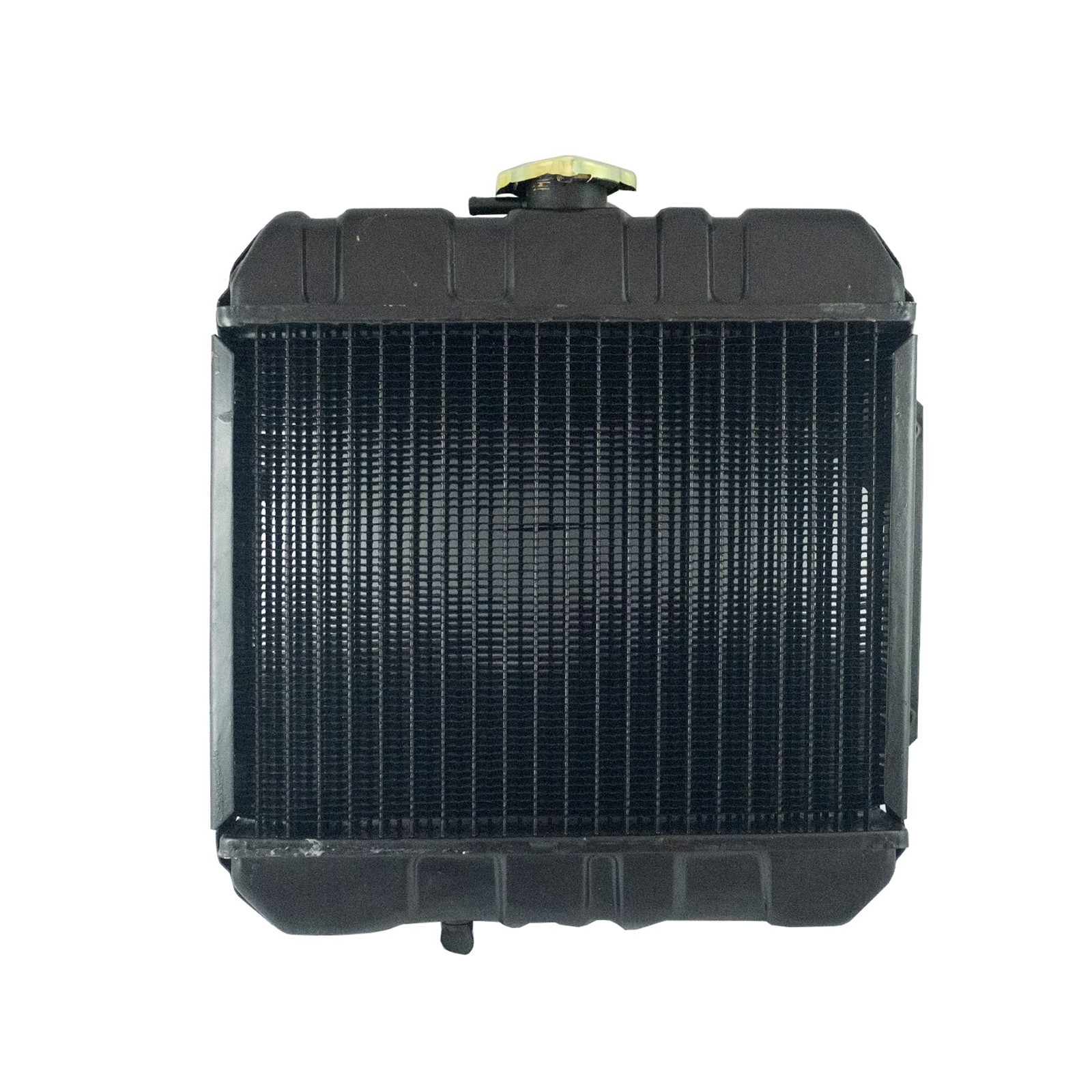

Radiator dimensions 380 x 360 x 65 mm for Mitsubishi tractors of the Mitsubishi D1450, Mitsubishi D1500, Mitsubishi D1550, Mitsubishi MT1401, Mitsubishi MT1601 series with Mitsubishi K3C engines and others.

The engine head and block coolant cooler is a device whose task is to cool the engine by setting in motion the coolant, which is located in the engine water channels and in the cooler itself. The coolant is successively cooled by air generated by the cooler fan, which is driven by the coolant pump during engine operation. The cooler is made of water channels, which are suitably arranged and encased in metal fins. The metal fins of the cooler allow for faster heat removal from the engine, increasing the cooling efficiency.

Dimensions :

  • height: 380 mm,
  • width: 360mm,
  • thickness: 65mm,
  • spacing of mounting screw holes: 160 x 365 mm,
  • nozzle diameter: internal 25.50 mm, external: 28 mm.

The first signs of a faulty radiator are the lighting up of temperature indicators on the dashboard or the liquid in the radiator boiling, thick steam escaping, the expansion tank cap being pushed out or a coolant leak. The most common radiator failures are caused by scale deposits inside the cooling lines, which restricts the flow of liquid and leads to failure.

Magazine : M01:K04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specification

Magazyn: K19:S1
Condition
New
Production
Substitute
Parts
Cooling system
Engine model
Mitsubishi K3C
Tractor models
- Mitsubishi MT1401
- Mitsubishi MT1601
Mitsubishi D1450
Mitsubishi D1500
Mitsubishi D1550
Thickness (mm)
65
Width (mm)
360
Connection diameter (a) (mm)
25.50
28
Bolt hole spacing (mm)
160
365
Total height (mm)
380
