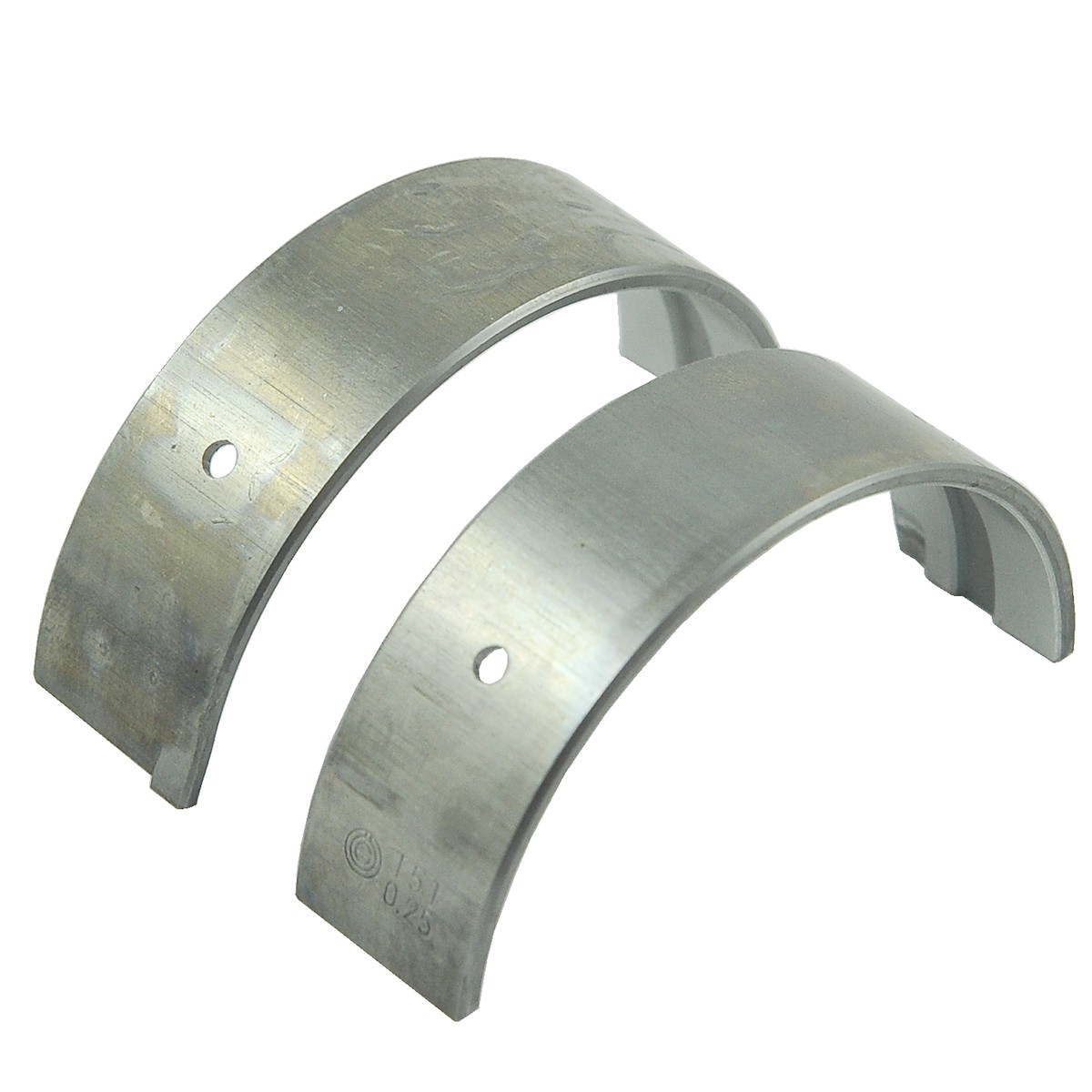

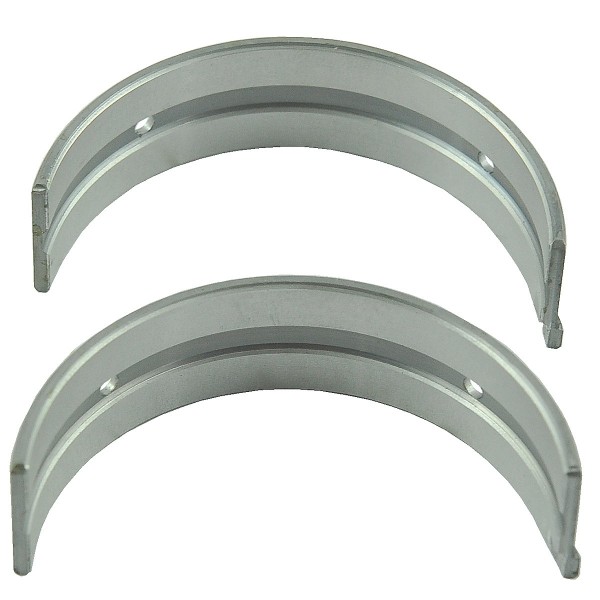

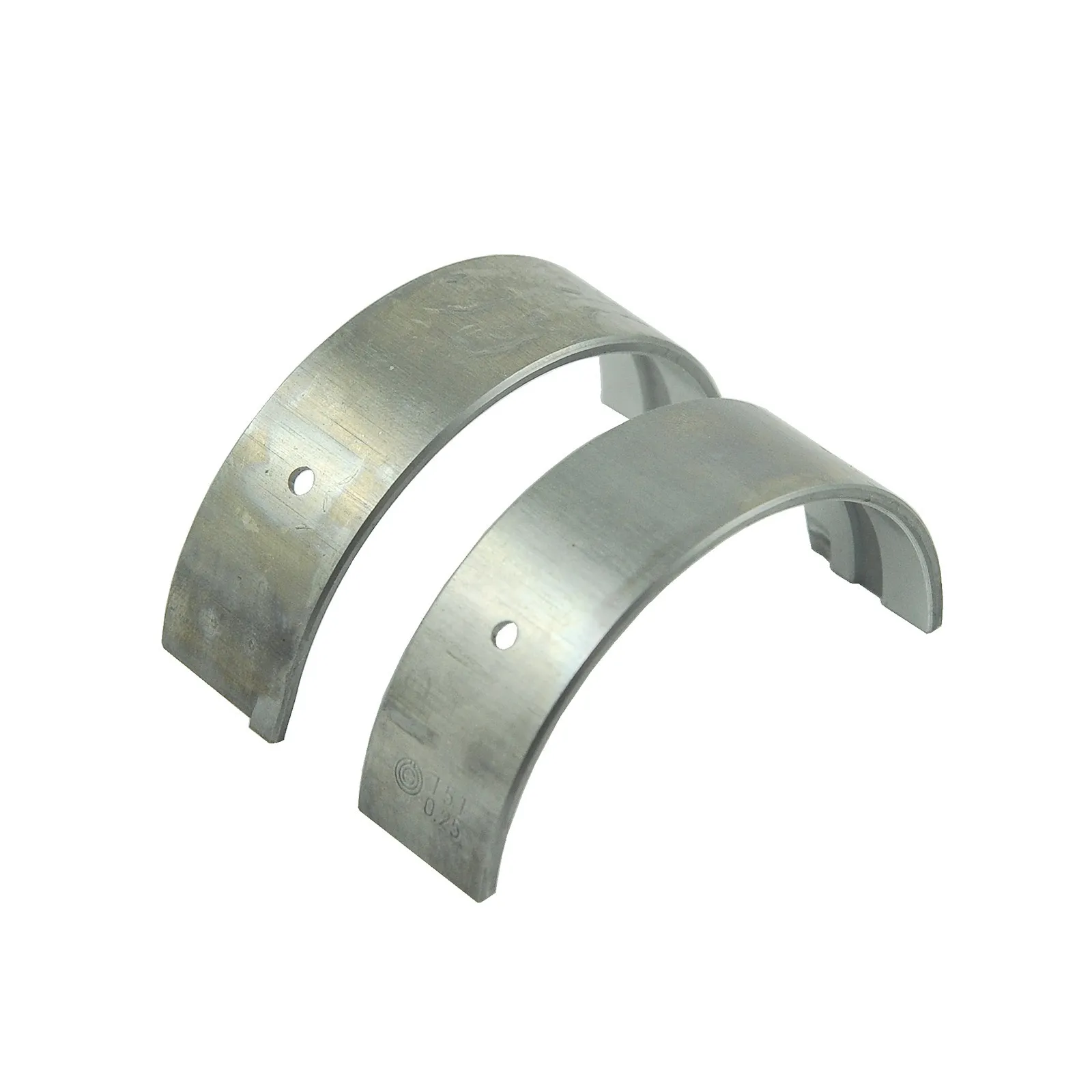

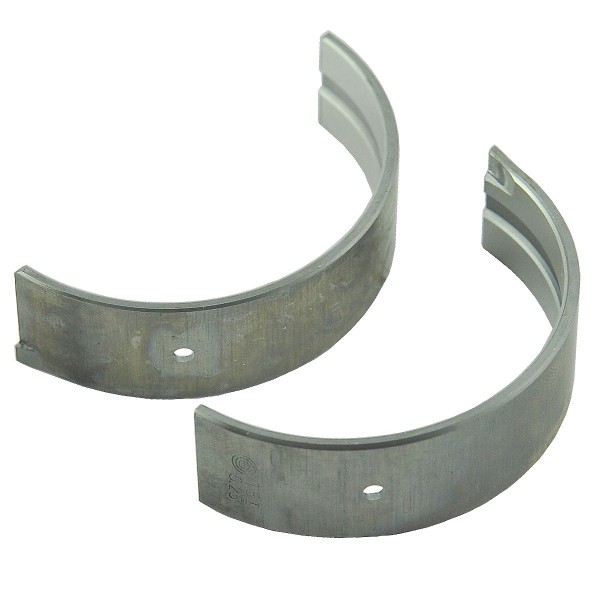

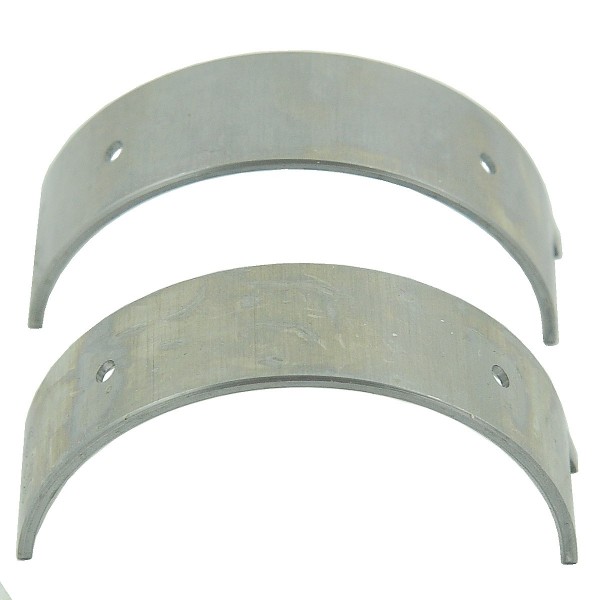

Main bearings / STD +0.25 / Kubota D1503 / D1703 / D1463 / V1903 / V2203 / Kubota GL / GT/ L-1 / L

Crankshaft spacer bearings , standard size + 0.25 mm (first grinded bearings 010) for Kubota tractors of the Kubota L2500, Kubota L2900DT, Kubota L3010DT, Kubota L3300DT, Kubota L3600DT, Kubota L3710DT, Kubota L4200DT , Kubota L3408 series with Kubota D1703, Kubota V1803, Kubota V1903, Kubota V2203, Kubota V2403 and others engines.

Main engine bearings are semicircular rings that are mounted in special grooves (holders) in the engine block, between the crankshaft (main shaft) and the engine block (applies to the central shaft journals) in order to eliminate play that occurs during engine operation. Main bearings, bearing the shaft, ensuring the proper position of the shaft relative to the engine block so that the generated power is transmitted as smoothly as possible. The first signs of bearing wear are clattering when starting the engine.

Dimensions :

• width: 19mm,
• inner diameter: -,
• thickness: 2mm,
• original part numbers: 1A091-23480, 17311-23480,
• reference numbers: 6-07-100-12 , %C5% 9Bci-do-kubota/3268-connecting-rod-bearings-l3408-020.html">6-07-100-14 , %C5% 9Bci-do-kubota/3269-bearings-g %C5% 82 %C3% B3wne-std-075-kubota-d1703v2203v1903d1503d1463-kubota-glgtl-1l-17311-23480.html">6-07-100-15 ,
• part numbers: 6-07-100-13.

Tractor models :

• Kubota L2500,
• Kubota L2900DT,
• Kubota L3010DT,
• Kubota L3300DT,
• Kubota L3600DT,
• Kubota L3710DT,
• Kubota L4200DT,
• Kubota L3408.

Engine models :

Kubota :

• Kubota D1703,
• Kubota V1803,
• Kubota V1903,
• Kubota V2203,
• Kubota V2403.

Worn bearings must be replaced with new ones as soon as possible; replacing a faulty element too late can cause serious damage to the shaft, connecting rod or engine.

Magazine: M01:F73:S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
