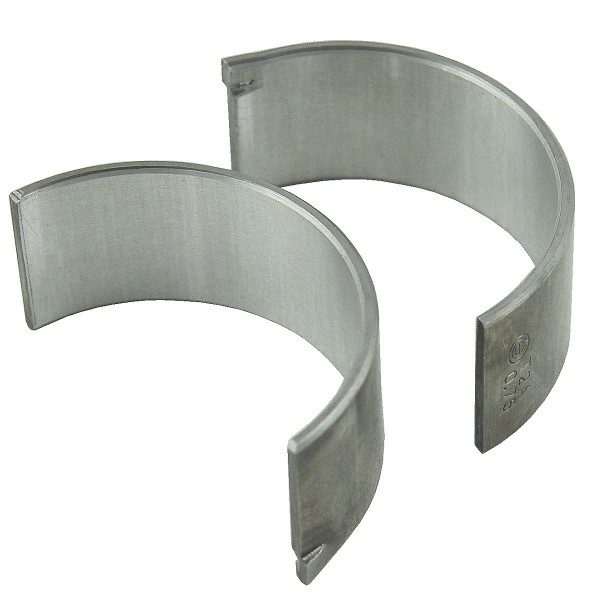

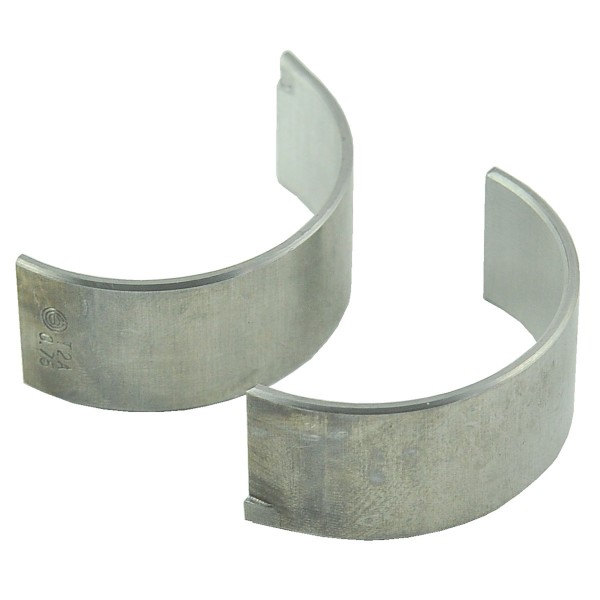

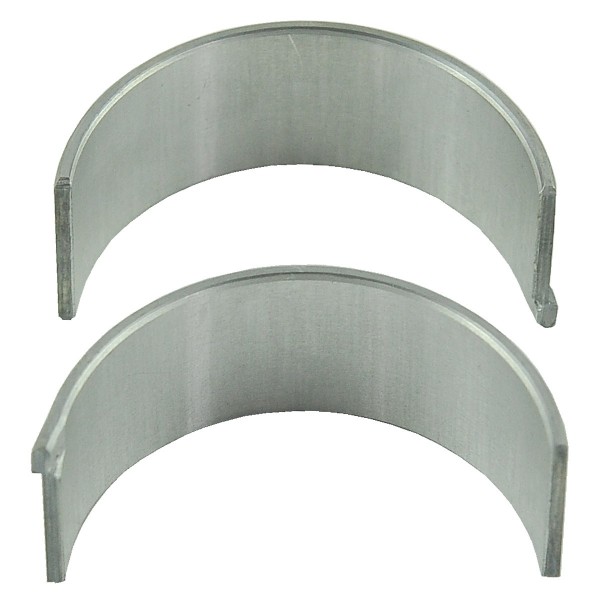

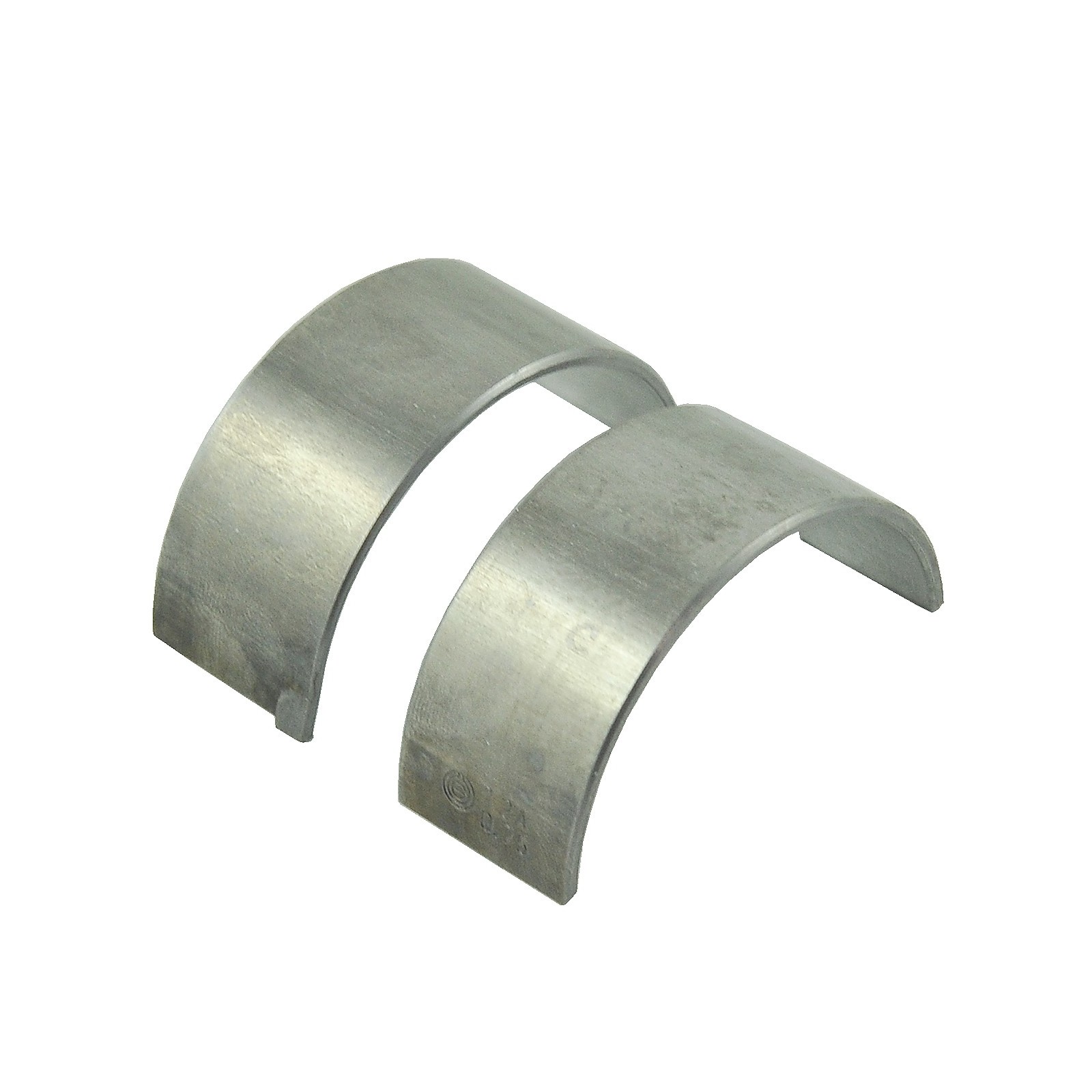

Connecting rod bearings / STD + 0.75 mm / Kubota D1703 / Kubota L3408

Connecting rod bearings ( %C3% B3d-17311-22014-kubota-d1703-v1903-v2203-f2803.html">17311-22014 ) with a standard size + 0.75 mm (third-grind bearings 030) for Kubota tractors of the Kubota L3408 series and others .

Connecting rod bearings are elements whose main task is to reduce friction at the point of connection of the connecting rod to the crankshaft. The bearings are two separable, semicircular elements that, when installed, create a circle. The bearings also have a small groove or cut through which the lubricant is distributed. The most common reasons for rapid wear of connecting rod bearings are:

• using oil with incorrect viscosity parameters,
• incorrect installation of bearing shells,
• failure to comply with oil change intervals,
• low engine oil level,
• overload of the engine which has not reached the proper temperature,

Dimensions :

• width: 21 mm,
• diameter: 49 mm,
• thickness: 1.80 mm,
• original part numbers: 17311-22310,
• reference numbers: %C5% 9Bci-for-kubota/3262-connecting-rod-bearings-kubota-d1703v2203v1903d1503d1463-kubota-glgtl-1l-std-17311-22310-6-07-101-19.html">6-07-101-19 , %C5% 9Bci-for-kubota/3259-connecting-rod-bearings-kubota-d1703-kubota-l3408-std-025-17311-22310-6-07-101-20.html">6-07-101-20 , %C5% 9Bci-for-kubota/3260-connecting-rod-bearings-std-050-kubota-d1703v2203v1903d1503d1463-kubota-glgtl-1l-17311-22310-6-07-101-21.html">6-07-101-21 ,
• part numbers: 2808-3408, 6-07-101-22.

Tractor models :

• Kubota L3408.

Engine models :

Kubota :

• Kubota D1703.

The first signs of wear of connecting rod bearings are an unnatural, steady knocking coming from the engine. Worn bearings must be replaced with new ones as soon as possible, replacing the faulty element too late can cause serious damage to the shaft, connecting rod or engine.

Magazine : M01:F73:S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
