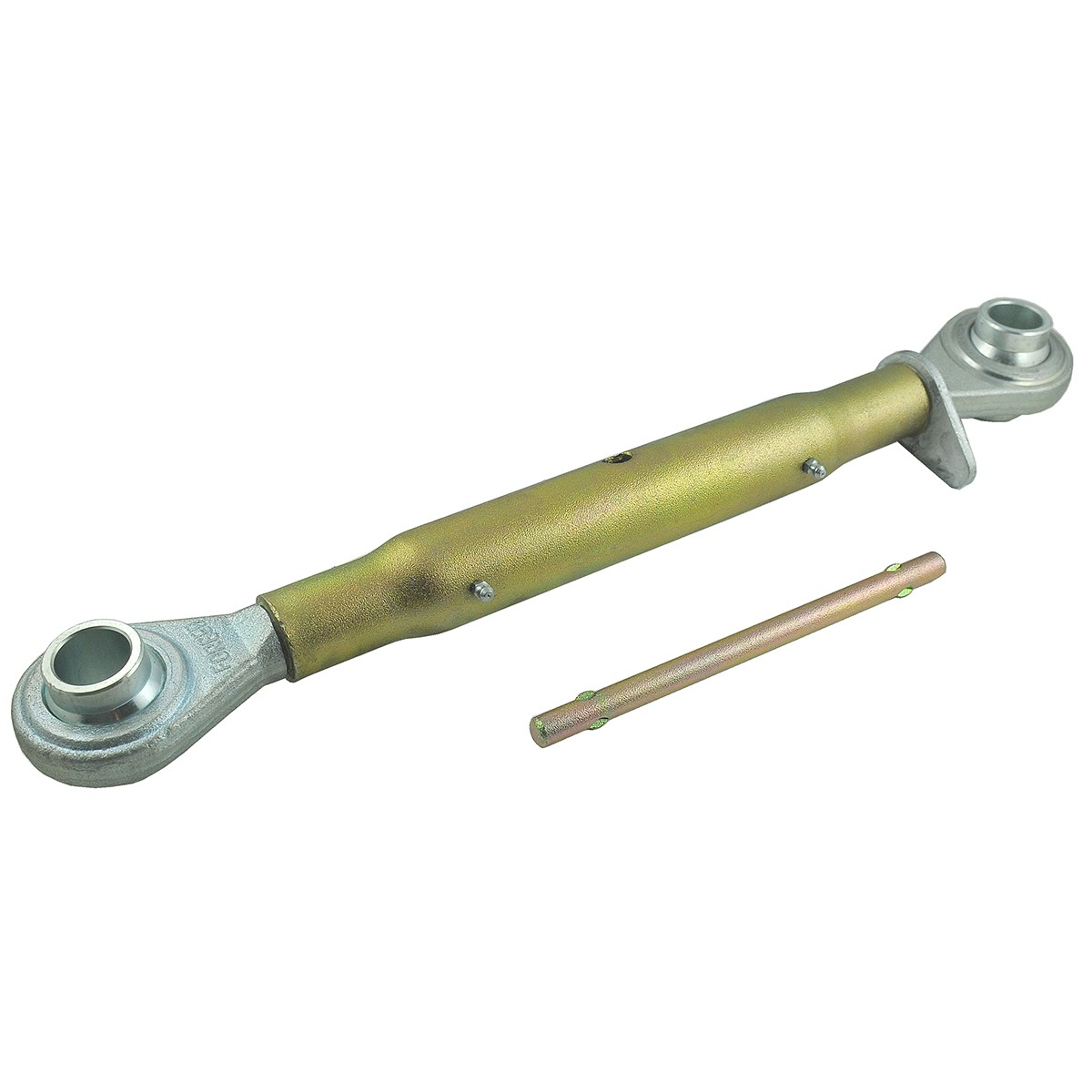

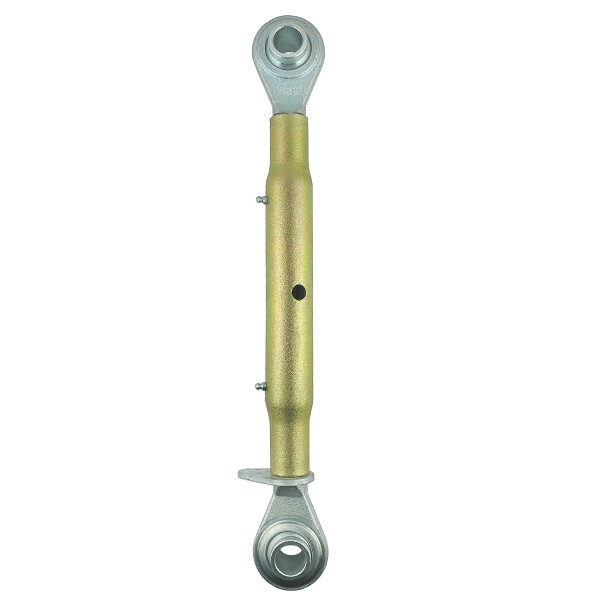

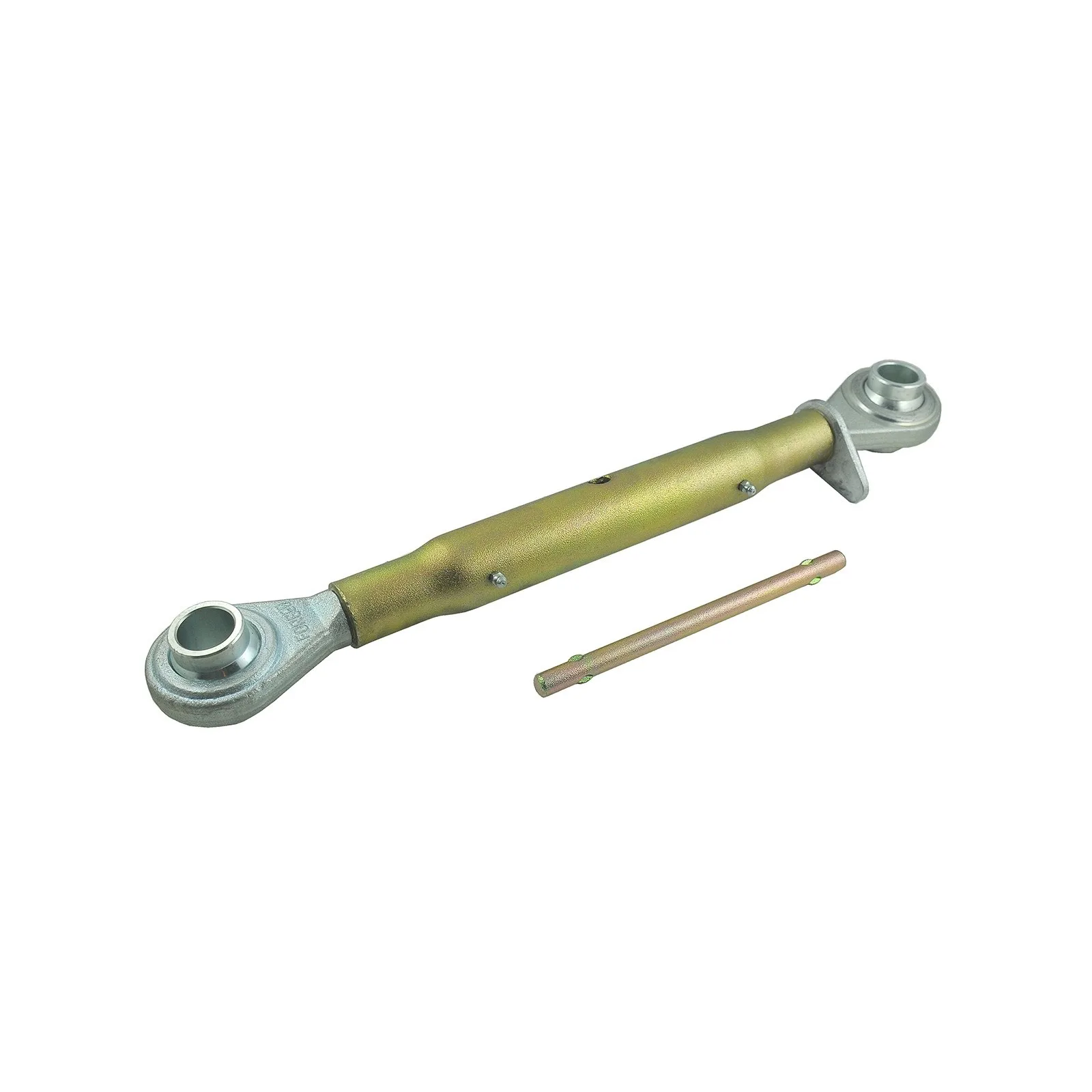

Turnbuckle / Cat II / 450-680 mm / 12 1/2 / M30 x 3

Turnbuckle Cat 2 with a total length of 510 mm (minimum total length measured with fully tightened screws) and a pin hole diameter of 26 mm (TUZ KATII) for tractors and other machines.

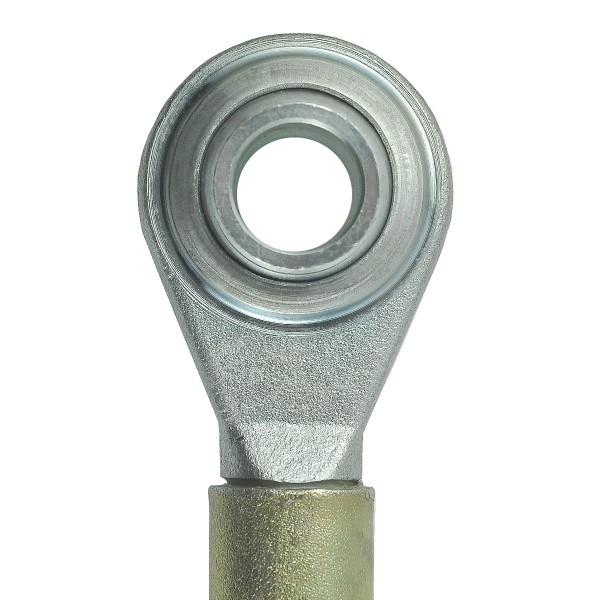

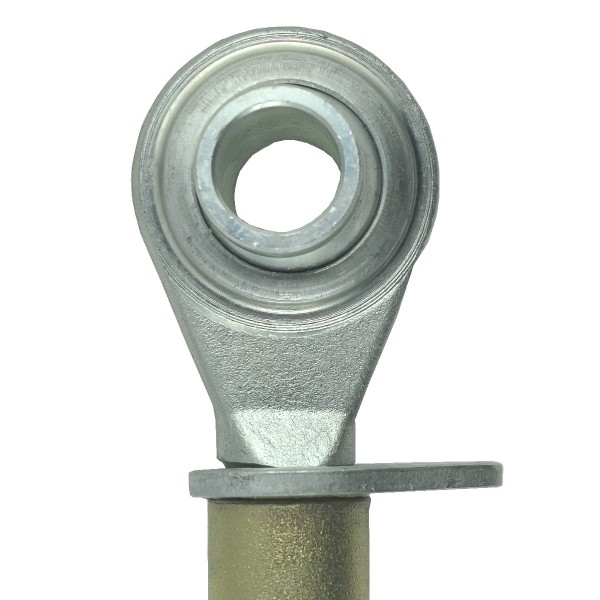

A three-point linkage turnbuckle used in agriculture is a tractor component, specifically a component of the rear three- point linkage hydraulic linkage (3-point linkage - rear three-point suspension system), and is used to connect the tractor to a machine or agricultural implement. A tubular tensioning screw, also known as a connector, is composed of three elements: a body and two screws with oppositely directed threads. The turnbuckle and the sleeves are terminated with spherical, self-aligning holes on locking pins.

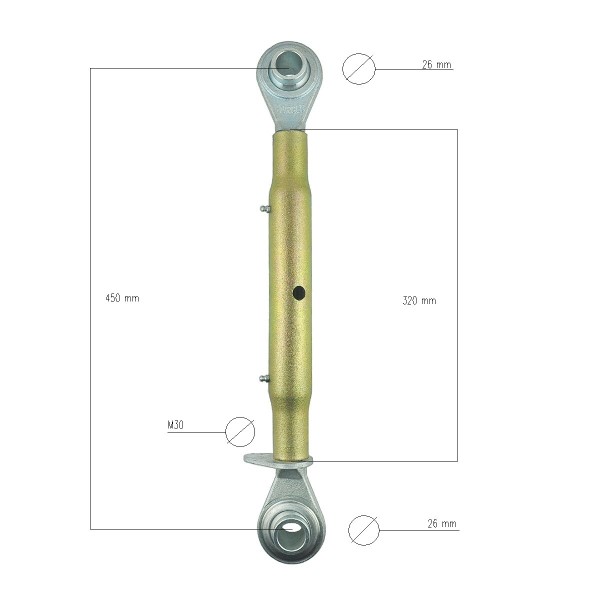

Dimensions :

• length: 320 mm (12 1/2 inch body),
• total length: 510 mm (minimum total length measured with fully tightened screws),
• working length: minimum 450 mm, maximum 680 mm,
• thread: M30 x 3,
• diameter of pin holes: 26 mm,
• pin mounting width: 51 mm,
• head diameter: 65 mm.

The agricultural turnbuckle is made of a stainless metal alloy resistant to high stress forces and is resistant to harmful weather conditions. The oppositely directed threads of the turnbuckle cause that by turning the body (middle element), depending on the direction of rotation, the screw tightens or acts as an expansion.

Warehouse:
M:LS

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
