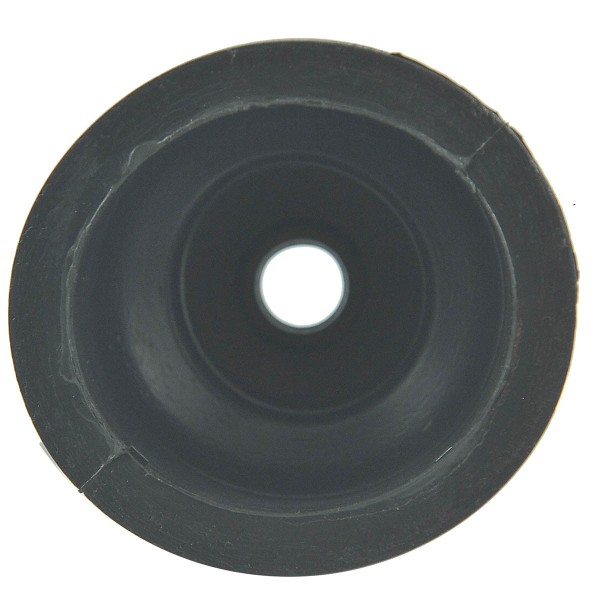

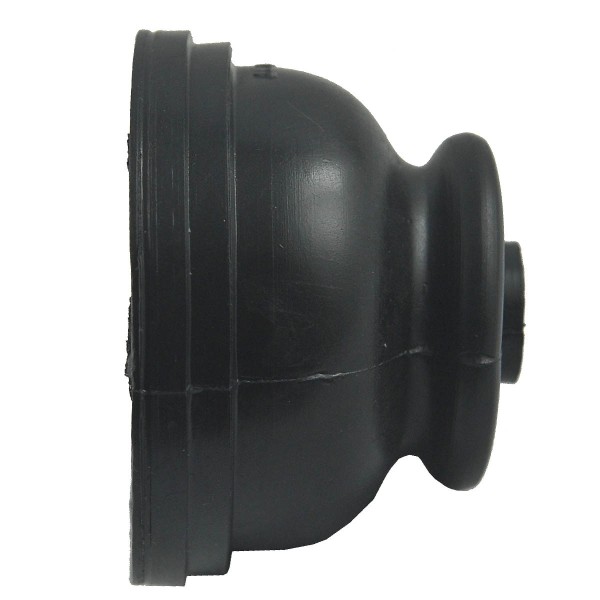

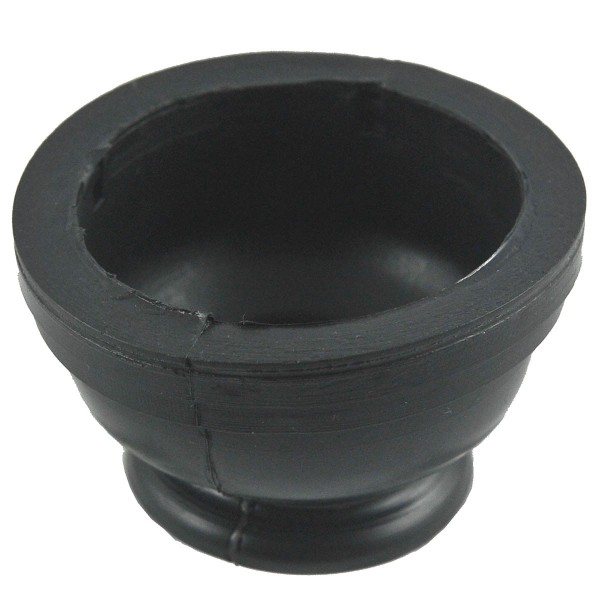

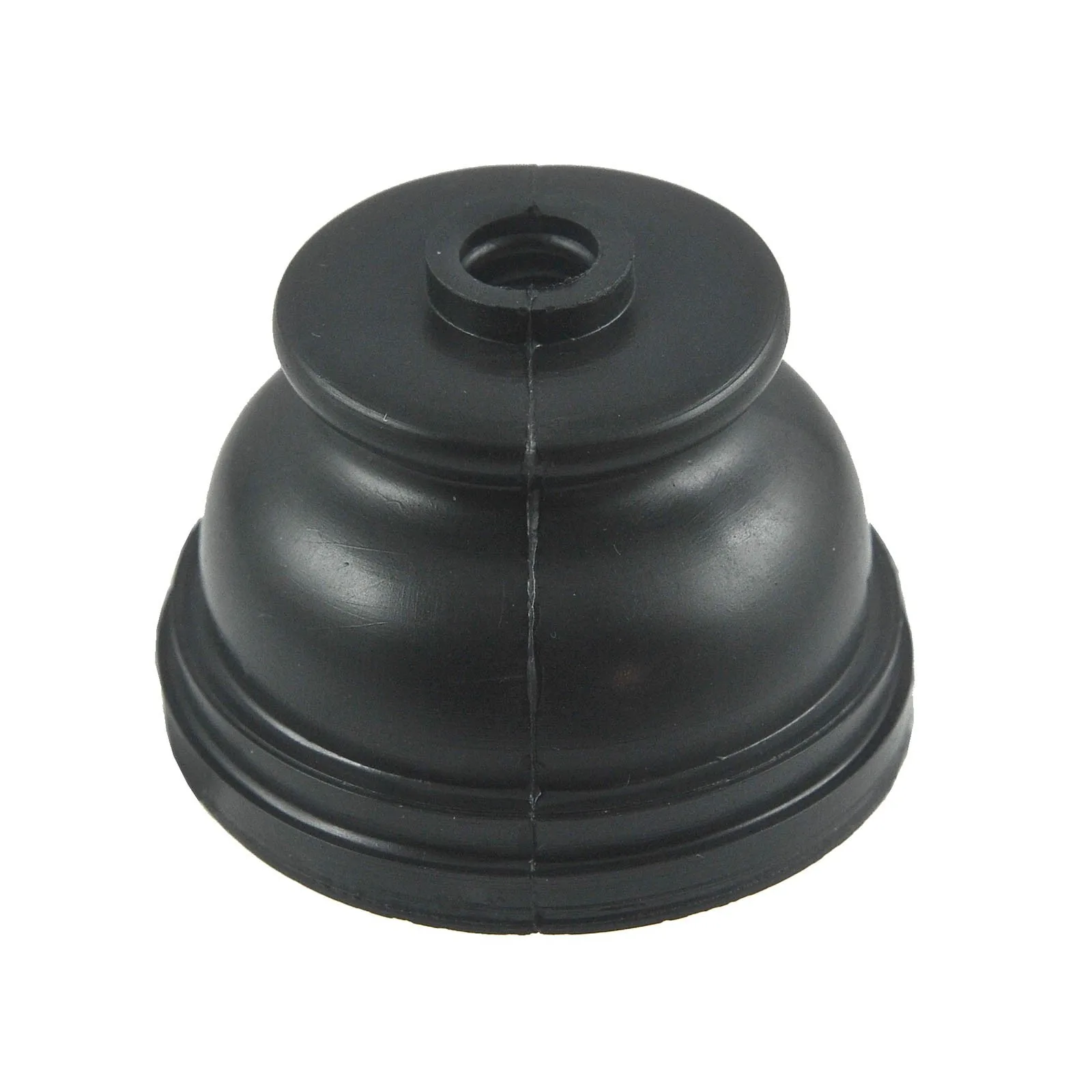

Lever rubber cover / New Holland 1100 / 1200 / 1300 / 1310 / 1500 / 1510 / 1700 / 1710 / 1900 / 1910 / 2110 / T1510

Rubber cover, gear shift rod powder coat with an internal diameter of 13 / 58 mm and a height of 52 mm for New Holland tractors of the New Holland 1100, New Holland 1200, New Holland 1300, New Holland 1310, New Holland 1500 , New Holland 1510, New Holland 1700, New Holland 1710, New Holland 1900, New Holland 1910, New Holland 2110, New Holland T1510 series and others. The rubber cover , commonly called "gear shift rod powder coat", is most often a rubber cone (or pipe shape), tapered at the ends on one or both sides with a groove for easier mounting, e.g. a pressure band. We use this type of cover not only on gear shift levers and rod ends, but also this type of cover is used inside machine systems, sealing parts assemblies, e.g. half-axles or various types of shafts, which are not subjected to rotational speeds during operation. The main task of the "powder chamber" is to protect the mechanical assembly from dirt getting inside and to protect against washing out the lubricant, which is present in many moving parts of the tractor.

Dimensions :

• inner diameter: 13 / 58 mm,
• height: 52 mm,
• original part numbers: 83922102, SBA398110610,
• comparison numbers: ,
• part numbers: S.70566.

Tractor models :

New Holland :

• New Holland 1100,
• New Holland 1200,
• New Holland 1300,
• New Holland 1310,
• New Holland 1500,
• New Holland 1510,
• New Holland 1700,
• New Holland 1710,
• New Holland 1900,
• New Holland 1910,
• New Holland 2110,
• New Holland T1510,

Damaged mechanical seals (abrasions, breaks caused by rubber failure) must be replaced with new ones as soon as possible to avoid contamination of the interior of the system, which may consequently cause damage or seizure of the mechanical assembly.

Magazine : M01:A02:S03

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
