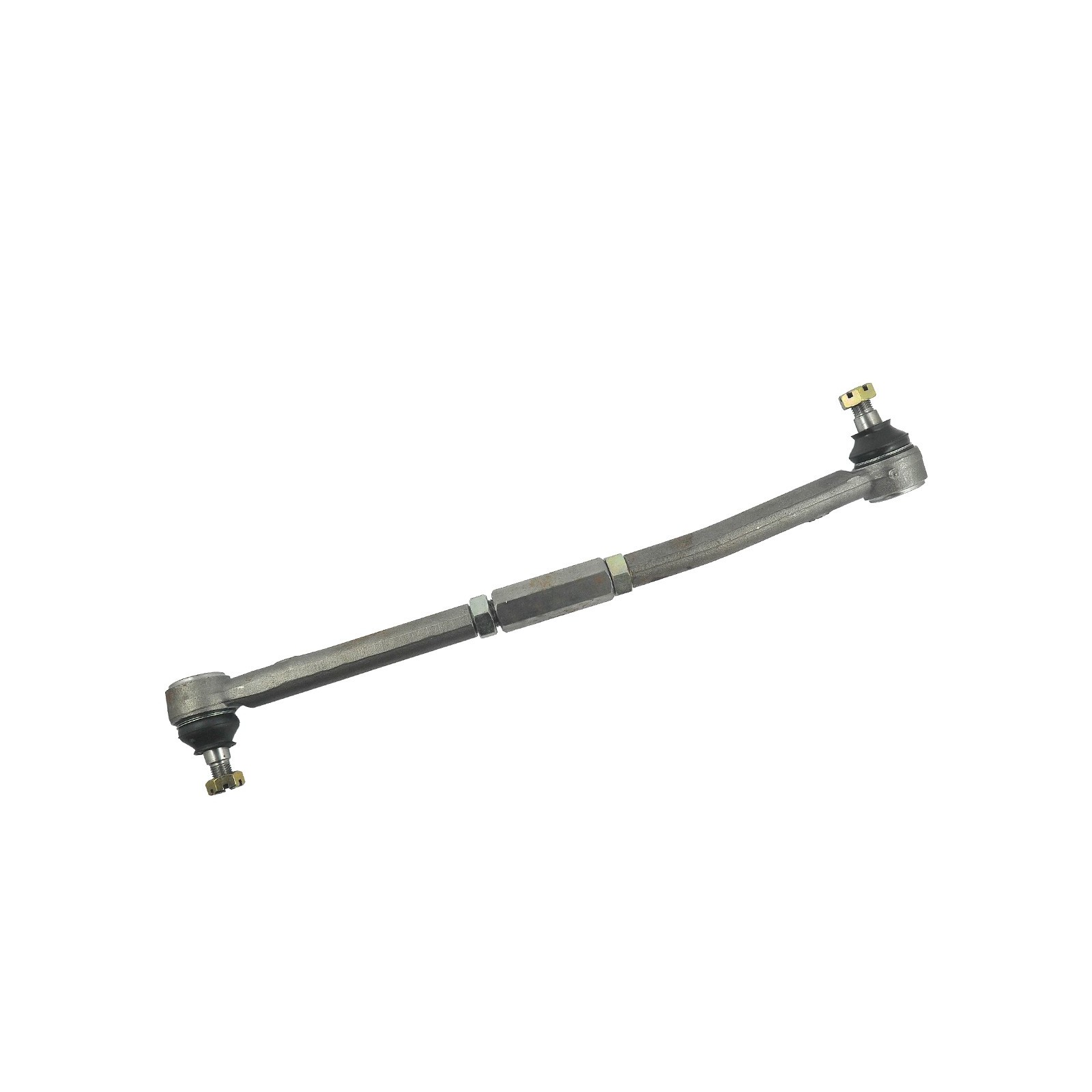

Steering rod / 445 mm / LH / Kubota L3008 / L3608 / L4018

Dimensions (set):

• length: 445 mm (measured without rod end heads with screws tightened to the maximum),
• total length: 535 mm (measured with rod heads and screws tightened to the maximum),
• working length: 495 mm (measured from center to center of the cones with the screws tightened to their maximum)
• original part numbers: TC422-13702,
• part numbers: 5-23-101-62.

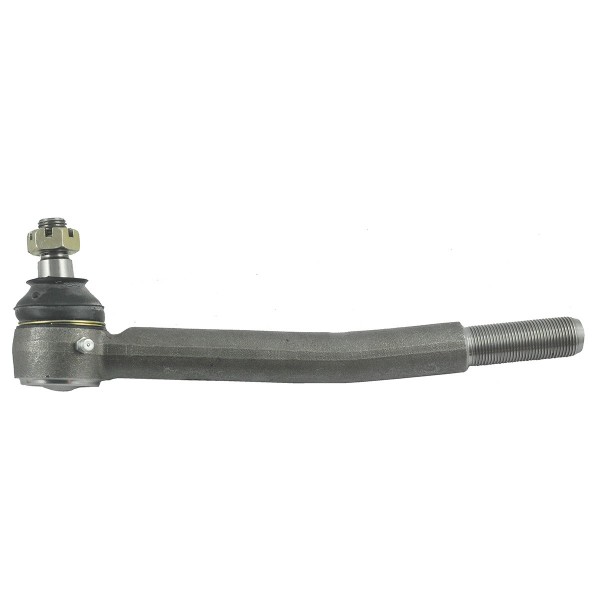

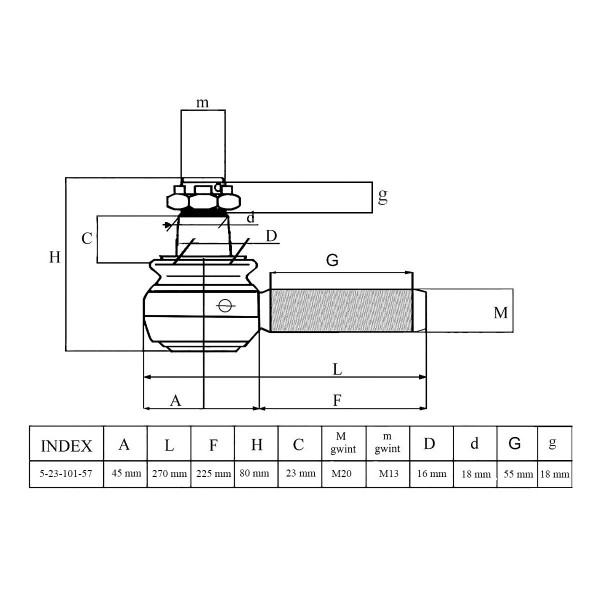

Tip dimensions (5-23-101-57, TC422-13742):

• total length: 270 mm,
• head diameter: 45 mm,
• thread length: 18 / 45 mm,
• head height (see drawing): 80 mm,
• cone height: 23 / 45 mm,
• cone diameter (see drawing): 16 / 18 mm,
• thread: M13 x 1.5 / M20 x 1.50,
• original part numbers: TC422-13742,
• comparison numbers: 6-23-133-12,
• part numbers: %C5% 9Bci-do-kubota/1455-ko %C5% 84c %C3% B3wka-dr %C4% 85 %C5% BCka-270-mm-right-kubota-l3608l4018-tc422-13742-5-23-101-57.html">5-23-101-57 .

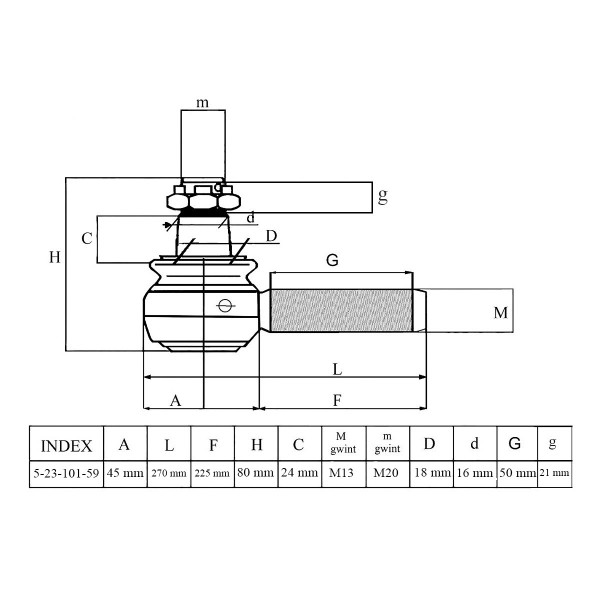

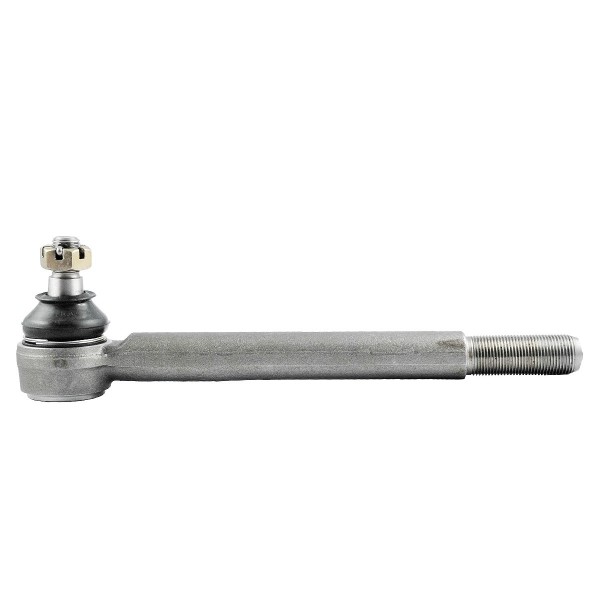

Tip dimensions (5-23-101-59, TC422-13750):

• total length: 270 mm,
• head diameter: 45 mm,
• thread length: 21 / 50 mm,
• head height (see drawing): 80 mm,
• cone height: 45 / 24 mm,
• cone diameter (see drawing): 18 / 16 mm,
• thread: M13 x 1.50 / M20 x 1.50,
• original part numbers: TC422-13750,
• comparison numbers: (6-23-133-10,
• part numbers: %C5% 9Bci-do-kubota/1457-ko %C5% 84c %C3% B3wka-dr %C4% 85 %C5% BCka-steering-80-x-270-mm-right-kubota-l3008l3608l4018-tc422-13750-5-23-101-59.html">5-23-101-59 .

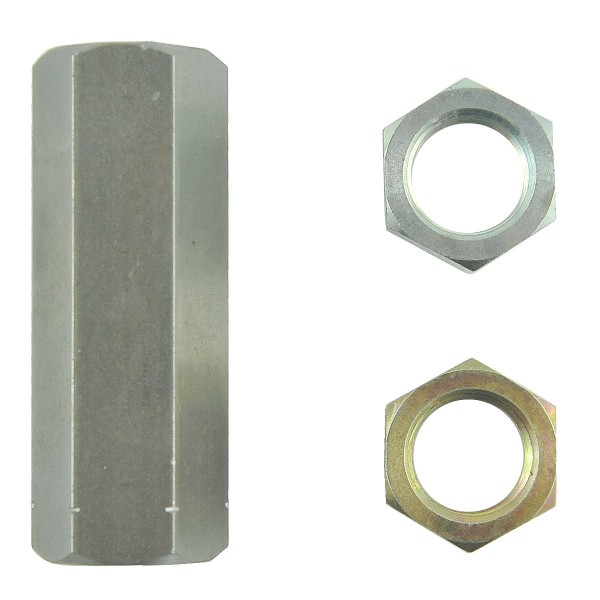

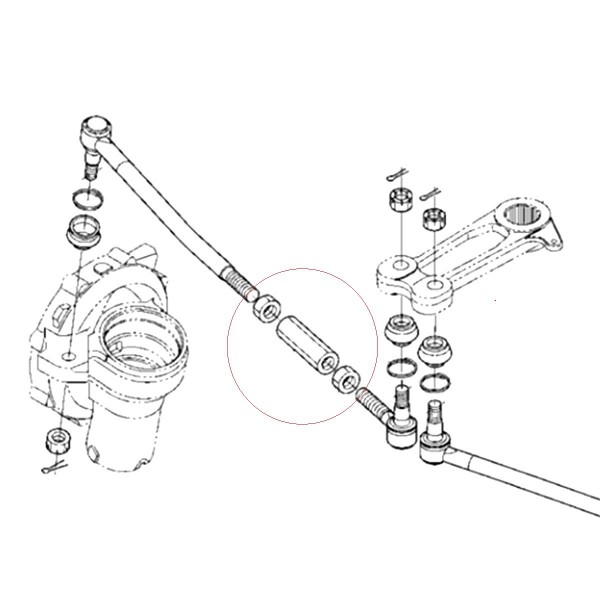

Connector dimensions (5-15-249-06):

• length: 80 mm.
• nut height: 12 mm,
• thread: M20 x 1.50,
• key size: 27.
• original part numbers: 32570-44720,
• part numbers: %C5% 9Bci-do-kubota/358- %C5% 82 %C4% 85cznik-ko %C5% 84c %C3% B3wki-dr %C4% 85 %C5% BCka-m20-x-15-80-mm-kubota-l3408l3608l4018-32570-44720-5-15-249-06.html">5-15-249-06 .

Tractor models :

• Kubota L3008,
• Kubota L3608,
• Kubota L4018.

The first signs of steering rack wear include play in the steering wheel, steering wheel vibration, and delayed steering wheel response to slight steering wheel movements. Tie rod end wear or damage is often caused by other malfunctioning components or improper driving and operation of the tractor.

Magazine : K18:A19

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
