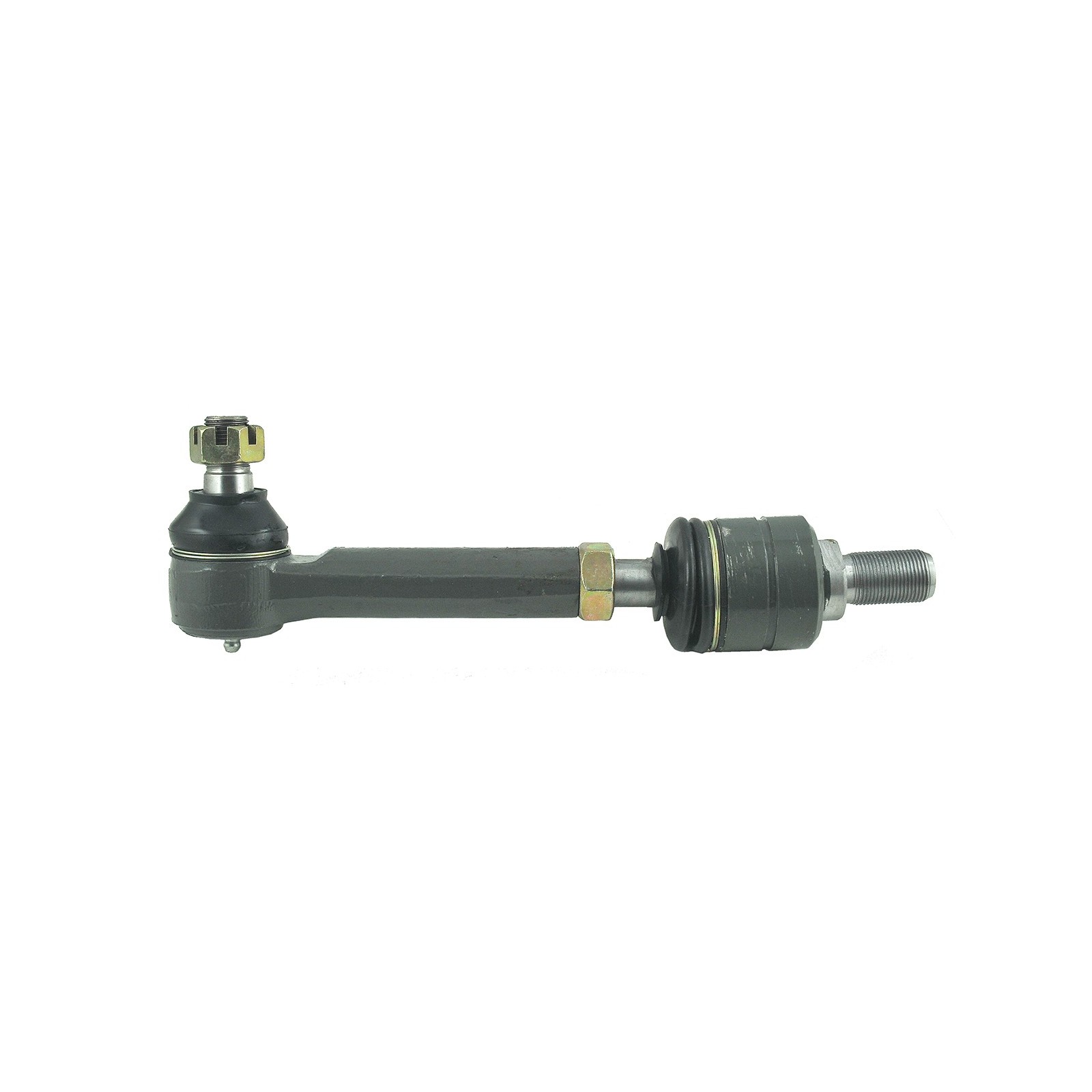

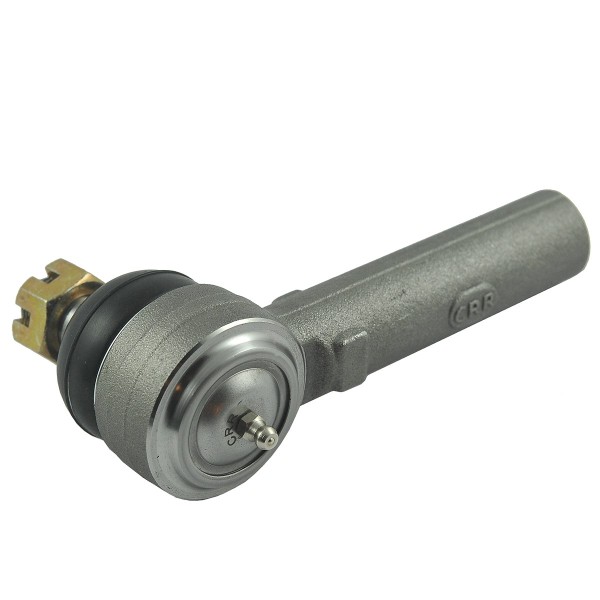

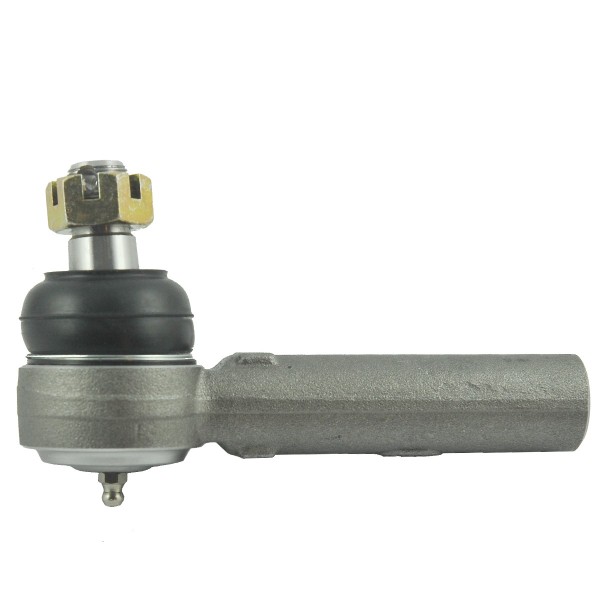

Steering rod / 54 x 178 mm / Kubota M5000 / M5040 / M5140 / M6040 / M6060 / M7040 / ME9000

Rod end + steering rod joint (rod end %C5% BCki-steering-/1335-ko %C5% 84c %C3% B3wka-dr %C4% 85 %C5% BCka-steering-kubota-m5000-3a022-62920-5-23-101-43.html">5-23-101-43 , 3A022-62920, joint %C5% BCki-steering-/1338-joint-dr %C4% 85 %C5% BCka-178-mm-kubota-m5000m5040m5140m6040m6060m7040me9000-3a121-62980-5-23-101-47.html">5-23-101-47 , 3A121-62980) with a total length of 178 mm for Kubota tractors of the Kubota M5000, Kubota M5040, Kubota M5140, Kubota M6040, Kubota M6060, Kubota M7040, Kubota ME9000 series and others.

The tie rod end is a component of the steering system that connects the wheels to the steering gear. Proper installation of this component directly affects the wheel angle and, consequently, the vehicle's handling characteristics. The most common visible signs that a tie rod needs to be replaced are play in the steering system or visible abnormal tire wear. Remember that the good condition of the tie rod ends improves driving safety and extends tire life.

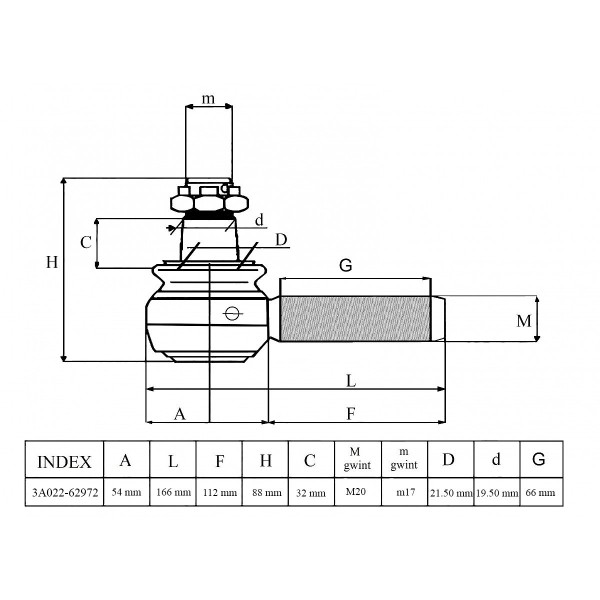

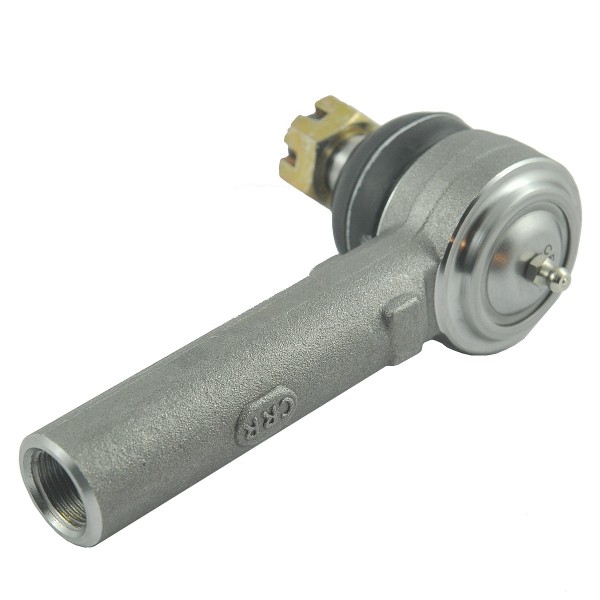

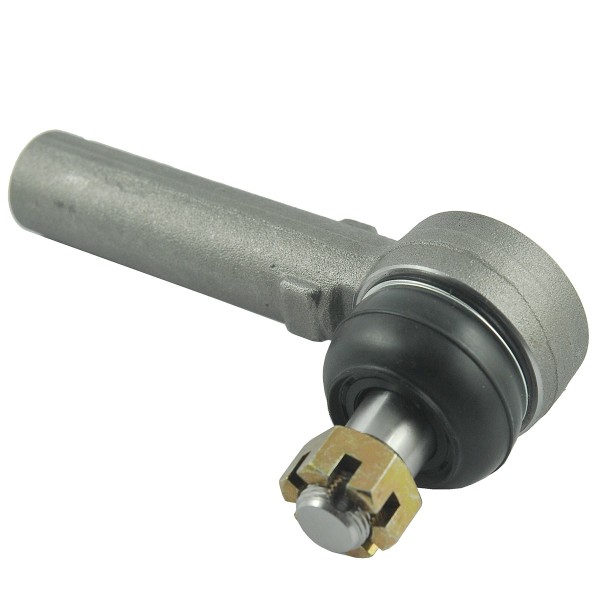

Tip dimensions :

• total length: 165 mm (=/- 2 mm).
• height: 88 mm.
• head diameter: 54 mm.
• thread length: 18 / 66 mm..
• cone height: 50 mm.
• cone diameter (see drawing): 19.50 / 21.50 mm.
• thread: M20 x 1.5 / M17 x 1.5,
• original part numbers: %C3% B3wka-dr %C4% 85 %C5% BCka-3a022-62920-160-mm-kubota-m6040.html">3A022-62920 ,
• comparative numbers: %C5% BCki-kierownicze-/1335-ko %C5% 84c %C3% B3wka-dr %C4% 85 %C5% BCka-kierowniczego-kubota-m5000-3a022-62920-5-23-101-43.html">5-23-101-43 ,
• part numbers: 3A022-62972.

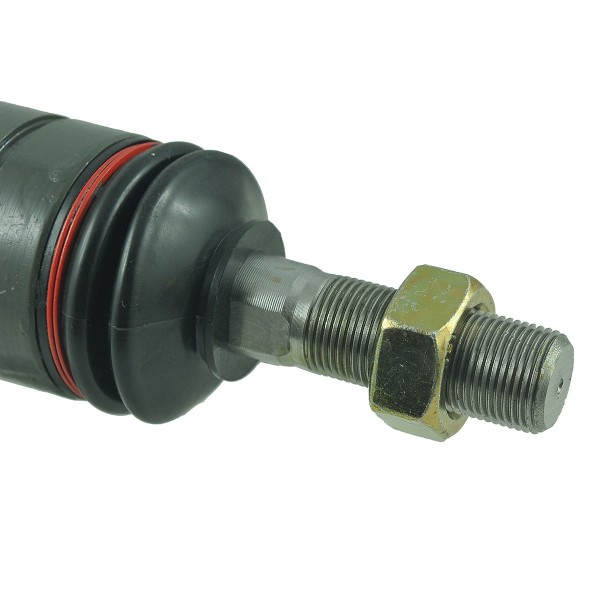

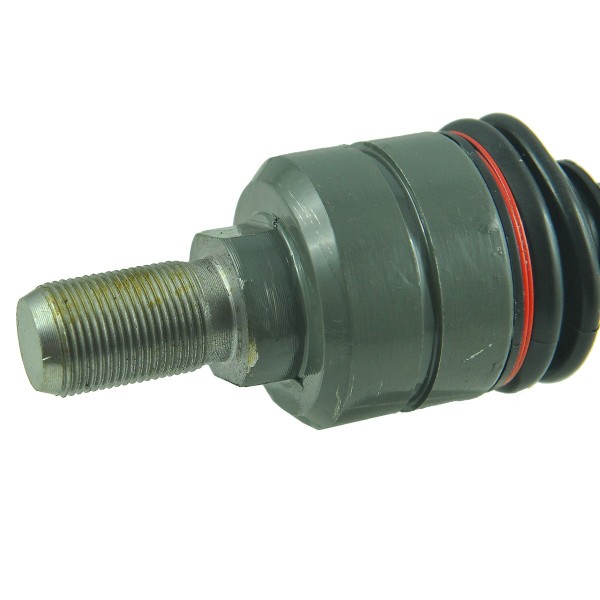

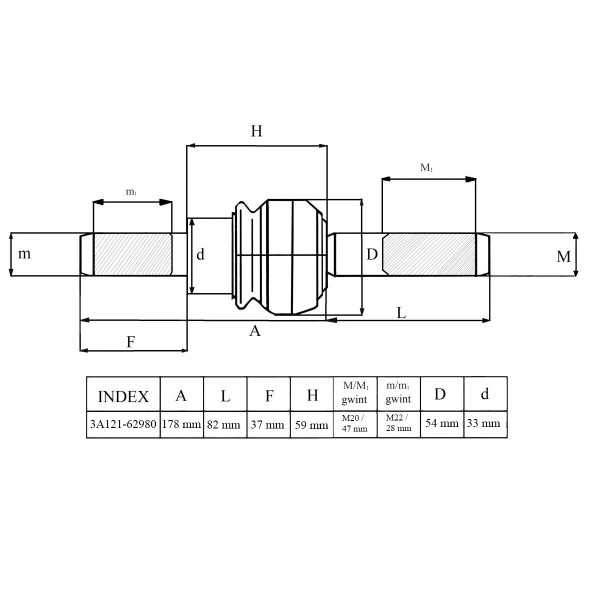

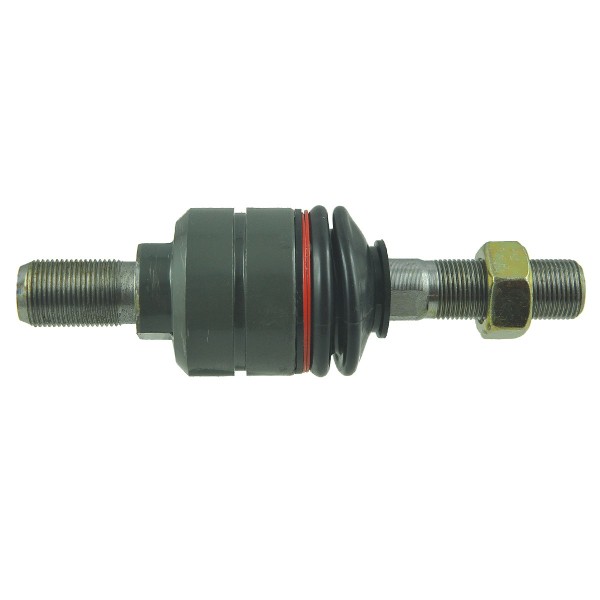

Joint dimensions :

• total length: 178 mm,
• diameter: 54 mm,
• thread: M20 x 1.5 / M22 x 1.5,
• thread length: 28 / 47 mm,
• original part numbers: 3A121-62980,
• Comparison numbers: %C5% BCki-steering-/1338-joint-dr %C4% 85 %C5% BCka-178-mm-kubota-m5000m5040m5140m6040m6060m7040me9000-3a121-62980-5-23-101-47.html">5-23-101-47 ,
• part numbers: 3A022-62972.

Tractor models :

• Kubota L48,
• Kubota M4800,
• Kubota M4900,
• Kubota M5000,
• Kubota M5040,
• Kubota M5140,
• Kubota M5640,
• Kubota M5700,
• Kubota M6040,
• Kubota M6060,
• Kubota M7040,
• Kubota ME9000.

The first signs of steering rack wear include play in the steering wheel, steering wheel vibration, and delayed steering wheel response to slight steering wheel movements. Tie rod end wear or damage is often caused by other malfunctioning components or improper driving and operation of the tractor.

Magazine : K18:E17:S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
