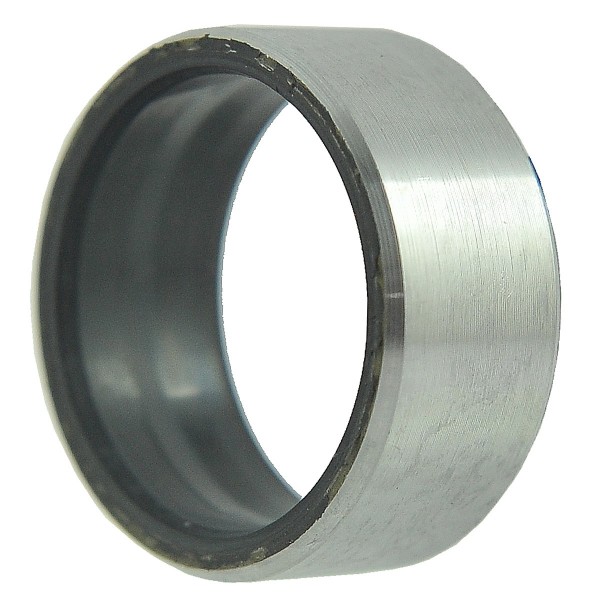

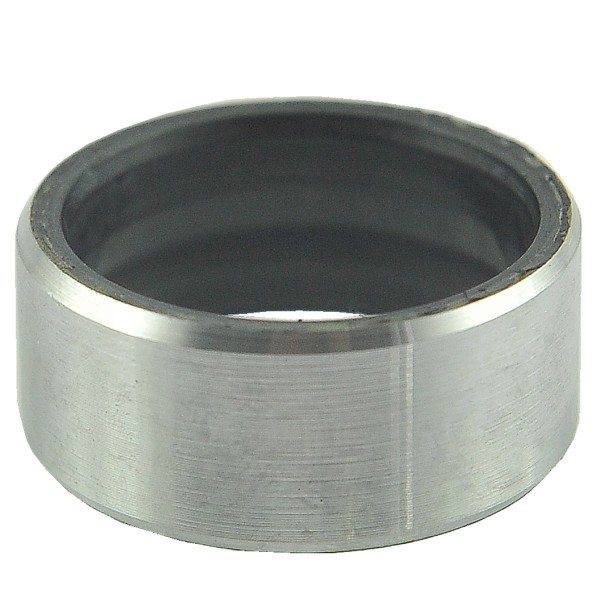

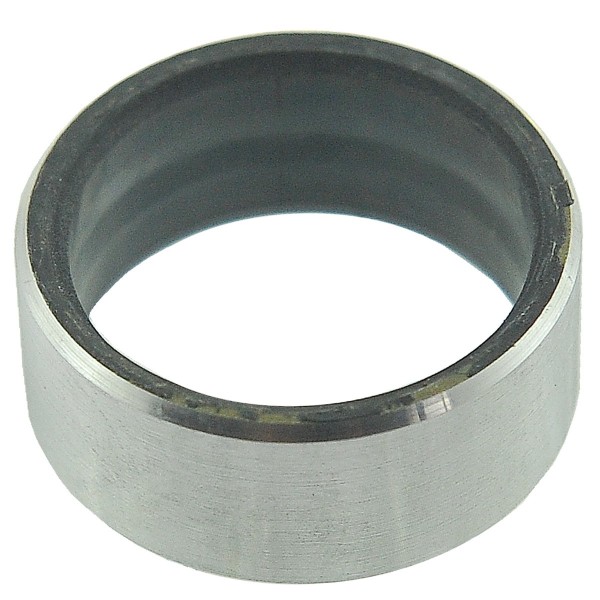

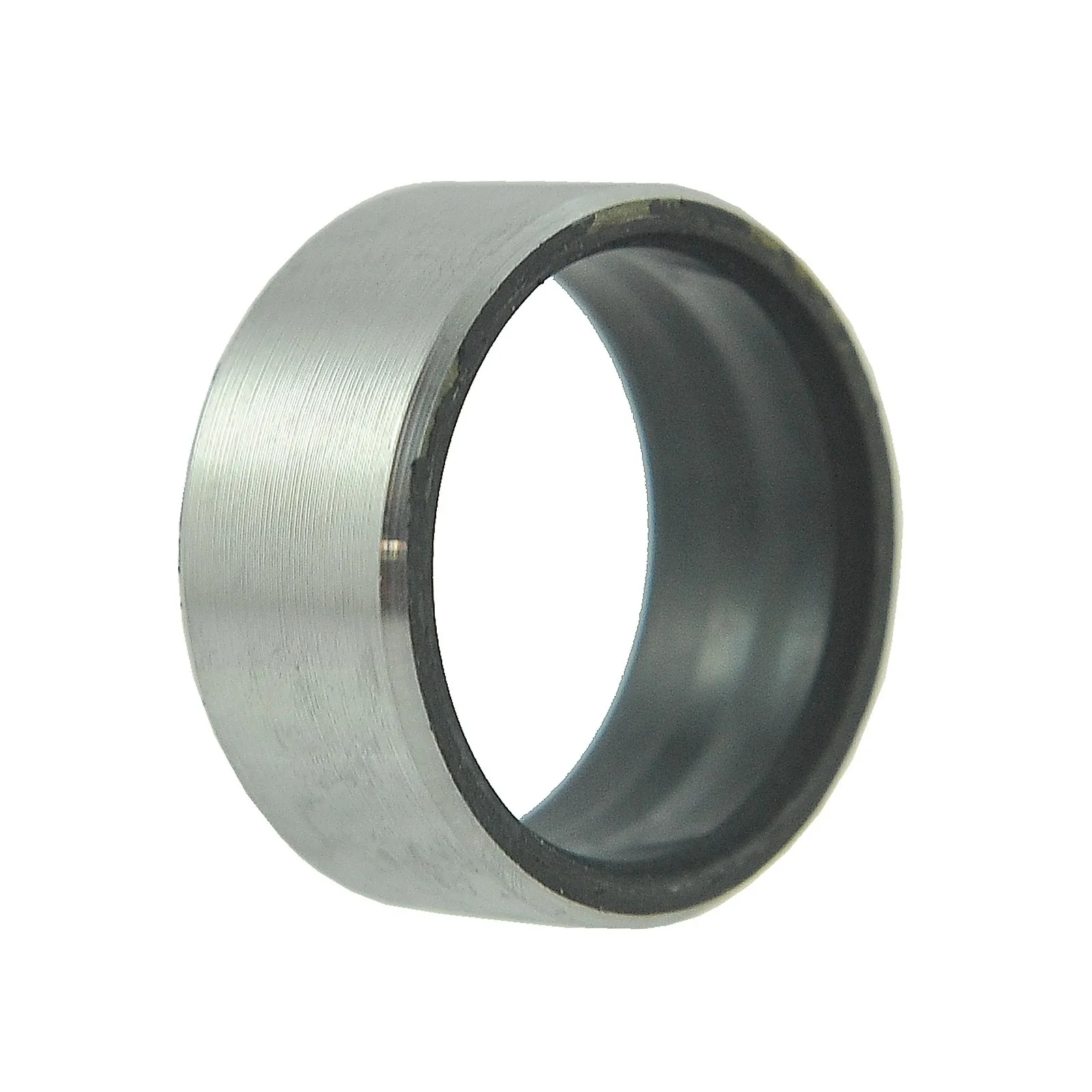

Sliding bush / 24.50 x 30 x 13 mm / Yamar EF352T / 1E6190-54080 / 5-14-110-19

Front axle final drive slide bush with an internal diameter of 24.50 mm , an external diameter of 30 mm and a height of 13 mm for Yamar tractors of the Yamar EF352T series and others.

A thrust sleeve , a sliding sleeve is a sleeve designed to work in difficult conditions and which, due to the production process and the use of appropriate raw materials, have a very high abrasion resistance and are capable of carrying heavy loads. The plain bearing , as this component is sometimes called, often has an internal groove or hole to facilitate lubricant access to the contact surfaces.

Dimensions :

• outer diameter: 30mm,
• inner diameter: 24.50mm.
• height: 13mm,
• original part numbers: 1E6190-54080,
• part numbers: 5-14-110-19.

Tractor models :

Yanmar :

• Yanmar EF352T.

Cub Cadet :

• Cub Cadet EX3200.

The first signs of wear of the sliding sleeves are a monotonous knocking sound during operation. The life of the bushings is directly affected by the proper pressure of the lubrication system and the use of oil with the right viscosity, too infrequent oil changes or lack of lubrication.
