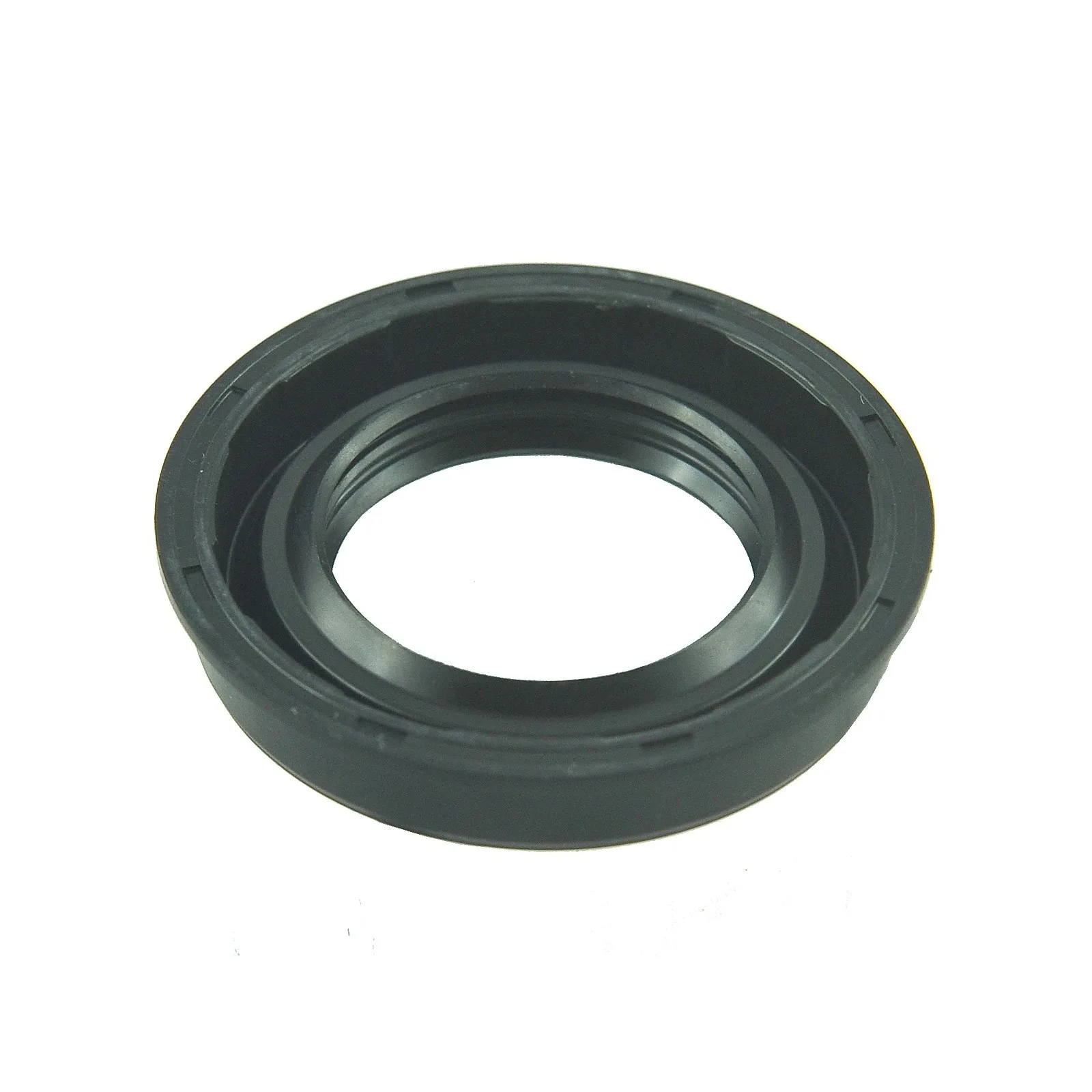

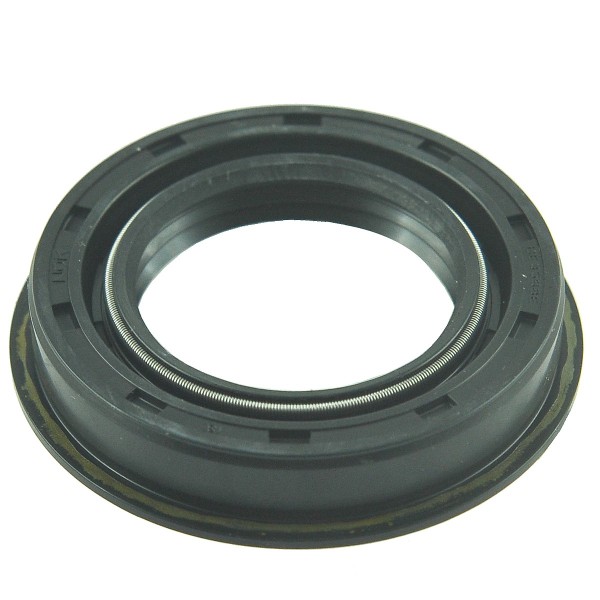

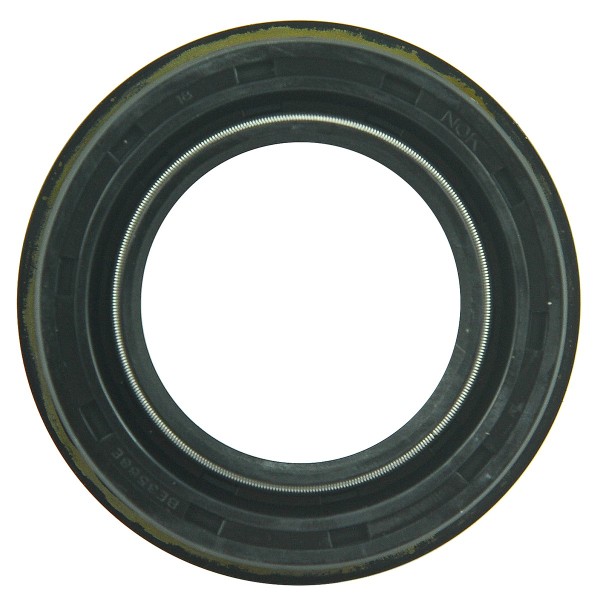

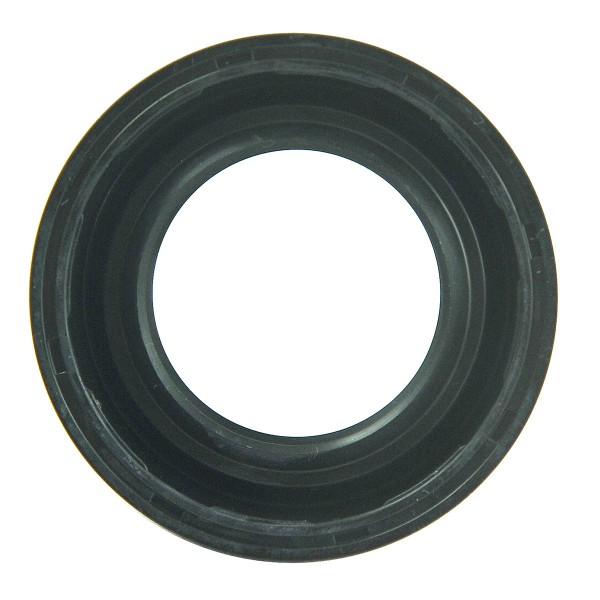

PTO seal / 35 x 55 x 9 mm / Kubota B1700/GB16/GT-3 / BE3568E / 37410-16550

Sealant, oil seal with an internal diameter of 35 mm , an external diameter of 55 mm and a height of 9 mm for Kubota tractors of the Kubota B21, Kubota B1410, Kubota B1610, Kubota B1700, Kubota B1710, Kubota B2100, Kubota B2400, Kubota B2410, Kubota B2530, Kubota GB16 tractors , Kubota GB18, Kubota GB160, Kubota GB170, Kubota GB175, Kubota GB180, Kubota GB200 and others for:

• PTO/PTO drive shaft.

The sealant is a rubber ring (otherwise known as a simmering ring, Simmer ring, after the name of the inventor), which is usually made of rubber or other plastic that meets the assumed technical requirements. Sealing is used to seal the rotating elements of the system with a maximum internal pressure of 0.1 MPa and which are immersed during operation, most often it is a funnel, various types of lubricants, and sometimes gasoline or water. The most common use of sealants is to seal shafts and power transmission or drive systems of machines and devices. There are various types of seals, the most common are cartridge seals (two-piece), seals with a spring around them, or seals with a partly metal housing (lid).

Dimensions :

• inner diameter: 35 mm,
• outer diameter: 55 mm,
• flange diameter: 60 mm
• height: 9 / 10 mm,
• part numbers: BE3568E, 37410-16550.

Tractor models :

Kubota :

• Kubota B21,
• Kubota B1410,
• Kubota B1610,
• Kubota B1700,
• Kubota B1710,
• Kubota B2100,
• Kubota B2400,
• Kubota B2410,
• Kubota B2530,
• Kubota GB16,
• Kubota GB18,
• Kubota GB160,
• Kubota GB170,
• Kubota GB175,
• Kubota GB180,
• Kubota GB200,

Sealants prevent oil or lubricant leakage and prevent contaminants from entering the system.
