Starter relay / Kubota B1121 / B2420 / L1501 / L4100

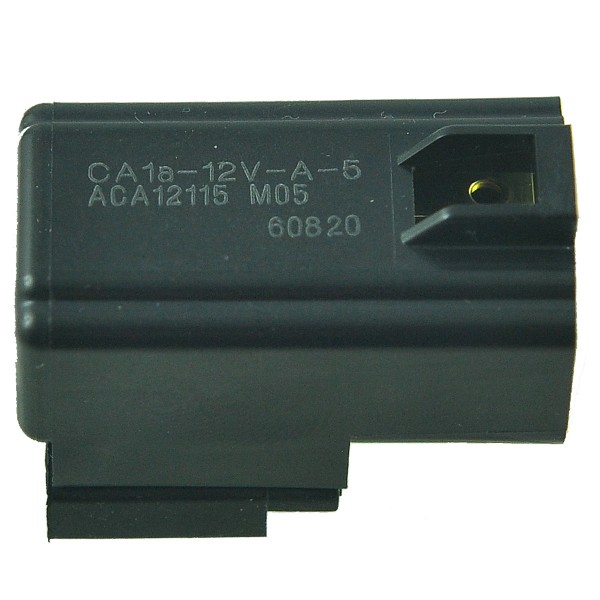

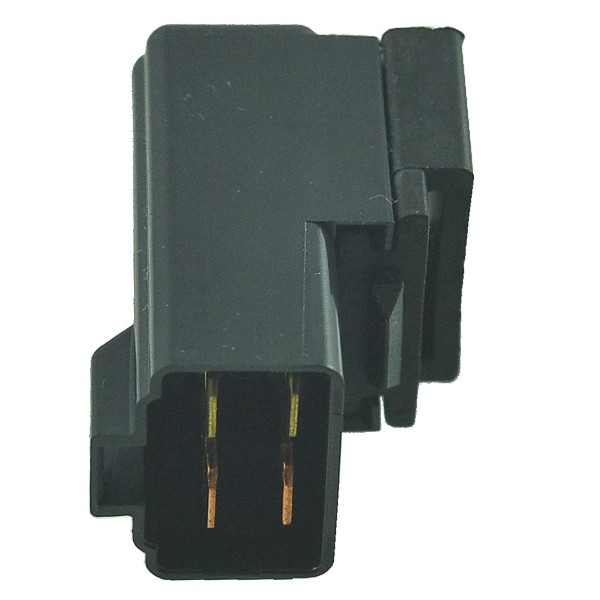

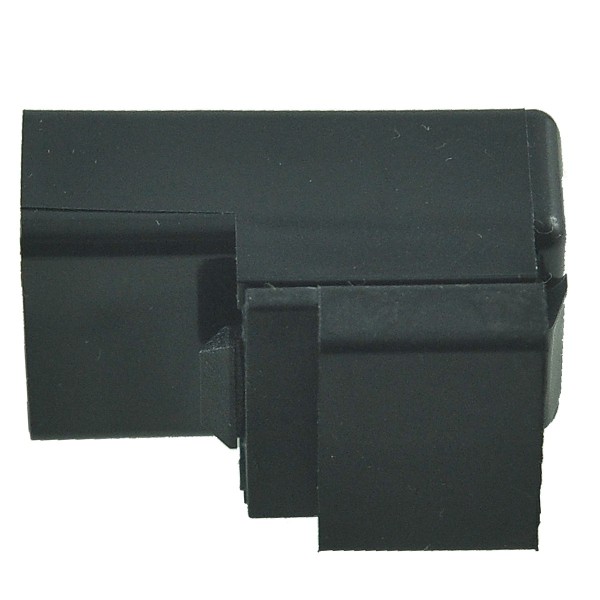

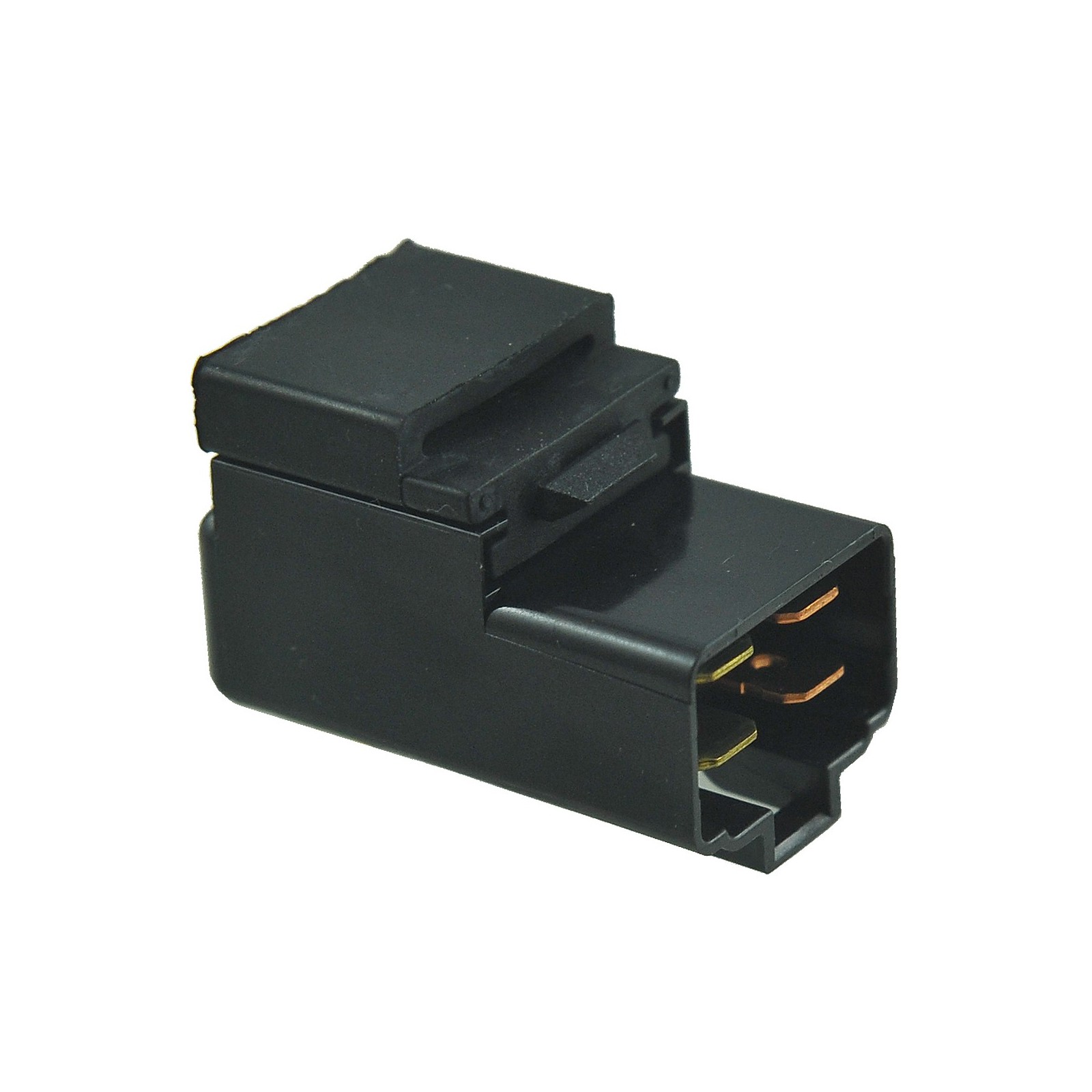

Relay , module, starter switch with the symbol ACA12115 , module +/- DC 12V, 5A for Kubota tractors of the Kubota B1121, Kubota B1161, Kubota B1181, Kubota B1220, Kubota B1241, Kubota B1620, Kubota B1820, Kubota B1830, Kubota B2050, Kubota B2201, Kubota B2230, Kubota B2231, Kubota B2261, Kubota B2311, Kubota B2350, Kubota B2420, Kubota B2530, Kubota B2650, Kubota B3030, Kubota B3150, Kubota L1421, Kubota L1501, Kubota L1501N, Kubota L2501, Kubota L2501N, Kubota L3200, Kubota L3430, Kubota L3540, Kubota L3830, Kubota L4100, Kubota L4240, Kubota L4630, Kubota L5030, Kubota L5040, Kubota L5240, Kubota L5740 and others.

The module, relay or controller is an electronic device that decides, among others, on the duration of the glow plug heating in the tractor, the operation of the indicators, wipers and others. The relay monitors and manages the operation of the glow plugs, using temperature data from the sensor placed in the engine. A properly functioning glow plug heating module is necessary for the correct start of the engine, especially at low temperatures. The controller with a built-in microcontroller, using information from the sensors, determines the parameters that determine the correct heating of the glow plugs and others, i.e. determines the time and intensity of the current that flows to the glow plugs and thus raises their temperature, heats them to the required value needed to start the engine. The sensors are also responsible for the operation of the wipers, indicators and many other components of the tractor and It is most often activated by moving the key in the ignition.

Dimensions :

• dimensions: 21 x 23 x 36 mm,
• number of pins: 4 pcs.
• reference numbers: ACA12115,
• part numbers: T1060-33720.

Tractor models :

Kubota:

• Kubota B1121,
• Kubota B1161,
• Kubota B1181,
• Kubota B1220,
• Kubota B1241,
• Kubota B1620,
• Kubota B1820,
• Kubota B1830,
• Kubota B2050,
• Kubota B2201,
• Kubota B2230,
• Kubota B2231,
• Kubota B2261,
• Kubota B2311,
• Kubota B2350,
• Kubota B2420,
• Kubota B2530,
• Kubota B2650,
• Kubota B3030,
• Kubota B3150,
• Kubota L1421,
• Kubota L1501,
• Kubota L2501,
• Kubota L3200,
• Kubota L3430,
• Kubota L3540,
• Kubota L3830,
• Kubota L4100,
• Kubota L4240,
• Kubota L4630,
• Kubota L5030,
• Kubota L5040,
• Kubota L5240,
• Kubota L5740.

Magazine : M

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
