Available
Condition
New
Production
Substitute
Parts
Cooling system
Engine model
Kubota D1503
Tractor models
- Kubota L2501
- Kubota L3200
- Kubota L3800
Kubota B2650
Kubota B3350
Kubota L3608
Height (mm)
510
Width (mm)
415

Radiator / Kubota B2650 / B3350 / L3200 / L2501 / L3608 / L3800

5-26-231-03
zł1,100.00
Tax included PL 23%

894,31 netto

  • Dostępność (4 Quantity): stock

Do you have any questions?

Radiator / Kubota B2650 / B3350 / L3200 / L2501 / L3608 / L3800

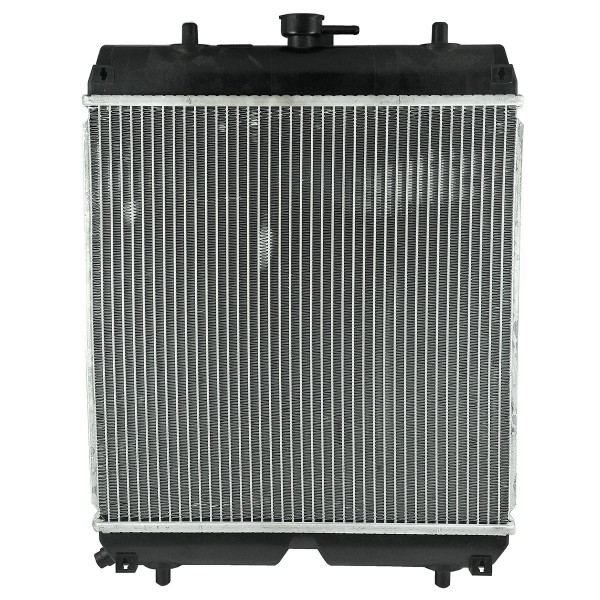

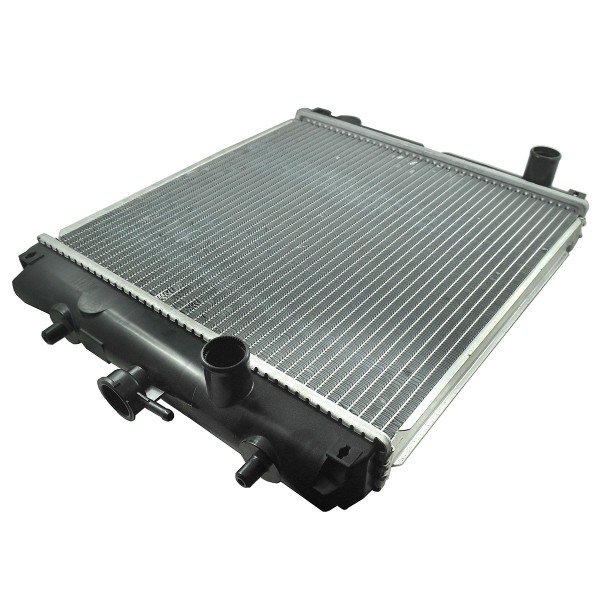

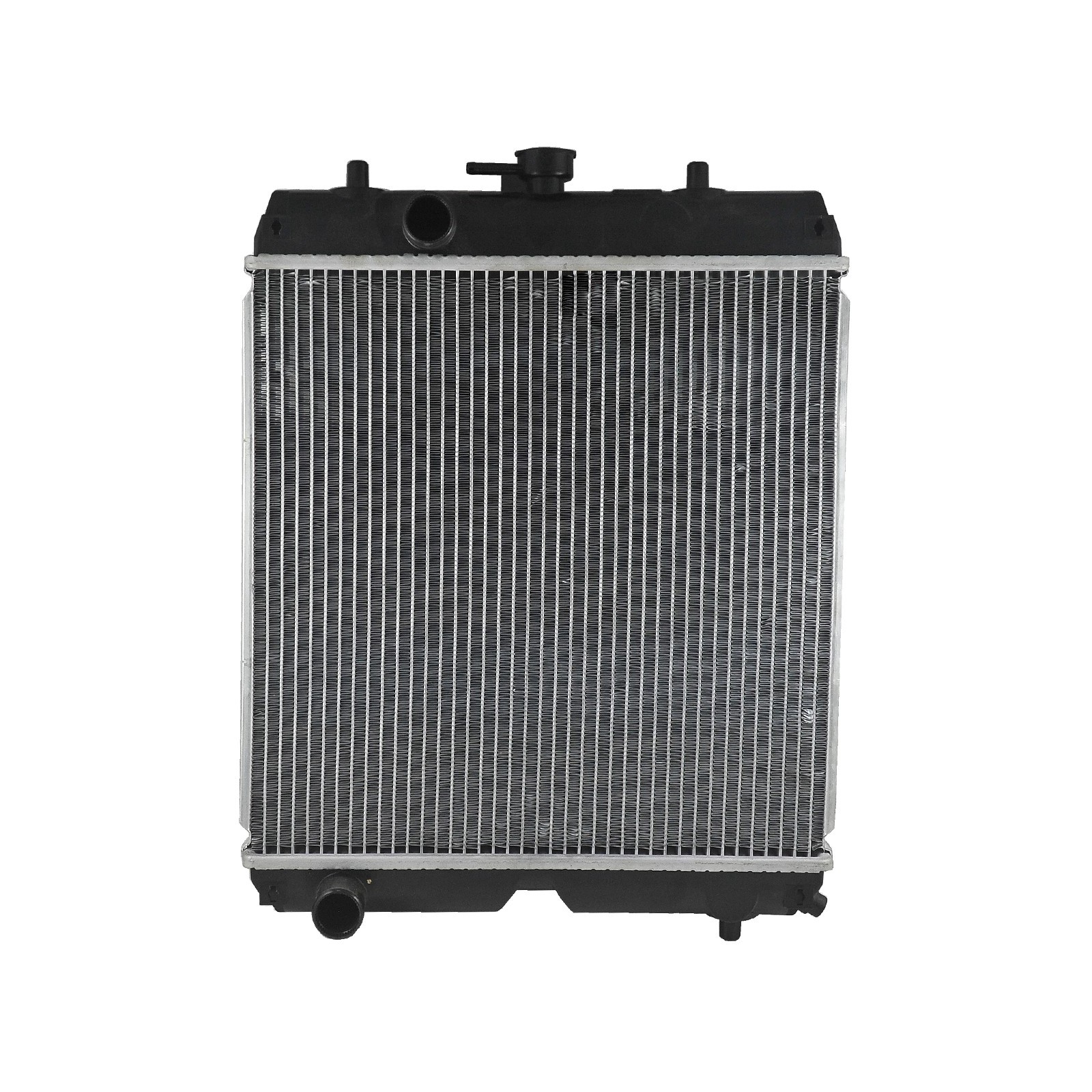

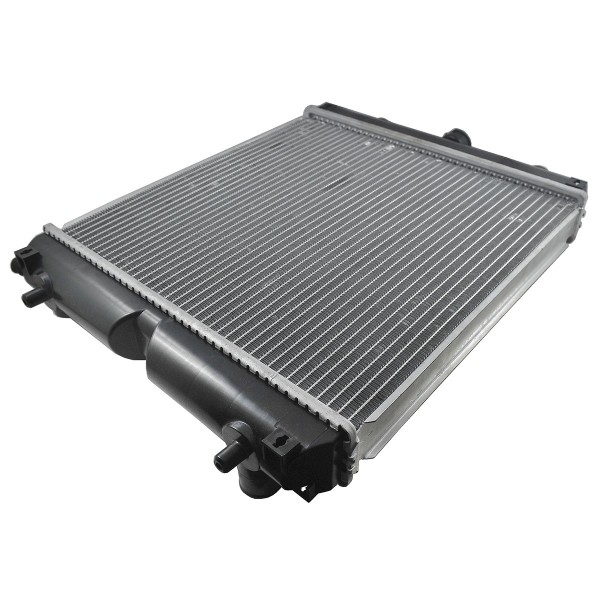

Radiator (upper hose 5-12-203-06 , lower hose 5-12-203-07 , plug 5-17-106-06 ) with a total height of 560 mm , a width of 415 mm and a thickness of 45 mm for Kubota tractors of the Kubota B2650, Kubota B3350, Kubota L2501, Kubota L3200, Kubota L3608, Kubota L3800 series with Kubota D1503 engines and others.

The engine head and block coolant cooler is a device whose task is to cool the engine by setting in motion the coolant, which is located in the engine water channels and in the cooler itself. The coolant is successively cooled by air generated by the cooler fan, which is driven by the coolant pump during engine operation. The cooler is made of water channels, which are suitably arranged and encased in metal fins. The metal fins of the cooler allow for faster heat removal from the engine, increasing the cooling efficiency.

Dimensions :

  • total height: 560 mm,
  • height: 510 mm (measured without filler and mounting screws),
  • width: 415 mm,
  • thickness: 45mm,
  • spacing of mounting screw holes: -,
  • original part numbers: TC420-16000,
  • reference numbers: TC422-16001, TC422-16002,
  • part numbers: 5-26-231-03.

The first signs of a faulty radiator are the lighting up of temperature indicators on the dashboard or the liquid in the radiator boiling, thick steam escaping, the expansion tank cap being pushed out or a coolant leak. The most common radiator failures are caused by scale deposits inside the cooling lines, which restricts the flow of liquid and leads to failure.

Magazine : K18:A05

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.

Specification

Magazyn: K18:A05
Condition
New
Production
Substitute
Parts
Cooling system
Engine model
Kubota D1503
Tractor models
- Kubota L2501
- Kubota L3200
- Kubota L3800
Kubota B2650
Kubota B3350
Kubota L3608
Height (mm)
510
Width (mm)
415
Comparison numbers
TC422-16001
TC422-16002
Original Part Number (OEM)
TC420-16000
Part number
5-26-231-03
Total height (mm)
560
