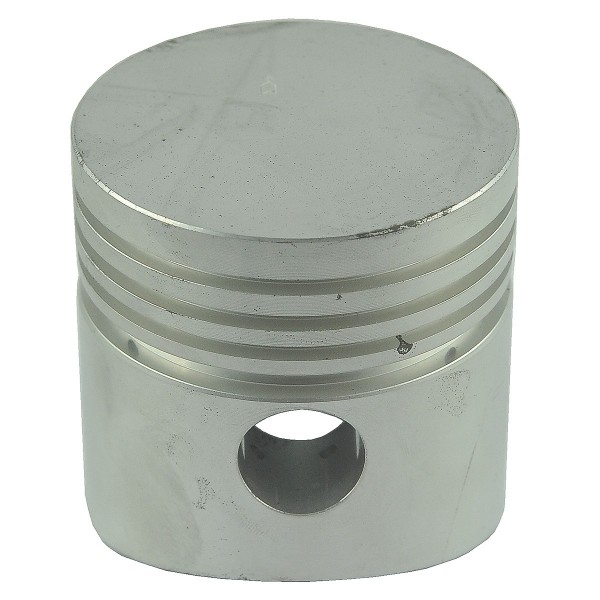

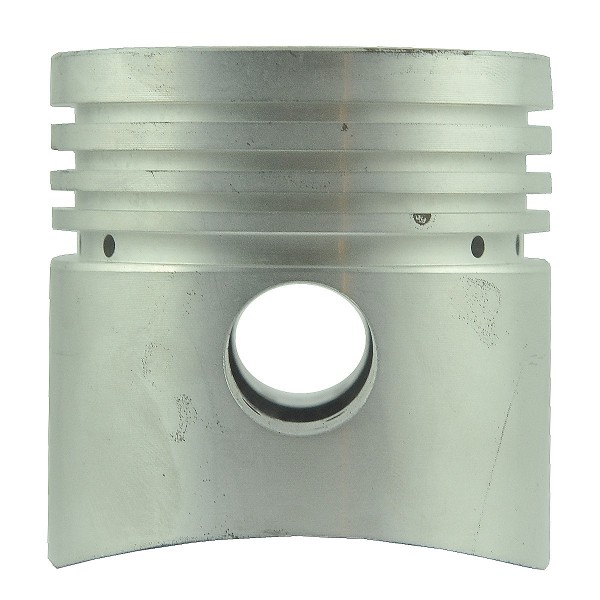

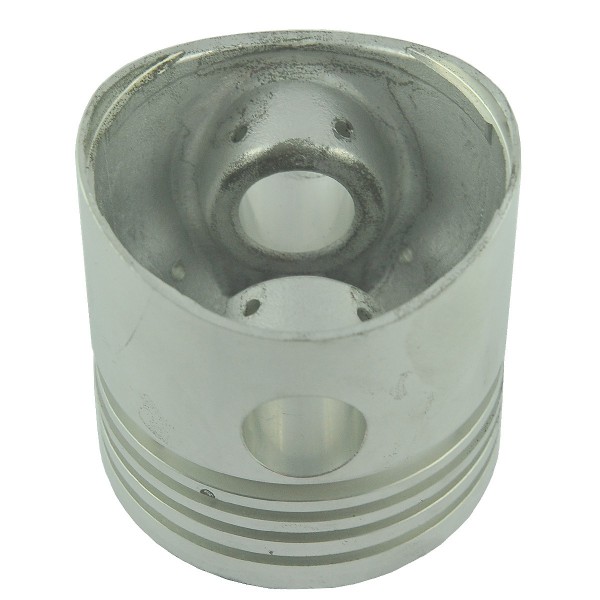

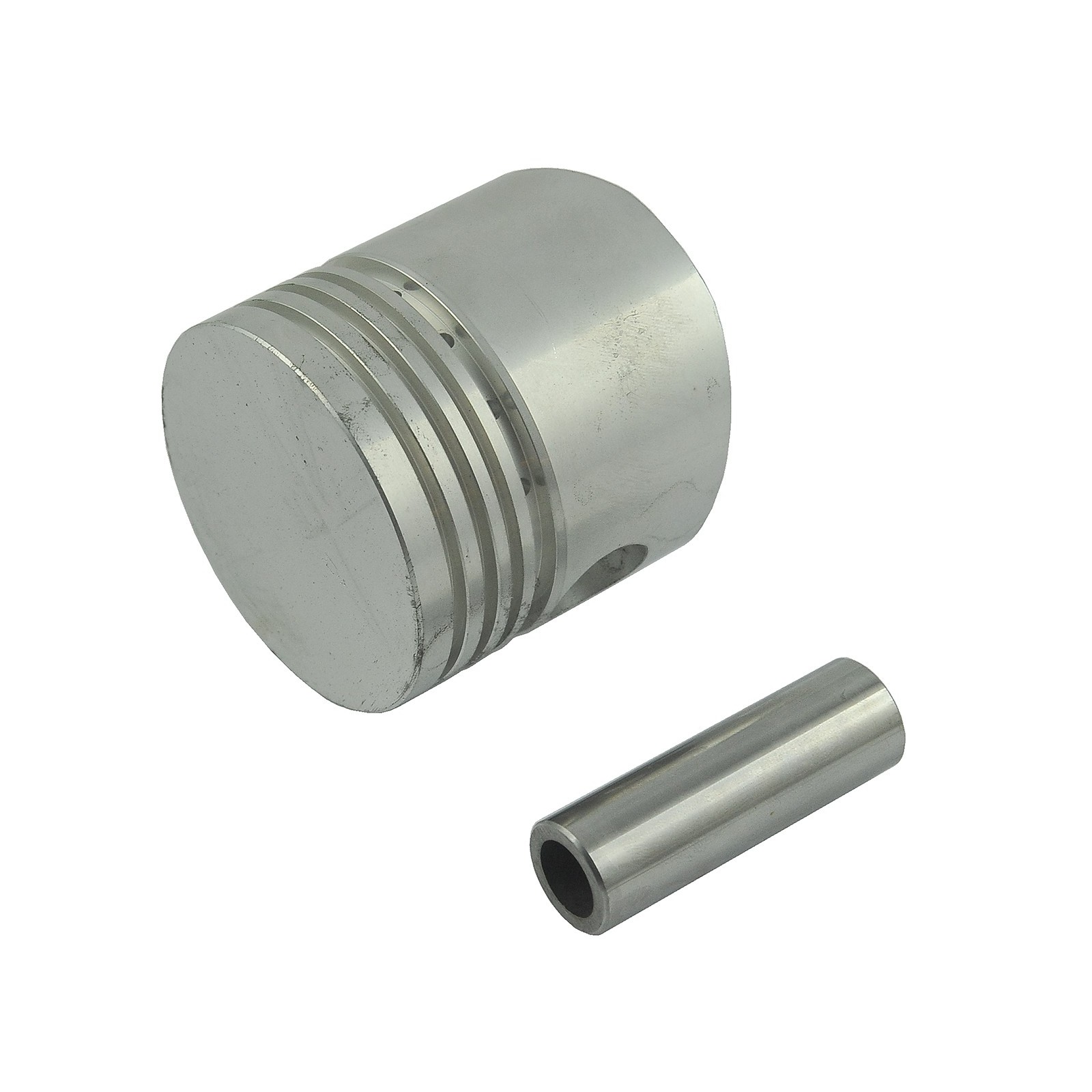

Engine Piston / 67.75 mm / Mitsubishi K3B / K4B

Engine piston with an outer diameter of 67.75 mm and a total height of 67.75 mm for Iseki brand tractors Iseki TX155, Iseki TX1000, Iseki TX1510, Iseki TX2160, Iseki TU140, Iseki TU145, Iseki TU1500 series, Mitsubishi brand Mitsubishi D1550 series, Mitsubishi MT470, Mitsubishi MT1401, Mitsubishi MT1801 series, Satoh brand Satoh S470 series, Satoh ST1520, Satoh ST1540, Satoh ST2020, Satoh ST2040 with Mitsubishi K3B, Mitsubishi K4B and other engines. The engine piston is a moving element responsible for converting gas and energy produced during combustion to the crankshaft, and further into engine power. The piston is connected to the crankshaft by an element called a connecting rod with pin connections. At the top of the piston there are annular channels for mounting the piston rings, in the middle there is a hub for connecting to the connecting rod. At the top there is a so-called bottom, which, depending on the type of engine, can have a different shape. Due to the work in very difficult conditions, engine pistons are most often made of aluminum and silicon alloys.

Dimensions :

• outer diameter: 67.75 mm,
• height: 61 / 67.75 mm,
• pin hole diameter: 19 mm,
• pin diameter: 18.90 mm,
• pin length: 56 mm,
• Distance from end of pin hole to bottom edge of piston: 12.50 mm.
• Distance from edge of pin hole to top of piston: 29.30 mm.
• width of ring grooves from top of piston: 2.50 / 2.50 / 2.50 / 4 mm.
• original part number: 5650-041-276-50, 5650-043-503-30, 5650-043-5033-0, MM408670, MM408711, MM408723, MM412765, MM435033,
• part number: 9-98-100-03.

Tractor models :

Iseki :

• Iseki TX155,
• Iseki TX1000,
• Iseki TX1510,
• Iseki TX2160,
• Iseki TU140,
• Iseki TU145,
• Iseki TU1500.

Mitsubishi :

• Mitsubishi D1550,
• Mitsubishi MT470,
• Mitsubishi MT1401,
• Mitsubishi MT1801.

Satoh :

• Satoh S470,
• Satoh ST1520,
• Satoh ST1540,
• Satoh ST2020,
• Satoh ST2040.

Engine models :

Mitsubishi :

• Mitsubishi K3B,
• Mitsubishi K4B,

Magazine : K18:F17:S02

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
