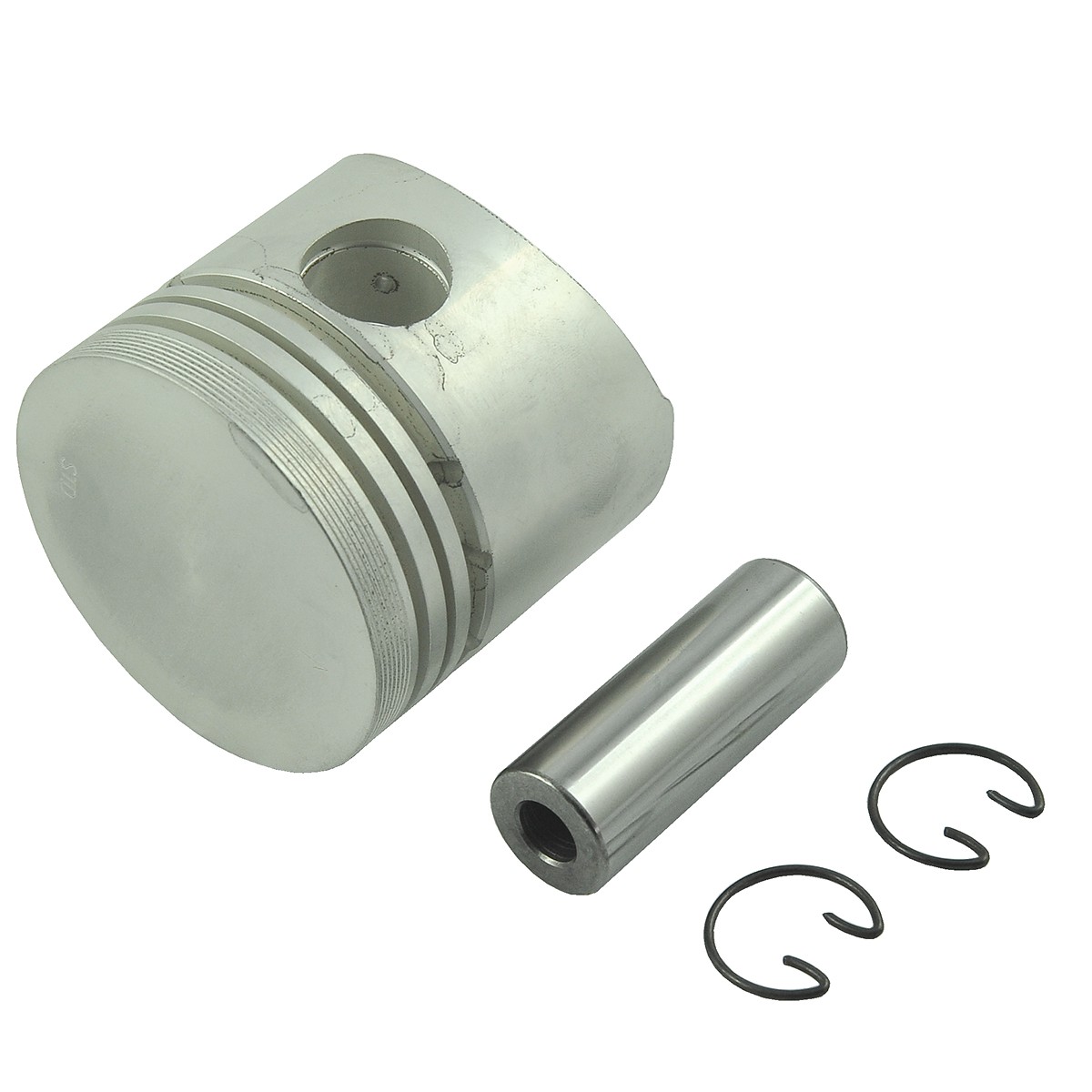

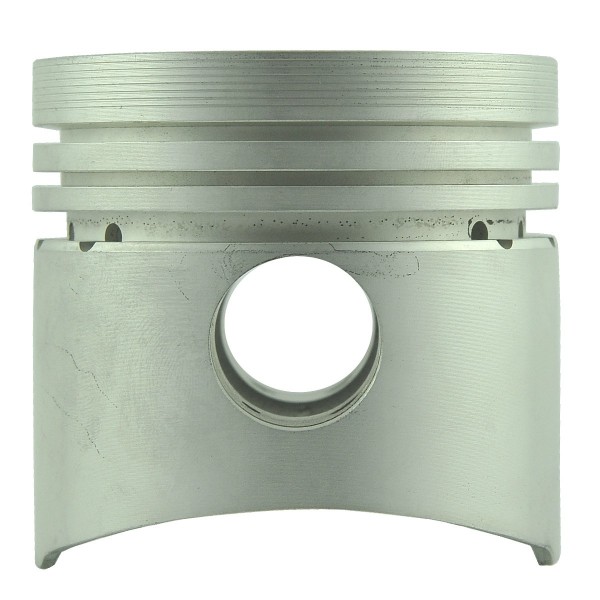

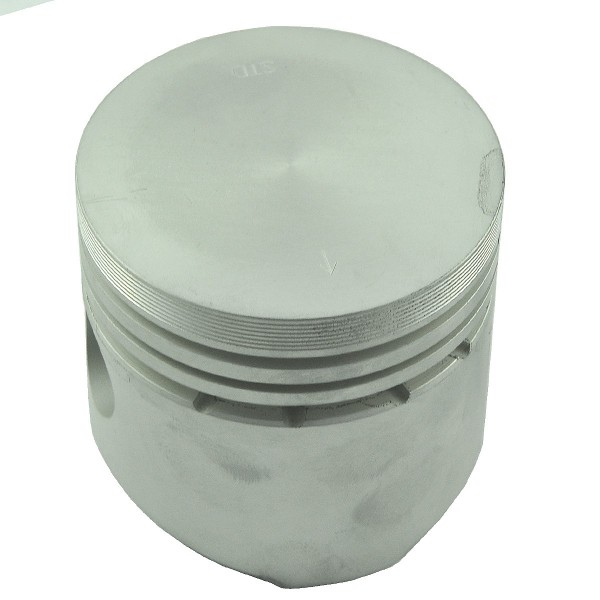

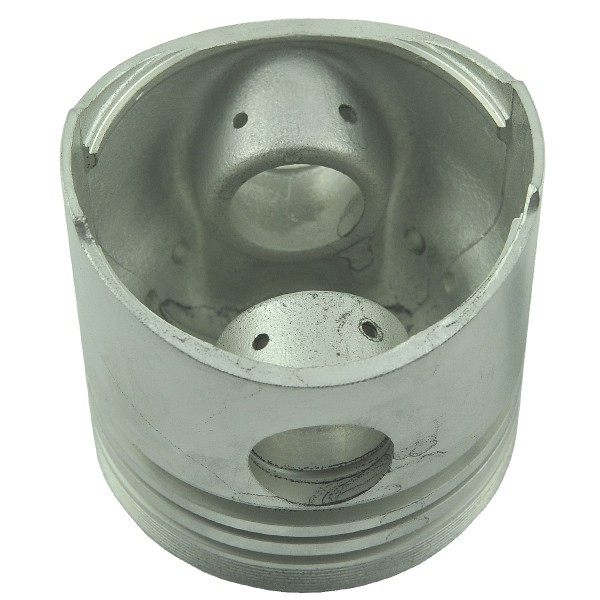

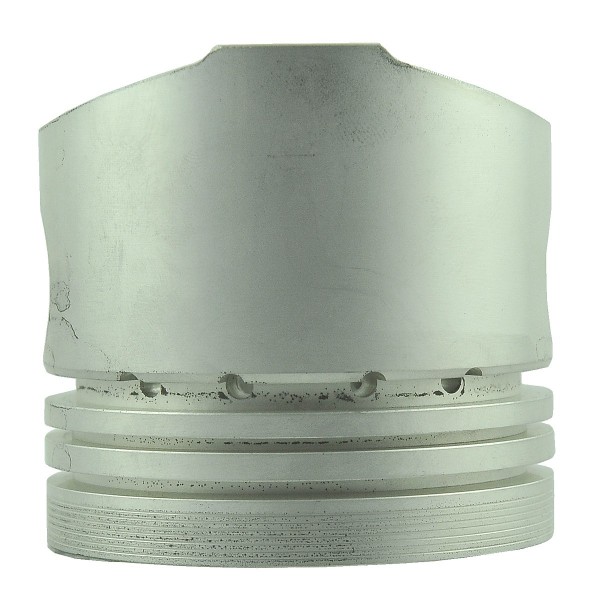

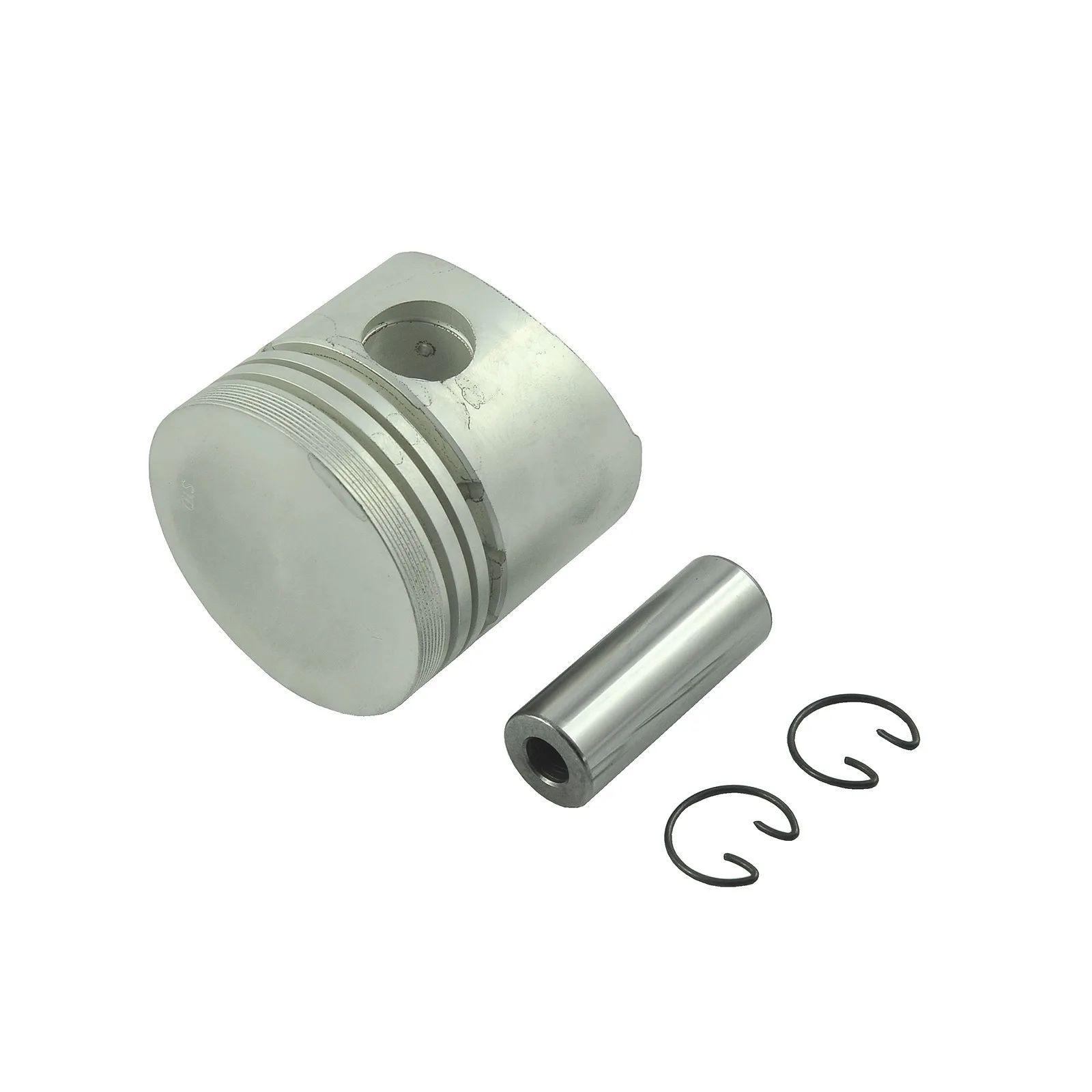

Engine Piston / 76mm / STD / Mitsubishi MT2501

Engine piston (head gasket %C3% B8-76-mm-mitsubishi-k3e-mitsubishi-mt18-case-1120254255-mm409-815.html">MM409-815 ) with a nominal size of STD (standard) with an outer diameter of 76 mm for Mitsubishi tractors of the Mitsubishi MT2501 series and others. The engine piston is a moving element responsible for converting gas and energy generated during combustion to the crankshaft, which is then used to power the engine. The piston is connected to the crankshaft by an element called a connecting rod with pin connections. At the top of the piston there are annular channels for mounting the piston rings, in the middle there is a hub for connecting to the connecting rod. At the top there is a so-called bottom, which may have a different shape depending on the type of engine. Due to the operation in very difficult conditions, engine pistons are most often made of alloys aluminum and silicon.

Dimensions :

• diameter: 76 mm,
• height: 61 / 72 mm.
• pin hole diameter: 23 mm.
• distance from end of pin hole to lower edge of piston: 11 mm.
• Distance from edge of pin hole to top of piston: 27.50 mm.
• width of ring grooves from top of piston: 2.50 / 2.00 / 4.00 mm.
• part numbers: 5-23-201-38.

Tractor models :

Mitsubishi :

• Mitsubishi MT2501.

Magazine : M01:A43:S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
