Head gasket / Mitsubishi K3E / Mitsubishi MT18 / MT2001 / D2501 / Case 1120 / 254 / 255

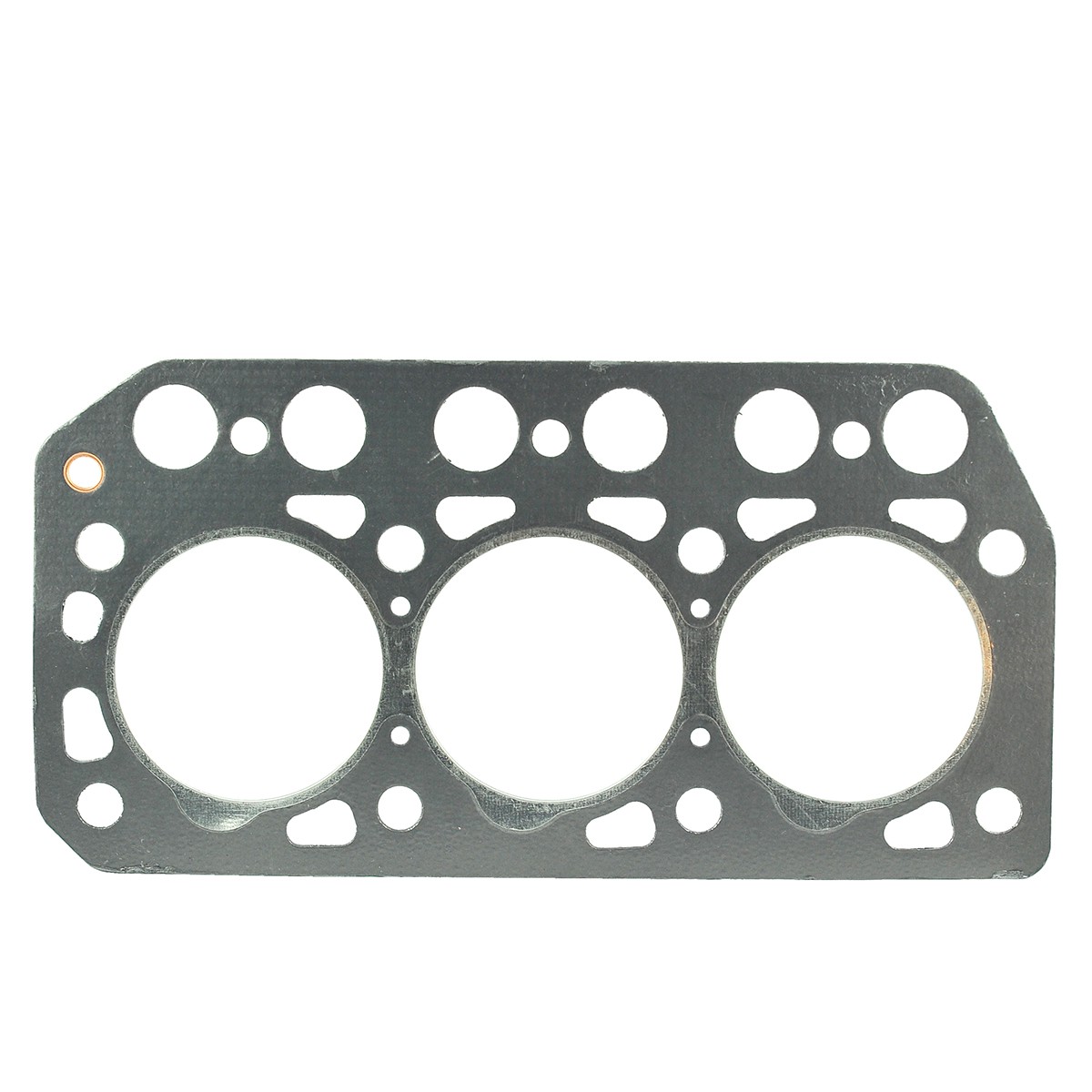

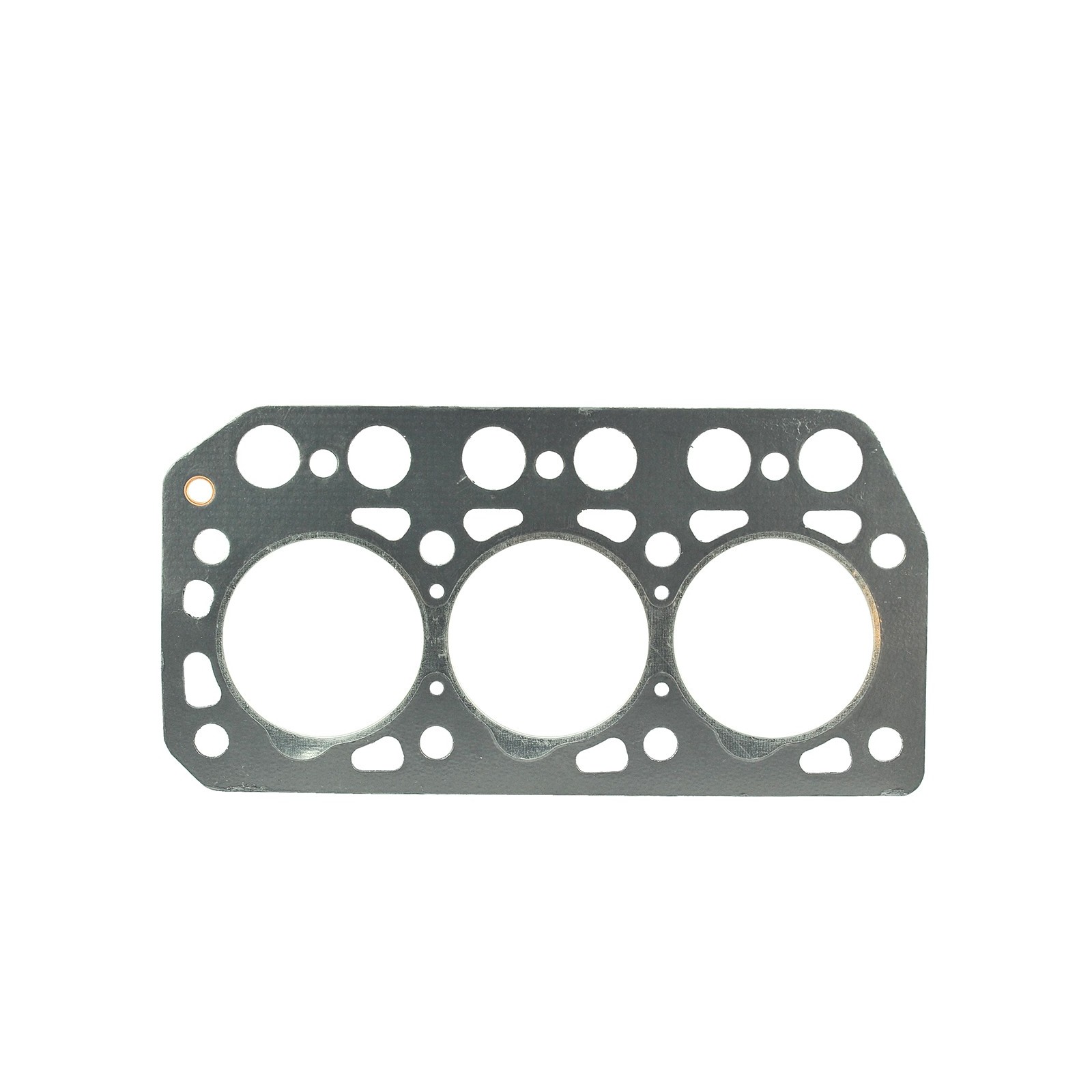

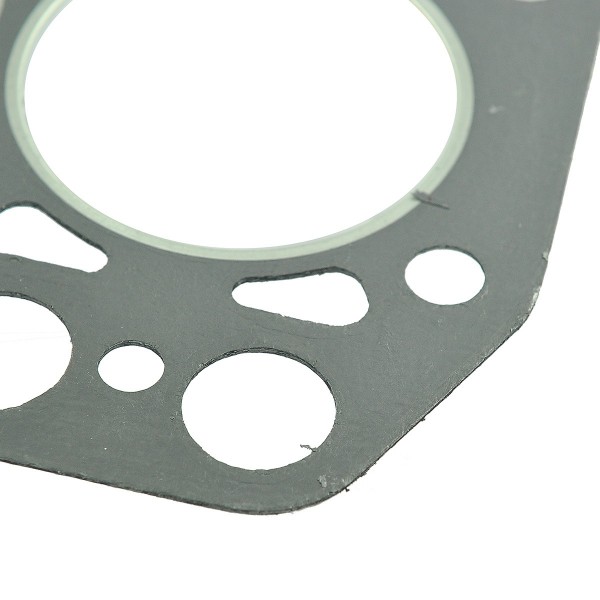

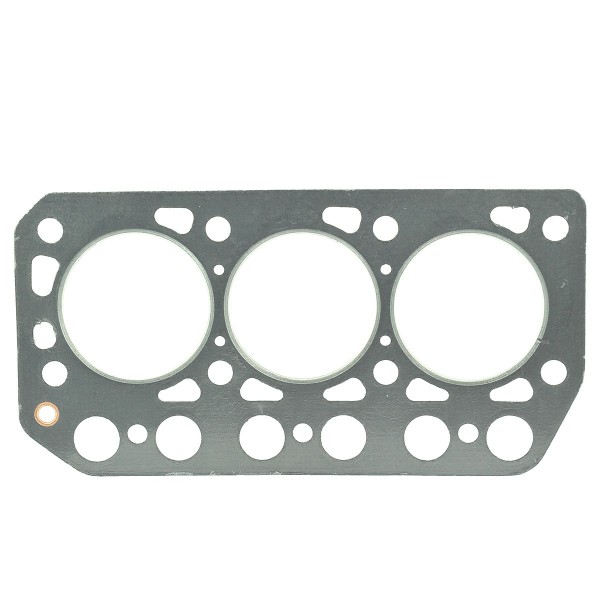

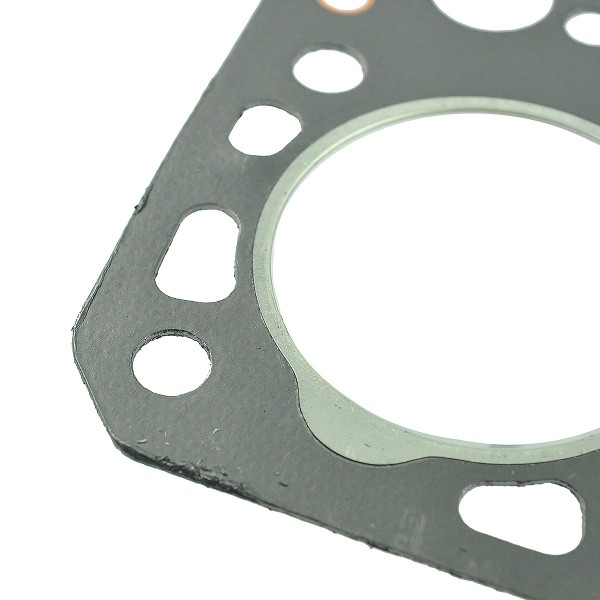

Engine head gasket (piston 5-23-201-38) with dimensions 153 x 303 mm , piston hole diameter 78 mm and thickness 1.30 mm for Mitsubishi tractors of the Mitsubishi MT18, Mitsubishi MT2001, Mitsubishi D2501 , Case series Case 254, Case 255, Case 1120 with Mitsubishi K3E engines and others.

The cylinder head gasket is a gasket installed at the junction between the cylinder head and the engine block. The connection between the block and the cylinder head must be airtight for the engine to function properly. The cylinder head gasket seals the cylinders, coolant passages, and lubrication channels, and prevents the two fluids from mixing. The gasket's second purpose is thermal insulation, as part of the engine block can heat up to 2000 degrees Celsius from the combustion chambers.

Dimensions :

• length: 303 mm,
• width: 153 mm,
• piston hole diameter: 78 mm,
• part numbers: MM409-815, MM409815.

Engine models :

• Mitsubishi K3E.

Tractor models:

• Mitsubishi MT18,
• Mitsubishi MT2001,
• Mitsubishi D2501,
• Case 254,
• Case 255,
• Case 1120.

The first signs of head gasket wear, gasket burnout, or gasket blowout are uneven operation of the warm engine, loss of coolant or oil, presence of oil in the coolant and coolant in the engine oil, or air bubbles visible to the naked eye in the coolant (expansion tank).

Magazine : M01 D13 S01

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
