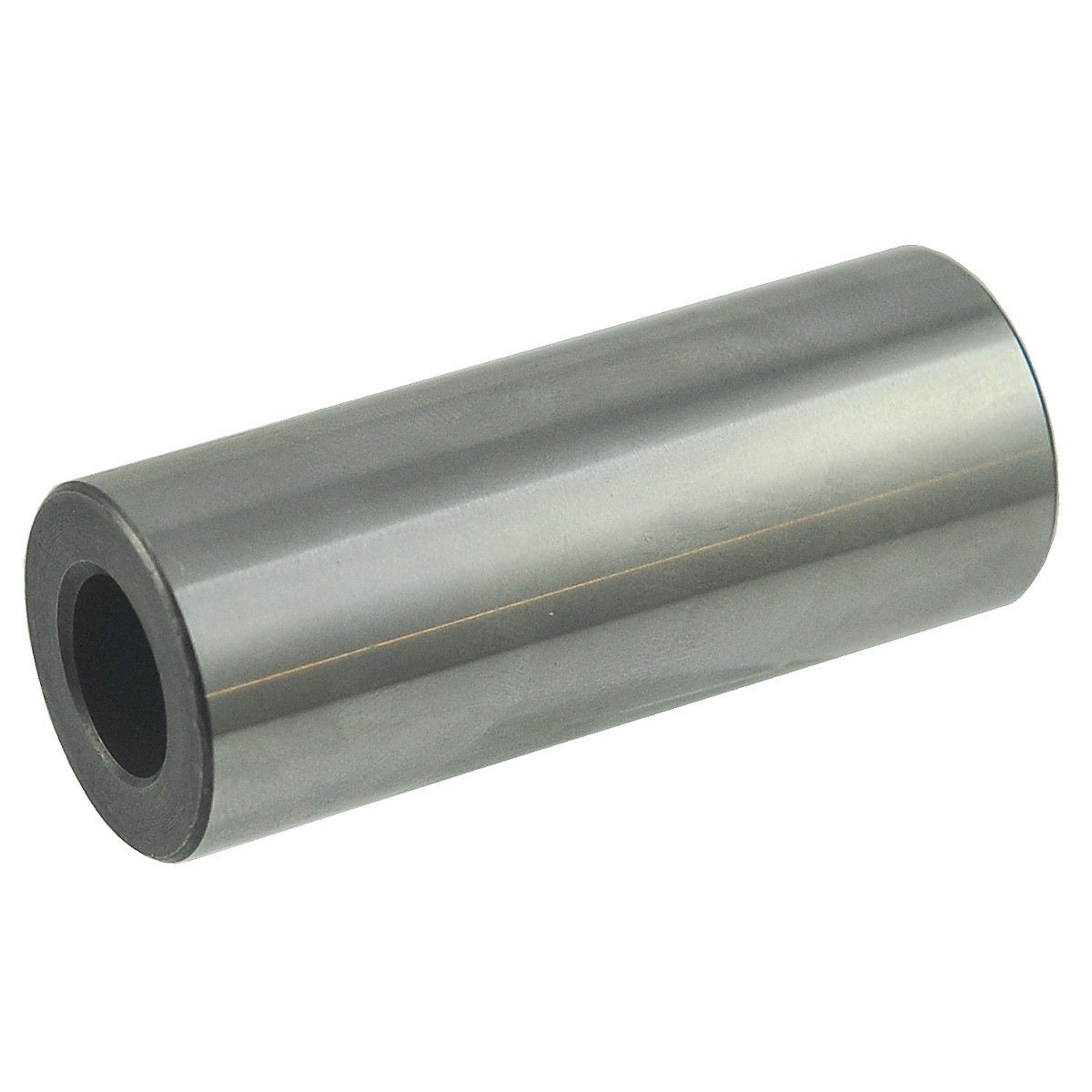

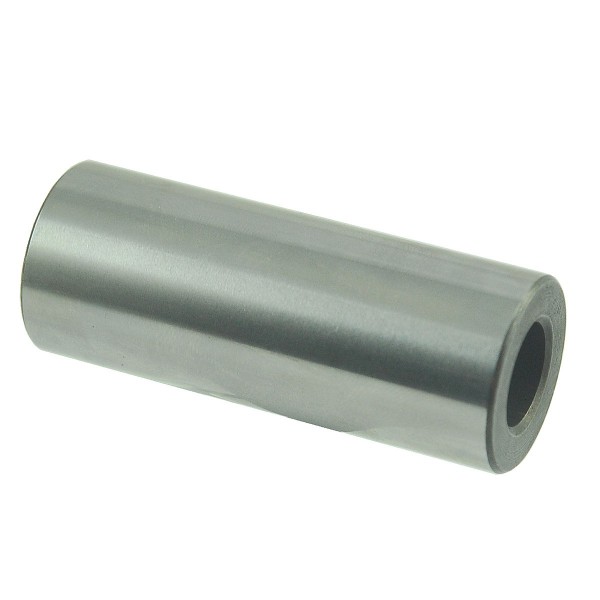

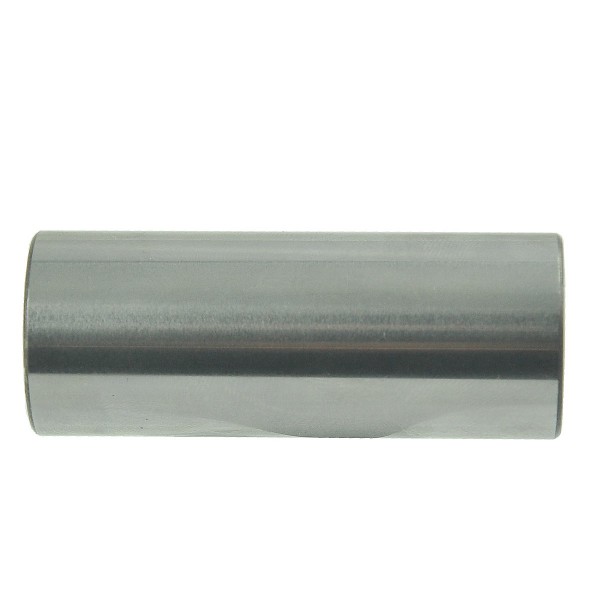

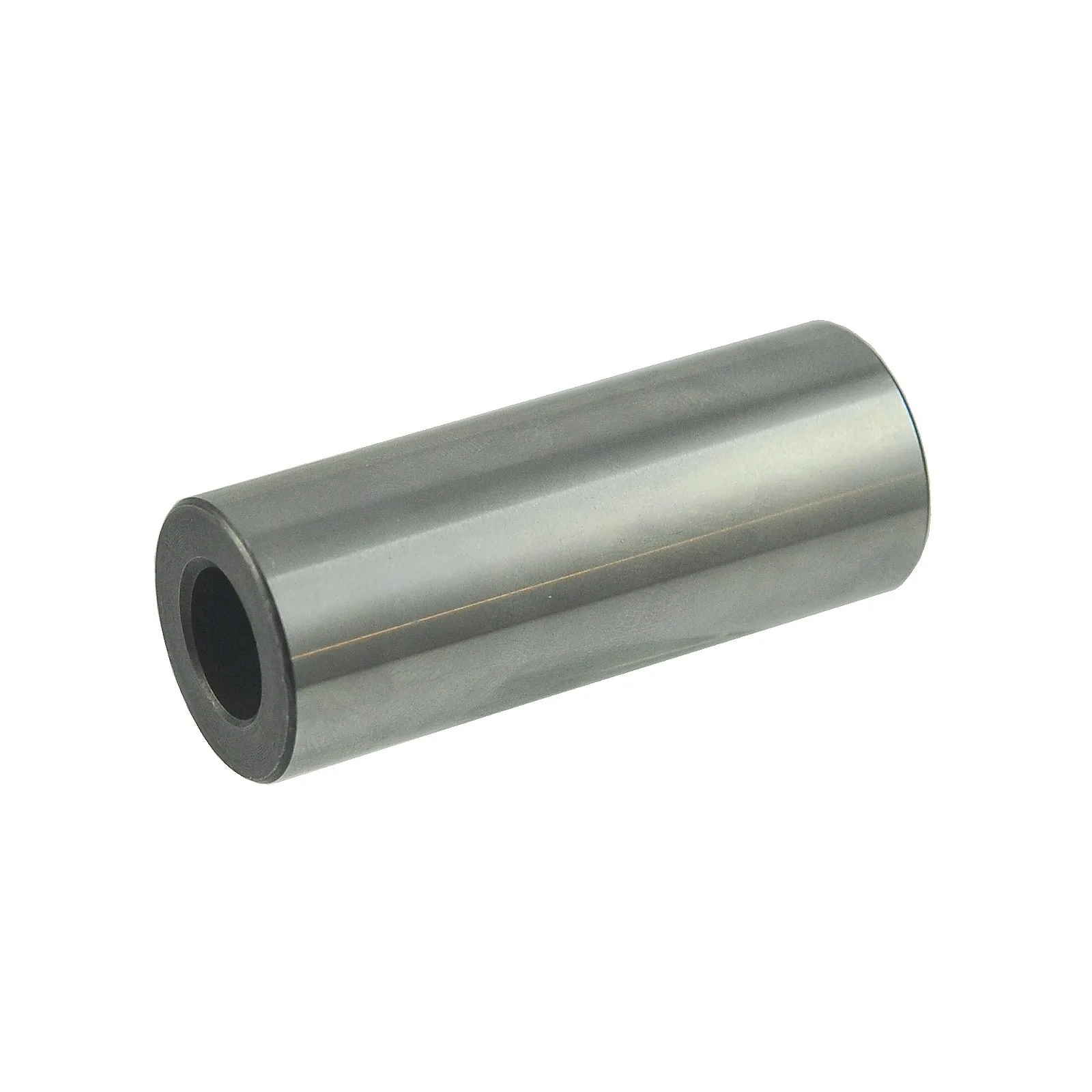

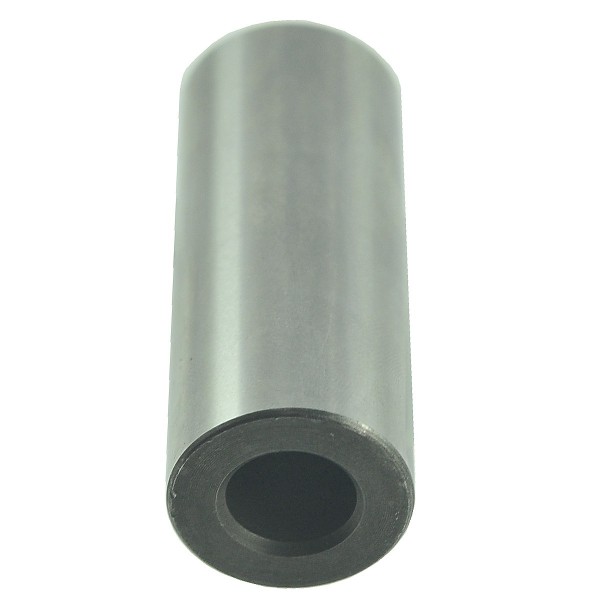

Piston pin / Kubota D1703 / V2203 / V2403 / Kubota L3408

Engine piston (piston 6-23-100-02, 1Α041-21112, 1A091-21113, 6-23-100-27, 1G796-21112) with an outer diameter of 24.75 mm and a total length of 64 mm for Kubota tractors of the Kubota L3408 series with Kubota D1703, Kubota V2203, Kubota V2403 engines and others.

An engine piston is a moving component responsible for converting gas and the energy generated during combustion into the crankshaft, and thus into engine power. The piston is connected to the crankshaft by a component called a connecting rod with pin connections. At the top of the piston are annular channels for mounting the piston rings, and inside is a hub for connecting to the connecting rod. At the top is the so-called crown, which can have different shapes depending on the engine type. Due to its harsh operating conditions, engine pistons are most often made of aluminum and silicon alloys.

Dimensions :

• diameter: 24.75 mm,
• total length: 64 mm,
• original part number: 1Α041-21112, 1A091-21113, 1G796-21112,
• part number: 6-25-120-01A.

Engine model :

• Kubota D1703,
• Kubota V2203,
• Kubota V2403.

Tractor models :

• Kubota L3408.

Magazine : M01:A16:S04

*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
