Product description

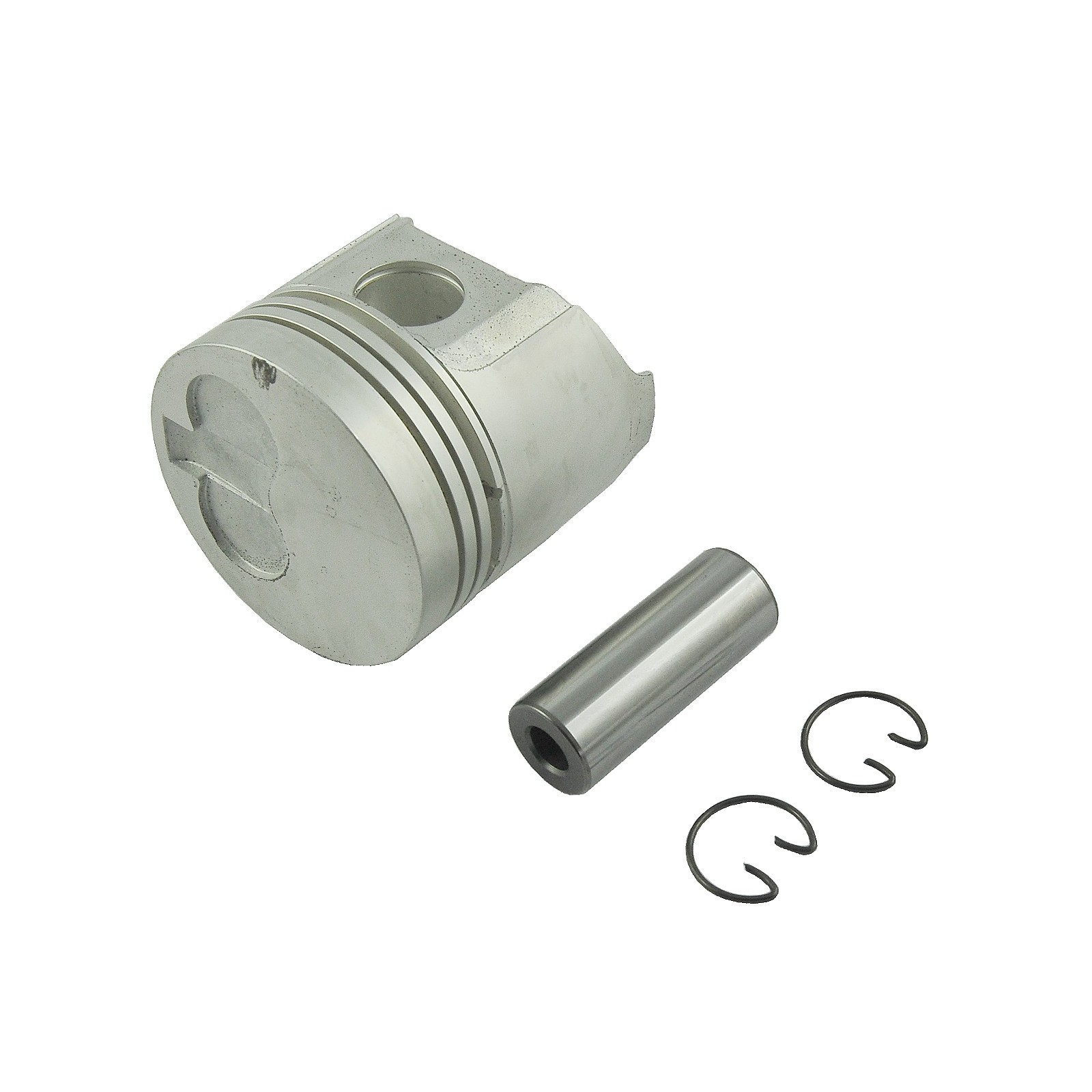

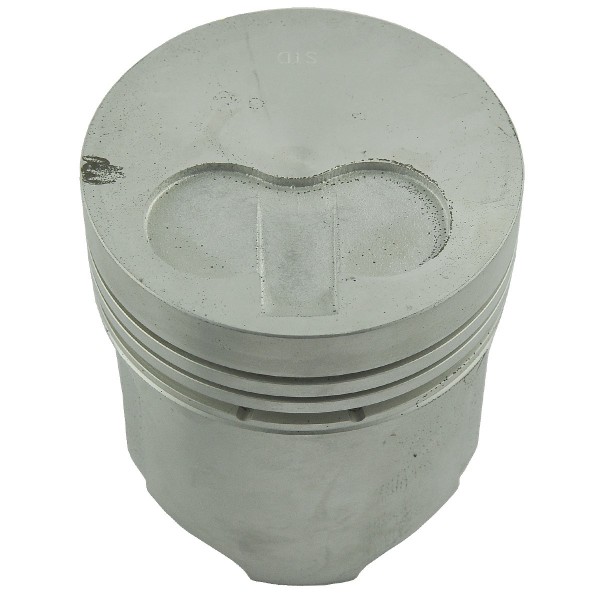

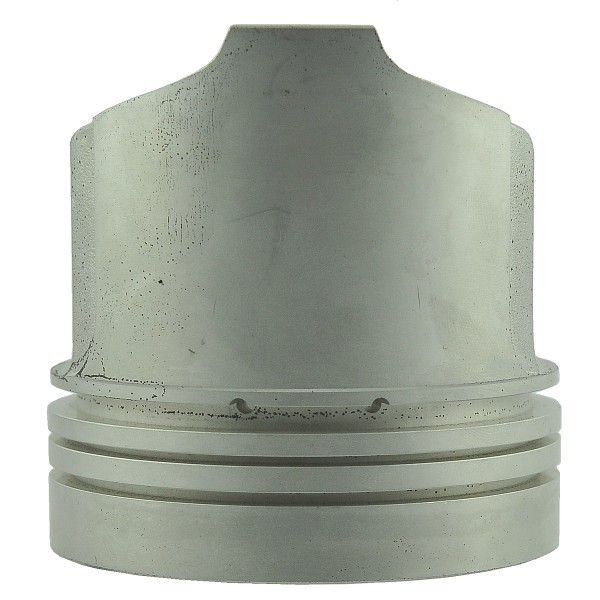

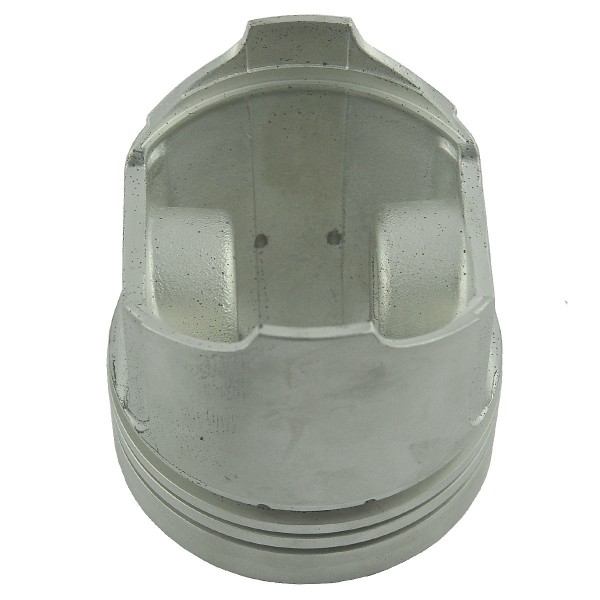

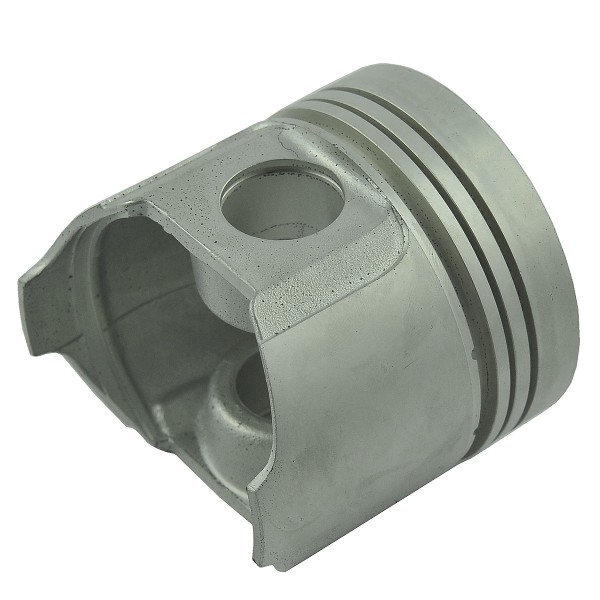

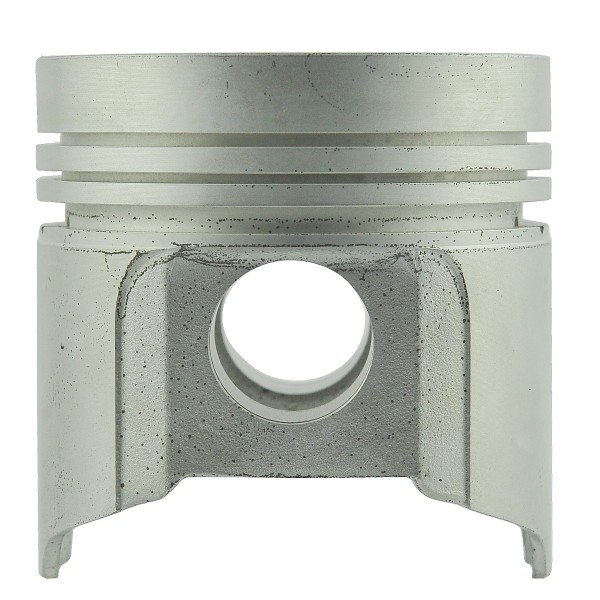

Engine piston with an outer diameter of 84 mm and a total height of 83 mm for Shibaura tractors of the Shibaura P19F, Shibaura P21F series with Shibaura J843 engines and others. The engine piston is a moving element responsible for converting the energy generated during combustion into the movement of the crankshaft. The piston is connected to the crankshaft by an element called a connecting rod with pin connections. At the top of the piston there are annular channels for mounting the piston rings, in the middle there is a hub for connecting to the connecting rod. At the top there is a so-called bottom, which, depending on the type of engine, may have a different shape. Due to work in very difficult conditions, engine pistons are most often made of aluminum and silicon alloys.
Dimensions :
- diameter: 84 mm (STD),
- height: 64 / 83.50 mm.
- pin hole diameter: 24.90 mm.
- distance from end of pin hole to lower edge of piston: 8.80 mm.
- Distance from edge of pin hole to top of piston: 31.30 mm.
- width of ring grooves from top of piston: 2 / 1.5 / 4.00 mm.
- valve seat depth: 2.00 / 3.50 mm.
- original part numbers: 11501-6560, 11501-6710, SBA115016560, SBA115016710,
- part numbers: 5-23-201-43.
Tractor models :
Shibaura :
- Shibaura P19F,
- Shibaura P21F.
Engine model :
Shibaura :
- Shibaura J843.
Magazine : M01:A44
*Photos are for illustrative purposes only and may differ in detail from the delivered product due to differences in production over the years.
Specifications
Podobne produkty
Reviews of Engine..
This product has no reviews yet.
We collect reviews from verified Customers after the purchase of the product.
Questions & Answers
Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?
User
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.
How to properly select and sharpen mower blades for a Japanese tractor?
User
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.
How to identify the correct V-belt size and how to care for it?
User
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
