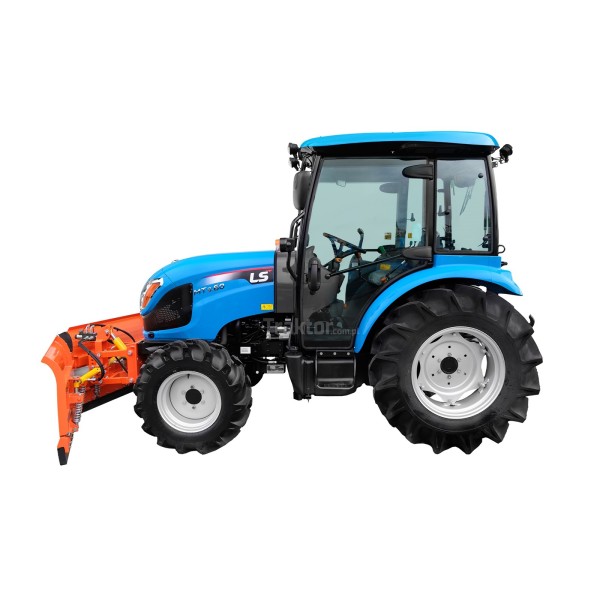

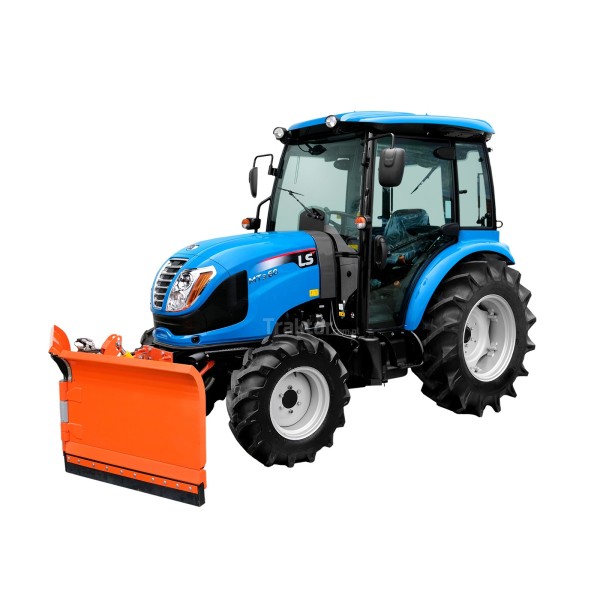

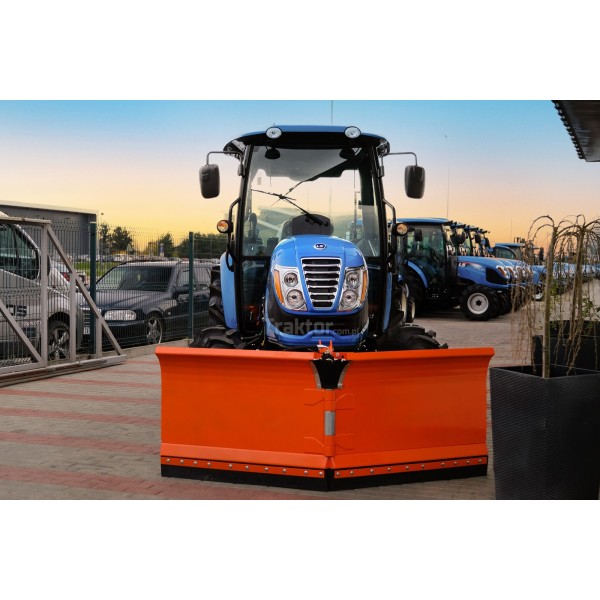

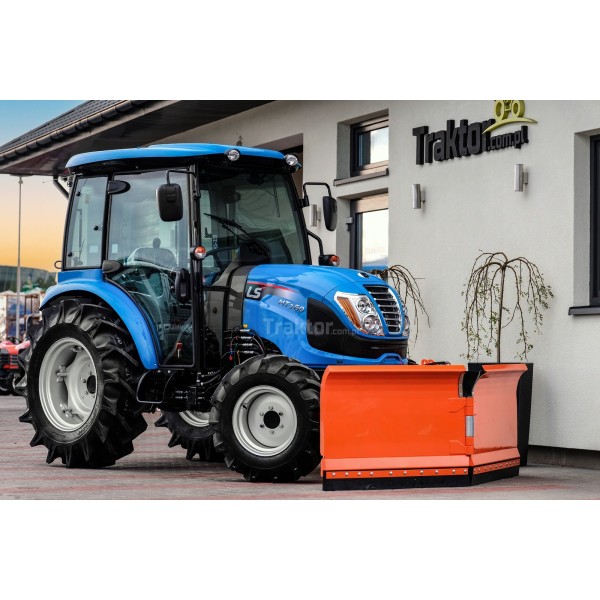

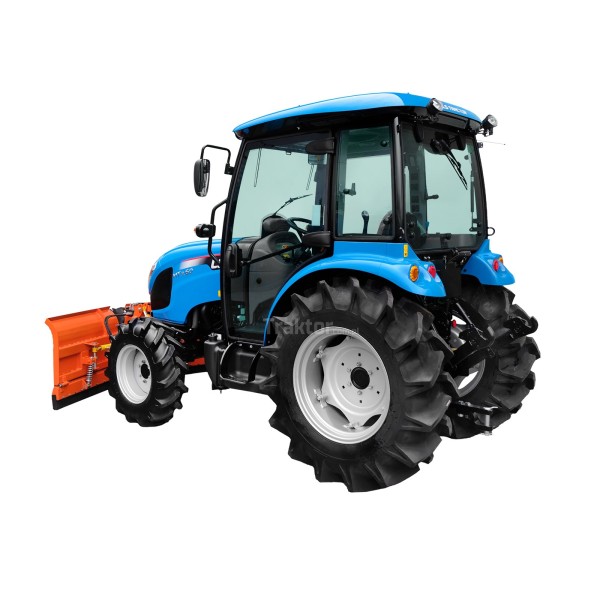

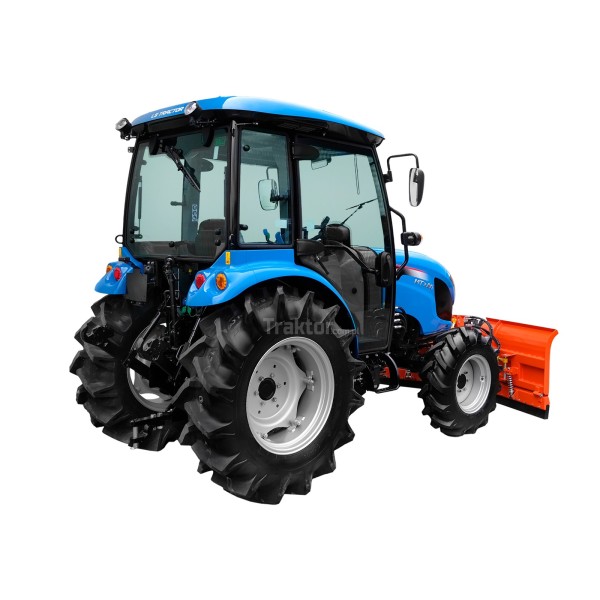

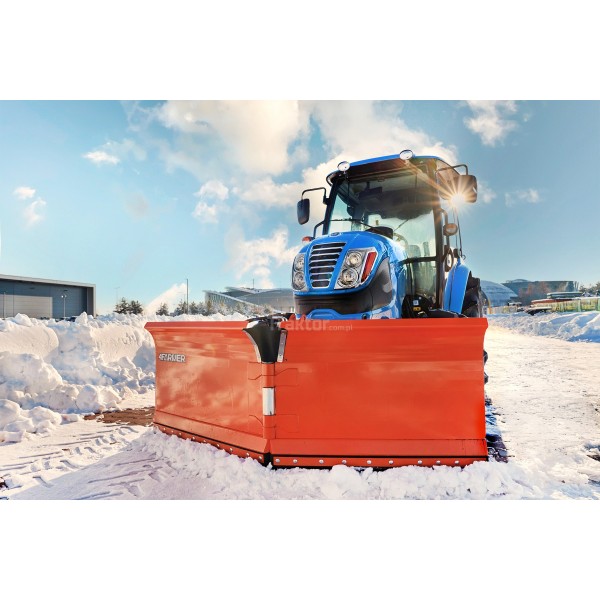

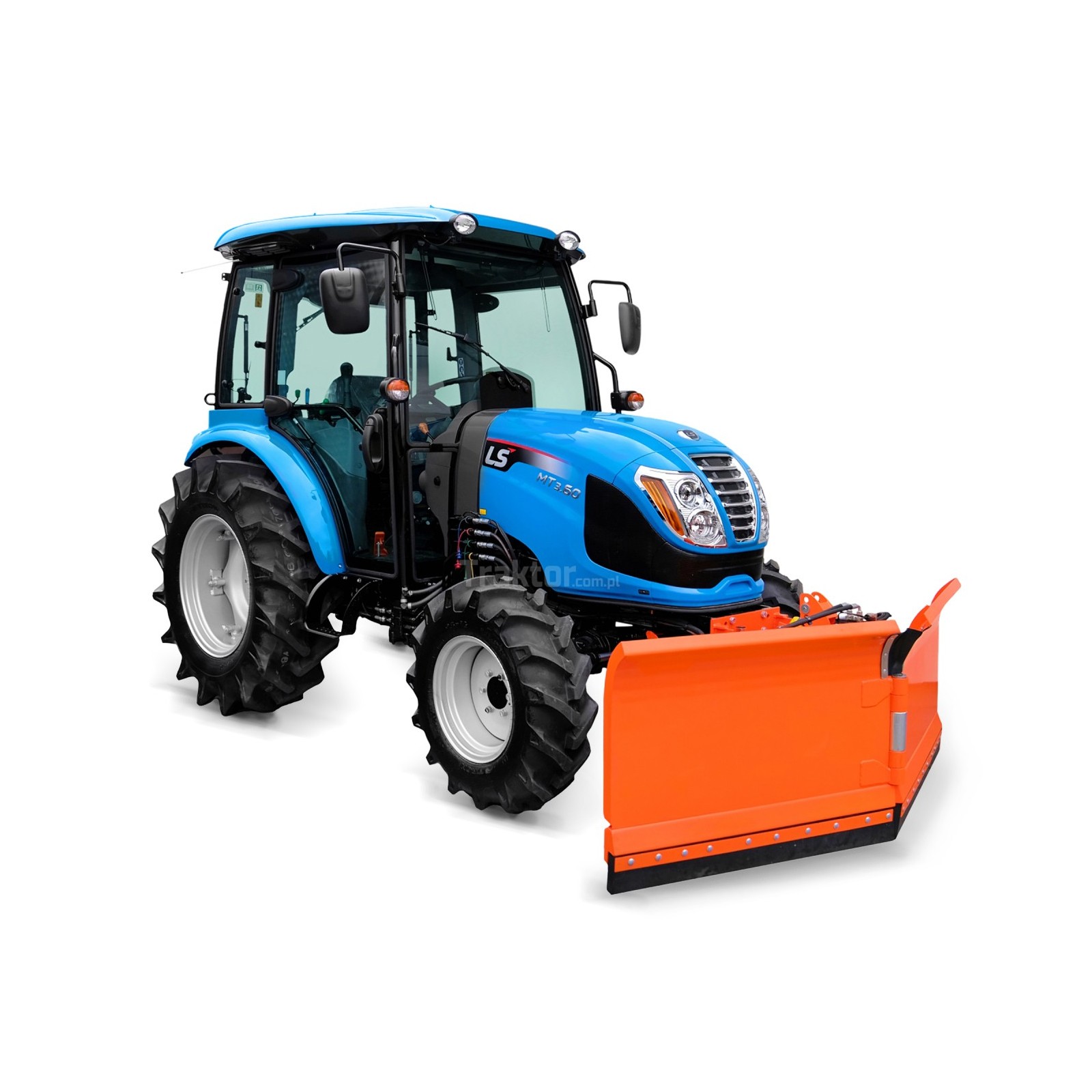

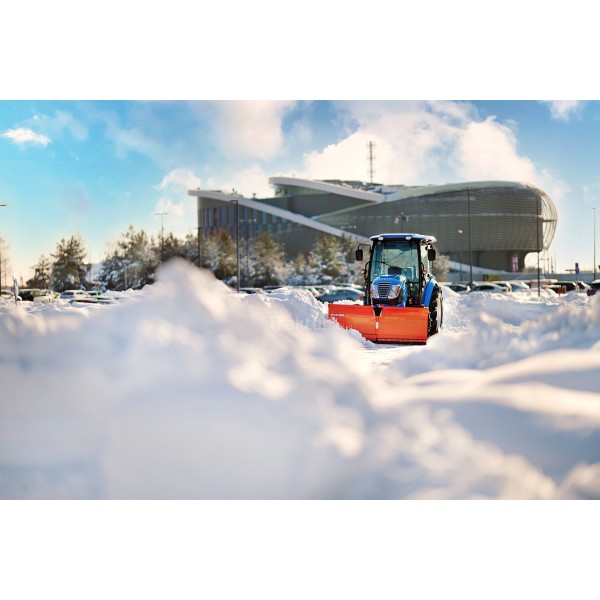

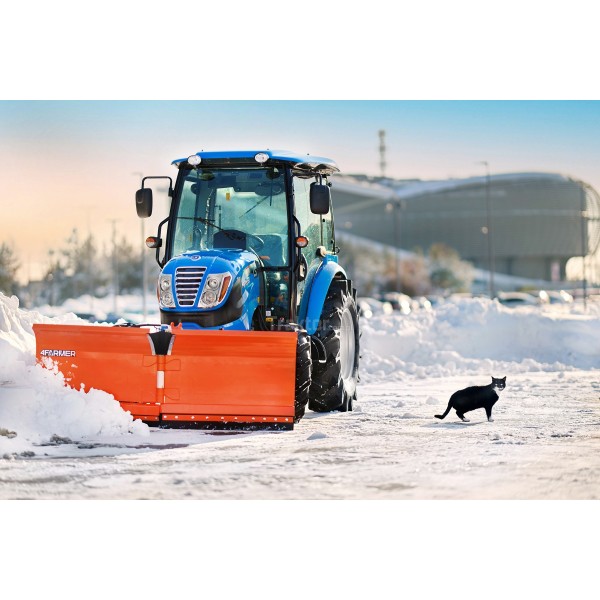

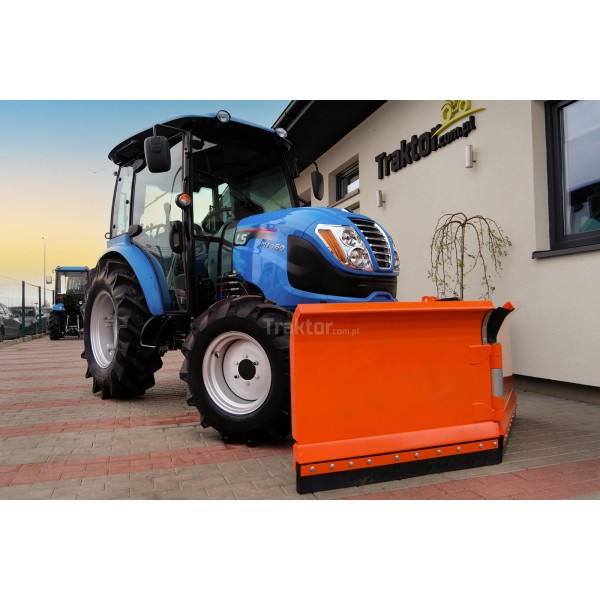

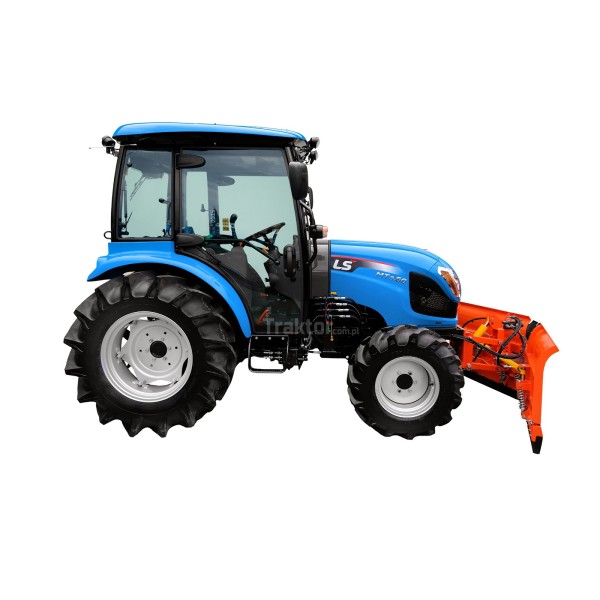

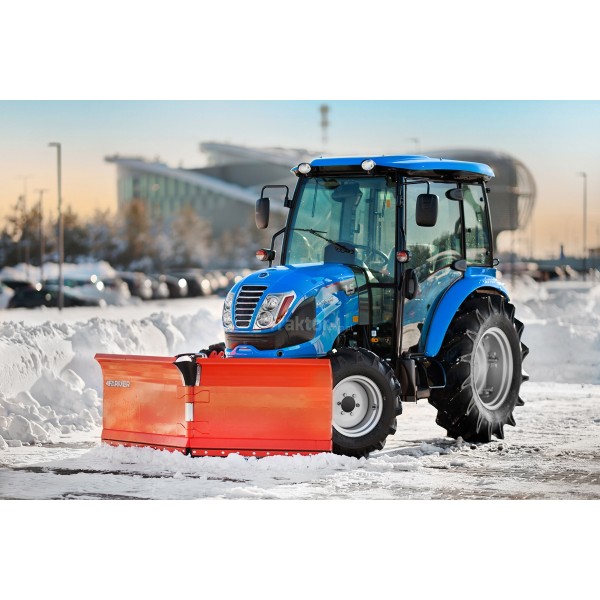

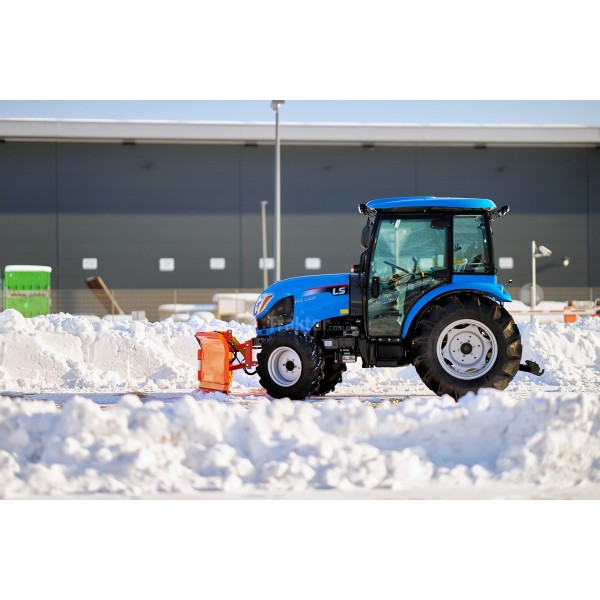

LS Tractor MT3.60 MEC 4x4 - 57 HP / CAB + arrow snow plow 200 cm, hydraulic, with mounting plate 4FARMER
Ergonomic design
LS Tractor MT3 series tractors are, above all, a perfect fit to your needs. You choose how your tractor will be equipped to meet all your expectations. The design of LS Tractor tractors has been designed for versatile use. These machines will prove useful in the field, garden, orchard, plantation, transport and municipal work. Thanks to the tractor configuration options and the availability of accessories dedicated to LS tractors, this machine will be an ideal work partner.
Freedom of configuration
When choosing a tractor from the MT3 series, you can choose it in several variants:
- front safety bar / rear safety bar,
- ergonomic, comfortable cabin,
- agricultural tires / industrial tires,
- manual gearbox with reverse / hydrostatic gearbox.
By choosing the MT3.60 model in the configuration with a comfortable cabin, the tractor becomes an all-season machine.
The lockable, soundproof cabin equips our tractor with air conditioning, heating, radio, wipers and additional LED lighting.
Power = Possibilities
The MT3.60 model is a Premium class tractor. Under the hood of this machine there is a powerful 3-cylinder L3CRV-T7 diesel engine with a power of 57 HP. It guarantees very good operating parameters and high efficiency. Additionally, 8 hydraulic outputs in 4 sections allow you to connect a wide range of accessories to the tractor. The MT3.60 model is equipped with a 3-point linkage Cat I with a lifting capacity of 1250 kg and an independent PTO shaft allow for versatile use of the tractor. Additionally, this tractor has three PTO speeds.
Perfect in its class of tractors

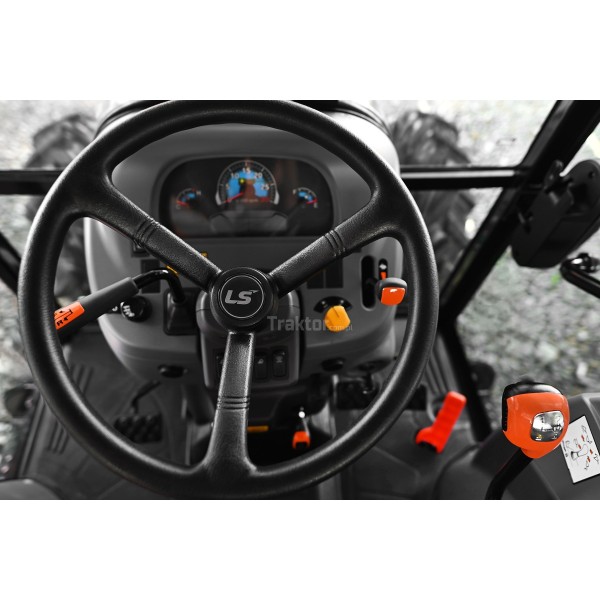

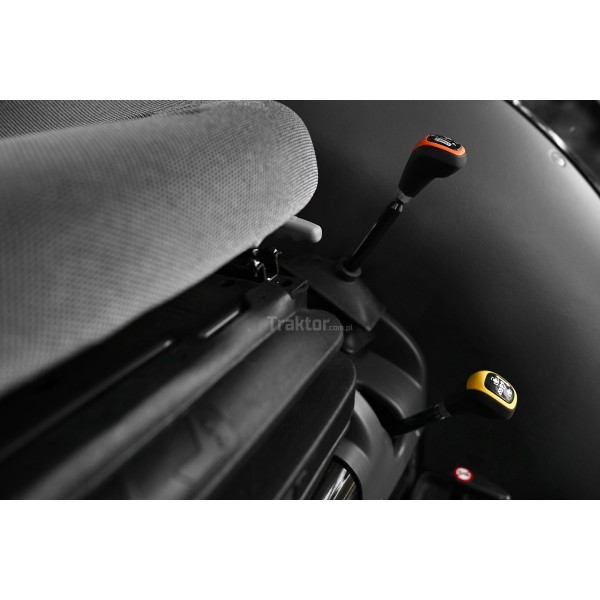

4-wheel drive and power steering make the MT3.60 model the perfect machine, created according to your preferences. In addition to its fantastic capabilities, the MT3.60 tractor gives us great working comfort. A comfortable cushioned seat, seat belts and high-quality finishing of the entire tractor interior make you feel luxurious and, most importantly, safe.
LS Tractor MT3.60 is a model with exceptional versatility that allows you to work with a variety of equipment.
Your LS MT3.60 tractor with high-quality original cab!

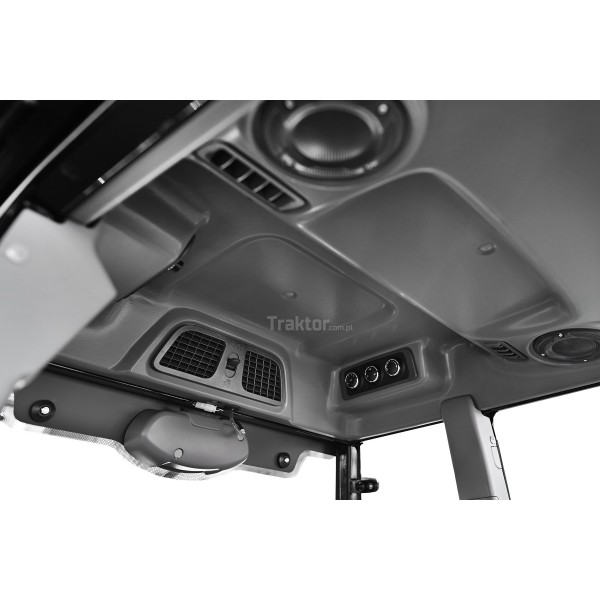

The cabin was very solidly constructed, maintaining the highest production standards. Thanks to the cabin, the LS MT3 model becomes a machine we can rely on in all weather conditions!
The tractor with a cabin is additionally enriched with a heating function, which is so important when working in the winter season.
Additionally, the cabin is equipped with:
- door locks,
- sun visor,
- lighting inside the cabin,
- carpet (plastic),
- front and rear wipers with washers,

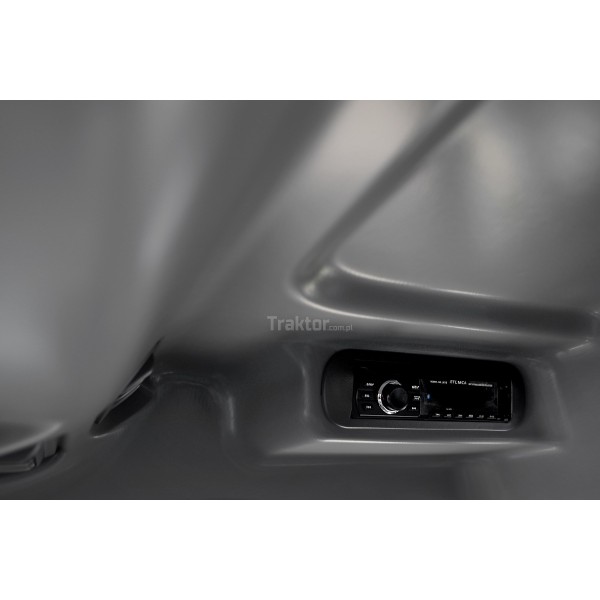

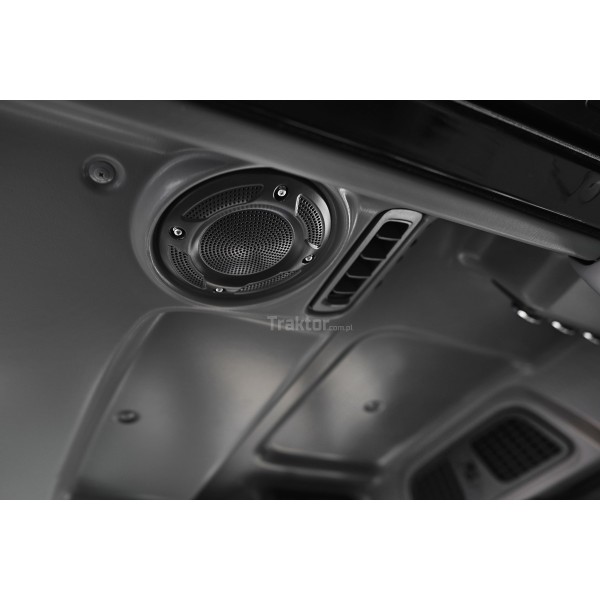

- radio,
- external LED lighting (two lamps at the front and two at the rear of the tractor),
- side mirrors (2 pcs.),
- heater included,
- heater hoses (2 pcs.),
- air conditioning (option).
LS Tractor tractors are modern, high operator comfort and the highest quality of workmanship.
LS Tractor MT3.60 is a model with exceptional versatility that allows you to work with a variety of equipment.
For the wide range of available tractors, the manufacturer also provides professional, dedicated additional equipment (option), such as:

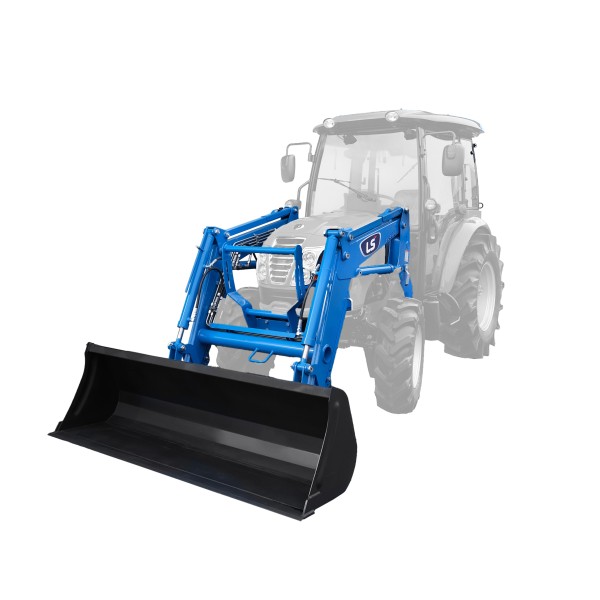

- Front-end loader,
- trailed tractor excavator,
- installation of the front PTO/PTO shaft,
- specialized agricultural/construction/industrial/grass tires and wheels,
- ballast / additional load.

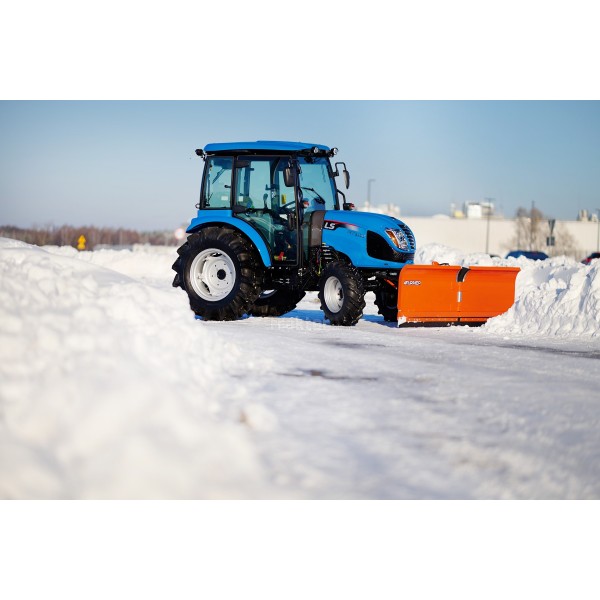

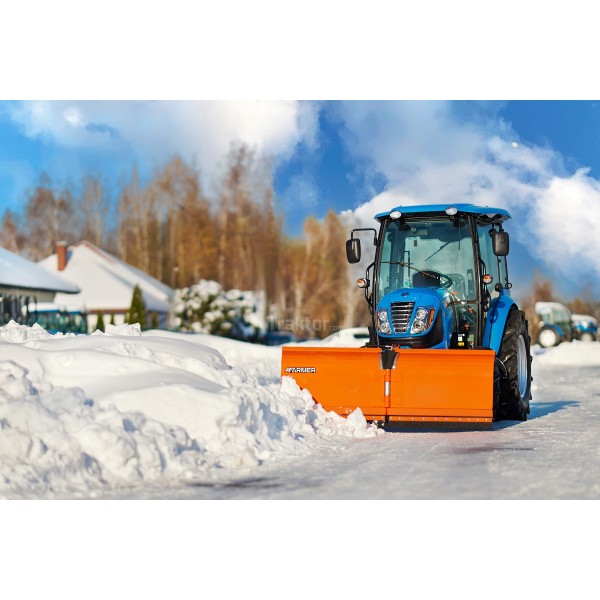

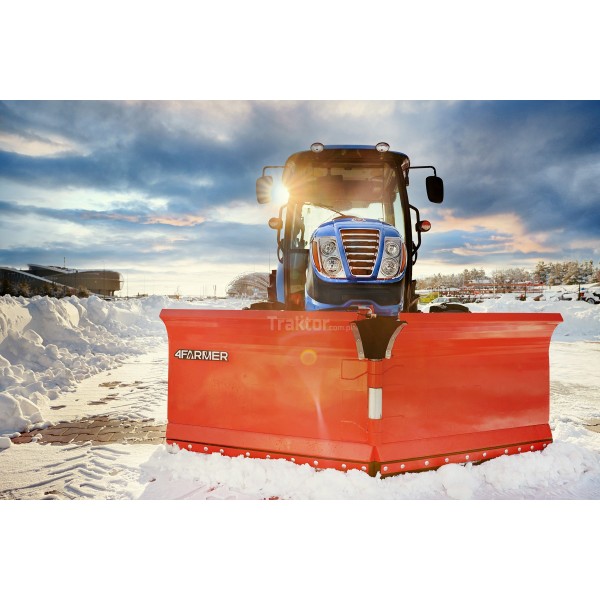

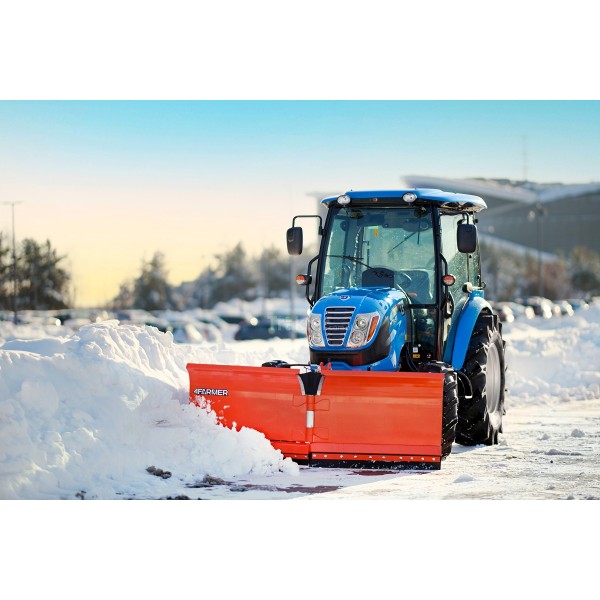

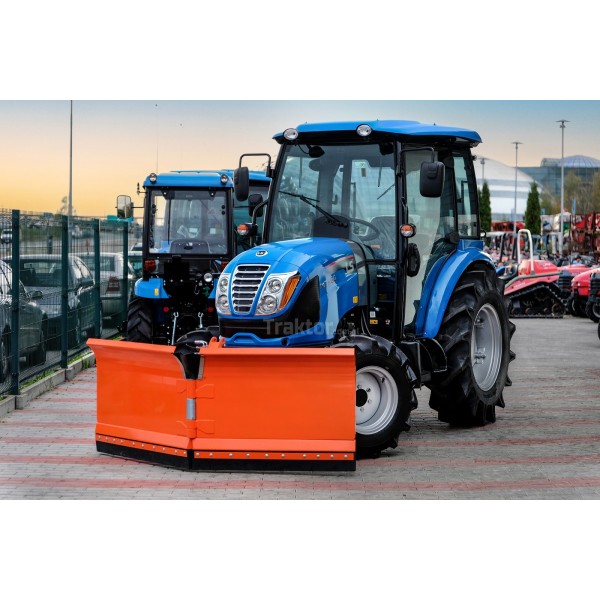

The plow is intended for tractors and mini tractors with a minimum power of approximately 35 HP. The plow is hydraulically operated using three hydraulic cylinders and requires a three-section distributor with a floating section.

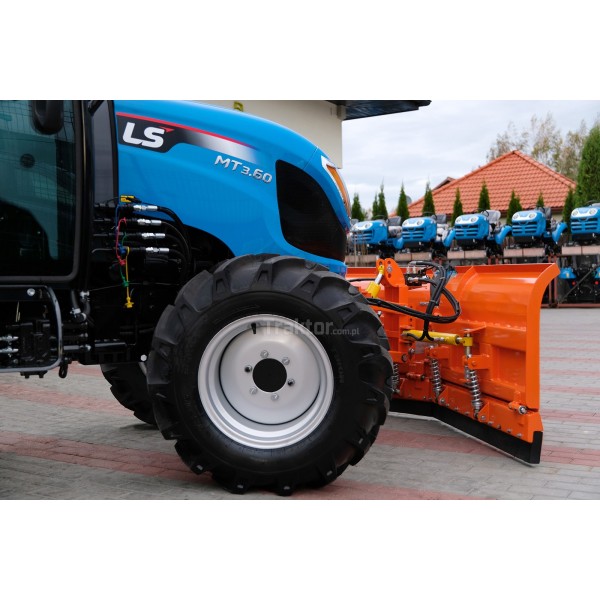

The plow blade has two parts, upper and lower. For the safety of work and the device itself, the lower movable part is equipped with a shock absorption system that tilts back when it encounters an obstacle. Strong springs cushion the operation of the lower part of the blade, which is finished with thick rubber , 40 mm thick and 100 mm high. Rubber is used to protect the surface being cleared of snow.
The mounting plate is sold in a set with the plow , and the spacing of the mounting screws is 240 / 220 / 200 mm horizontally and 140 mm vertically, measured from the center to the center of the mounting screw holes.
Specification
Condition
New
Equipment
Lighting
Seat belt
Snow plow
Engine
4 - stroke with turbine
Liquid-cooled 3-cylinder diesel
with Delphi CRDI (Common Rail Direct Injection) direct fuel injection
Engine model
LS Mtron L3CRV-T7 STAGE V
Power (HP/HP)
57
Power (kW)
42.50
Engine capacity (cc/cc)
1879
Rated engine speed (rpm)
2600
Torque (Nm/rpm)
188 / @ 1600
Fuel tank capacity (L)
47
Drive
4x4 4WD

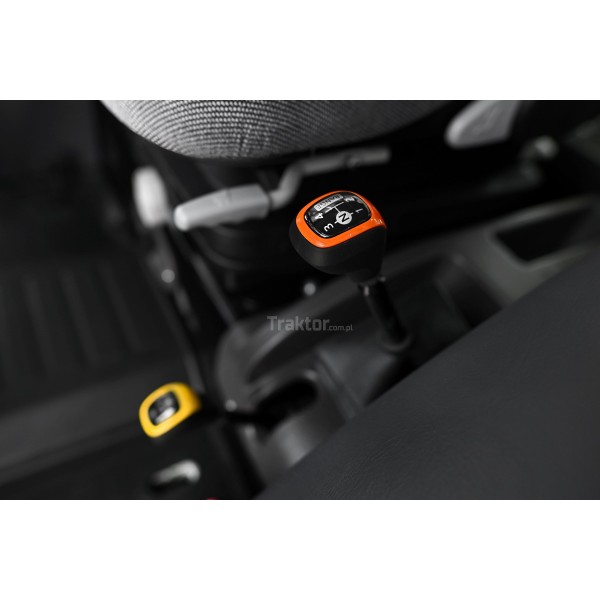

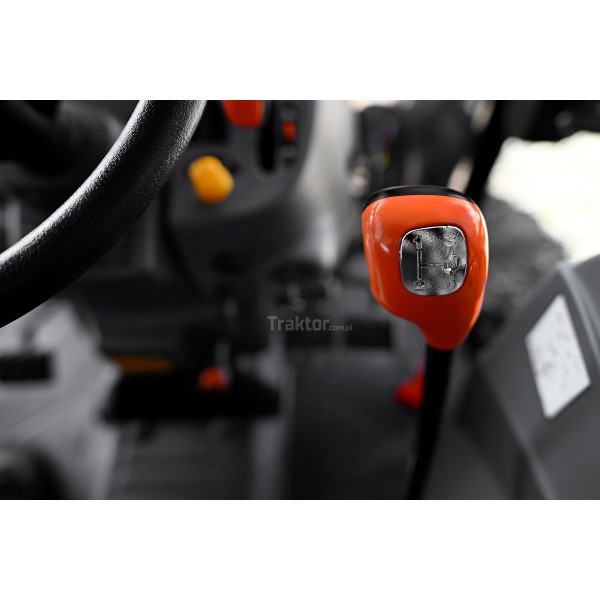

Transmission
Mechanical
synchronized

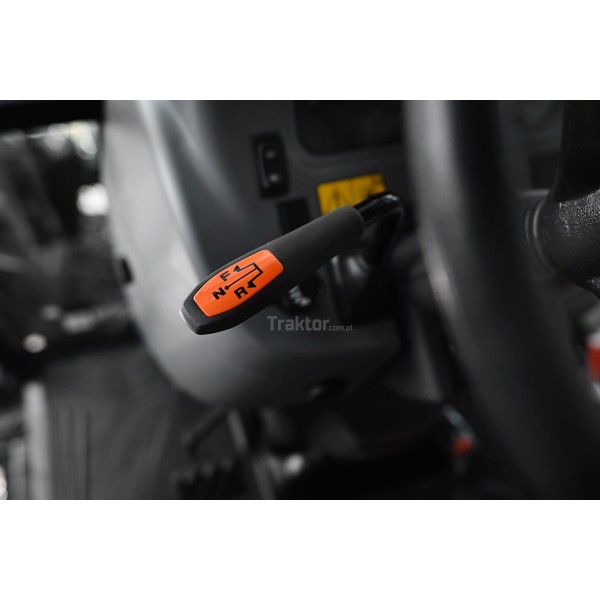

Reverse
Yes
Number of forward/reverse gears
32 / 16 z włączonym reduktorem pełazającym
Driving speed (km/h)
1.07 - 25.89 (back)
1.18 - 28.52 (forward)
Power steering
YES
PTO / PTO
3 speed
540 (@2490)
540 rpm / 1710 rpm (540E PTO)
1000 rpm / 2381 rpm
Independent PTO / PTO with wet clutch activated by knob
PTO/PTO power (kW)
32,3 kW (44KM)
NEXT DOOR
3 point
Adjusting the lowering speed of the rear three-point linkage arms / manual control valve
KAT I
Lifting capacity of three-point linkage at ball ends (kg)
1250
Hydraulic outputs (pcs (EA) / number of sections)
4/2 (front)
4/2 (rear)
More hydraulic outlets (option)
Hydraulic leveling of the rear suspension
No

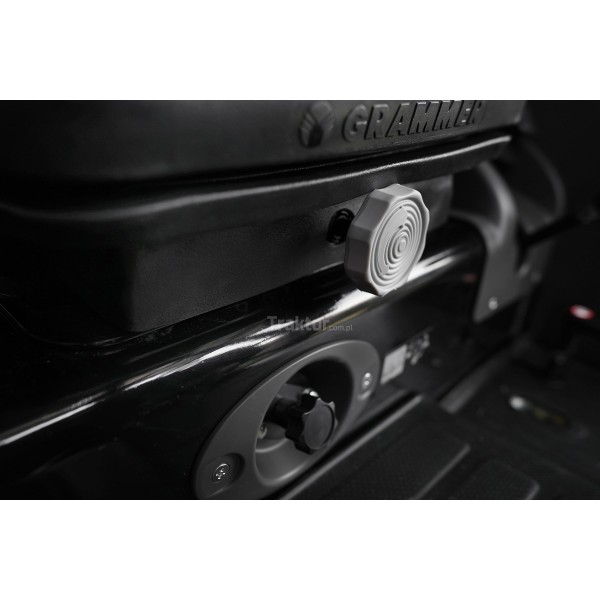

Armchair
Cushioned
comfortable with high backrest
Trailer hitch
Bottom
Upper (option)
Tire type(s)
Agricultural
Cabin
Air condition
Heating
Height (mm)
2283
Wheelbase (mm)
1858
Tire size front/rear
9.5-16 / 13.6-24
turning radius (mm)
2890
Clutch
Dry, single disc
Brakes
Wet
Overall length, bumper to drawbar end (mm)
3253
Ground clearance (mm)
388
Maximum rotation angle of the front wheel ( ° )
+ / - 57
Hydraulic system pressure (MPa/bar)
17.5 (2538psi)
Number of turns of the steering wheel (right / left)
3,7 / 3,7
Rated steering oil flow (l/min)
15.6 (4.1GPM)
Type of candles
Glow plugs
Tread adjustment FRONT (mm)
1244~1444 mm (49.0~56.9 in.)
Track adjustment REAR (mm)
1140~1306 mm (44.9~51.4 in.)
Basic equipment
Cabin
Hydraulic pump capacity (l/min)
30.9 / 60 (option)
