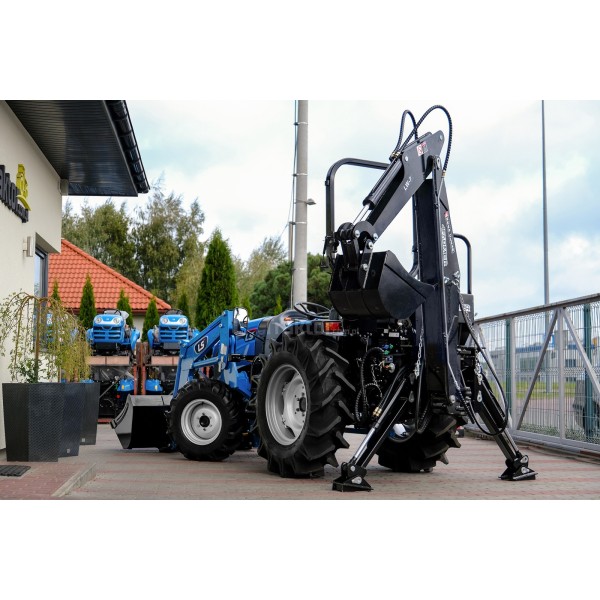

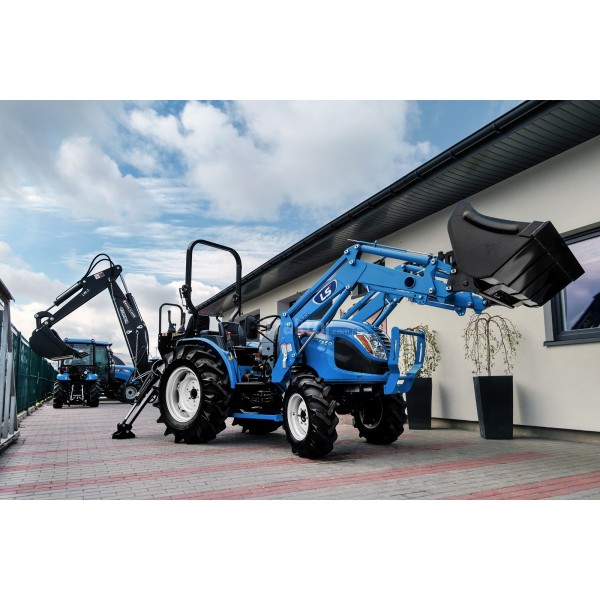

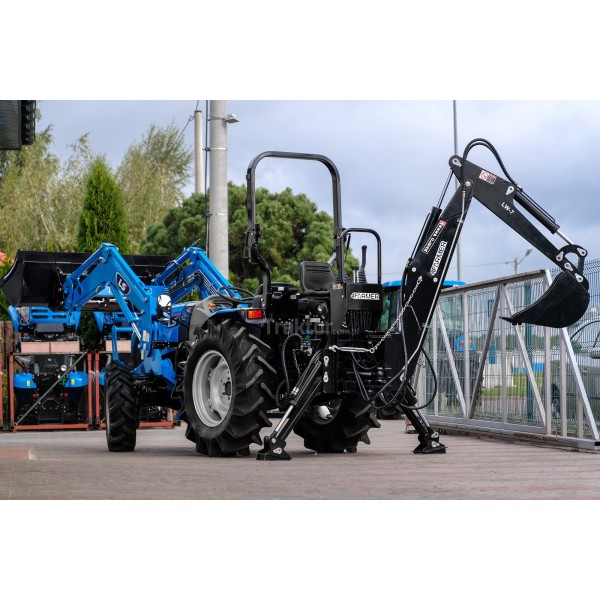

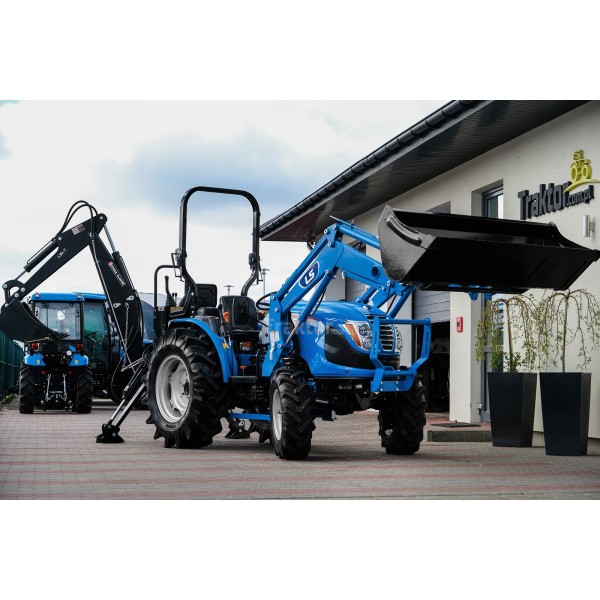

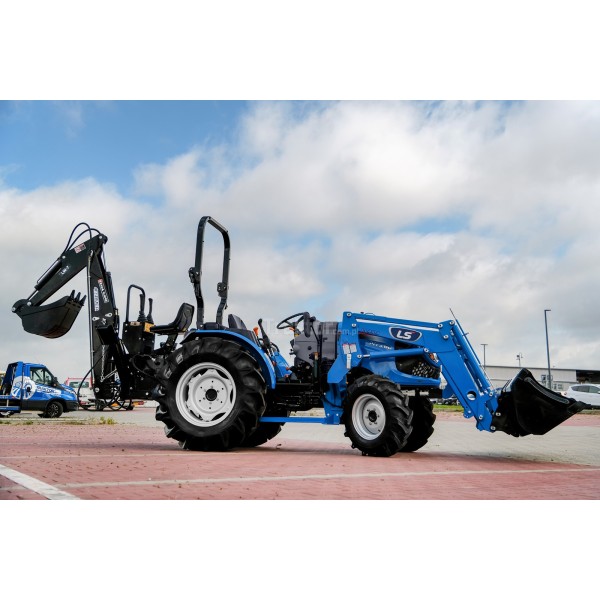

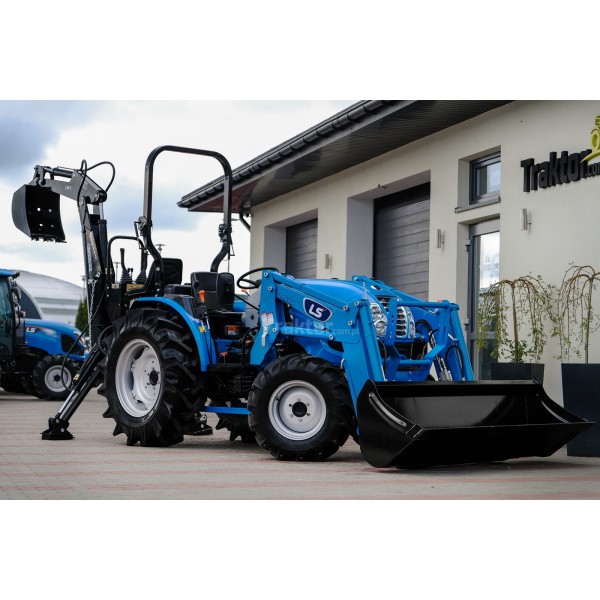

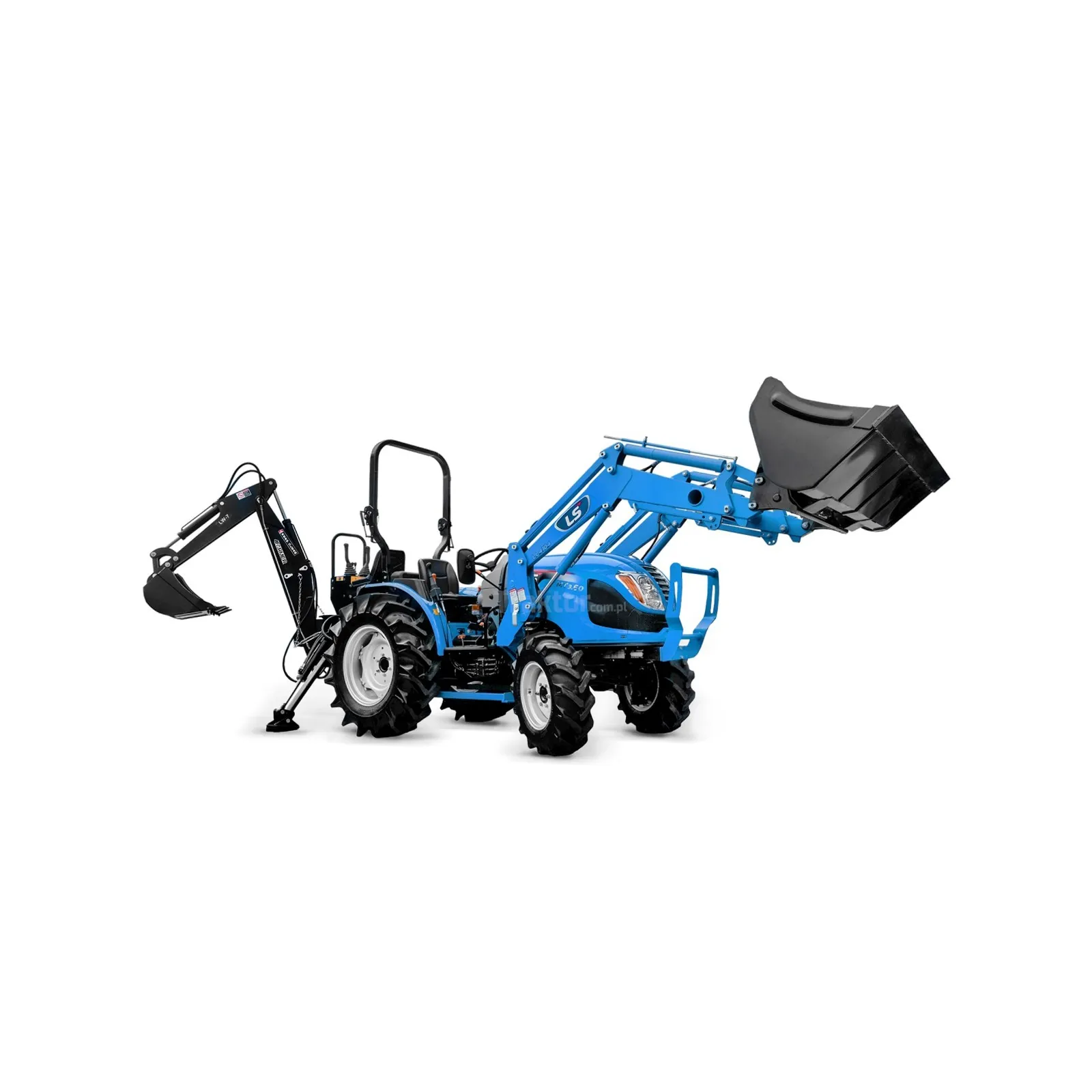

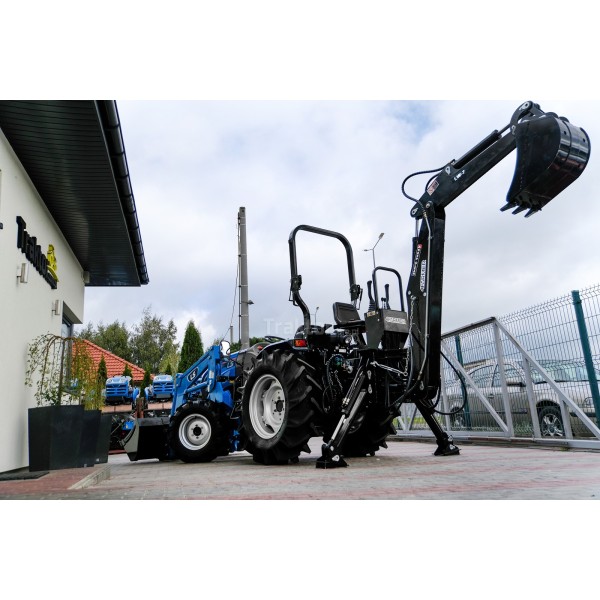

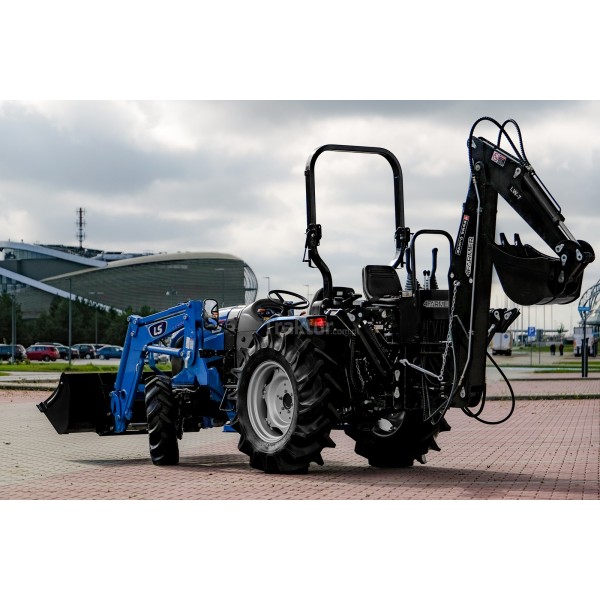

LS Tractor MT3.60 MEC 4x4 - 57 HP + LS LL4104 front loader + LW-7 4FARMER excavator
Ergonomic design
LS Tractor MT3 series tractors are, above all, a perfect fit to your needs. You choose how your tractor will be equipped to meet all your expectations. The design of LS Tractor tractors has been designed for versatile use. These machines will prove useful in the field, garden, orchard, plantation, transport and municipal work. Thanks to the tractor configuration options and the availability of accessories dedicated to LS tractors, this machine will be an ideal work partner.
Freedom of configuration
When choosing a tractor from the MT3 series, you can choose it in several variants:
- front safety bar / rear safety bar,
- ergonomic, comfortable cabin,
- agricultural tires / industrial tires,
- manual gearbox with reverse / hydrostatic gearbox.
By choosing the MT3.60 model in the configuration with a comfortable cabin, the tractor becomes an all-season machine.
The lockable, soundproof cabin equips our tractor with air conditioning, heating, radio, wipers and additional LED lighting.
Power = Possibilities
The MT3.60 model is a Premium class tractor. Under the hood of this machine there is a powerful 3-cylinder L3CRV-T7 diesel engine with a power of 57 HP. It guarantees very good operating parameters and high efficiency. Additionally, 8 hydraulic outputs in 4 sections allow you to connect a wide range of accessories to the tractor. The MT3.60 model is equipped with a 3-point linkage Cat I with a lifting capacity of 1250 kg and an independent PTO shaft allow for versatile use of the tractor. Additionally, this tractor has three PTO speeds.
Perfect in its class of tractors
4-wheel drive and power steering make the MT3.60 model the perfect machine, created according to your preferences. In addition to its fantastic capabilities, the MT3.60 tractor gives us great working comfort. A comfortable cushioned seat, seat belts and high-quality finishing of the entire tractor interior make you feel luxurious and, most importantly, safe.
LS Tractor MT3.60 is a model with exceptional versatility that allows you to work with a variety of equipment.
LS Tractor tractors are modern, high operator comfort and the highest quality of workmanship.
For the wide range of available tractors, the manufacturer also provides professional, dedicated additional equipment (option), such as:
- Front-end loader,
- trailed tractor excavator,
- installation of the front PTO/PTO shaft,
- specialized agricultural/construction/industrial/grass tires and wheels,
- ballast / additional load,
LS Tractor MT3.60 tractor with original front loader
The front loader with the symbol LL4104 is an original, standard front loader dedicated to LS MT3.50 and LS MT3.60 tractors. The so-called front loader TUR, thanks to its very durable construction and well-thought-out construction, is able to carry much greater weight than other tractors of similar size and power. One of the many advantages of this loader is its quick assembly and disassembly, which is possible thanks to, among others: quick hydraulic connectors, euro frame and special storage supports. Quick assembly and disassembly also applies to the bucket itself, the loader can be removed by pulling out two pins, and the operation itself does not require the use of tools.
Safety and comfort of work
The LS front loader has a safety valve that prevents the load from being lifted higher if the loader is overloaded. Automatic bucket adjustment is another convenience and improves the quality of work, the automation is intended to regulate the position of the bucket while the loader arm is moving. Tractors equipped with a hydraulic distributor with a floating section have a bucket protection function; the function automatically folds the bucket when it encounters too large an obstacle.
The loader is standardly equipped with a cover to protect the grill from damage.
The most important features of the LL4104 loader
- Load capacity: 1233 kg,
- Mounting type: EURO,
- Bucket width: 1828 mm,
- Maximum lifting height: 2355 mm, 2065 mm (bucket in horizontal position), 1354 mm (bucket fully lowered),
- Bucket capacity: 0.37 m3,
- Lifting time to maximum height without load: 4.4 s,
- Descent time from maximum height: 4.4 s,
- Maximum bucket tipping time: 2.6 s,
- Time for maximum unscrewing of the bucket to the horizontal position: 3.9 s.
The LW 4FARMER excavator is intended for small earthworks in households and agriculture and is intended for tractors with a minimum power of 30 HP (+/- 5 HP) and a digging depth of 240 cm. The tractor excavator consists of its own hydraulic pump, frame, lifting arm, hydraulic cylinders, stabilizing supports and bucket, and a control cockpit with an operator's seat. The excavator's hydraulic system is driven by its own hydraulic pump connected to the tractor's PTO/PTO shaft and has its own oil tank, thanks to which the excavator has an independent oil system, which means that the tractor's hydraulic oil does not mix with the hydraulic oil. excavators.
LS Tractor tractors are modern, high operator comfort and the highest quality of workmanship.
Specification
Condition
New
Equipment
Excavator
Front loader TUR
Lighting
Seat belt
Engine
4 - stroke with turbine
Liquid-cooled 3-cylinder diesel
with Delphi CRDI (Common Rail Direct Injection) direct fuel injection
Engine model
LS Mtron L3CRV-T7 STAGE V
Power (HP/HP)
57
Power (kW)
42.50
Engine capacity (cc/cc)
1879
Rated engine speed (rpm)
2600
Torque (Nm/rpm)
188 / @ 1600
Fuel tank capacity (L)
47
Drive
4x4 4WD
Transmission
Mechanical
synchronized
Reverse
Yes
Number of forward/reverse gears
32 / 16 z włączonym reduktorem pełazającym
Driving speed (km/h)
1.07 - 25.89 (back)
1.18 - 28.52 (forward)
Power steering
YES
PTO / PTO
3 speed
540 (@2490)
540 rpm / 1710 rpm (540E PTO)
1000 rpm / 2381 rpm
Independent PTO / PTO with wet clutch activated by knob
PTO/PTO power (kW)
32,3 kW (44KM)
NEXT DOOR
3 point
Adjusting the lowering speed of the rear three-point linkage arms / manual control valve
KAT I
Lifting capacity of three-point linkage at ball ends (kg)
1250
Hydraulic outputs (pcs (EA) / number of sections)
4/2 (front)
4/2 (rear)
More hydraulic outlets (option)
Hydraulic leveling of the rear suspension
No
Armchair
Cushioned
comfortable with high backrest
Trailer hitch
Bottom
Upper (option)
Tire type(s)
Agricultural
Cabin
Air condition
Heating
Height (mm)
2283
Wheelbase (mm)
1858
Tire size front/rear
9.5-16 / 13.6-24
turning radius (mm)
2890
Clutch
Dry, single disc
Brakes
Wet
Overall length, bumper to drawbar end (mm)
3253
Ground clearance (mm)
388
Maximum rotation angle of the front wheel ( ° )
+ / - 57
Hydraulic system pressure (MPa/bar)
17.5 (2538psi)
Number of turns of the steering wheel (right / left)
3,7 / 3,7
Rated steering oil flow (l/min)
15.6 (4.1GPM)
Type of candles
Glow plugs
Tread adjustment FRONT (mm)
1244~1444 mm (49.0~56.9 in.)
Track adjustment REAR (mm)
1140~1306 mm (44.9~51.4 in.)
Basic equipment
Roll bar (ROPS)
Hydraulic pump capacity (l/min)
30.9 / 60 (option)
