Product description

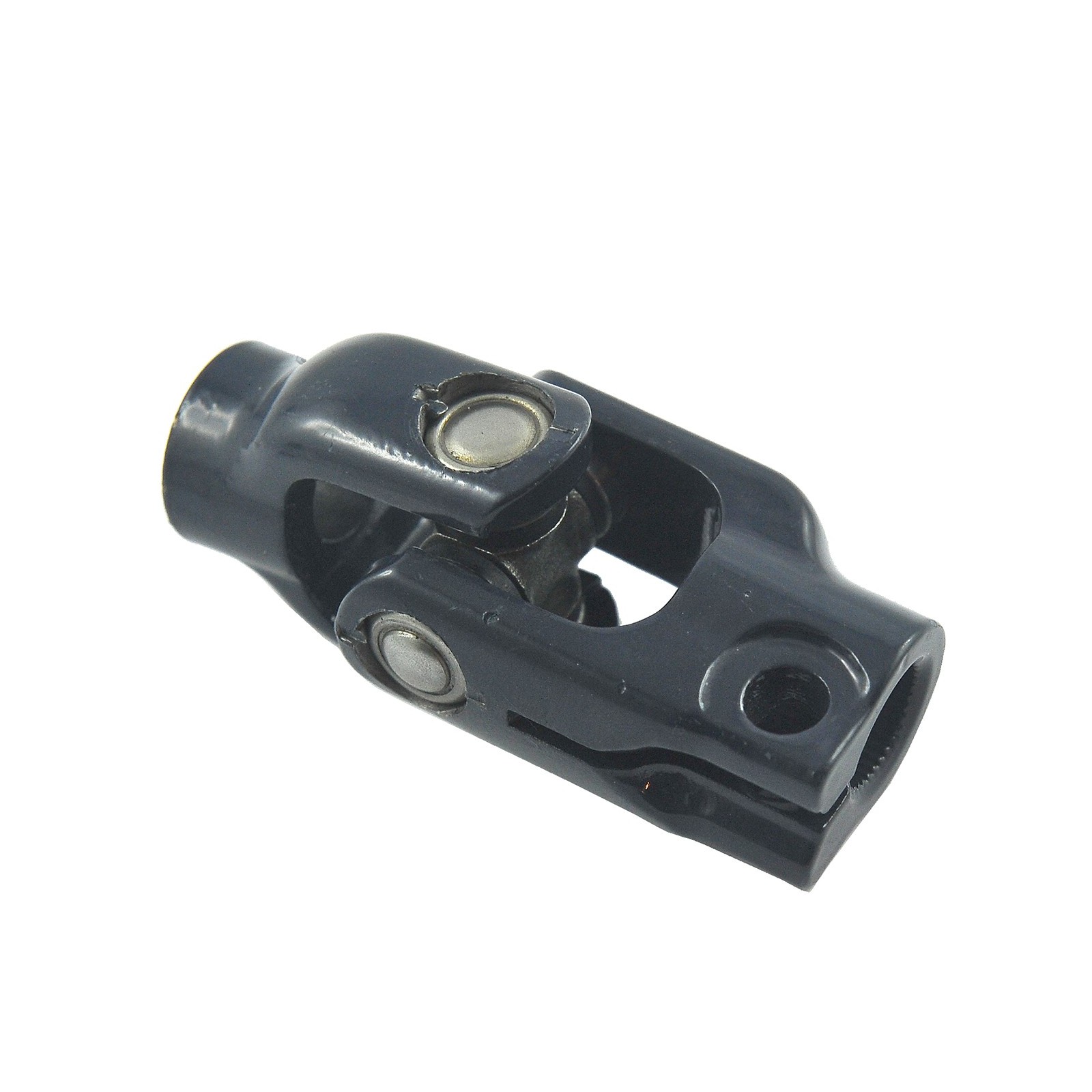

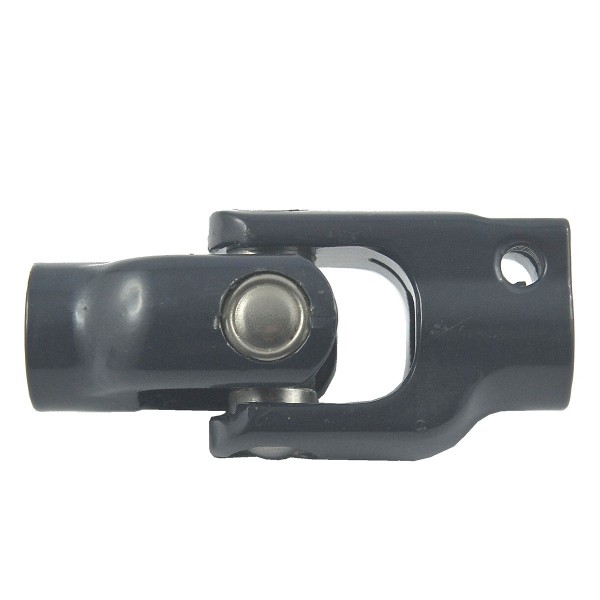

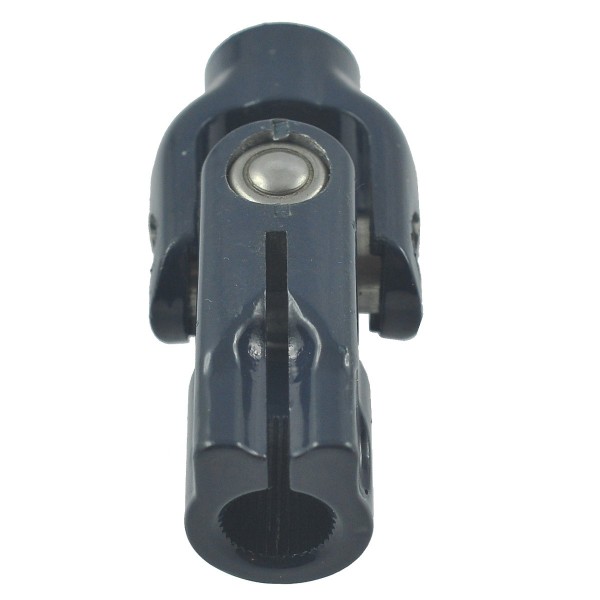

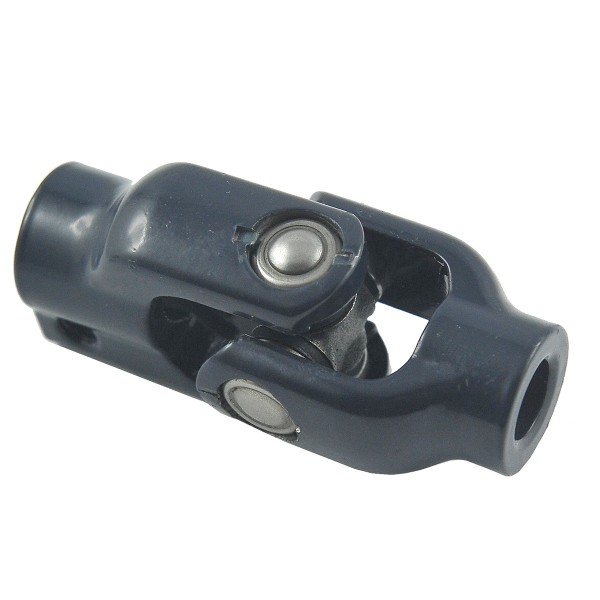

Cardan joint (second shaft 6-07-102-01 , 31341-16961) with a total length of 89 mm for Kubota tractors of the Kubota L1-18, Kubota L1-20, Kubota L1-22, Kubota L1-24, Kubota L1-26, Kubota L1-28, Kubota L1-33, Kubota L1-43, Kubota L1-45, Kubota L1-48, Kubota L1-185, Kubota L1-195, Kubota L1-205, Kubota L1-215, Kubota L1-225, Kubota L1-235, Kubota L1-305, Kubota L1-315, Kubota L1-325 series and others.
A cardan joint, universal joint or pivot joint is an element whose main task is to transfer drive, torque from the driving shaft to the driven shaft, which may be at a significant angle to each other. A cardan clutch, universal joint or pivot clutch are all correct names for a joint that consists of two fork-shaped elements connected to each other by a cross connection. Cardan joints are available with shafts, with ends with a milling cutter or a fork locked with a wedge.
Dimensions :
- total length: 89 mm,
- cross dimensions: 40 x 40 mm,
- cross diameter: 15 mm,
- inner diameter: 13.50 mm,
- cutter diameter 15 mm (measured between cutter teeth), 14.20 mm (measured together with the cutter),
- number of teeth: 28T ,
- original part numbers: 31341-16732,
- part numbers: 6-07-102-02.
Tractor models :
Kubota :
- Kubota L1-18,
- Kubota L1-20,
- Kubota L1-22,
- Kubota L1-24,
- Kubota L1-26,
- Kubota L1-28,,
- Kubota L1-33,,
- Kubota L1-43,
- Kubota L1-45,
- Kubota L1-48,
- Kubota L1-185,
- Kubota L1-195,
- Kubota L1-205,
- Kubota L1-215,
- Kubota L1-225,
- Kubota L1-235,
- Kubota L1-305,
- Kubota L1-315,
- Kubota L1-325.
Warehouse :
M01:A38:S03
Specifications
Podobne produkty
Reviews of Cardan shaft..Reviews of Cardan shaft / 28T / 89 mm / Kubota L1-18 / L1-20 / L1-22 / L1-24 / L1-185 / L1-26 / L1-215 / L1-235
Questions & Answers
Why is regular filter replacement (oil, air, fuel) crucial for a mini tractor?
User
Regular filter replacement is the easiest way to extend the life of an engine from brands like Kubota or Yanmar. The oil filter removes metallic contaminants generated during operation, the air filter protects the cylinders from field dust, and the fuel filter prevents water and dirt from damaging the precision injection system. We recommend replacing filters every 50-100 operating hours or at least once per season to ensure optimal engine performance.
How to properly select and sharpen mower blades for a Japanese tractor?
User
When selecting mower blades, consider the mower deck model and the blade length and center bore diameter. Maintaining blade balance is crucial when sharpening – an unbalanced blade causes vibrations that damage the hub bearings. Remember that sharp blades mean healthier grass, a cleaner cut, and less strain on the engine of your Iseki or Mitsubishi tractor.
How to identify the correct V-belt size and how to care for it?
User
It's best to read the markings on the side of the old V-belt. If they are illegible, measure the belt width and its outer length (La). On Shibaura and Hinomoto tractors, it's important to regularly check the belt tension – too loose a belt will cause slippage and faster wear, while too tight a belt can cause alternator or water pump bearing failure.
