To order
Condition
New
Production
Substitute
Parts
Hydraulic system
Tractor models
Kubota M7040
Number of teeth (pcs/T-teeth)
15T
Hole diameter (mm)
28.50 (IN), 14.90 / 14.90 (OUT)
Dimensions (mm)
155 x 90 x 90

Hydraulic pump Kubota M7040 / 15T / 3C001-82202 / 6-15-105-09

6-15-105-09
zł2,990.00
Tax included PL 23% Dostępny na zamówienie

2430,89 netto

  • To order

Do you have any questions?

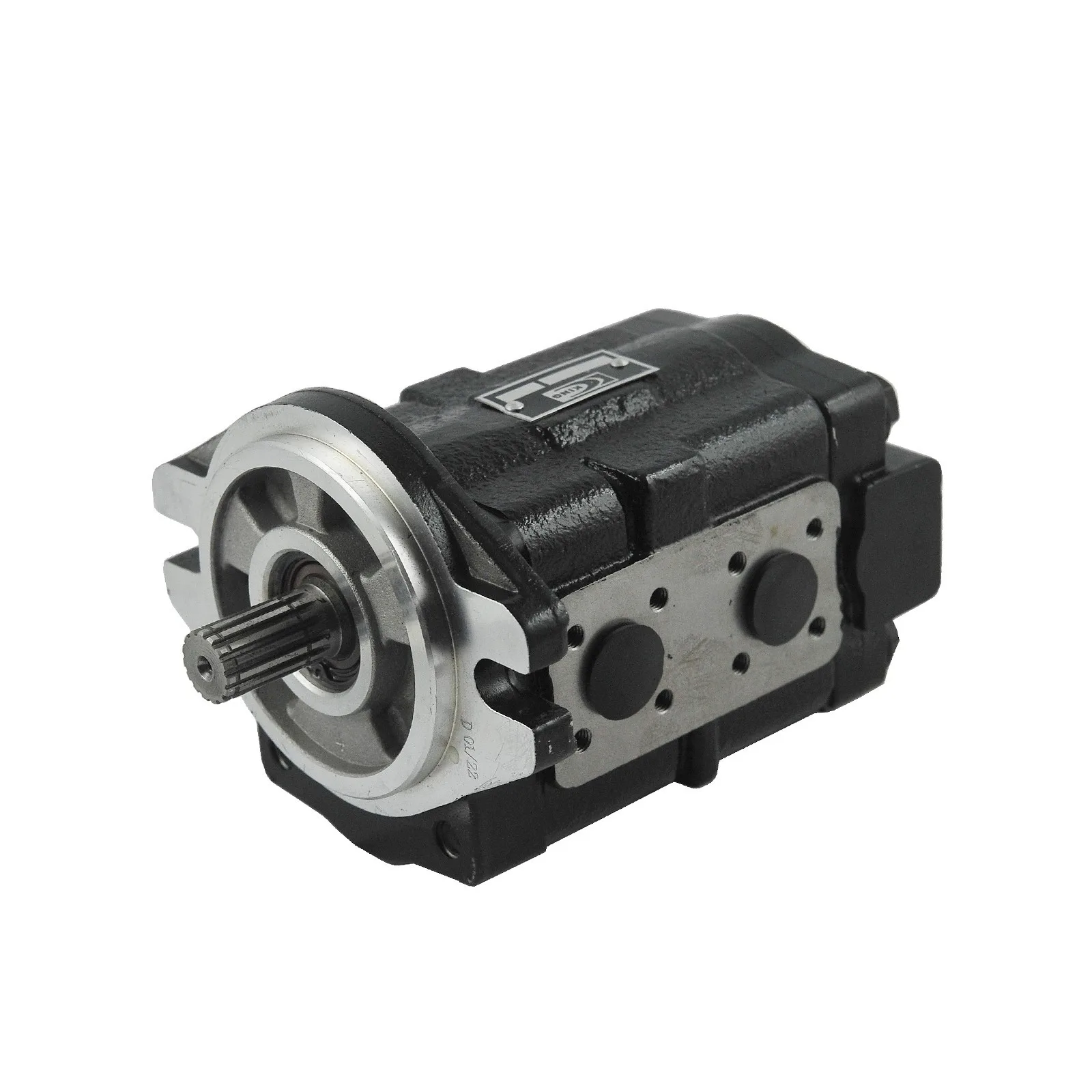

Hydraulic pump Kubota M7040 / 15T / 3C001-82202 / 6-15-105-09

Hydraulic pump with dimensions 155 x 90 x 90 mm for Kubota tractors of the Kubota M7040 series and others..

The gear hydraulic pump is a device responsible for the operation of the rear linkage, additional hydraulically operated equipment, and in modern tractors , the hydraulic pump is responsible for power steering. Using a hydraulic pump, we can control additional functions of an agricultural trailer, flail mower, tiller or TUR front loader. The hydraulic pump operates using the tractor's hydraulic system and is powered by the tractor's drive system (e.g. crankshaft). Hydraulic oil pumped into the pump goes to the high pressure regulating valve, where the excess returns to the gearbox and then goes to the main distributor. Some hydraulic pumps may have additional sections that supply oil under increased pressure to the steering system.

Technical data :

  • dimensions: 155 x 90 x 90 mm,
  • diameter of holes for mounting screws: 11.30 mm,
  • spacing of holes for mounting screws: 106 mm,
  • diameter of hydraulic holes: 28.50 mm (IN), 14.90 / 14.90 mm (OUT),
  • spacing of holes for mounting screws: inlet (IN) 57 mm (measured diagonally), 35/45 mm (measured from each other),
  • spacing of holes for mounting screws: outlet (OUT) 36 mm (diagonal), 25/25 mm (measured from each other),
  • number of teeth: 15T,
  • original part numbers: 3C001-82202,
  • part numbers: 6-15-105-09.

Tractor models :

Kubota :

  • Kubota M7040.

The first signs of a hydraulic pump failure are the lift falling too quickly or problems with trailer control. Most often, the control valve or pump seals fail, and in both cases the pumps can be successfully regenerated.

Warehouse :
M01:B42

Specification

Magazyn: M01:B42
Condition
New
Production
Substitute
Parts
Hydraulic system
Tractor models
Kubota M7040
Number of teeth (pcs/T-teeth)
15T
Hole diameter (mm)
28.50 (IN), 14.90 / 14.90 (OUT)
Dimensions (mm)
155 x 90 x 90
Mounting bolt(s) hole diameter (mm)
11.90
Bolt hole spacing (mm)
36 / 25/25 (OUT)
57 / 35/45 (IN)
106
Original Part Number (OEM)
3C001-82202
Part number
6-15-105-09
